Clangsonic 28k high quality solvent cleaning ultrasonic washing machine ultrasonic pipe cleaning



Ultrasonic Cleaner R Series are integrated ultrasonic cleaning machine suitable for industrial applications. The core component ultrasonic generator adopts advanced T technology platform which has high cleaning efficiency, simple operations and no need of debugging on site. It can be widely used in metal products, auto parts, electronics cleaning etc.

Clangsonic ultrasonic cleaner are mainly used in industry . Size and power can be customized by your request.



Advantages



1. Efficient Cleaning

    Adopting peak modulation technology which can breakdown the bubbles more quickly and remove the stubborn stains easily. Under same conditions, the breakdown speed of foil is significantly improved.



2. Stable Output

    Self-adaption technology can ensure the machine to fit to load changing perfectly, such as different liquid level, liquid temperature changing and workpiece movement. Ultrasonic performance will keep still.



3. High Conversion Efficiency

    The conversion efficienty of ultrasonic and electric energy is more than 95%. The energy conservation is more than others at same ultrasonic power output.



4. Simple Operation
    Fill in liquid ,put into the workpiece and turn on switches. Ultrasonic cleaning can be started in only 3 steps. All the parameters will be matched automatically.

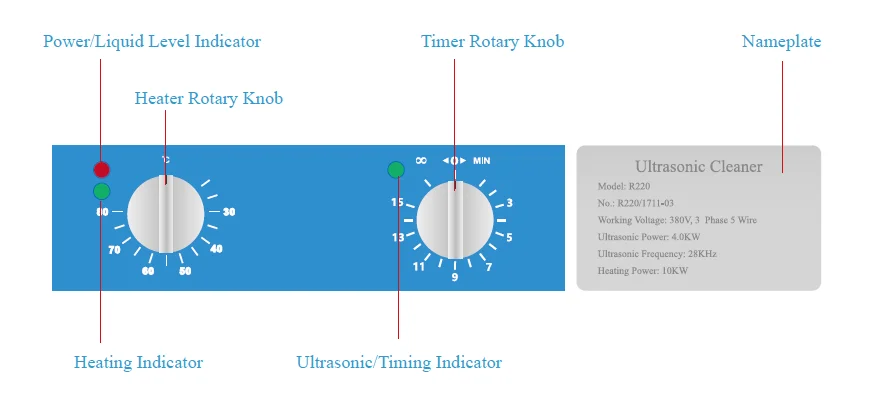

Front Panel

Feature

1. Frequency Tracking- Tracking the best frequency in the cleaning process. Automatically adjust the frequency to the optimum point according to the different liquid environment in the inner tank.
2. Load Self-adapation- System automatically adjusts the generator output to maintain constant power to the transducers according to the different working environment
3. Sweep- Using the sweep function means that a more homogenous sounding of the bath is achieved which results in improved cleaning performance through out the bath
4. Power Adjustable Linearly- 10-100% adjustable linearly
5. Timer- 0-15min. Adjustable or Normally Open
6. Heater- 0-80°C adjustable
7. Industrial Level LCD Display- Supporting parameters settings and status monitoring
8. External Control- Connectable to PLC and HMI
9. Communication- RS485 MODBUS RTU



Application



Specification



Package Information



Delivery Time



Standard product will be shipped out within 7 working days after payment received!!





Payment Methods



1.T/T



2.L/C



3.D/P



4.D/A



5.West Union



6.Paypal



7.MoneyGram



8.Escrow





Warranty



100% brand new when leaving the factory. The seller guarantee quality of the products  (excluding wearing parts) for a period of 1 year from the date of trial run finish under our technician's guidence.
