GreenTouch 50

Цена:75,00 $ - 77,00 $*

Количество:

Basic Specification GT-IR-TB50

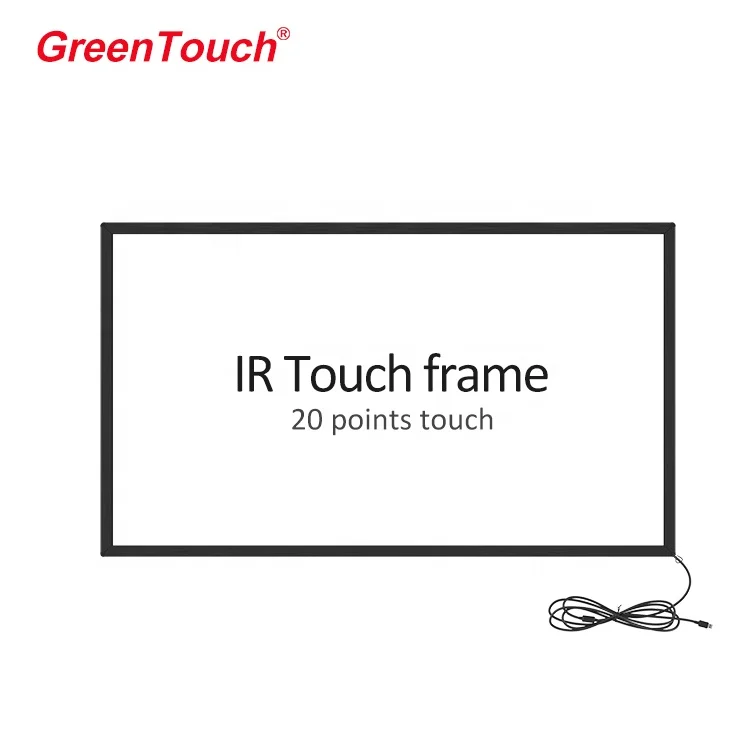

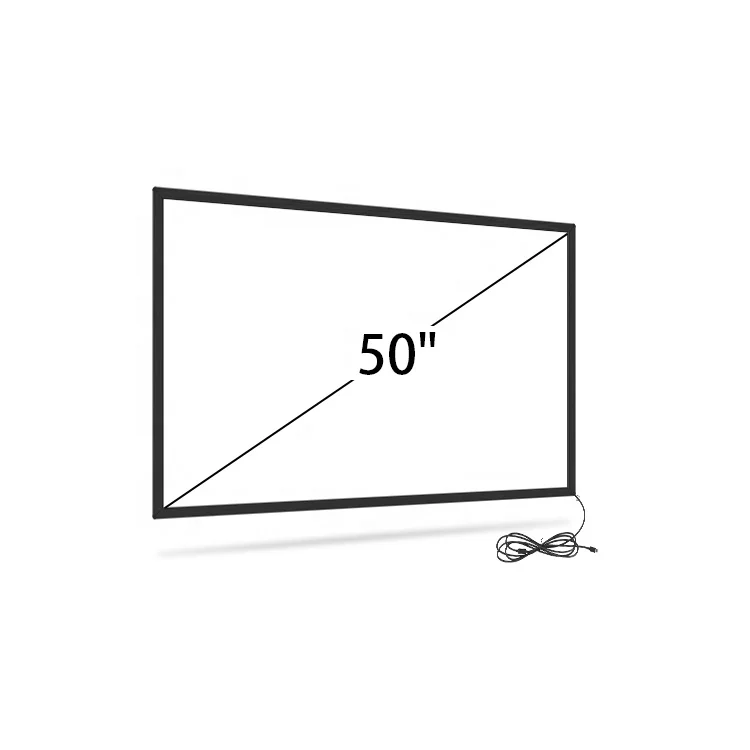

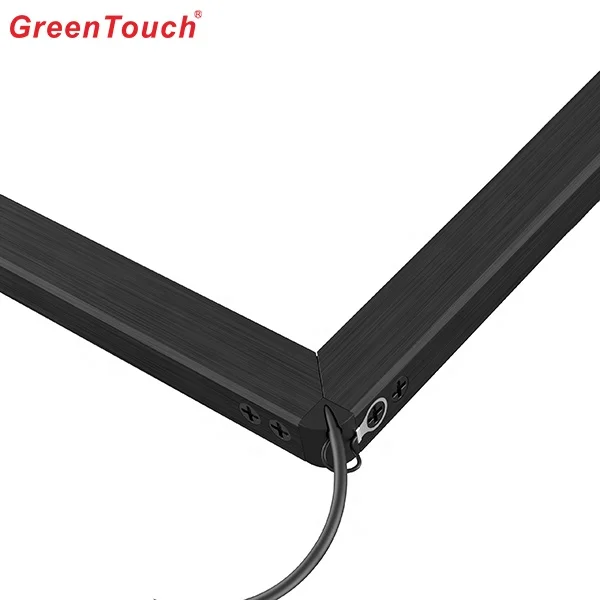

Product Name:	50 inch infrared touch frame	Bezel Material:	Aluminium alloy
Total Size:	1138.4x658.9mm	Display Size:	1097x617.5mm
Touch Resolution:	32767x32767	Type:	GT-IR-TB50
Response Time:	Less than 10ms	Touch Accuracy:	+/-2mm(Over 95% area)
Touch Input Objects:	Fingers,opague objects	Touch Durability:	Unlimited
Size for touch input objects:	7mm	Interface:	USB2.0 full speed
Electrical Specification
Scan Rate:	More than 100Hz/s	Communication:	USB2.0
Transmission Rate:	480Mbps	Power Supply Mode:	USB 5V DC
Supply Voltage:	From 4.75 to 5.25V	Operating Voltage:	Equal to or less than 200MA
Environmental Specification
Working /StockTemperature:	-15℃~55℃ ,-40℃~75℃	Working Hudimity:	10%~90%RH,no condense
Stock Humidity:	10%~90%RH,no condense	Anti Light Ability:	<80000Lux
Static Electricity:	Equal to grade EN 6100-4-2 2008:3, touching type powerrelease 4KV,air type power release 8KV(Install to display to test)
Software Compatibility
Firmware Upgrade:	Available	OS Compatibility:	Win7/Win8/Win10,Android/Linux/Mac
API(software interface):	able to provide motive links datasheet,DIY API interface is available
Reliability And Durability Data Sheet
High Temperature Stock:	100℃ for 20 hours,normal temperature for 2 hours
Low Temperature Stock:	-40℃ for 20 hours,normal temperature for 2 hours
USB Plug In And Out Test:	More than 2000 times
High/Low Circle Working:	80℃ for 48 hours,-10℃ for 12 hours
High Humidity Working:	80℃ for 20 hours with 85%
