100 м/1000 м PCI Express 4 порта Карта

The PoE Network Card has integrated hardware acceleration capability to perform TCP / UDP / IP checksum offload and TCP segmentation tasks. Host processing technology can be divided into the accelerator, the host processing technology can be divided into the accelerator, release CPU resources occupied to free up more CPU resources to handle with other applications. The PoE network card is an ideal solution for deploying multiple networks and deploying critical network applications and environments on high-performance servers.

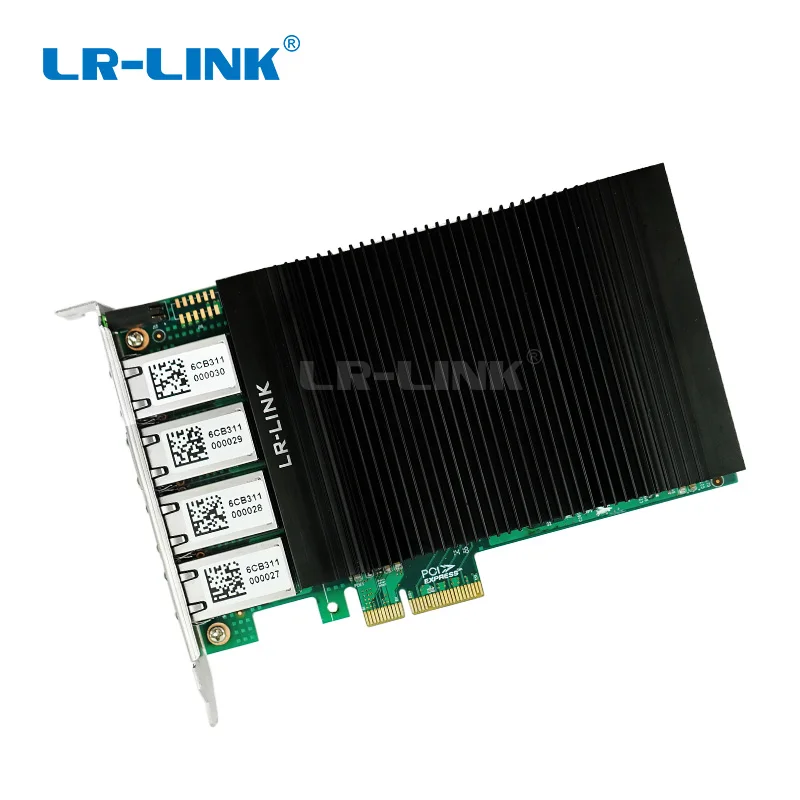

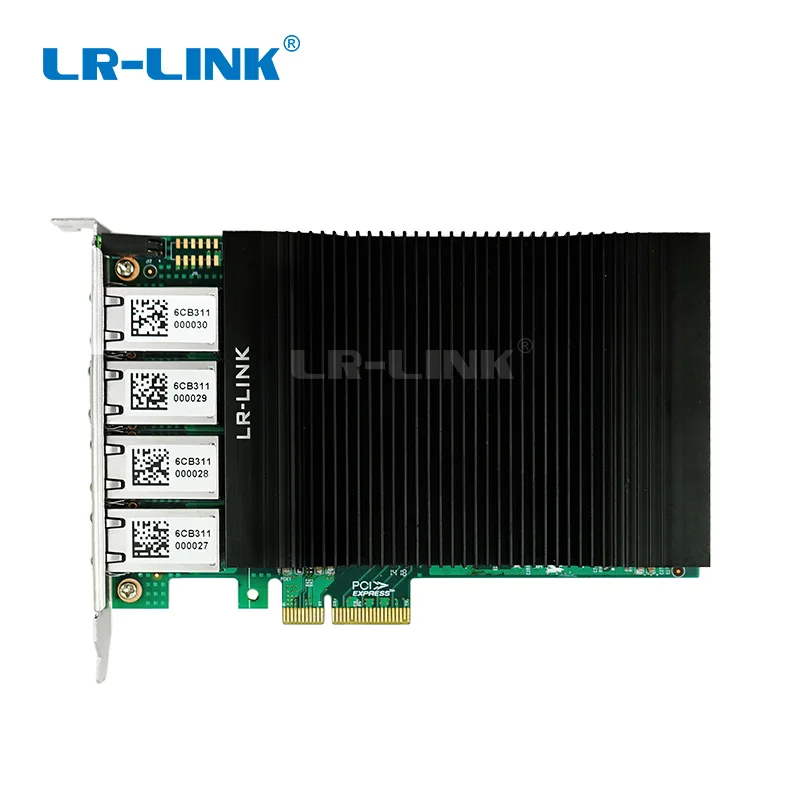

LRES2004PT-PoE is developed on the basis of Intel I350AM4 Quad-Port Ethernet MAC+PHY controller, which can allow four ports to work in full-duplex work mode to adapt high-performance network communication in Gigabit Ethernet connection. It can also save PCI Express channel resources as well as not occupy bus bandwidth by link aggregation and bandwidth expandition. The LRES2004PT-PoE also support PCISIG Single –Root I /O virtualization and sharing specification (SR-IOV),( single I/O virtual and Shared specification).

LR-LINK makes a unique design for this PoE network card:

1. The single-port PoE output power consumption is up to 30W, providing a power supply interface for the external large 4Pin power.

2. The power output of adaptive to external equipment: Class 0, Class 1, Class 2, Class 3;

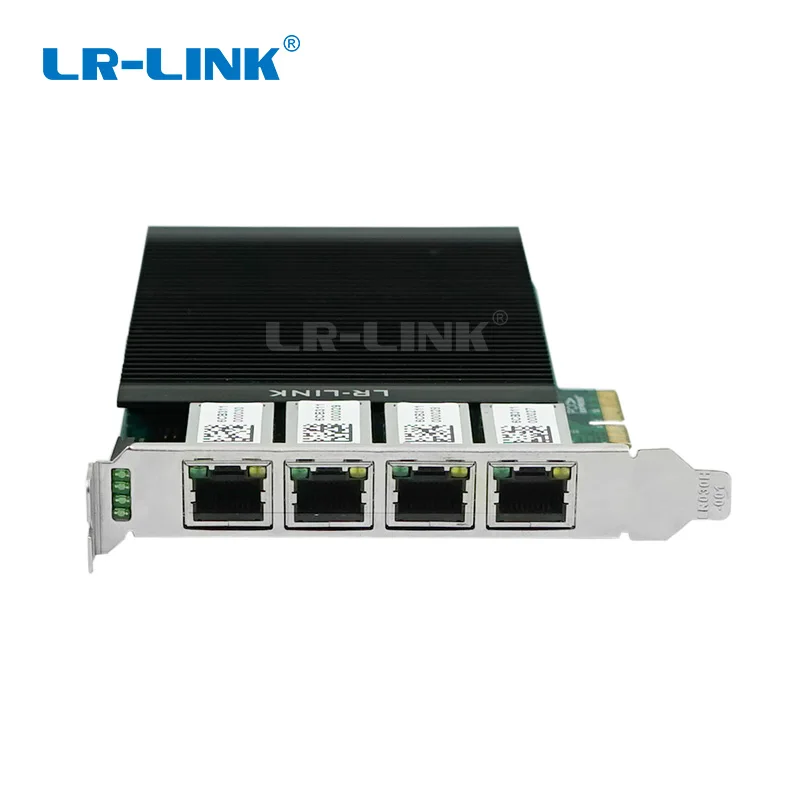

3. The PoE adapter card is designed with wider RJ45 spacing.

4, specially designed for industrial cable access interface, the collocation of LR-LINK customized industrial Ethernet cable, can a more stable locking copper cable and RJ45, effectively solve the problem of industrial sites RJ45 connection copper cable is not stable, also compatible with standard cable access;

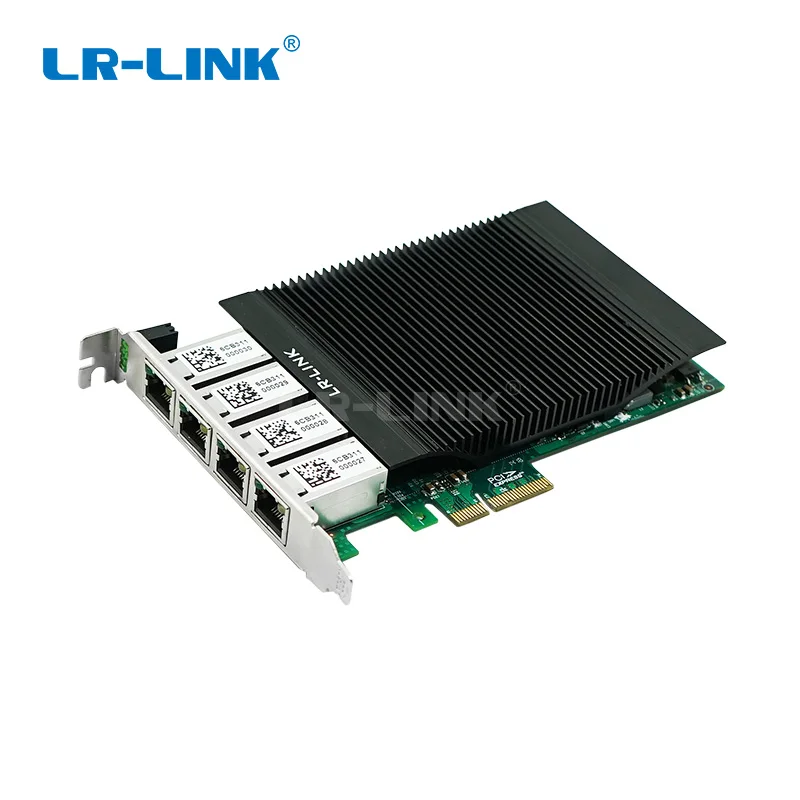

5. The larger heat sink can effectively solve the problem of heat dissipation of the PoE card in the case of poor heat dissipation environment, and effectively ensure the stable operation of the PoE adapter card for a long time;

6. Carefully selected the RJ45 connector with thick and heavy gold to ensure more solid and reliable connectivity;

7. The design of 4 RJ45 can better save the valuable PCIe slot resources of the main board;
