15 лет опыта в производстве гидравлический резиновый шланг для
- Категория: Резиновые шланги >>>
- Поставщик: Qingdao,Kingdaflex,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.53 $* | 0.25 $* |
| Aug-18-2025 | 0.40 $* | 0.64 $* |
| Jul-18-2025 | 0.52 $* | 0.30 $* |
| Jun-18-2025 | 0.33 $* | 0.45 $* |
| May-18-2025 | 0.1 $* | 0.1 $* |
| Apr-18-2025 | 0.89 $* | 0.78 $* |
| Mar-18-2025 | 0.79 $* | 0.42 $* |
| Feb-18-2025 | 0.50 $* | 0.22 $* |
| Jan-18-2025 | 0.61 $* | 0.13 $* |
Характеристики

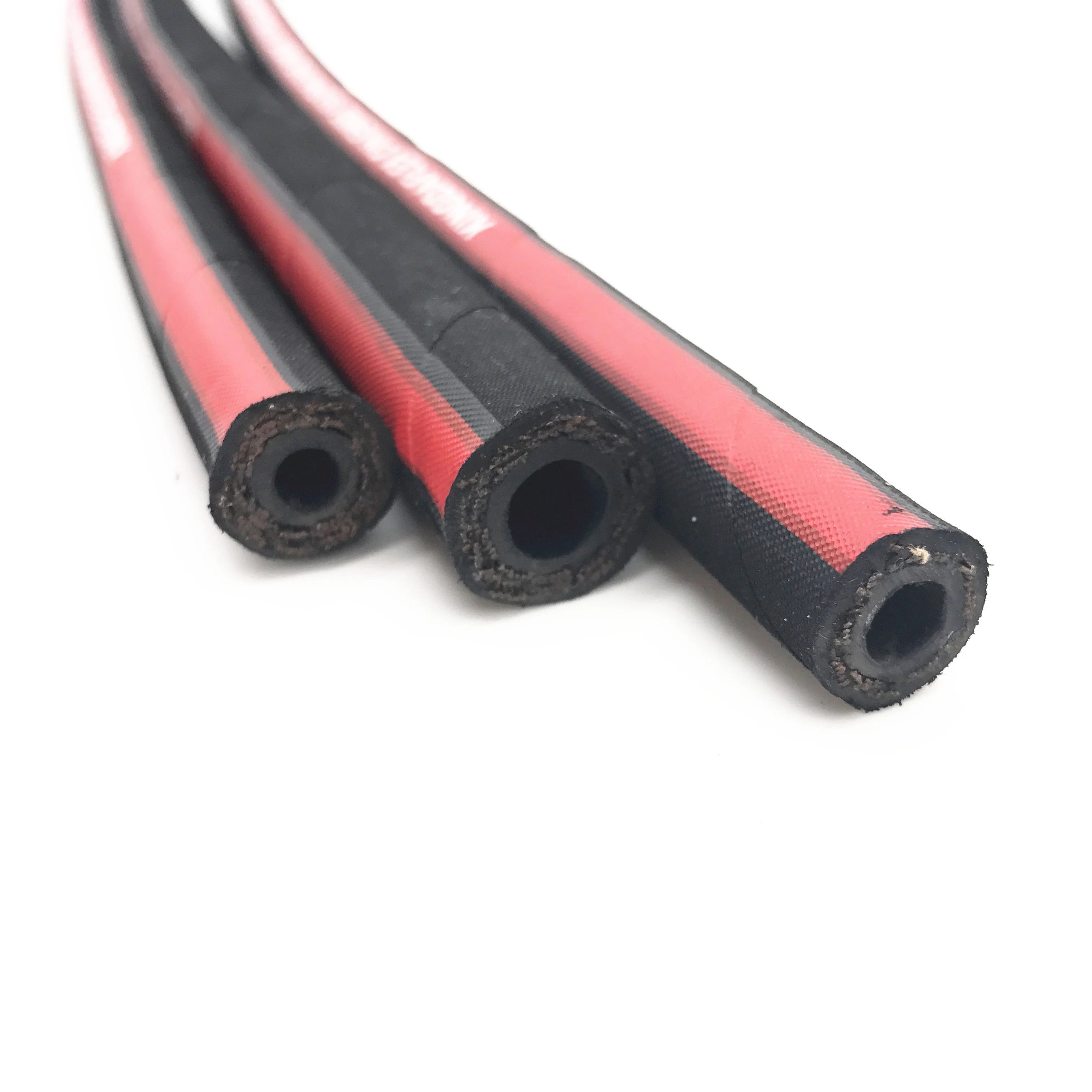

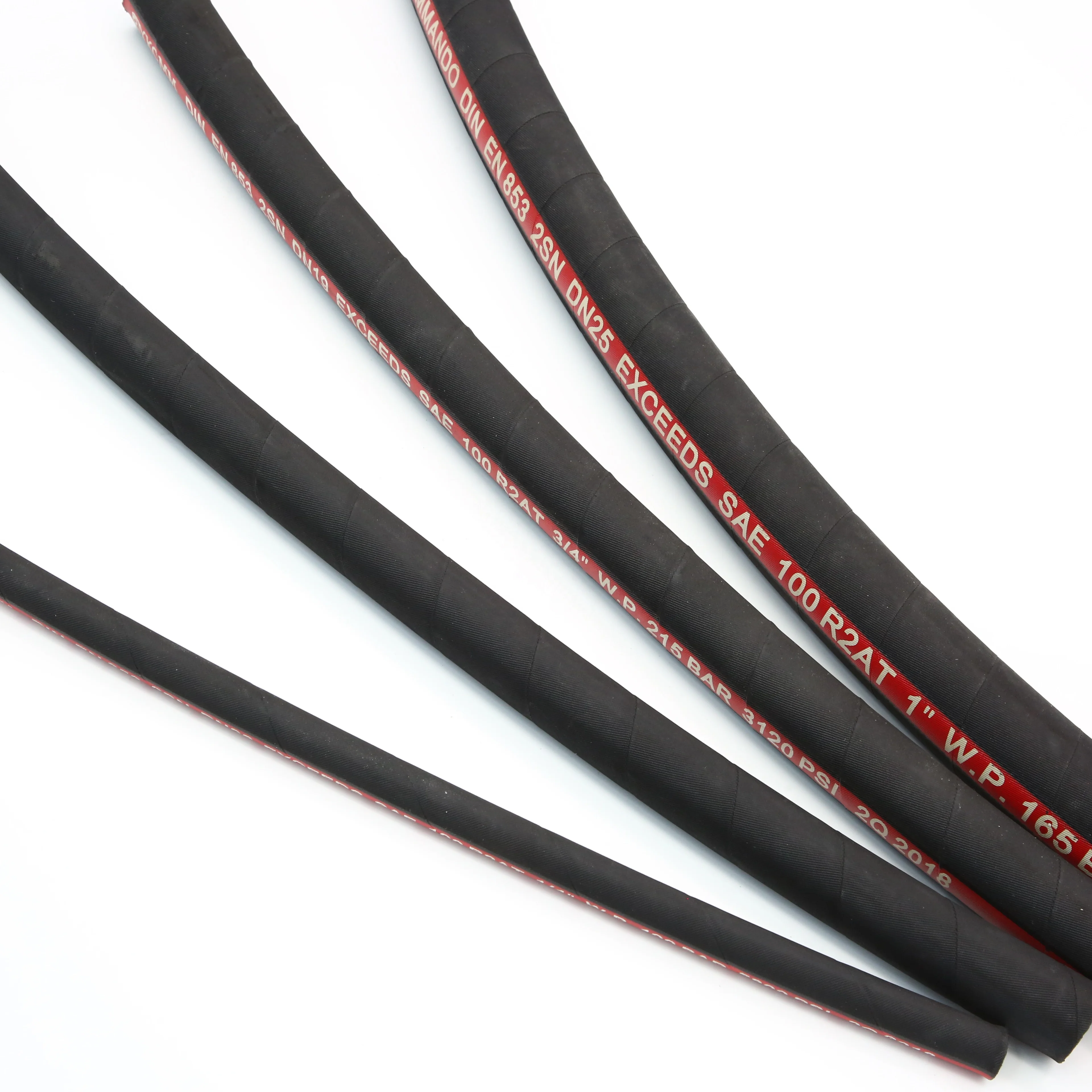

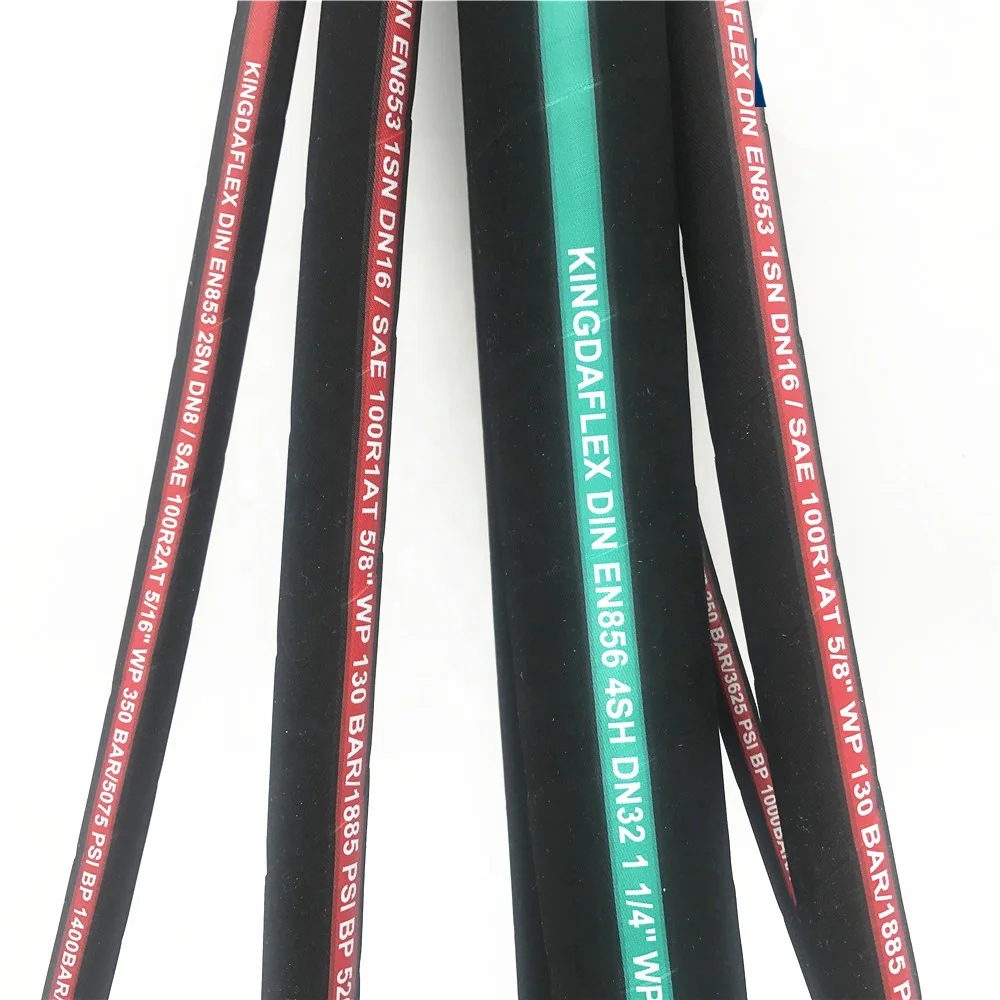

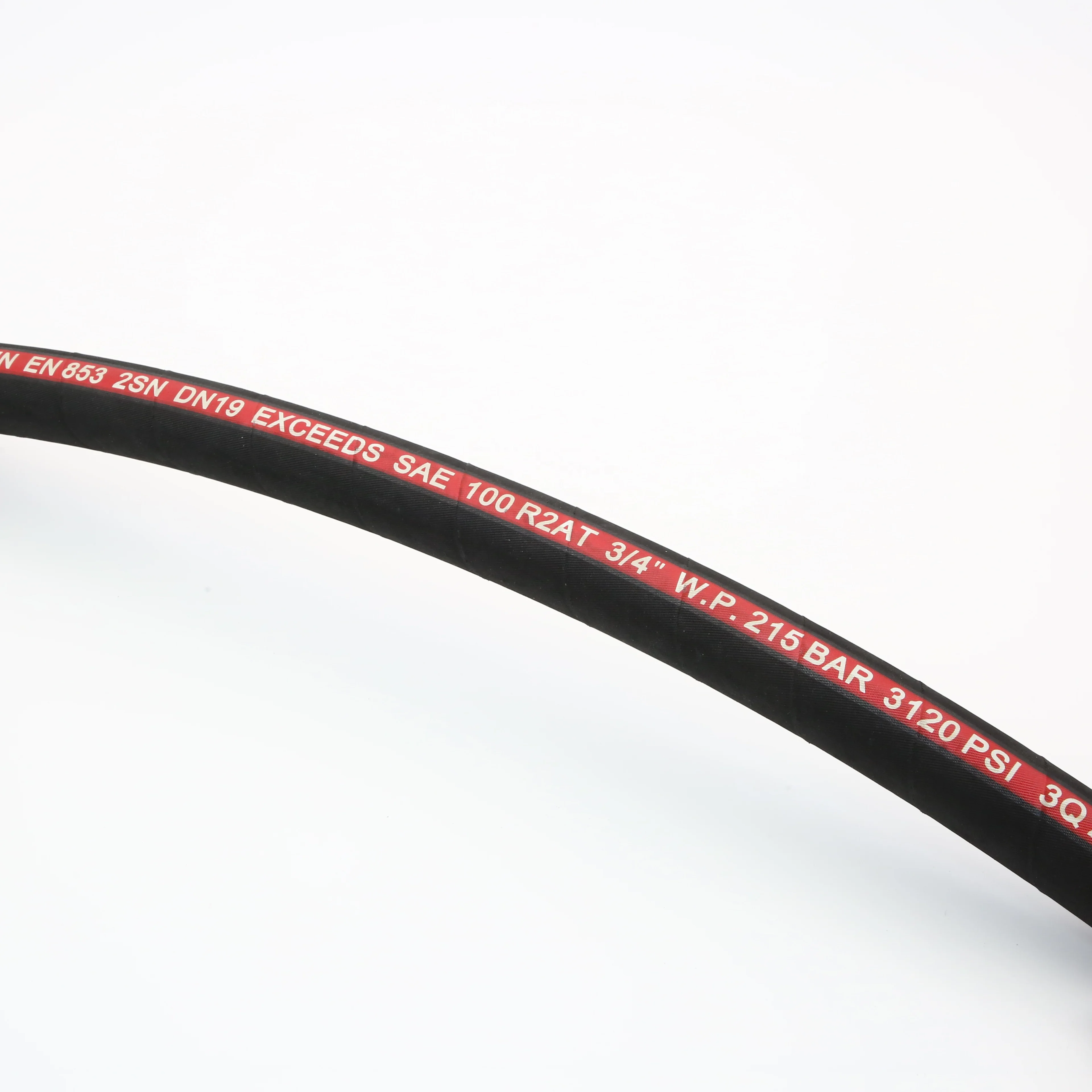

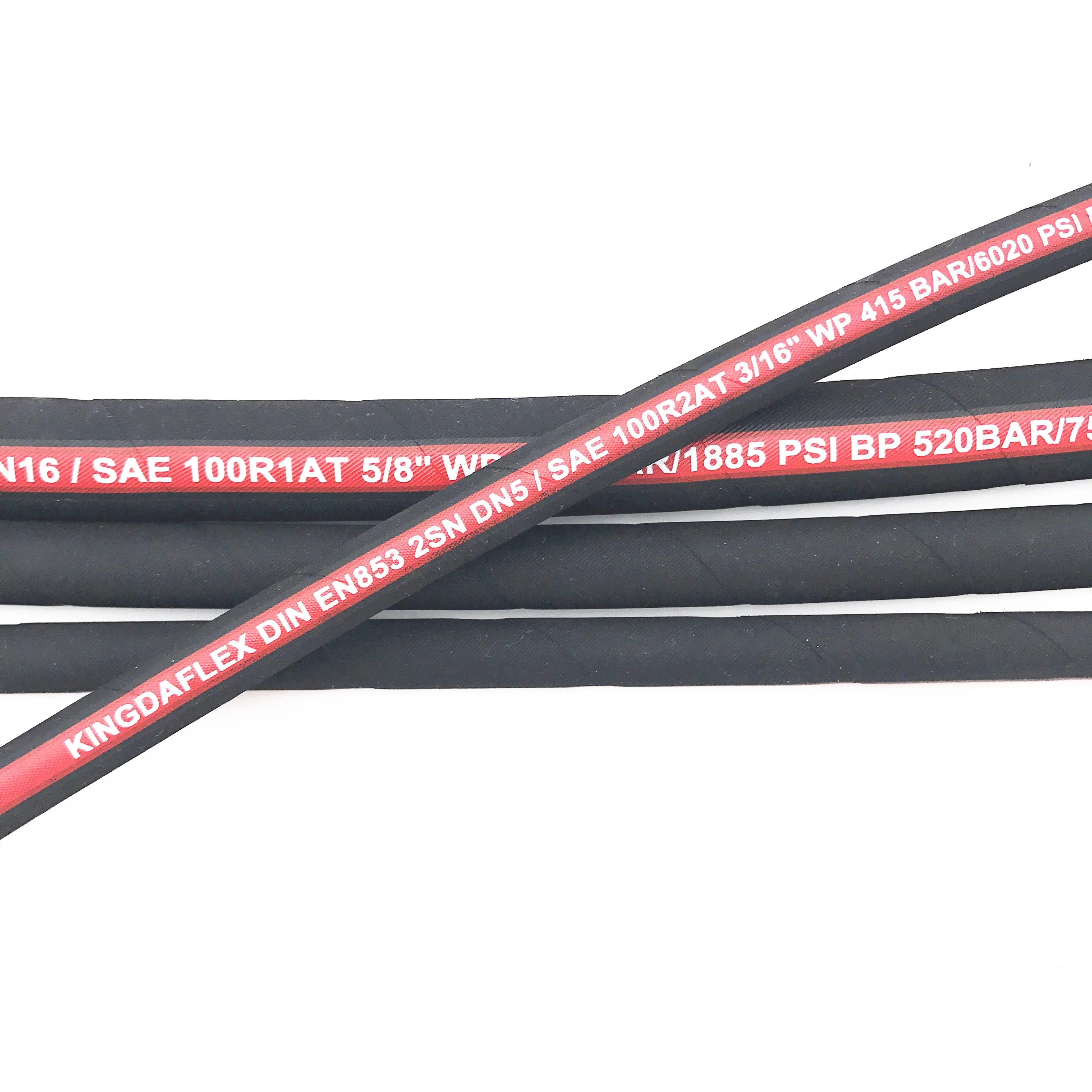

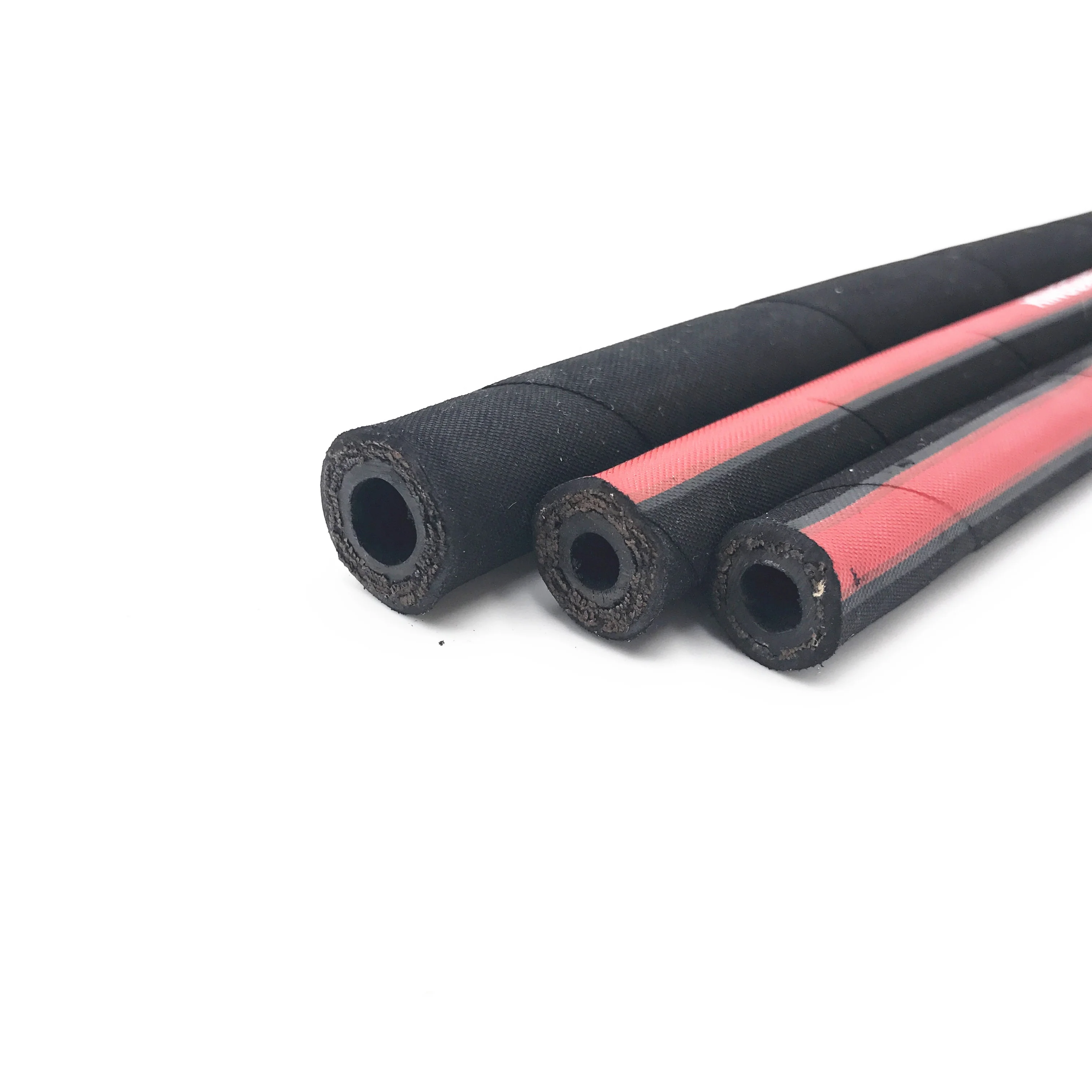

Products Description
Name | Hydraulic Hose / High Pressure Hose | ||||||
Size | 1/4" ~ 2" | ||||||
Reinforcement | one, two, four or six layers of steel wire | ||||||
Temperature Range | -40ºC ~ +100ºC (-40ºF~ +212 ºF) | ||||||
Application | High pressure hydraulic oil lines used in construction, machine tool and agricultural applications using petroleum or water based hydraulic fluids. | ||||||
Certification | SGS, CE and ISO approved | ||||||
Customized | OEM/ODM | ||||||
Packaging Detail | By weaving belt or as your request. | ||||||
Delivery | About 25 days for a 20' container. | ||||||
SAE 100R1AT/DIN EN853 1SN
Inner: oil resistant synthetic rubber
Reinforcement: one high tensile steel wire braided
Cover: oil,abrasion and weather resistant synthetic rubber
Surface: wrapped surface or smooth surface
Reinforcement: one high tensile steel wire braided
Cover: oil,abrasion and weather resistant synthetic rubber
Surface: wrapped surface or smooth surface
Temperature range: -40℃ to +100℃
Product Details
Application
The application of the hydraulic hose:
The high pressure hose is mainly used for Mine hydraulic support, oilfield exploitation, object construction, lifting transport, metallurgic forging, mine equipment, ship, injection molding machinery, agricultural machinery, all kinds of machine tools and various industrial sectors.
Mechanization and automation in the hydraulic system of conveying with a certain pressure(high pressure) and the temperature of the oil-based(such as mineral oil, soluble oil, hydraulic oil, fuel oil and lubricants) and water-based liquid (such as Emulsion, the oil-water emulsion, water) and liquid transmission used.The maximum working pressure-resistant up to 70-100MPa.
Mechanization and automation in the hydraulic system of conveying with a certain pressure(high pressure) and the temperature of the oil-based(such as mineral oil, soluble oil, hydraulic oil, fuel oil and lubricants) and water-based liquid (such as Emulsion, the oil-water emulsion, water) and liquid transmission used.The maximum working pressure-resistant up to 70-100MPa.
Factory Show
Qingdao Kingdaflex Industrial Co., Ltd is a reliable manufacturer and exporter of hydraulic hose and industrial hose in China for more than 15 years. Since the establishment, we have controlled and inspected raw materials strictly to ensure the quality. Meanwhile, we are continuing to refine our manufacturing and processing systems to achieve customers’ requirements. Our all the products are produced according to SAE standard, DIN standard, Gost standard.
Hydraulic Hose including:
R1AT/1SN, R2AT/2SN, 4SP/4SH/R12, R3/R6, R7/R8, R13/R15 etc.
Industrial Hose including:
Air/Water Hose, Oil/Fuel Hose, Welding Hose, EPDM Hose, Suction & Discharge Hose, Sandblast Hose, A/C Hose, Layflat Hose, Fire Sleeve, Concrete Hose, Slurry Hose etc.
Hydraulic Hose including:
R1AT/1SN, R2AT/2SN, 4SP/4SH/R12, R3/R6, R7/R8, R13/R15 etc.
Industrial Hose including:
Air/Water Hose, Oil/Fuel Hose, Welding Hose, EPDM Hose, Suction & Discharge Hose, Sandblast Hose, A/C Hose, Layflat Hose, Fire Sleeve, Concrete Hose, Slurry Hose etc.
We provide OEM and ODM service. Quality is our culture, our mission is making the transmission more powerful. Hope we can become one of your supplier in China. With us your money is in safe, your business is in safe! Welcome customers to visit us!
Product Process
Certifications
Feedback
FAQ
Q1. Who is Kingdaflex?
A: Kingdaflex is a professional manufacturer and exporter for hydraulic hose, industrial hose and fire sleeve in the market more than 15 years. We have exported to 30 countries with good reputation.
Q2. Do you have OEM servie?
A: Yes, we have OEM and ODM service.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q4. What is your sample policy?
A: Usually the sample is free of charge, but the customers have to pay for the freight charge.
Q5. What is your payment term?
A: T/T 30% as deposit, and 70% before delivery or against copy of documents.
Q6. What is your delivery term?
A: EXW, FOB, CFR, CIF.
Q7. How about your delivery time?
A: Generally it will take 25 days for one container.
Q8. Do you have quality certificate?
A: Yes, we have ISO, SGS, CE and related test report.
Q9. How long can you guarantee the goods?
A: We guarantee the goods one year.
A: Kingdaflex is a professional manufacturer and exporter for hydraulic hose, industrial hose and fire sleeve in the market more than 15 years. We have exported to 30 countries with good reputation.
Q2. Do you have OEM servie?
A: Yes, we have OEM and ODM service.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q4. What is your sample policy?
A: Usually the sample is free of charge, but the customers have to pay for the freight charge.
Q5. What is your payment term?
A: T/T 30% as deposit, and 70% before delivery or against copy of documents.
Q6. What is your delivery term?
A: EXW, FOB, CFR, CIF.
Q7. How about your delivery time?
A: Generally it will take 25 days for one container.
Q8. Do you have quality certificate?
A: Yes, we have ISO, SGS, CE and related test report.
Q9. How long can you guarantee the goods?
A: We guarantee the goods one year.
