Водосточные желоба с решеткой из нержавеющей стали цена на


Поделиться:


Цена:16,00 $ - 34,50 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 19.34 $* 20.5 $*
Aug-16-2025 19.44 $* 20.41 $*
Jul-16-2025 16.7 $* 17.9 $*
Jun-16-2025 19.51 $* 20.52 $*
May-16-2025 16.91 $* 17.50 $*
Apr-16-2025 18.31 $* 19.89 $*
Mar-16-2025 18.4 $* 19.69 $*
Feb-16-2025 18.21 $* 19.27 $*
Jan-16-2025 18.19 $* 19.86 $*

Характеристики


Steel Grating is made by the world first-class Italian ORSOGRIL equipment,which can arrange the bearing bar and cross bar in longitude and latitude order to certain distance. Cross bar is pressed into the bearing bar by high tension resistance welding which is controlled by computer. So we can produce high quality grating with firm welding,smooth surface and high strength.





HOT GALVANIZING


Normally,Hot galvanizing will be carried out after end welding process,For the thickness of bearing bars is not less than 5mm,the weight of average Zinc Layer will not be less than 610g/m2.When the thickness of bearing bars is less than 5mm,the weight of average Zinc Layer


Will not be less than 460g/m2. The quality and requirements after hot galvanizing are subject to the standards of GB/T 13912.





LACQUERING


To again protection layer through the ways of spraying,brushing and soaking.





SERVICE LIFE OF HOT GALVANIZING


Coated zinc thickness of 100um,the anticipated life of products in various circumstances.





ANTI-ACID AND ALKALI CORROSSION CAPACITY


The range of PH6 to PH12.5,a stable protective film will be formed on the zinc surface.it has good


anti-corrosive property.


CALCULATION OF WEIGHT AND AREA


1. The weight of gratings varies after end welded and hot galvanizing process. For normal industrial platform using 30mm pitch bearing bars,the weight will increase 12%;14% for 40mm pitch bearing bars and 16% for 60mm pitch bearing bars.


2. For those gratings processed according to the size supplied by customer,calculation will based on the actual area(including cutout and tap)


3. For those gratings processed according to customer’s drawing,calculation will be based on the


total outside size(including cutout and tap)


4. For unusual size of grating cutouts shall not deduct from the length and width.


Description:


(1) Structure: Welding with flat steel and cross/round bars with certain distances.


(2) Features: High strength, light structure, high bearing.


(3) Surface: The hot dipped zinc coating gives the product excellent anti-corrosion.





Specification:















































Common Specification Of Steel Grating



Material Standard



 ASTM A36, A1011, A569, Q235, S275JR,Stainless steel 304,


 Mild steel & Low carbon steel, etc



Bearing Bar


(width*thickness)



 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6,  75x10…..100 x10mm etc;


 I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc


 US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc



Bearing Bar Pitch



 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc.


 US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.



Twisted Cross Bar Pitch



 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc



Surface treatment



 untreated(black), hot-dipped galvanized ,powder coated,


 electroplate, painting or as per customers’ requirement.



Grating Style



 Plain / Smooth, Serrated /teeth, I bar, serrated I bar



Packing



 1)    LCL(less than one container load): packed with plastic film then on the         pallets


 2)    FCL(full container load): nude packing


 3)    Other special package :according to customers' requirements.



Payment Term



 T/T,L/C, Paypal, Western Union, MoneyGram, Credit Card ,D/A,D/P,


 Trade assurance



Remarks: Other sizes also can be customized according to customers’ requirement.




  INSTALLATION OF STEEL GRATING


1. There are two ways of installation for grating. One way is by welding and other is by using installation fastener. The welding method is suitable for those parts which will be fixed forever,such as platforms for equipments,while the method by using installation fastener has the properties of easy to assemble and disassemble and of preventing destroying the zinc layer.


2. Installation fastener is suitable for all types of gratings. It is made of up-fastener,down-fastener and inside cylinder bolt M10.


3. Welding method is angle welding at the first bearing bar of every corners on the grating.Welding seam of which is not less than 20mm length and not less than 3mm height.


4. It at least needs four sets of installation fasteners on every grating to fix.You had better install more fasteners on the supportable construction when the span is larger.


5. We can supply stainless steel installation fastener to satisfy our customer’s requirements.


6. Please indicate clearly the type,quantity and material when you purchase installation fastener.











product show .jpg

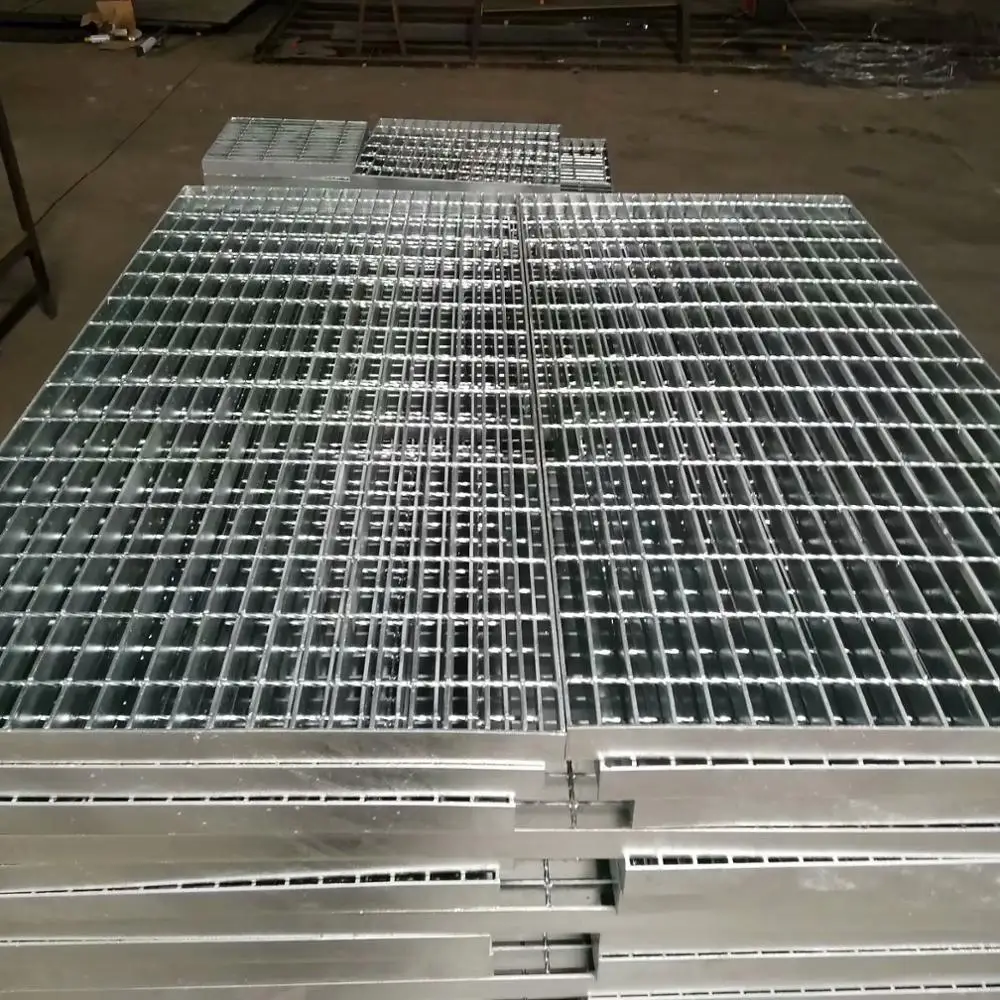

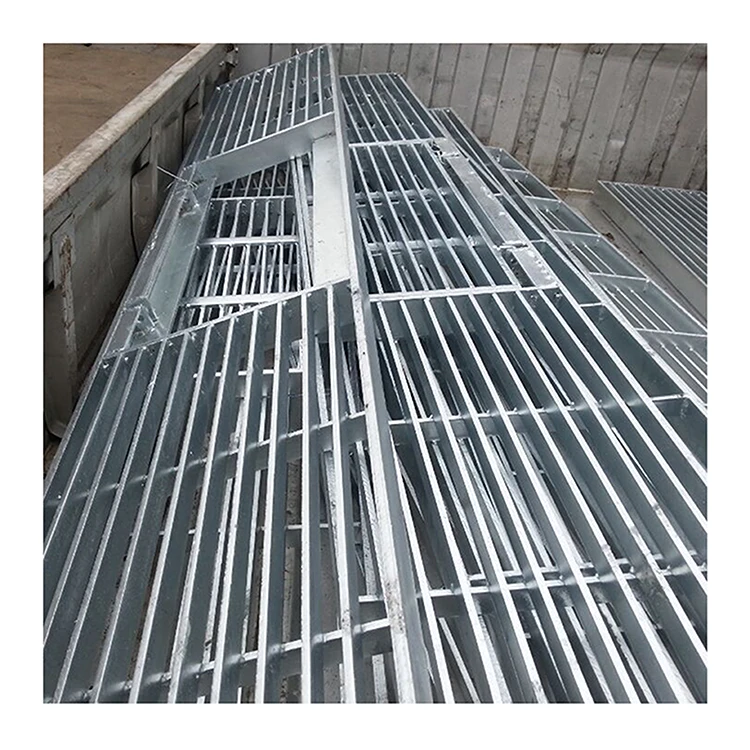

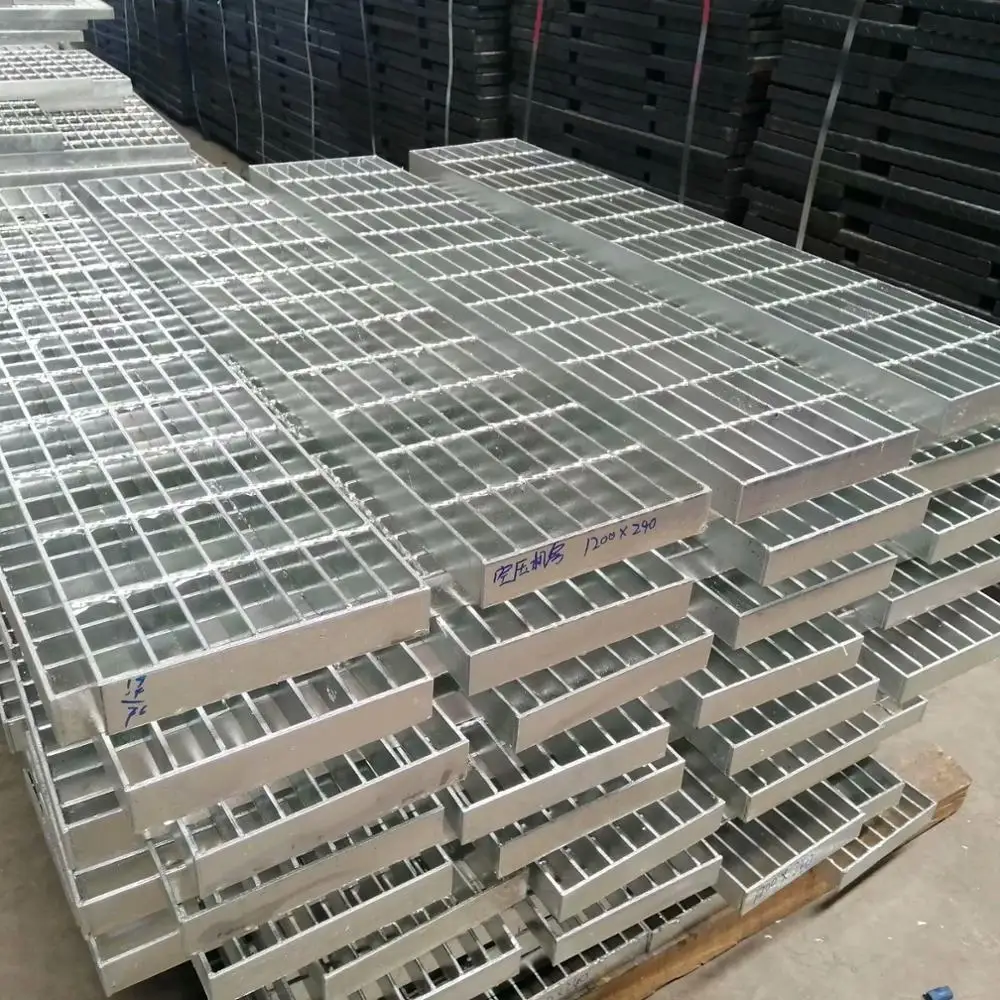

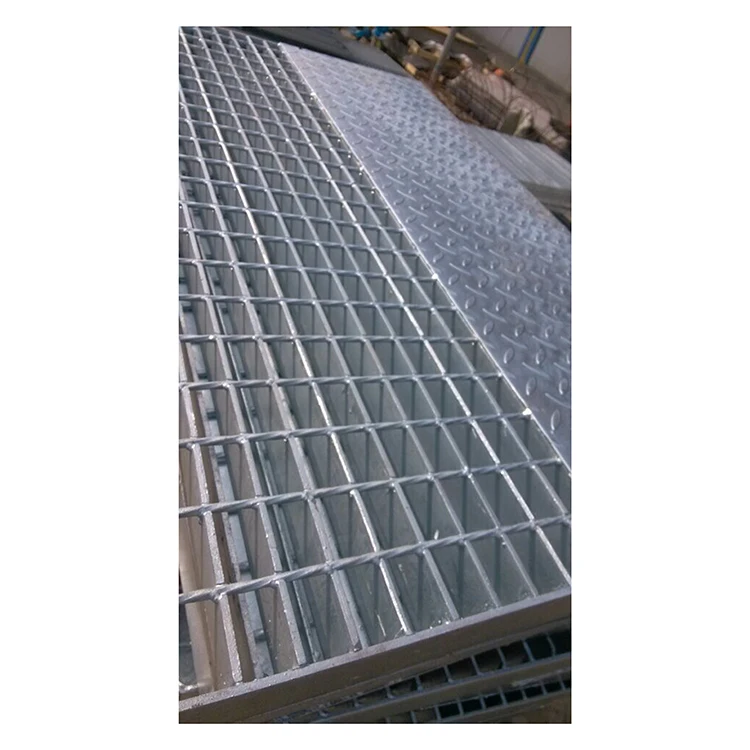

Steel Grating; Drain cover; Stair treads.


We are able to provide a full range of steel grating series and accessories.


steel grating .jpg




QQ20190521110419


             ---PRODUCTION PROCESS ---


QQ20190521110357


                ---PROJECT CASE ---

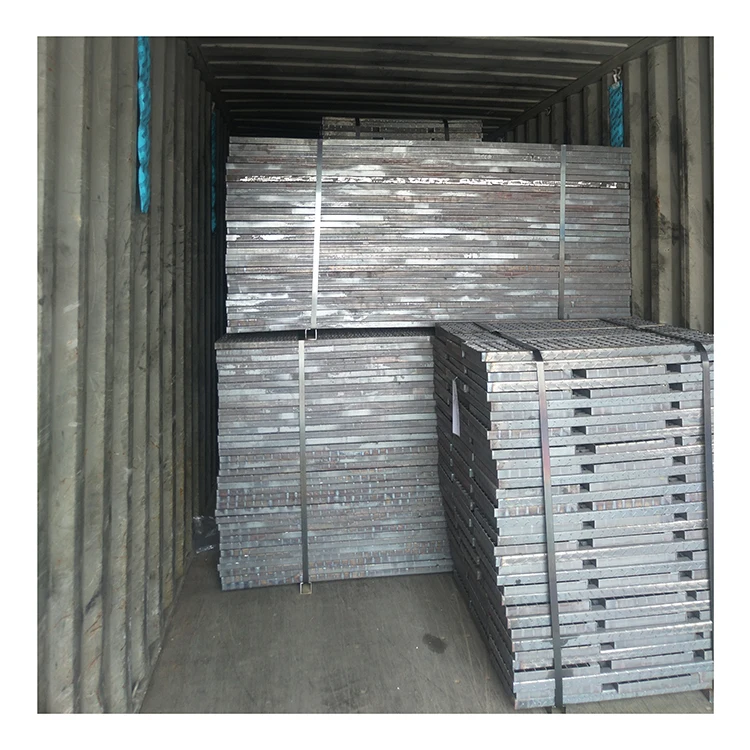

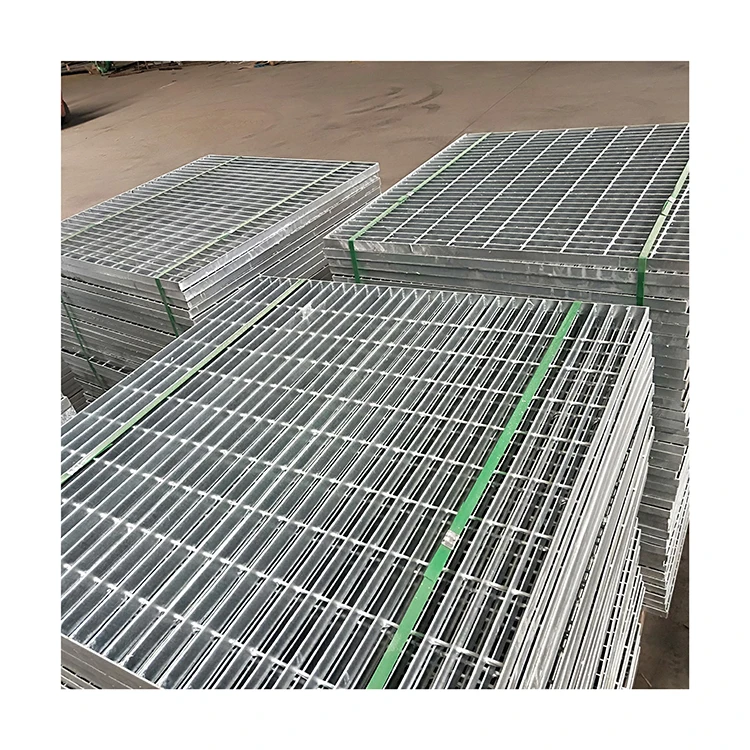

Grating Standard Packing Method: 1. Bandage and Paperboard: Generally applies to neat steel plate; 2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength; 3. Steel Pallet: Traditional export packing.










---COMPANY PROFILE ---





   Hebei Weijia MetalMesh Co.,Ltd is a research, development, production, sales and service of high-tech enterprises. We are metal mesh the first mover in China.


   We have very competitive advantage in various kinds of fence, such as, prison fence,airport fence, railway fence, isolation fence; steel grating, metal mesh, curtain wall plate mesh...


   Our products have a good name in Europe, America, Southeast Asia. We sincerely hope that the mutually beneficial and friendly cooperation on the basis of the establishment of close trade relations with domestic and foreign customers.


   Main market: Singapore(we have branch there), SaudiArabia, Indonesia, USA, Israel, Australia, South Africa, Mauritius, Morocco, UAE, Portugal, Russia, Malaysia, Bangladesh, and so on.















--- EXHIBITION PHOTOS ---


.jpg





--- F A Q ---


Q: Are you trading company or manufacturer ?


A: We are factory.


Q: How long is your delivery time?


A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.


Q: Do you provide samples ? is it free or extra ?


A: Yes, we could offer the sample for free charge but do not pay the cost of freight.


Q: What is your terms of payment ?


A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.







--- RELATED PRODUCTS ---_21.jpg















Perforated Metal SheetGrip StrutWire Mesh
MORE >>MORE >>MORE >>
