Характеристики
High quality Topcon GTS - 1002 total station prism pole with 5000m one prism
Key features of Topcon GTS - 1002
•Improved EDM, Measuring Faster, More Powerful
•Reflectorless, Reflector, prism three kinds of measure model
•Rugged and User-friendly Design
•Strong shell, IP66
• -20 ~ +60°C Working Temperature
•One battery operation up to 25 hours
• USB Data Communication
1. Fast, powerful measure system
•Using phase technology can effectively guarantee the accuracy of measurement.
• Fast distance measurement of 0.9s regardless of object.
• 30 cm to 350 m non prism range.
• 1.3 m to 500 m reflector plate test S.
•The smallest facula enlarged the scope of measuring object.
• Dependable measurement even at shallow incidence angles.
• The narrow laser beam EDM not only can accurately measure the metope, angular point, ground, manhole covers etc. Light incident angle target, also can measure the high tension line or tree branches
2. Solid shell and friendly visual interface design
• Dust and water protection IP66
• The high adaptability range of temperature - 20 ℃ ~ + 60 ℃
• Control panel consists of 25 keys pad (with alphabet entry) with LCD for easy viewing of graphics
3. Dual number Keyboard
Double number/letter keyboard, operating more quickly.
4. unique absolute technology
• With unique absolute technology to ensure Under the condition of continuously measuring accuracy of reliability.
• Dual-axis compensator can ensure the instrument in the bad environment still keep level.
5. USB Data Communicationy
• USB - type A interface can be directly inserted into the USB flash drive.insert Into the usb flash drive and close the cover after still can ensure IP66 Protection grade
6. 30cm to 350m non prism distance measurement.
7. Standard Accessories
• GTS-1002 main unit
• Battery charger (BC-L2A)
• Lens cap
• Cleaning cloth
• Carrying case
• Lens brush
• Screwdriver
• Battery (BT-L2)
• Power Cable
• Tool pouch
• Operation manual
• Carrying strap
• Adjusting pin x2

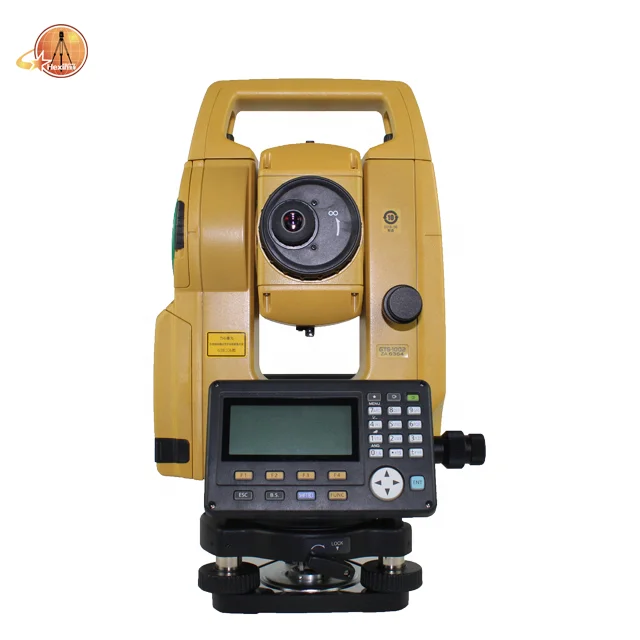

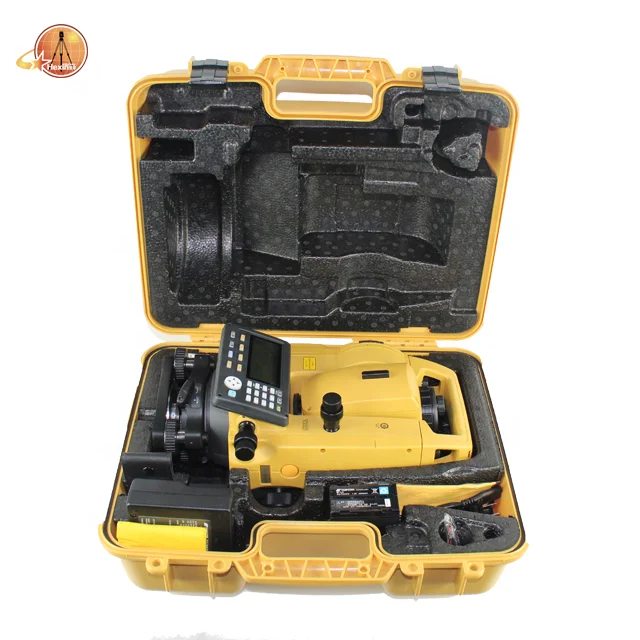

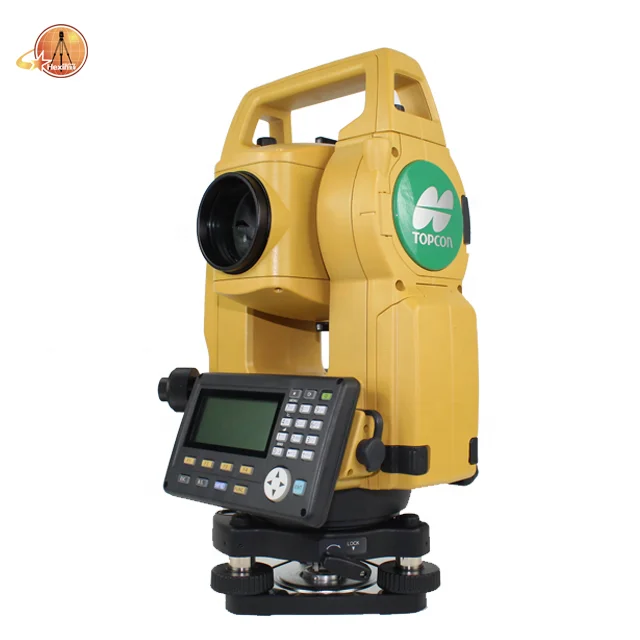

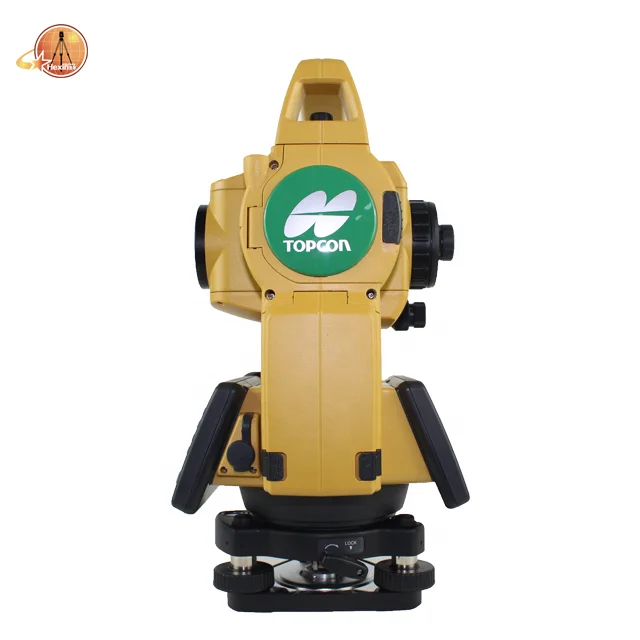

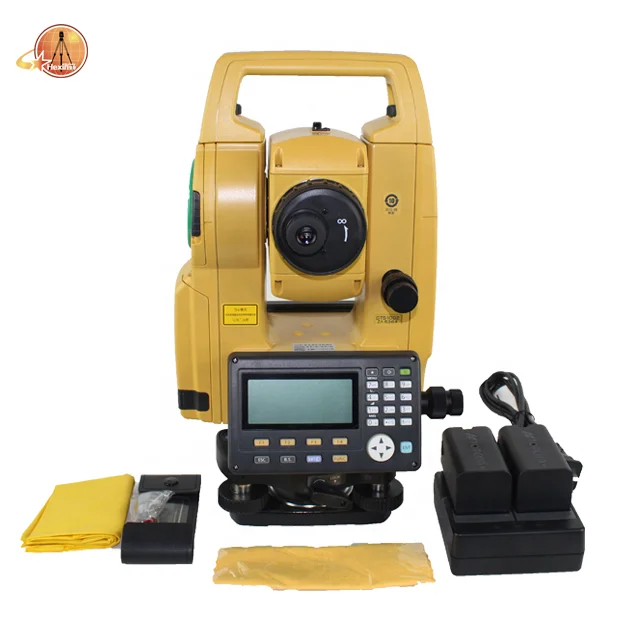

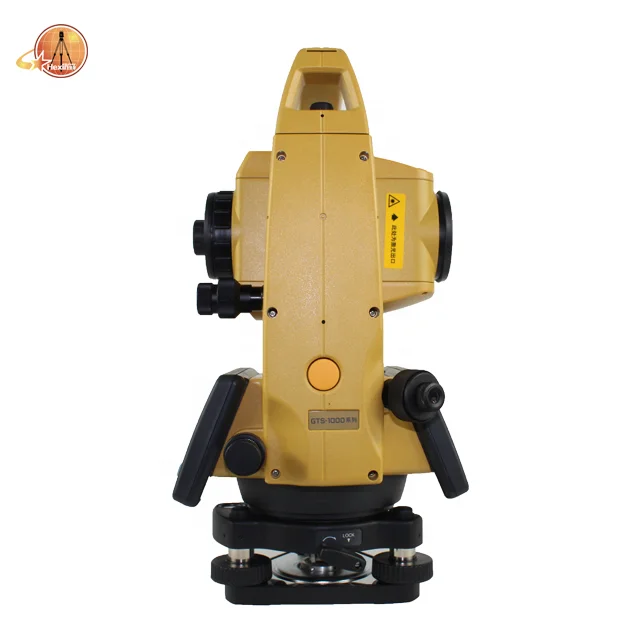

product show
Product Description
Model | GTS-1002 |
Telescope | |
Magnification/Resolving power | 30X/2.5" |
Length | 150mm |
Objective aperture | 45mm (EDM:48mm) |
Image | Erect |
Field of view | 1°30' (26m/1,000m) |
Minimum focus | 1.3m |
Angle measurement | |
Display resolutions | 1"/5" |
Accuracy (ISO 17123-3:2001) | 2'' |
Method | Absolute |
Compensator | Dual-axis liquid tilt sensor, working range: ±6′ |
Distance measurement | |
Laser output level | Non prism: 3R Prism/ Reflector 1 |
Measuring range (under average conditions ) | |
Reflectorless | 0.3 ~ 350m |
Reflector | RS90N-K:1.3 ~ 500m |
RS50N-K:1.3 ~ 300m | |
RS10N-K:1.3 ~ 100m | |
Mini prism | 1.3 ~ 500m |
One prism | 1.3 ~ 4,000m/ under average conditions:1.3 ~ 5,000m |
Accuracy Reflectorless | (3+2ppm×D)mm |
Reflector | (3+2ppm×D)mm |
Prism | (2+2ppm×D)mm |
Measurement time | Fine: 1mm: 0.9s Coarse: 0.7s, Tracking: 0.3s |
Interface and Data management | |
Display/keyboard | Adjustable contrast, backlit LCD graphic display / |
With backlit 25 key (alphanumeric keyboard) | |
Control panel location | On both faces |
Data storage | |
Internal memory | 10,000pts |
External memory | USB flash drives (maximum 8GB) |
Interface | RS-232C; USB2.0 |
General | |
laser Designator | Coaxial red laser |
Levels Circular level | ±6′ |
Plate level | 10′ /2mm |
Optical plummet telescope | Magnification: 3x, Focusing range: 0.3m to infinity, |
Dust and water protection | IP66 |
Operating temperature | -20 ~ +60℃ |
Size | 191mm(W)×181mm(L)×348mm(H) |
Weight | 5.6kg |
Power supply | |
Battery | BT-L2 lithium battery |
Working time | 25 hours |
