10 лет технической поддержки литиевая батарея 24 В 48 200 ач 5 кВтч Аккумулятор lifepo4 с программным обеспечением
- Категория: >>>
- Поставщик: Guangzhou,Felicity,Solar,Technology,Company,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 855.89 $* | 872.76 $* |
| Jul-15-2025 | 693.10 $* | 707.25 $* |
| Jun-15-2025 | 841.20 $* | 858.59 $* |
| May-15-2025 | 835.4 $* | 852.25 $* |
| Apr-15-2025 | 666.44 $* | 679.53 $* |
| Mar-15-2025 | 821.49 $* | 837.54 $* |
| Feb-15-2025 | 814.96 $* | 830.47 $* |
| Jan-15-2025 | 808.20 $* | 824.72 $* |
Характеристики
Products Description
Features:
• 6000 times deep cycle charge and discharge .
• Iron phosphate-lithium power battery .
• Higher energy density, smaller prismatic cells for household.
• Support connected in parallel mode for expansion.

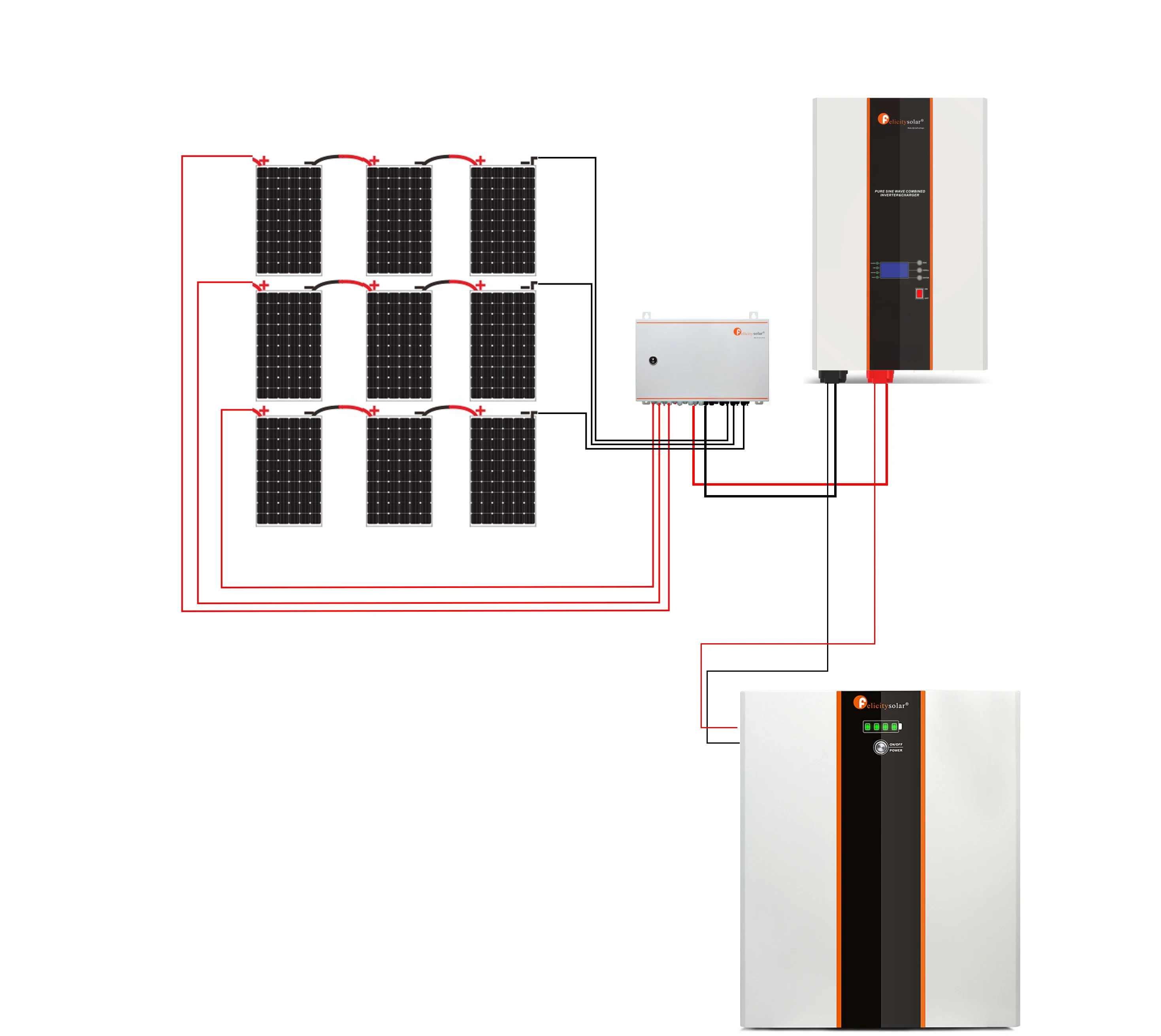

• Photovoltaic system: This battery pack is designed for household photovoltaic systems.
• Battery management system (BMS): The battery packs built-in BMS monitors its operation and prevents the battery from operating outside design limitations.
• Iron phosphate-lithium power battery .
• Higher energy density, smaller prismatic cells for household.
• Support connected in parallel mode for expansion.
• Photovoltaic system: This battery pack is designed for household photovoltaic systems.
• Battery management system (BMS): The battery packs built-in BMS monitors its operation and prevents the battery from operating outside design limitations.
Product Paramenters
Model | LPBF24150 | LPBF48150 | LPBF24200 | LPBF48200 | |||||||||||
Usable Capacity | 3.75KWH | 7.5KWH | 5KWH | 10KWH | |||||||||||
Voltage | 24V | 48V | 24V | 48V | |||||||||||
Rated Voltage | 25.6V | 51.2V | 25.6V | 51.2V | |||||||||||
Charge Voltage | 28.8V | 57.6V | 28.8V | 57.6V | |||||||||||
Discharge Voltage Range | 24-28.8V | 48-57.6V | 24-28.8V | 48-57.6V | |||||||||||
MAX. Charge & Discharge Current | 120A | ||||||||||||||
Rated Charge & Discharge Current | 80A | ||||||||||||||
MAX. Output Power | 2500W | 5000W | 2500W | 5000W | |||||||||||
Rated Output Power | 1250W | 2500W | 2000W | 4000W | |||||||||||
Modules Connection | 1-6 in parallel | ||||||||||||||
Communication | CAN&RS485 | ||||||||||||||
Ingress Protection | IP21 | ||||||||||||||
Cycle Life | >6000 times, @25℃ | ||||||||||||||
Working Temperature Range | Discharge:-20°C to +60°C, Charge:+0°C to +55°C | ||||||||||||||
Gross Weight(kg) | 39.8kg | 77.4kg | 54.6kg | 104.5KG | |||||||||||
Product Dimension(MM) | 485*370*240mm | 485*573*240mm | 552*409*240mm | 552*649*240mm | |||||||||||
Package Dimension(MM) | 615*550*365mm | 615*750*365mm | 685*590*365mm | 685*830*365mm | |||||||||||

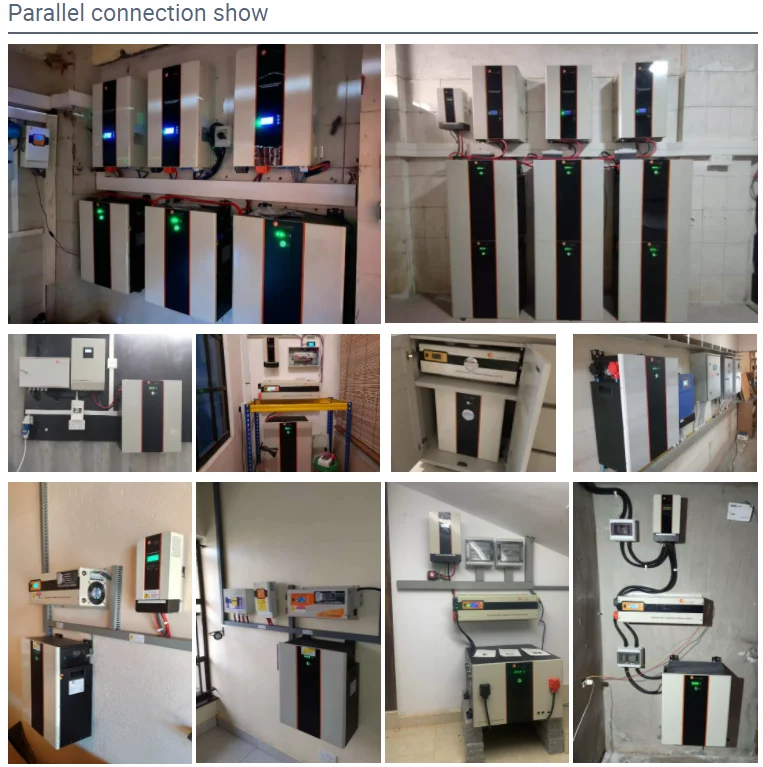

Parallel connection show
Packing & Delivery
Payment Terms
We support wide range of secure & reliable payment methods like T/T, L/C, West Union, E-checking, Paypal and so on. Please choose your preferred payment method from those listed below.
Payment Terms | T/T or Cash | EXW | ||
FOB | ||||
CFR (C&F) | ||||
CIF | ||||
Payment Terms | L/C | For the amount more than US$90,000 payment, we can accept L/C | ||
Paypal | For the amount less than US$2,000 payment, we can accept Paypal , West Union or MoneyGram | |||
West Union | ||||
MoneyGram | ||||
Credit card or E-checking | Place a Alibaba Trade Assurance Order | |||
