Характеристики


Product Description
Introduction
Apply to checking the insulation resistance of electrical equipment or circuit to ground and phase to ensure that the equipment works properly.

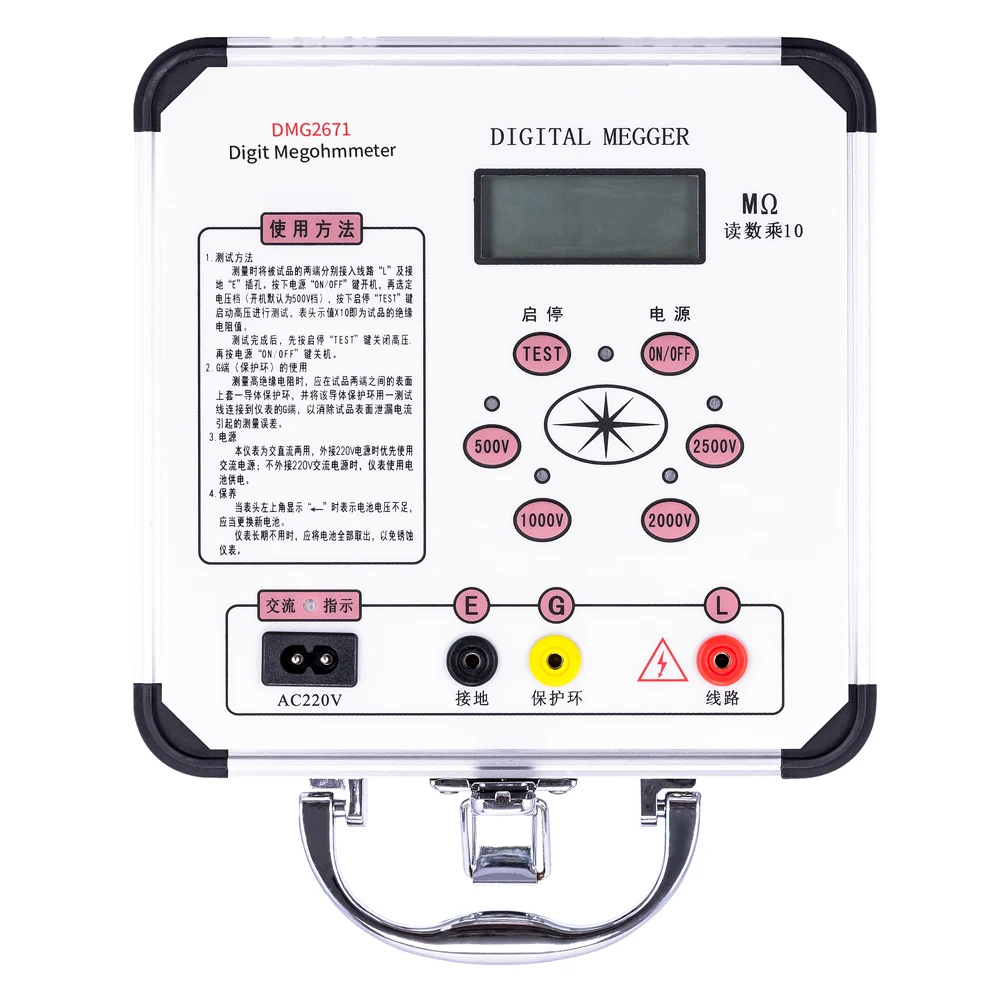

DMG2671 Digit Megohmmeter consists of medium and large scale integrated circuit with high output power and high short-circuit current value features. The output voltage is up to four grades. The built-in battery served as power supply become high DC voltage by DC/DC transformation, which goes from E pole to L pole via the object being tested. By this way, it produces a current from pole E to pole L, which converted by I/V and computed by the divider. The value of insulation resistance will display on the LCD finally.
Features
1. High output power, strong load ability, and strong anti-interference ability.
The shell body is made of aldural/high-strength aluminum alloy, equipped with potential protection ring and fourth-order active low pass filter, it can play an effective role in shielding external power frequency and strong electromagnetic field. For the measurement of capacitive specimen, since the short-circuit current is greater than 1.6mA, it’s easy to rise the test voltage to the rating of output voltage. For the measurement of low resistance, it will not affect the test by using scaling method.
2. The meter is battery powered and the measure range is converted automatically. The easy-to-read panel and LCD display make measurement very convenient and fast.
3. The output short-circuit current of the meter can be measured immediately without estimation.
Technology Parameters
Operating Conditions
Temperature
0℃～+45℃
Relative humidity
≤85%RH
Output voltage grades
500V，1000V，2000V，2500V
Measuring range
0～19990MΩ
Resolution
0.01MΩ，0.1MΩ，1.0MΩ，10.0MΩ
Error
0～2000MΩ≤±5%±2d
2000MΩ～19990MΩ≤10%±2d
Voltage/Load
2500V/20MΩ
Voltage drop
Approximately 10%
Short-circuit current
＞1.6mA
DC
8×1.5V (AA, R6) battery
AC
220V/50Hz
Power dissipation
Quiescent power dissipation≤160mW; Maximum power≤2.5W
Dimension
235×200×135mm3
Weight
＜1.4kg
Accessory

Serial Number
Name
Amount
1
Mainframe
one
2
Test line (one red, one yellow and one black, 1.6m)
one
3
AC 220V power line
one
4
Battery
eight
5
Specification
one
6
Inspection Report
one
7
Certification
one

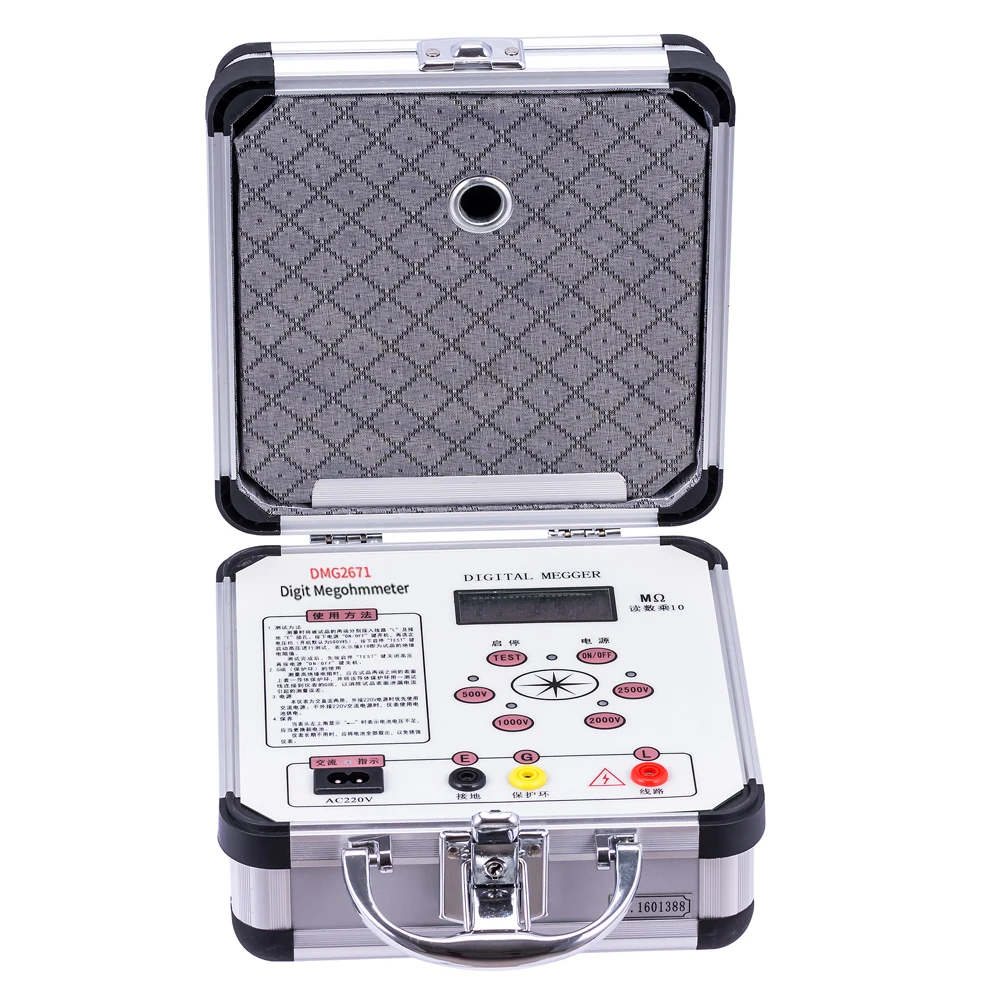

Products Show
Our Company

Wuhan HUAYI Electric Power Technology Co., LTD was founded in 2005, located in Wuhan City, China. We are a professional manufacturer of electric testing equipment with over 15 years industry experience, engaged in high voltage tester with high performance, good quality, customized specification and easy operation. ISO qualified factory, strong R&D team and after-sales engineers make us gain good feedback from wide customers. HUAYI is committed to preventative, maintenance, troubleshooting and commissioning all the time.

Our products are involved in AC/DC Hipot tester, series resonant test system, transformer tester, relay tester, circuit breaker/switch tester, oil/SF6 tester, cable tester and other electric instruments, widely adapted to electric power, water conservation, oil, railway, mine, chemical. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.

Production line

Workshop

Warehouse

R&D team

Filed Test&Service
Packing & Delivery
Our Certifications
FAQ

1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.

2.What is the mini order quantity?
MOQ: generally 1 unit/piece/set
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union...

4.Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.

5.What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
