2 5 дюймовый капсульный манометр-20 см h2o до 80 кПа двойная
- Категория: Манометры >>>
- Поставщик: Suzhou,Power,Meter,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 11.82 $* | 11.77 $* |
| Jul-16-2025 | 9.51 $* | 9.16 $* |
| Jun-16-2025 | 11.87 $* | 11.98 $* |
| May-16-2025 | 11.59 $* | 11.18 $* |
| Apr-16-2025 | 9.24 $* | 9.41 $* |
| Mar-16-2025 | 11.66 $* | 11.96 $* |
| Feb-16-2025 | 11.25 $* | 11.27 $* |
| Jan-16-2025 | 11.15 $* | 11.24 $* |
Характеристики
Specification
Specifications | ||
Type | Medical low pressure gauge manometer | |
Dial size | 2.5inch (63mm) | |
Case/cover | Stainless steel 304 | |
Tube & Connection | brass brass | |
Mounting | Back type with U clamp Panel mount | |
Pressure range | -20 cmH2O - 80 cmH2O -2 kPa to 8 kPa or customized | |
Thread size | customized | |
Accuracy | 2.5% | |
Pressure Gauges phot

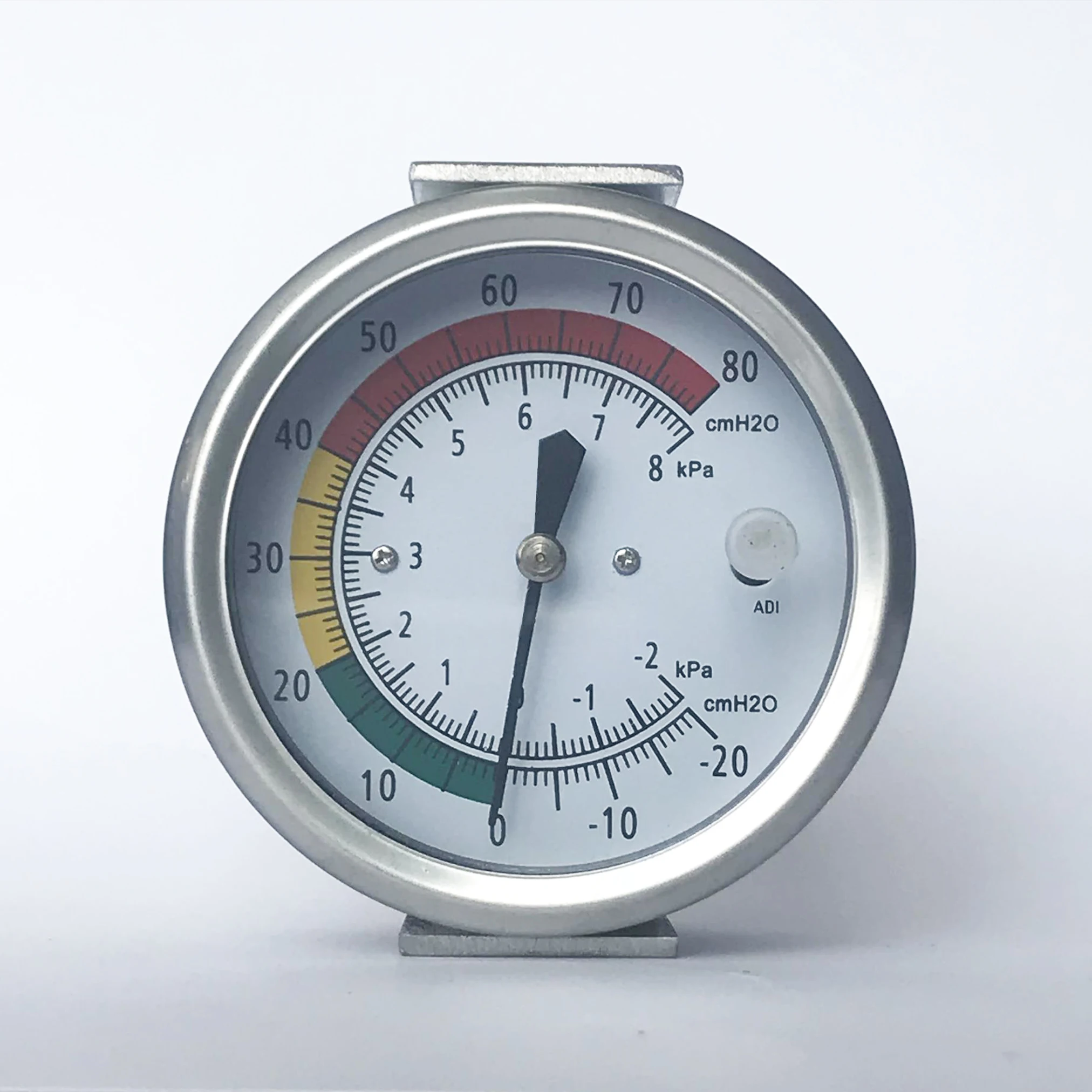

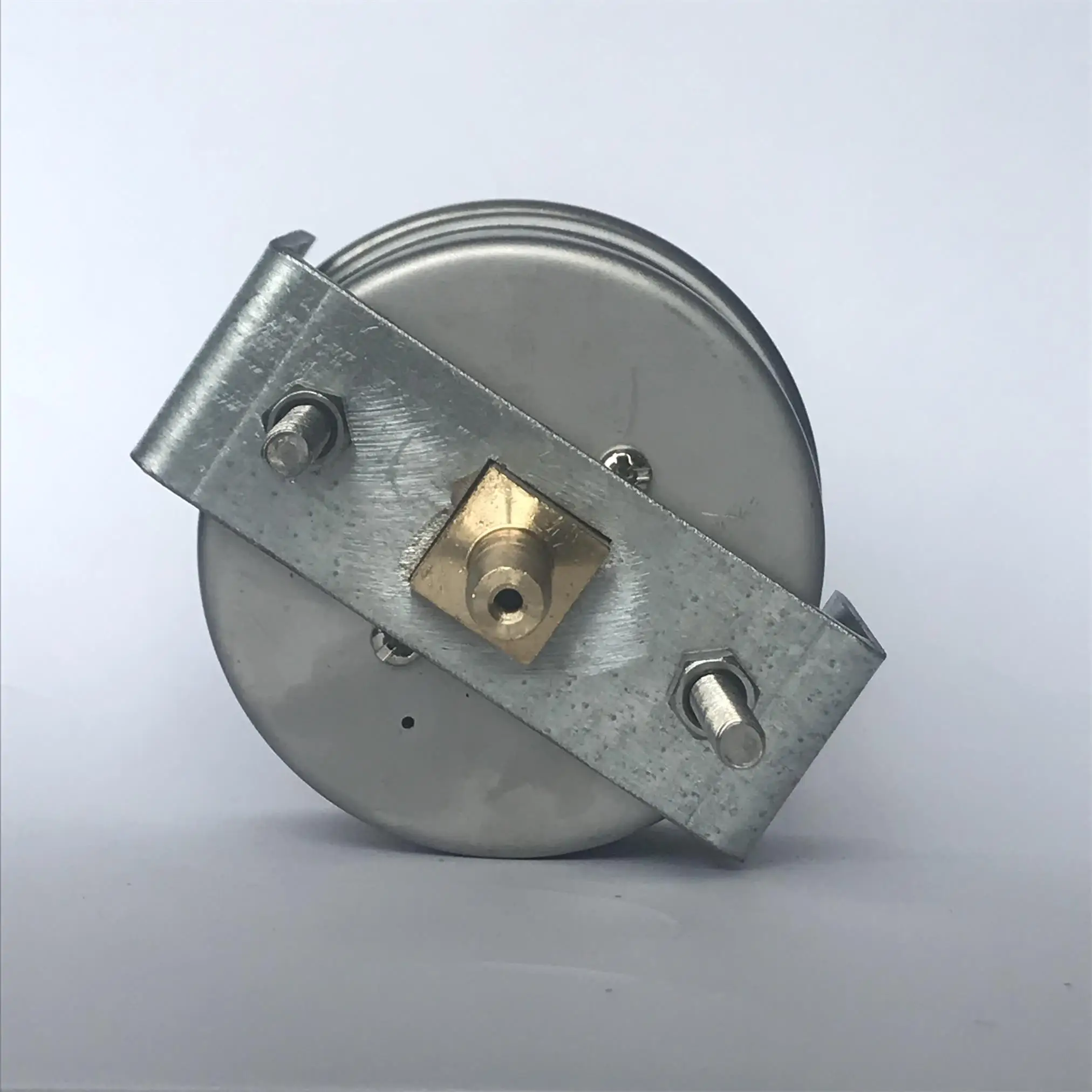

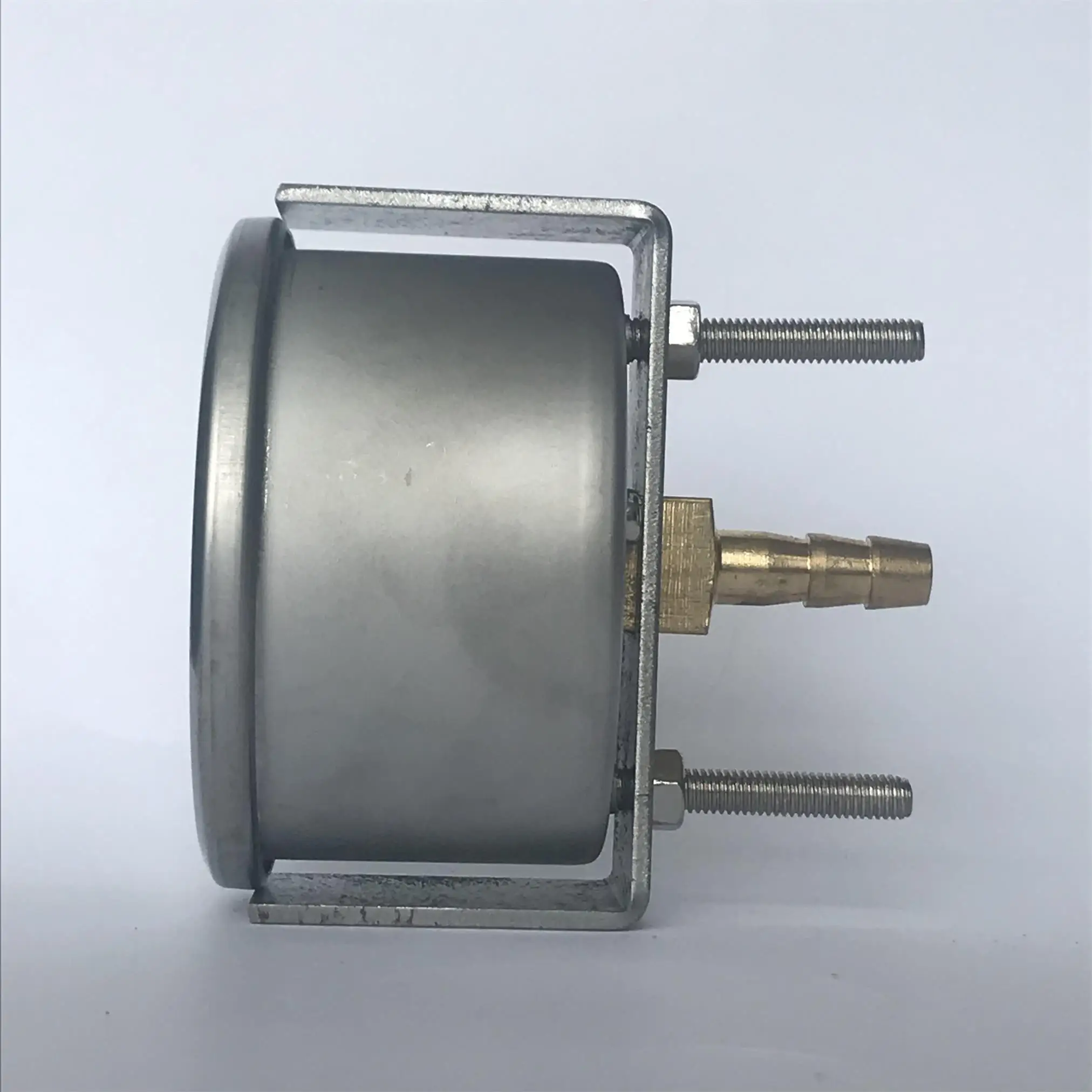

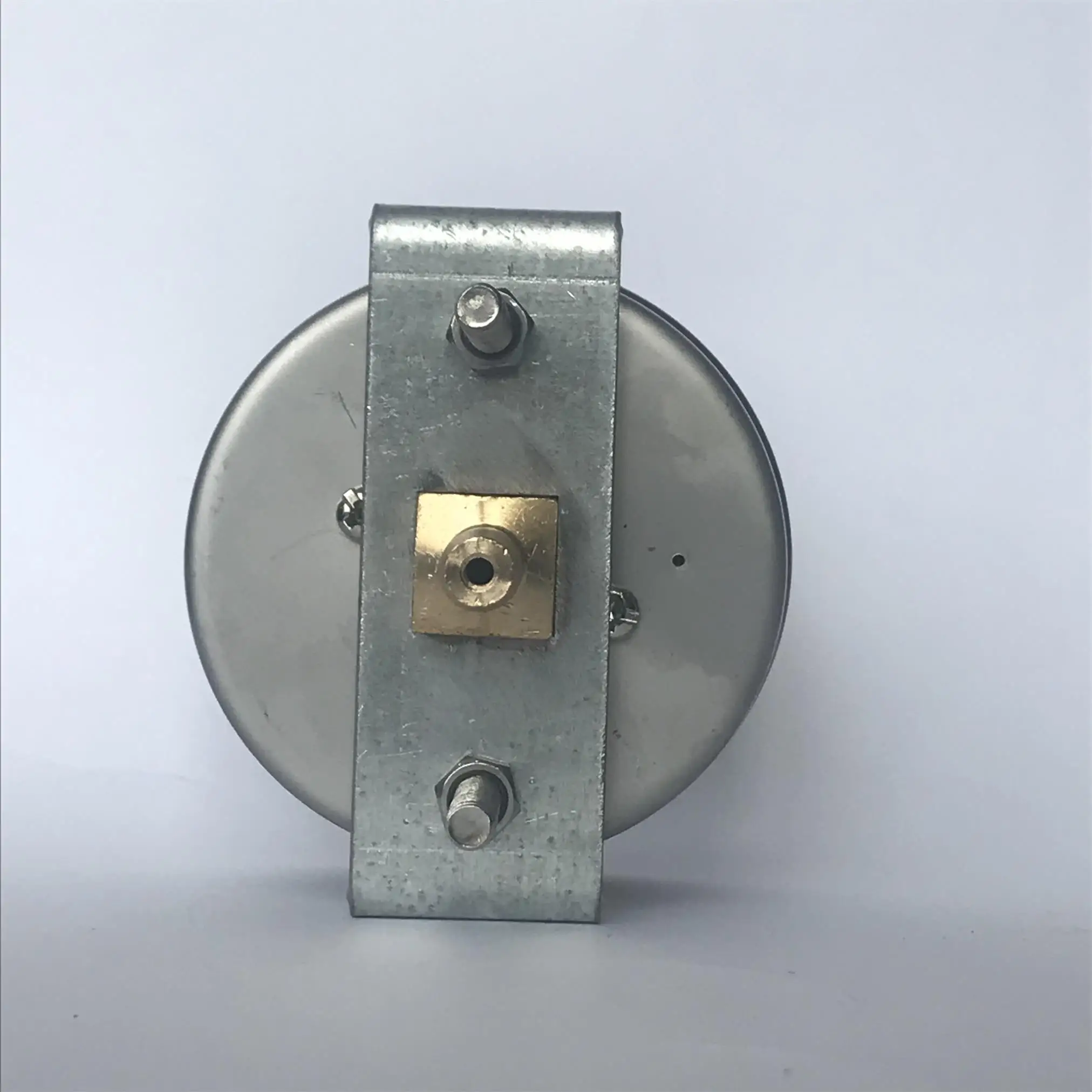

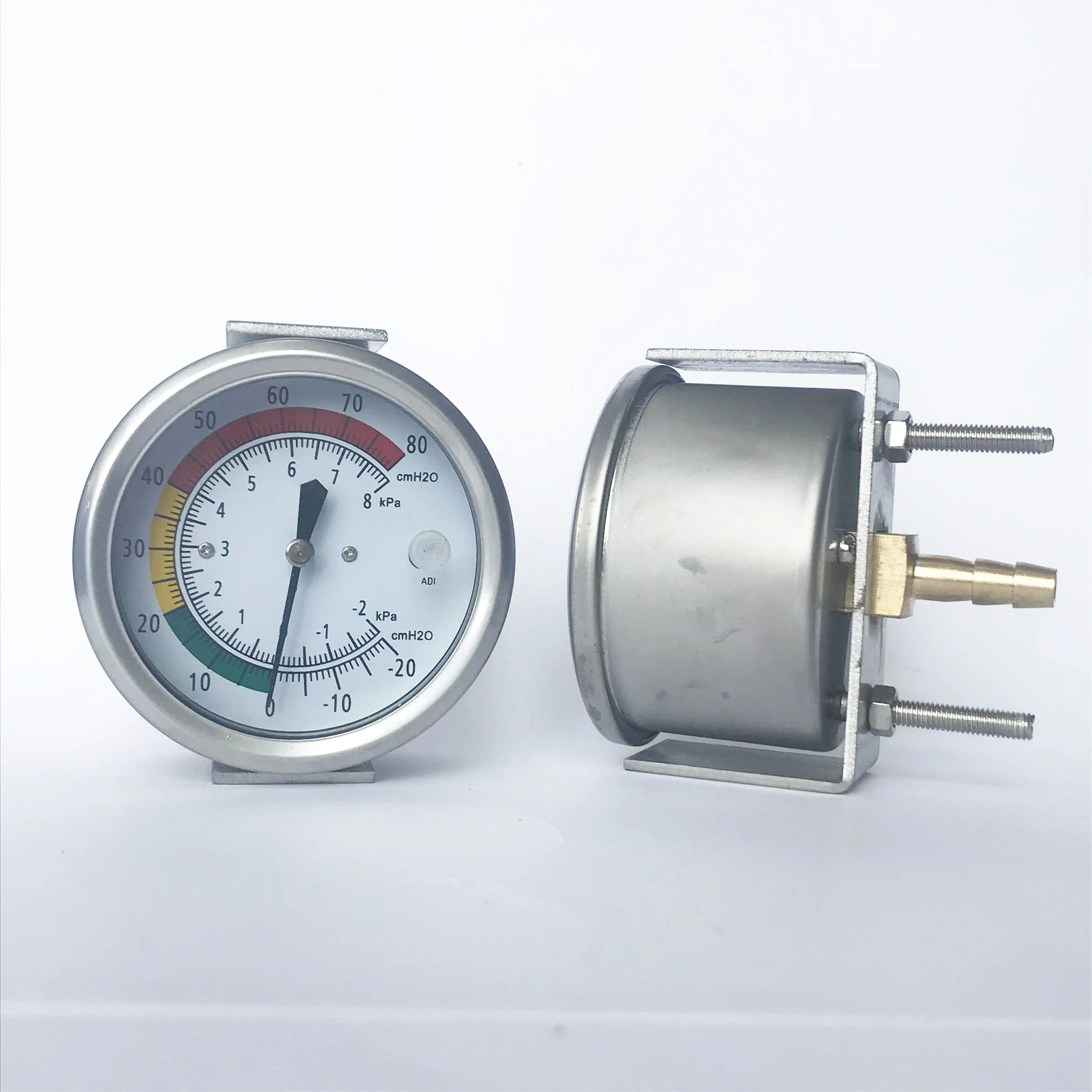

YE60DU Low pressure capsule gauge
Dial size: 2.5" (63mm)
Case/cover: Stainless steel, rolled ring
Lens: plastic
Measurement element: brass
Connection: brass
Mounting type: back type with U clamp
Thread size: customized, phi7mm,
Pressure range: -20cmH2O to 80 cmH2O (-2kPa to 8kPa)
Green scale: 0-20cmH2O; Orange scale: 20-40cmH2O; Red scale: 40-80cmH20
With Adjustable zero set
YE60DU Low pressure capsule gauge
AS AOVE,
But screw in type lens
YE60D Low pressure capsule gauge
Dial size: 2.5" (63mm)
Case: Stainless steel
Lens: Screw in type, plastic
Measurement element: brass
Connection: brass
Mounting type: back type
Thread size: customized, phi7mm,
Pressure range: 0 - 100 cmH2O / mbar
Green scale: 0-10cmH2O/mbar; Orange scale: 10-25cmH2O/mbar; Red scale: 25-100cmH20/mbar
With Adjustable zero set
How to order
Options | OEM Services |
Connection Thread size | 3/8", 1/2", 1/4", 1/8"... PT, NPT, G(BSP), Rc, ZG... |
scale Dialplate | aluminum/ PC, common/ luminous |
customize logo | available |
Package | could be customized |
Certifications
ISO9001 CE CMC KS
Company Information
Who are we?
Suzhou Power Meter Co., Ltd. is a professional manufacturer founded in 1995. We specialize in designing, manufacturing and exporting all kinds of dry pressure gauges and liquid pressure gauges, CNG pressure gauges and manometers and pressure meter.
What we do?
Our annual output of pressure gauges is one million sets. Our products are widely used in oil & gas refinery, textile & chemical industry, and machinery process.. Our excellent quality, reasonable pricing and good service are warmly welcomed by worldwide customers.
Why choose us?
Based on the corporate principle of "Top Quality, Perfect Service", we are providing our customers with top-grade products and strong technical support, as well as considerate service. We are always aiming to serve our clients by the best raw materials and well-trained staff.
Customers Inspection
FAQ
Q1. Can I have a sample order for pressure gauges?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for Pressure Gauges order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Pressure Gauges?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Pressure Gauges product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the Pressure Gauges products?
A: Yes, we offer 24 months warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.01%.
Secondly, during the guarantee period, we will send new Pressure Gauges with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Contact Us
Contact: Ms. Merry
Mobile/WhatsApp/Wechat: +86-15262457335
Skype: Shelly.Zou2323
