DALI Min Waste Skip Trucks RHD OR LHD Waste Disposal Trucks 4000L -5000L With Garbage Bin For Sales



Product Description


Arm swing arm roll garbage truck is transporting kinds of garbage in residential areas, streets, and the factory,etc. Usually one arm roll arm swing garbage truck can be equipped with many skip loader refuse bin or bucket.


1:The rubbish box can be hanged up and down;
2:One whole up and down operation takes about 60s;
3:The box can be detached from the truck body easily.
4:One vehicle can cooperate with several dustbins(box) to improve the ability of cycle operation, thereby improve transportation efficiency, especially it is suitable for short-distance transportation such as urban rubbish cleaning and transportation.
 5:Equipped with dustbin, hydraulic system and operating system
6:Equipped with two advanced double acting hydraulically cylinder


Get the latest quotation,pls contact Ms.Marilyn, WhatsApp and WeChat online: 0086-15907145633


















































































































































Product name



Dongfeng FuRuiKa garbage truck Waste Skip Trucks



Chassis name



EQ1040TJ20D3



Capacity of body



4-5cbm



Specification of vehicle



Outside dimension(mm):



6150x1950x2850



Total weight (kg):



4495



Loading weight (kg):



685



Net weight(kg):



3680



Approach / departure angle(mm):



19/13



Front / rear suspension(mm):



1032/1818



Fuel type :



Diesel



Max. speed(km/h):



95



Engine specs



Model :



CY4102-C3F/YC4F90-30/YN30CR



Manufacturer :



Dongfeng chaochai motor co., ltd.
Guangxi yuchai
yunnei



Displacement (ml):



3856/2659/2977



Power (kw):



70/66/76



Chassis specs



Driving type:



4×2



wheelbase(mm):



3300



Tread(front/rear):



1506/1442



Displacement standard:



GB17691-2005 Euro 3,GB3847-2005



Front / rear axle(T):



1.8T/3T



Gear box:



Five forwards, one revere, mechanical



Brake system:



Pneumatic



cab:



Single cab



Spring file(front/rear):



8/9+5



tyre:



7.00-16



Air condition :



Optional



Special function



Working pressure of hydraulic:



16MPa



Turn radius of loading arm



2400mm



Flux of hydraulic system:



50L/min



Max. Boom angle :



145



Lifting the bucket time:



30s



Unloading bucket time:



50s



Brief introduction



1,The large hydraulic cylinder drive the double arms, to install hydraulic legs to make sure the stability and safety of vehicle during operation.


2,the type of garbage box: sealed, semi-enclosed. The shape of garbage box: rectangular shape, trapezoidal.


3,The characterized of this vehicle: cargo compartment and vehicle body can be separated. One vehicle can work with more one garbage cargo body, recycling transport, improve the transport capacity, specially for short-distance transport, such as the sanitation department.

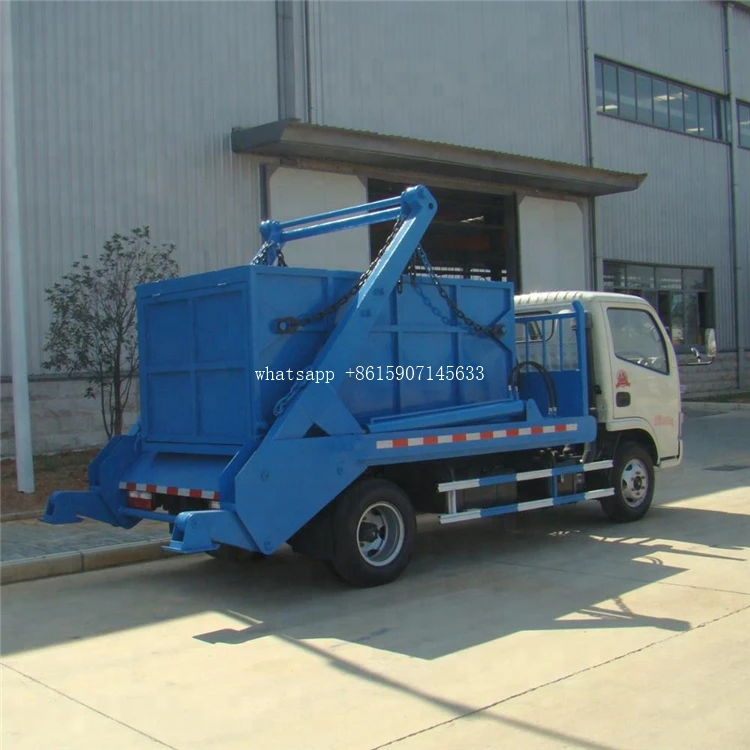

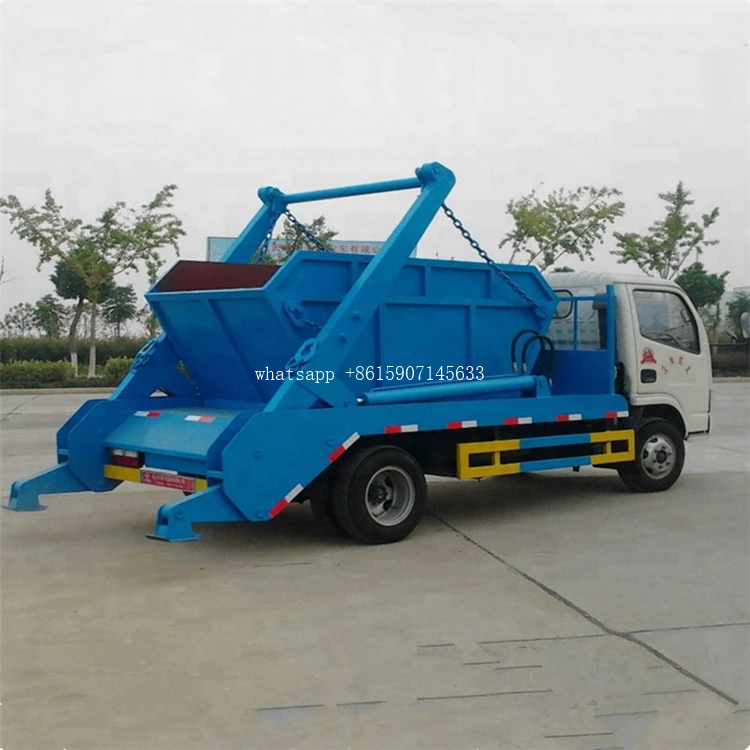

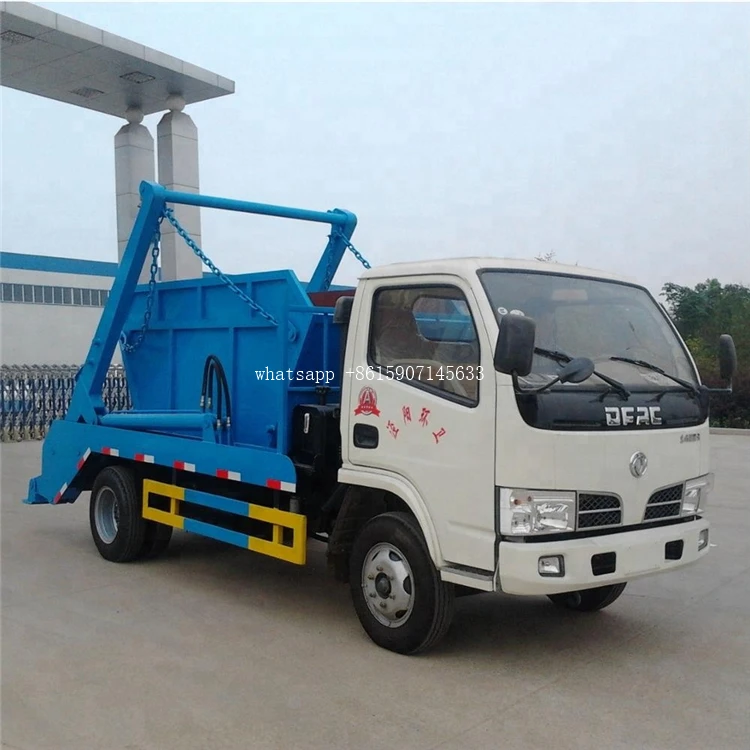

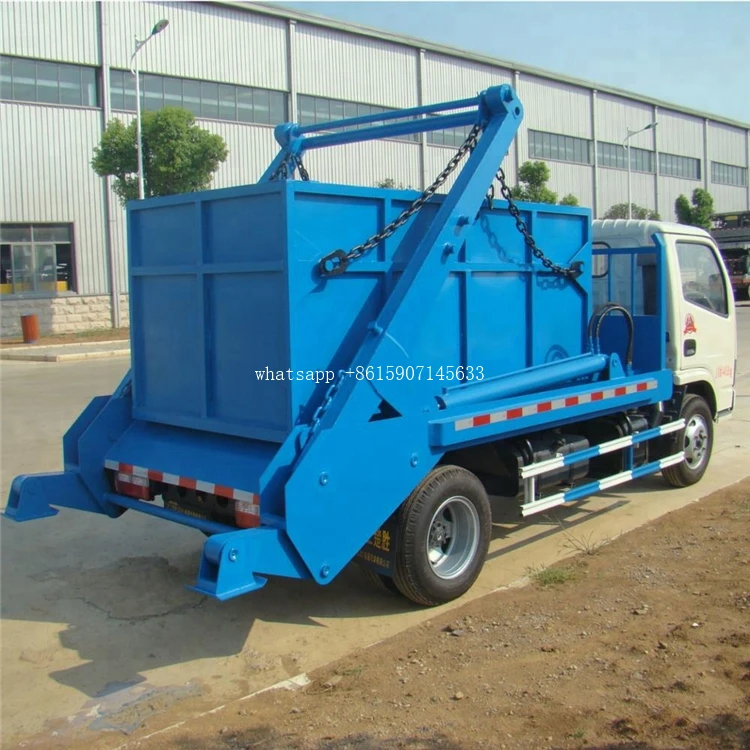

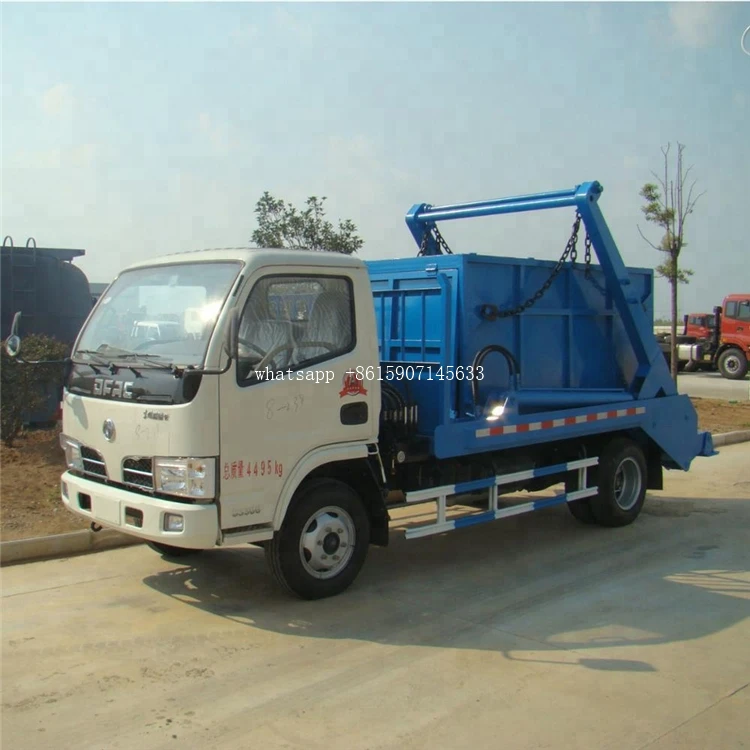

Pictures of DONGFENG XBW arm swing garbage truck price


garbage truck (2).jpggarbage truck (3).jpggarbage truck (1).jpggarbage truck (5).jpg


About Our Swing Arm Garbage Truck below:


1, General: Our skip loader Truck with 4ton -10ton capacity ;Euro 2, Euro 3 ,Euro 4 and Euro 5 Emission Standards;



2, Drive model: 4*2,6*4; Brand with Dongfeng, JMC,Qingling , JAC, Foton ,Shacman and etc.





3. Bin Material: Standard steel (Carbon steel Q235 & Q345, also the Stainless steel can be choose) for garbage tank, against corrosion resistant, rust protection and well-resisting.





4. Usage: The Skip Refuse truck is multi-functional used for garbage collection, transportation and self-discharging, Easy to operate and maintenance.





5. Swing system: The swing system use complete sets of equipment, safe and reliable, we have domestic brand and imported brand for optional





6. Advantage: Adopts one truck match numbers of garbage tank, loop transportation, which can highly improve the work efficiency, also reduce the cost.





7. Composition: The DongFeng 4-12CBM Skip Refuse truck composed of chassis, garbage tank, swing-arm reducer bumper cylinder and so on, Characterized by the separation of garbage tank.


Take a look at the key components:


garbage truck (1).jpg


garbage truck (2).jpg


Swing Arm Garbage Truck Work diagram garbage truck (3).jpg
