Qingdao Shanchuan(xingjia) Machinery Co. Ltd.. Professional Production: Wood Plastics Embossing Machine

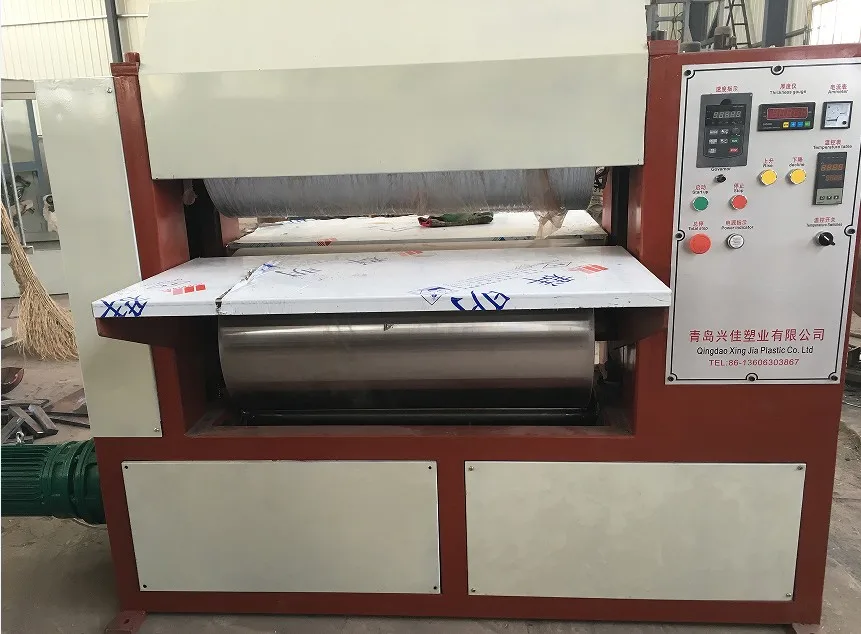

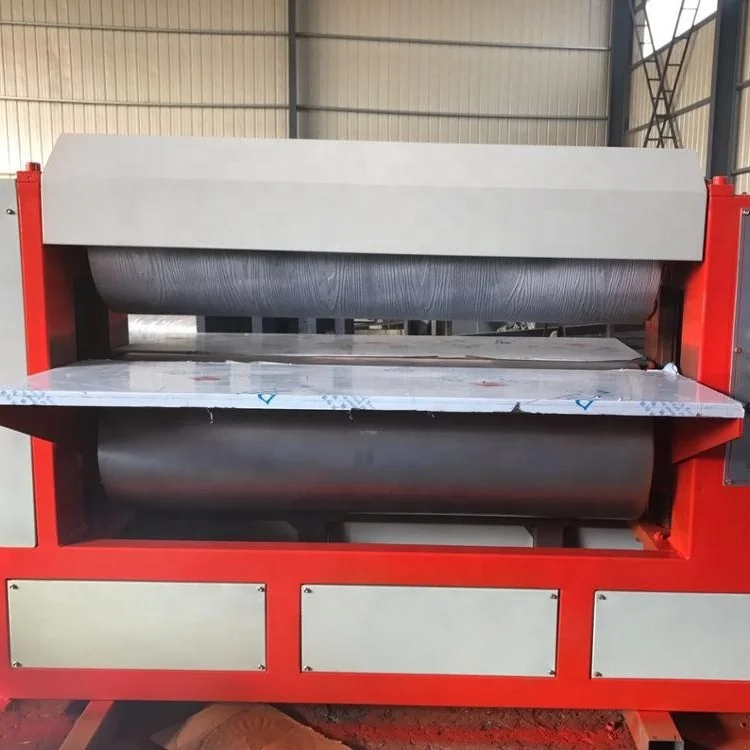

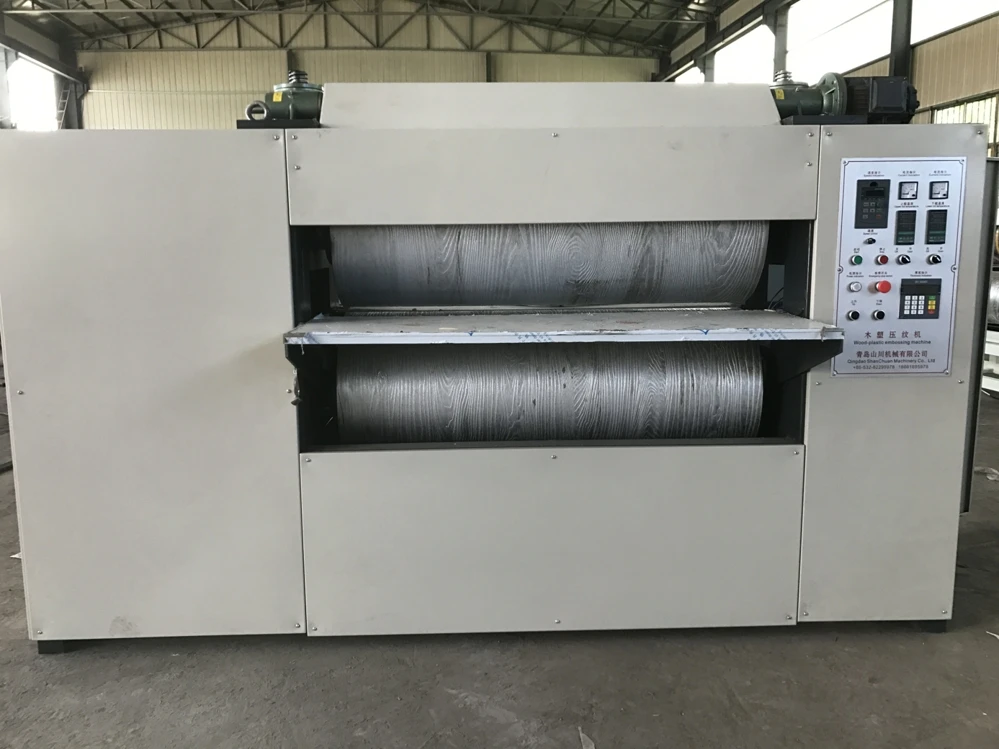

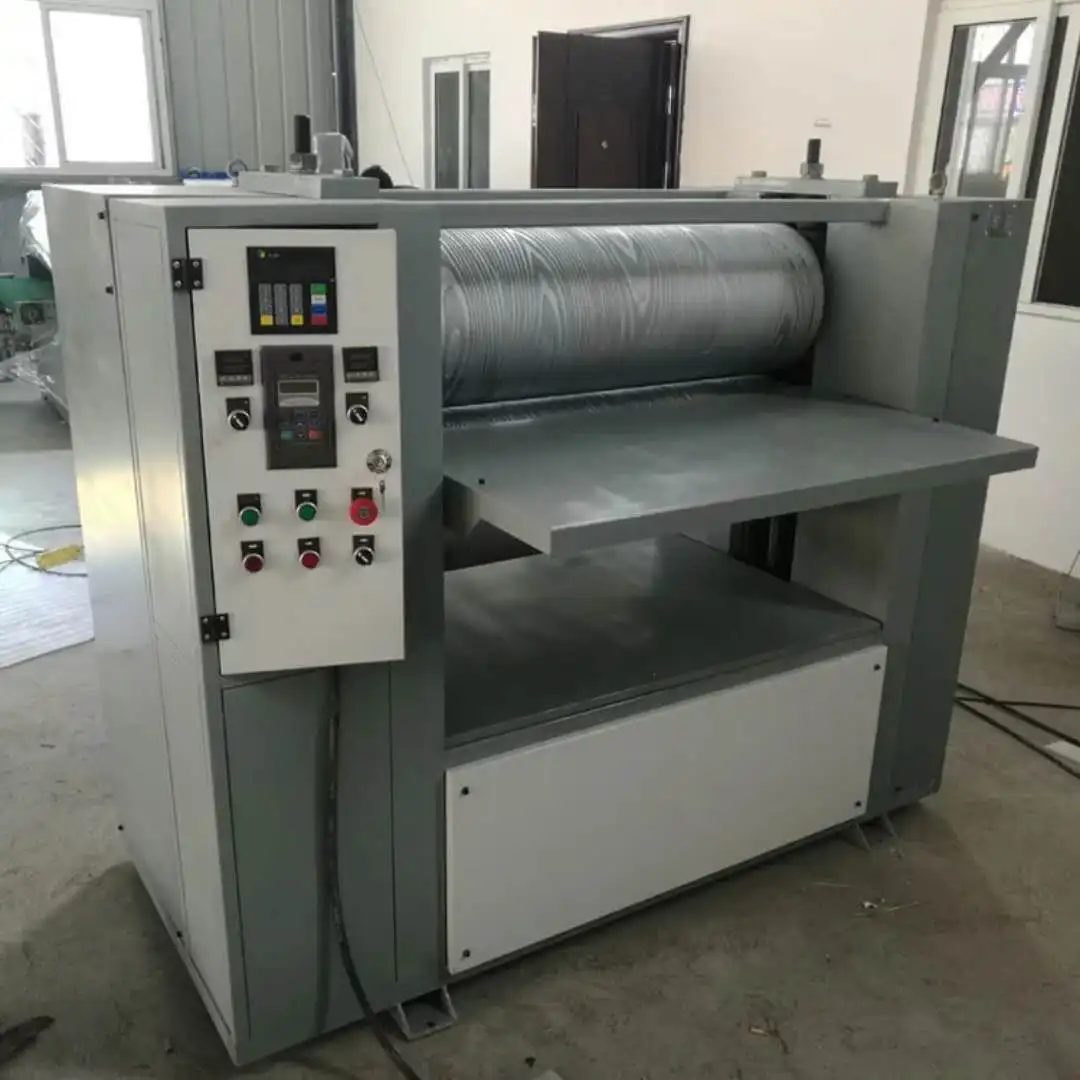

The wood molding press produced by the company is specially used for supporting wood molding machinery production line. The process is advanced, the quality is reliable, the production is stable, and has a variety of pressing lines. According to the pattern samples provided by the user processing out of a variety of roller mold, novel style, complete functions, beautiful and generous, economical and practical.
1, the wood plasticizer has a height of 1380 × width of 1920 × length of 2250, and a wood pattern width of 400-1200mm. It is a practical model that is suitable for strong and cost-effective use. If the user has special requirements, our company can adjust the width of the wood pattern according to the user's requirements, according to the specific requirements and customized.
2, in order to improve the quality of wood molding products, the wood molding machine installed a heating device. The intelligent digital display automatic detection control instrument is adopted, which has the characteristics of high display accuracy, good temperature control performance, strong earthquake resistance, good reliability, clear reading, and poor disregard. The temperature can be set arbitrarily from 0 °C to 250 °C, and it is automatically controlled, which fully meets the requirements of wood molding.
3, the thickness of wood plastic products is different, and the structure is relatively complex. According to this characteristic, the wood molding press increases the room for roller adjustment, and the thickness of the pressing product can be arbitrarily adjusted between 0 and 150 mm. This machine uses a small manual hydraulic pump station with advanced technology to convert manual mechanical energy into liquid pressure energy, which drives the two cylinders to adjust arbitrarily up and down, and the pressure is controlled between 1Mpa-19Mpa. To ensure that sufficient pressure is maintained throughout the production process.
4, the woodwork plasticizer has the function of arbitrarily adjusting the speed of the plasticizer. This machine adopts an advanced cycloid needle wheel reducer and is equipped with a 2.2kw variable frequency speed motor. The user can set the speed between 0-20 m/min according to the demand of the embossed product. Make the lines clear, smooth, beautiful and durable.
5, the company uses advanced CNC carving technology and excellent laser typesetting etching technology, pressing wood pattern clear, vivid, three-dimensional strong pattern.



MSY 850 parameters:



roll diameter	350mm
height	150mm
width	850mm
power	380V3ph50hz
motor	1.5kw
heating power	5kw
working speed	1-10m/min
embossing depth	0.15-0.6mm
pressure	5T
center height	900mm

Siemens electric including electrical and operation instructionsTaiwan DELTA Frequency conversion speed regulation system

L*W*H: 1700*700*1500(mm)

weight:1000kg
