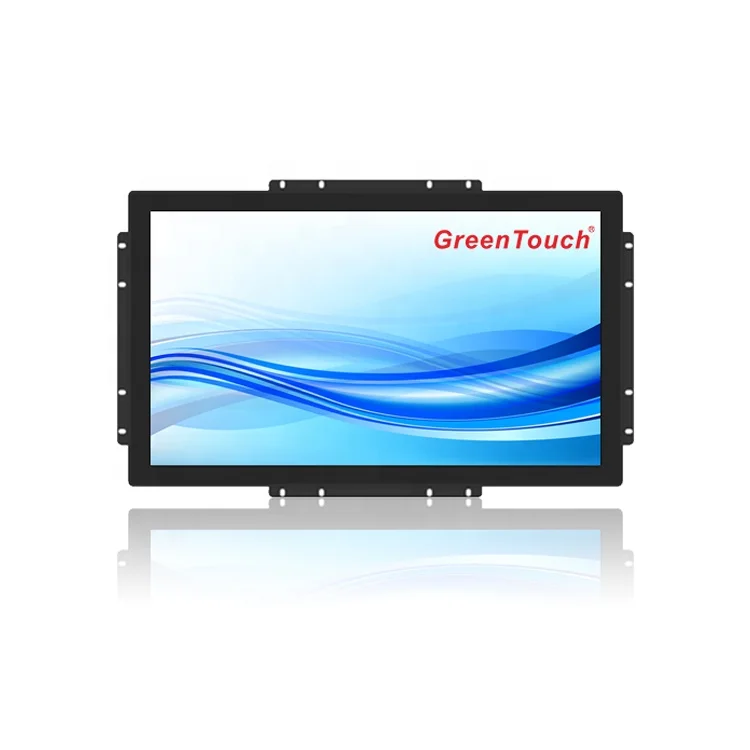

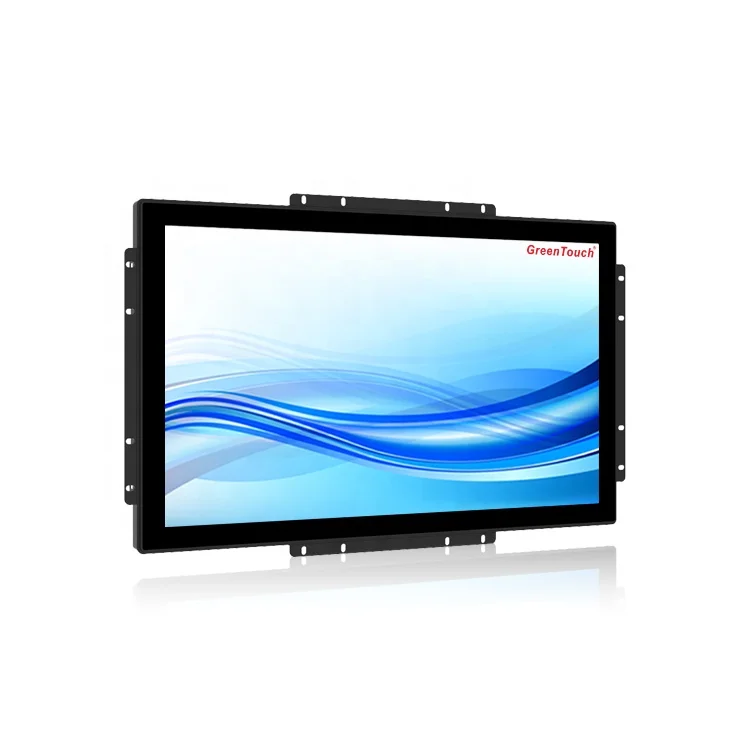

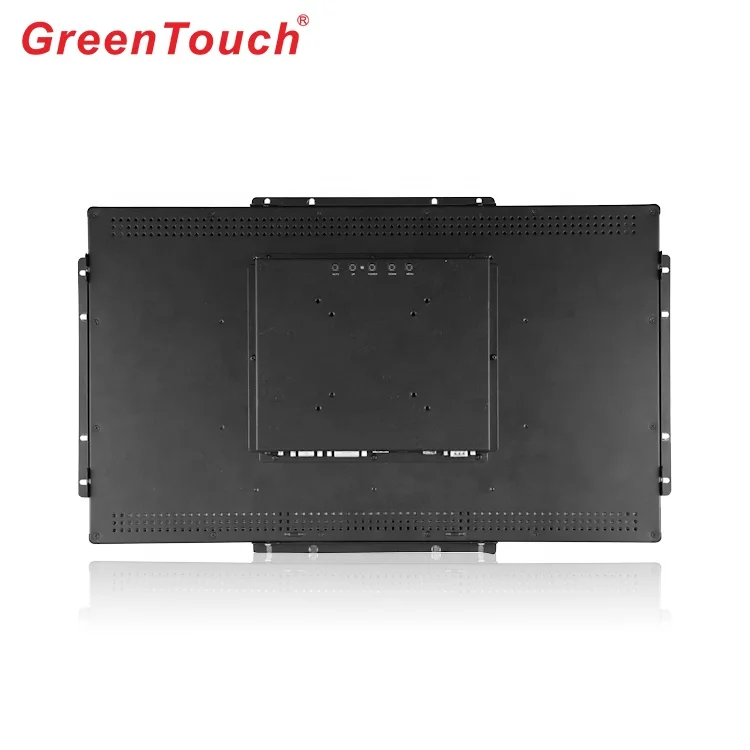

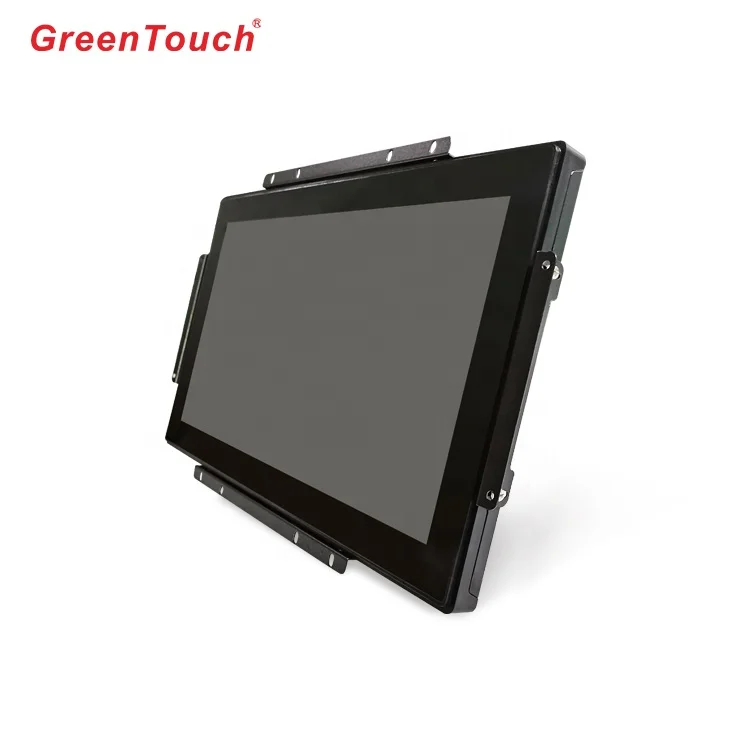

GreenTouch 21 5 дюймовый емкостный сенсорный ЖК-монитор с сенсорным

Описание и отзывы

Трекер стоимости

Характеристики

Product Parameters
Product Name:	Touch Screen Monitor
Model No.:	GT-TM-2152C
Display Type:	Active Matrix TFT LCD, LED Backlight
Touch Technology:	Projected Capacitive (10 Points)
Case/ frame Color:	Black
The Diagonal Dimension:	21.5" diagonal
Aspect Ratio:	16:9
Overall Dimensions:	532W)*319(H),Thickness:47mm
Active Area:	476.6mm(H)*268.1mm(V)
Display Colors:	16.7M
Resolution(pixel):	1920*1080 @Hz
Brightness(Standard):	250 cd/m²
Response time:	5 ms
View Angle(from center):	L/R:89/89;U/D:89/89 (Typ.)(CR≥10)
Contrast Ratio:	1000:1(Typ.)
Input:	VGA,DVI,HD(optional DP)
Input Video Signal Connector:	Female head DE - 15 connector, female head DVI - D, Dual -Link connector, female head HD connector
OSD:	Digital OSD
User Controls:	OSD Button: Menu, Up, Down, Select, Power
Power:	Power connector (on power adapter) - Type: DC cartridge Plug: Cartridge OD: 5.5 mm (± 0.1mm); Needle Inner Diameter:2.1 mm (± 0.1 mm); Cartridge Length: 9.5 mm (± 0.5 mm)
	External DC, input voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS (for all in one PC) - Type: DC cartridge receptacle; Cartridge ID: 5.5 mm(± 0.3 mm); Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridge depth: 8.0 mm (± 0.3mm);
Temperature:	Work: 0 ° C ~ 40 ° C; Storage: -20 ° C ~ 60 ° C
Humidity:	Work: 20% to 80%; Storage: 10% to 90%

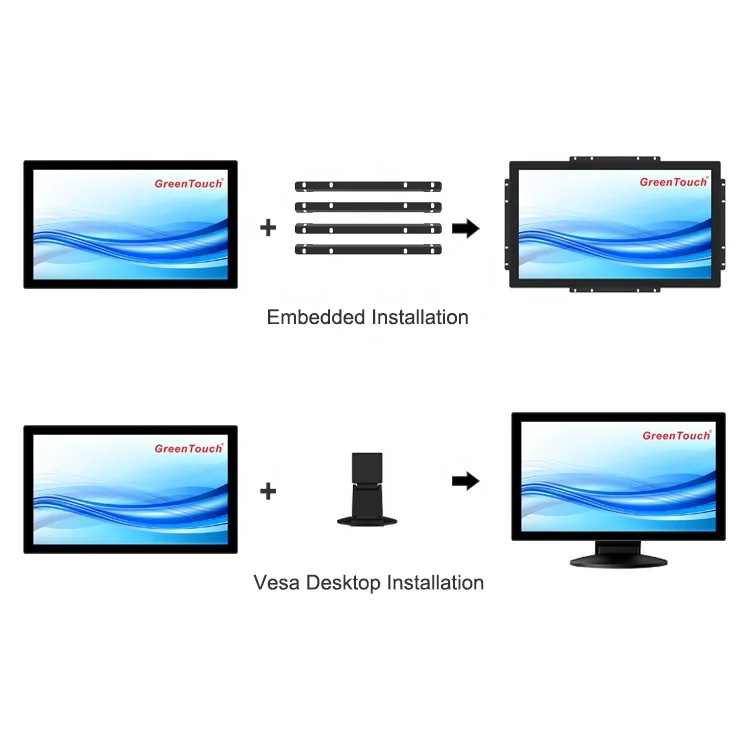

Installation options:	Open Bracket Mounting,VESA Mounting;
Warranty:	1 Year
Certificates:	FCC, CE,RoHS,CB,HD

Other Size Reference
Size	Model	Ratio	Overall Dimensions(W*H*T)	Active Area	Brightness	Resolution	Net weight(approximate)
10.1”	GT-TM-1012C	16:10	265*179.5*45mm	216.96*135.6mm	330 cd/m²	1280*800 @Hz	2.8 kg
15”	GT-TM-1502C	4:3	355*279*47mm	304*228mm	300 cd/m²	1024*768 @Hz	4.21 kg
15.6”	GT-TM-1562C	16:9	398*248*47mm	344*193.5mm	400 cd/m²	1920*1080 @Hz	3.67 kg
17”	GT-TM-1702C	5:4	385*317*47mm	337.9*270.3mm	250 cd/m²	1280*1024 @Hz	4.97 kg
18.5"	GT-TM-1852C	16:9	457*281*47mm	409.8*230.4mm	250 cd/m²	1366*768 @Hz	4.98 kg
19"	GT-TM-1902C	5:4	430*355*47mm	376.3*301mm	250 cd/m²	1280*1024 @Hz	5.9 kg
21.5"	GT-TM-2152C	16:9	532*319*47mm	476.6*268.1mm	250 cd/m²	1920*1080 @Hz	6.3 kg
22"	GT-TM-2202C	16:10	527.2*350*60mm	473.7*296.1mm	250 cd/m²	1680*1050 @Hz	7.5 kg
23.6"	GT-TM-2362C	16:9	581.8*350.8*60mm	521.2*293.2mm	300 cd/m²	1920*1080 @Hz	7.7 kg
23.8"	GT-TM-2382C	16:9	586*356*47mm	527*296.4mm	250 cd/m²	1920*1080 @Hz	7.55 kg
27"	GT-TM-2702C	16:9	655.7*396*55mm	597.8*336.3mm	300 cd/m²	1920*1080 @Hz	10.38 kg
32"	GT-TM-3202C	16:9	749.1*452.7*65mm	698.4*392.8mm	400 cd/m²	1920*1080 @Hz	13.3 kg
43"	GT-TM-4302C	16:9	1007.3*596.6*69mm	940.8*529.2mm	400 cd/m²	1920*1080 @Hz	15.2 kg
49"	GT-TM-4902C	16:9	1141.9*672.2*71mm	1073.7*604mm	380 cd/m²	1920*1080 @Hz	18.2 kg
55"	GT-TM-5502C	16:9	1277.7*748.5*70mm	1209.6*680.4mm	400 cd/m²	1920*1080 @Hz	20.2 kg

Engineering Drawings GT-TM-2152C
