Faster cooling hydraulic hot press up to 250C for preparing polymer samples

Product Description

Brief introduction of the Small Hydraulic Lamination Hot Press:



CY-YLJ-HP88V is consists of a hydraulic press with manually operated oil pump & two heated platens. The temperatures of heated platens are controlled by two digital temperature controllers separately up to 250℃. Water cooling jackets are installed with heating plate that allow heated plate get faster cooling. One pressure gauge (250 KN) is also mounted to monitor the pressure applied on the platens. It is an excellent tool to prepare polymer and ceramic samples.



Specification of the Small Hydraulic Lamination Hot Press  :

Max. Working Pressure

25 metric Tone ( 250 KN)

Pressure Gauge

Measuring Accuracy is +/-1.25 KN

Heated Platen Area

  • Platen Area: 200mm x 200mm
  • Material: Casting Aluminium with 5 mm thick Headen Steel with Cr plated
  • Surface: Flating with CNC grinding

Max. Travel Distance

  • 140mm Max.

Max. Working

Temperature

  • 200℃ continous
  • 250℃ for less 30 minutes

Heating Rate

  • 3℃/min

Water Cooling Jacket

  • Two water cooling jacket are built on back of top and bottom heating plate separately with 1/4"
  •  water pipe connectors. Such a configuration allows you cool the sample as soon as
  • the hot pressing process is completed.
  • Please consider to use one recircultion water chiller to save water and protect the environment


Temperature Control

  • Two digital controller installed in one box with one point control and ayto-tune faction
  • Temperature accuracy ±1℃.

Power Requirement

  • 220VAC ( 208 - 240V) , 3000W max.
  • Note:15A circuit breaker is required for 220V, 5' length power cable included, but no plug

Compliance

  • CE Certified

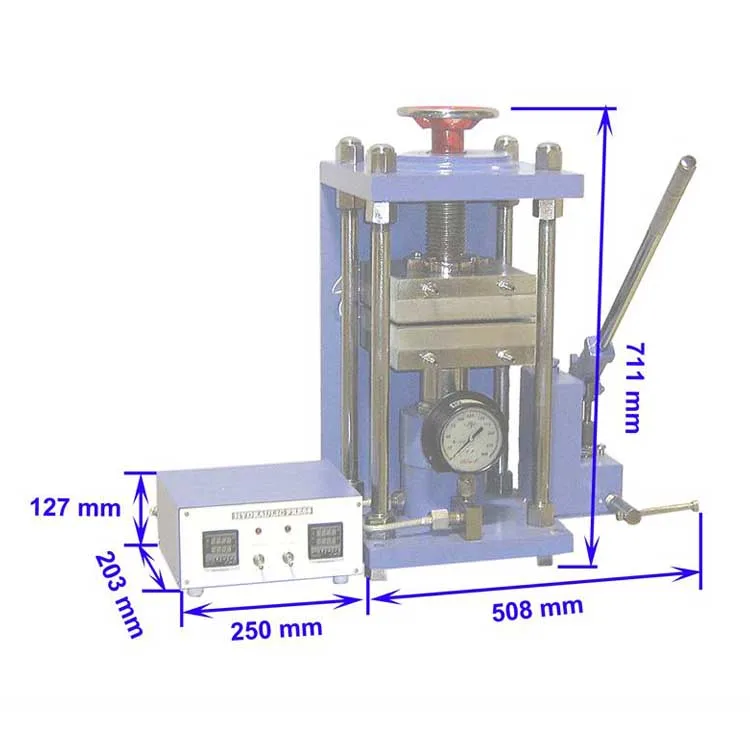

Machine Dimensions ]Pictures


Shipping Size

48‘’(L) x 40''(W) x 44''(H)

Shipping Weight

430 lbs

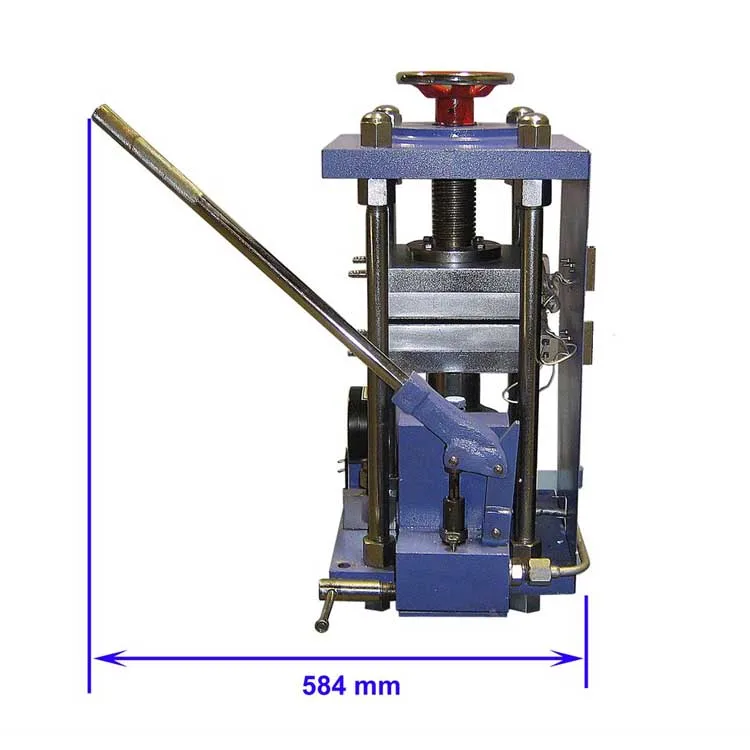

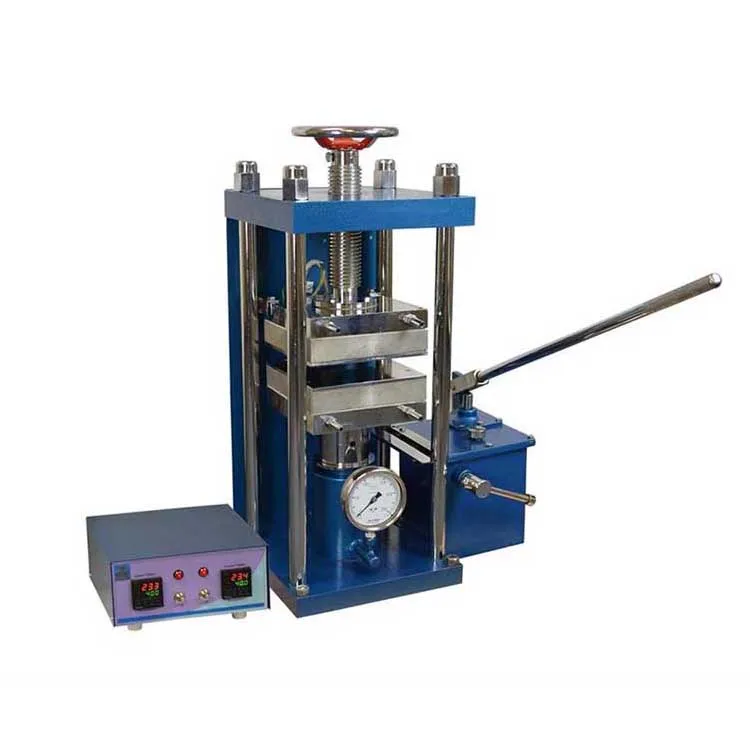

Display of the Small Hydraulic Lamination Hot Press

Hydraulic Lamination.jpgHydraulic Lamination1.jpgHydraulic Hot Press2.jpg
