Корпус газовой линзы 45V26 tig torch
US $1.80-$2.00
BAg-22/Ag49Mn безкадмиевая Серебряная паяльная полоса 49Ni4 алмазные сегменты на пиле Balde сварочные сплавы серебряные паяльные фольгированные
- Категория: Other Welding & Soldering Supplies >>>
- Поставщик: Anhui,Huazhong,Welding,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 491.2 $* | 501.27 $* |
| Jul-19-2025 | 399.75 $* | 407.65 $* |
| Jun-19-2025 | 484.59 $* | 494.45 $* |
| May-19-2025 | 480.53 $* | 490.60 $* |
| Apr-19-2025 | 383.51 $* | 391.89 $* |
| Mar-19-2025 | 472.52 $* | 481.28 $* |
| Feb-19-2025 | 468.70 $* | 477.49 $* |
| Jan-19-2025 | 464.4 $* | 473.91 $* |
Характеристики
Product Description:
Silver Braze 49Ni4 has excellent wetting properties.
It is used extensively for brazing tungsten carbide inserts to cutting tools and rock drills.
It may be used for joining all types of stainless steels and carbon steels.
Silver Braze 49Ni4 is a cadmium-free, low temperature brazing filler metal used for brazing of tungsten carbides, steels and stainless steels.
Because of its high manganese content, Silver Braze 49Ni4 may tend to liquate (separation into low and high melting constituents).
However this can be mitigated by rapidly heating the joint assembly through of the melting range Silver Braze 49Ni4.
Flux may be used, but on some more of the more difficult to braze alloys, such as carbides and stainless steels, flux assists in producing better wetting of the joint surfaces.
The properties of a brazed joint are dependent upon numerous factors including base metal properties, joint design, metallurgical interaction between the base metal and the filler metal.
The results below are generated from Silver Braze 49Ni4 butt joints which were tested under standard room temperature conditions.
Silver Braze 49Ni4 conforms to American Welding Society (AWS) A5.8/A5.8M BAg-22
| Norms | HZ-Ag49Mn |
| EN1044 | - |
| AWS5.8 | BAG-22 |
| DIN8513 | - |
| Melting Range ℃ | 680-699 |
| Chemical Composition | Ag: 49%% Cu: 16% Zn: 23% Mn: 7.5% Ni: 4.5% |
| Size Specifications: | 0.1-1.0 mm Thickness; ≤100 mm width |
| Package | 1 kg/roll; 20 kg/CTN 500 kg/wooden box |
| Payment Terms | T/T, Western Union, Paypal |
| Shipping Method | By sea, by air or by express service |
Certificates:

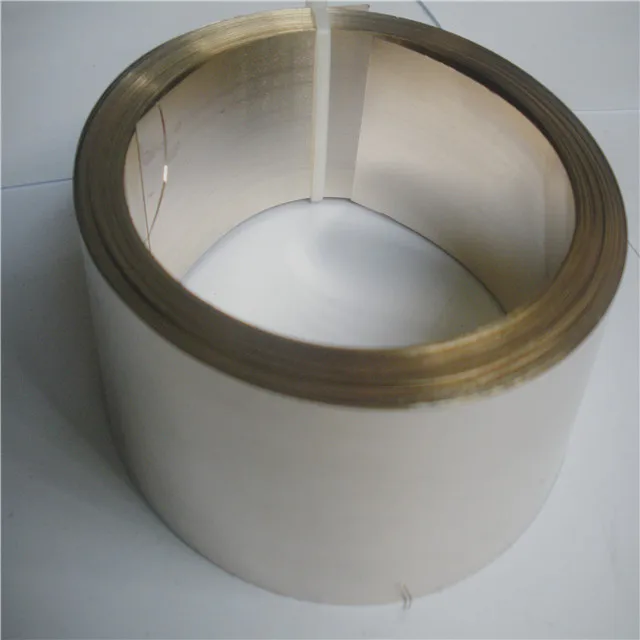

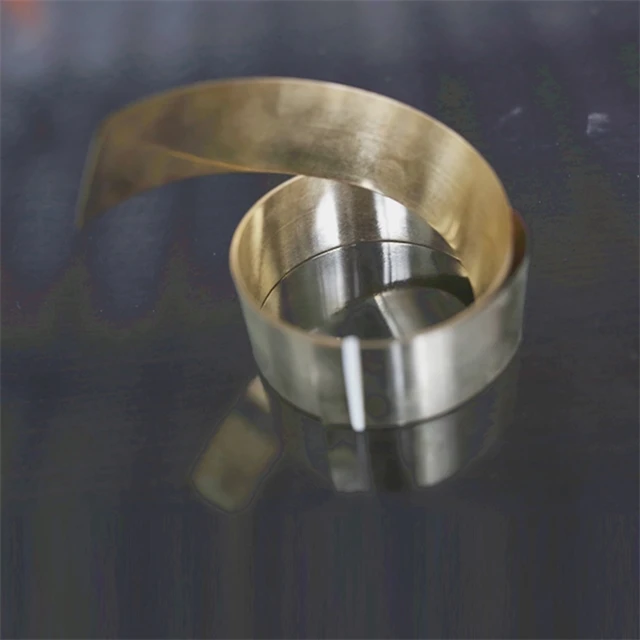

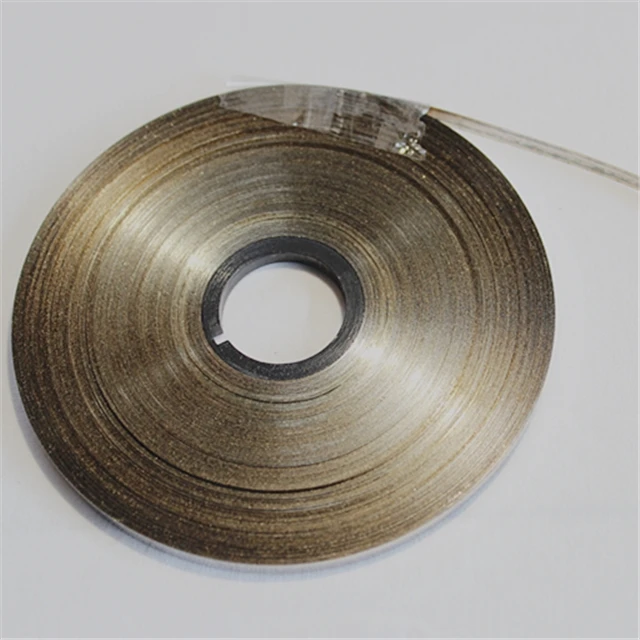

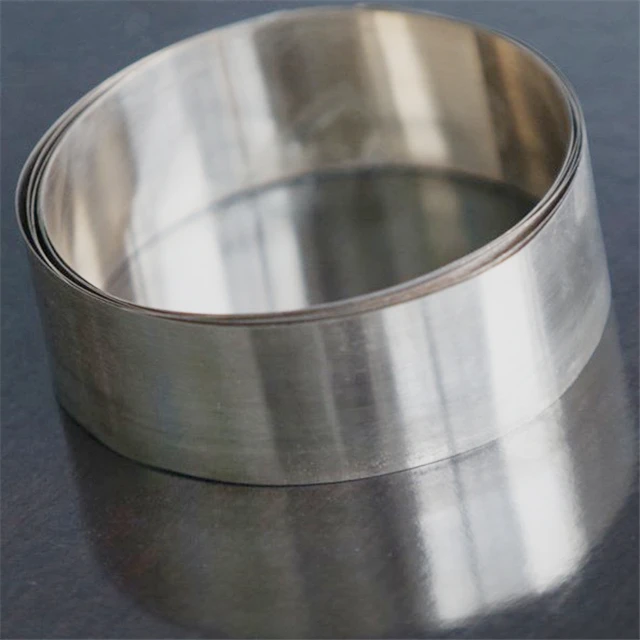

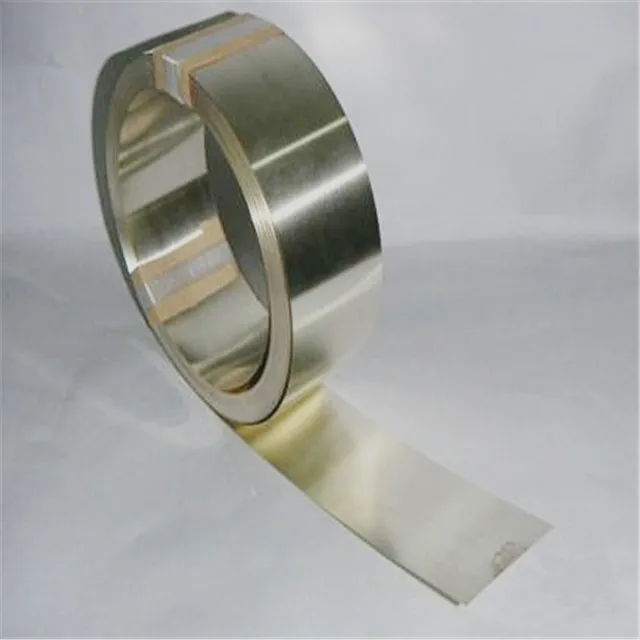

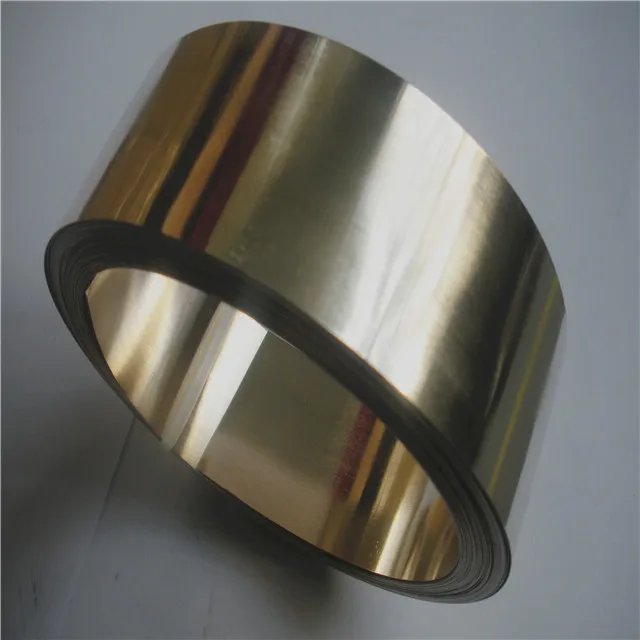

Reference Photos:
Our Company:
Anhui Huazhong Welding Material Manufacturing Co., Ltd is established in 2004, and located in Hefei--the central City of Anhui Province.
We are specialized in manufacturing and producing brazing materials.
Our main products include silver-based brazing filler metal, copper-based brazing filler metal, aluminum-based brazing filler metal and associated brazing flux, flux-cored welding wire etc.
Our brazing flux products include: silver welding paste, silver welding powder, copper welding paste, copper welding powder, aluminum welding paste, aluminum welding powder, spot welding paste (water), etc.
The available shape of brazing alloys are rod, ring, sheet, strip, wire etc.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
