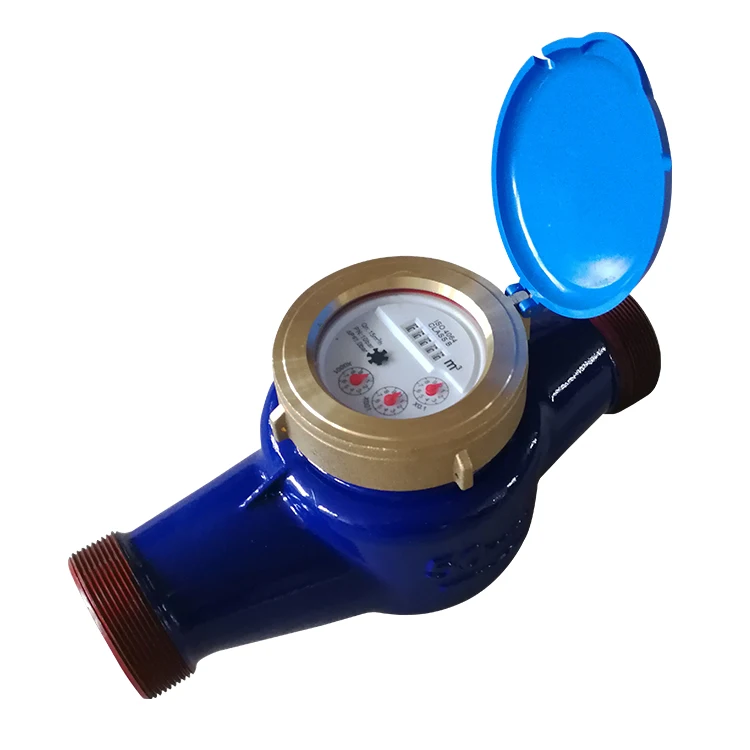

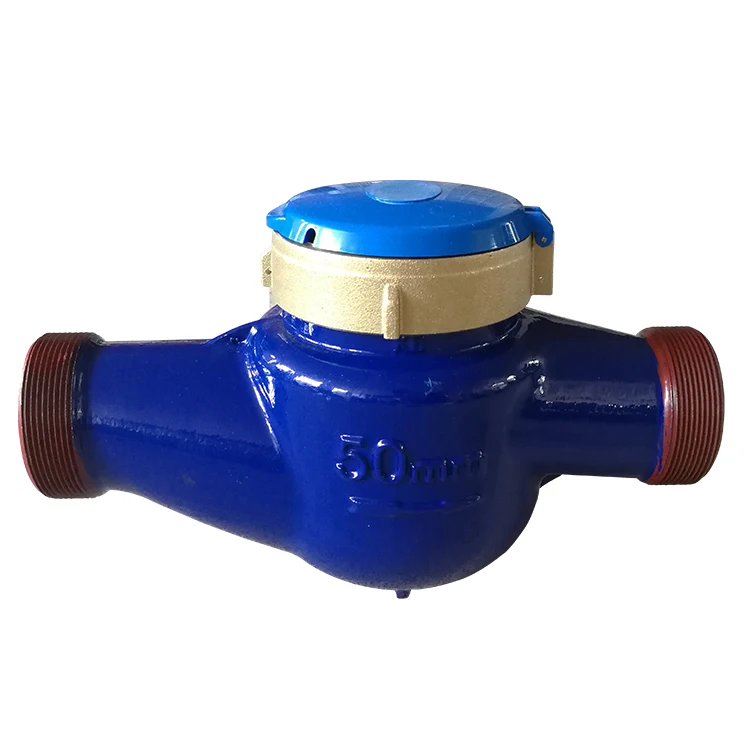

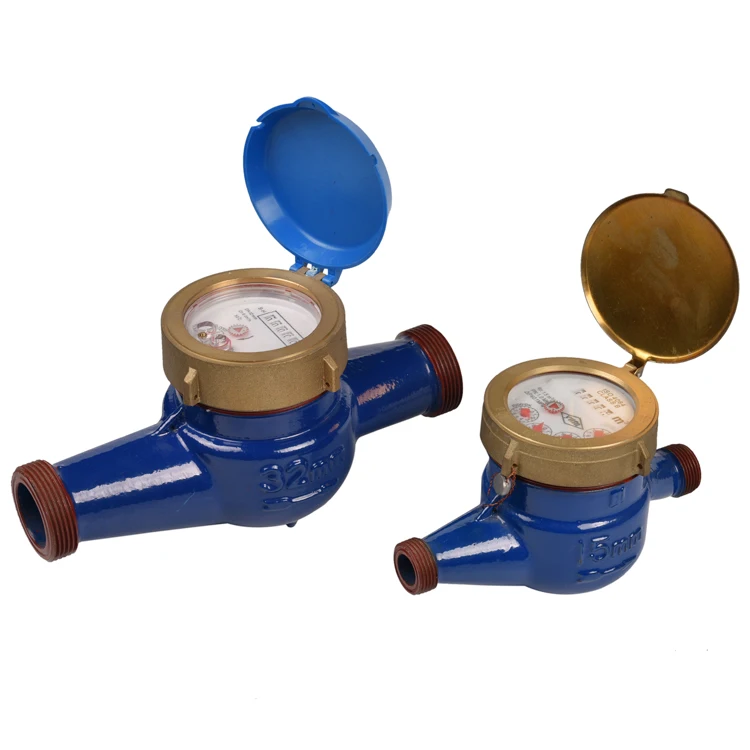

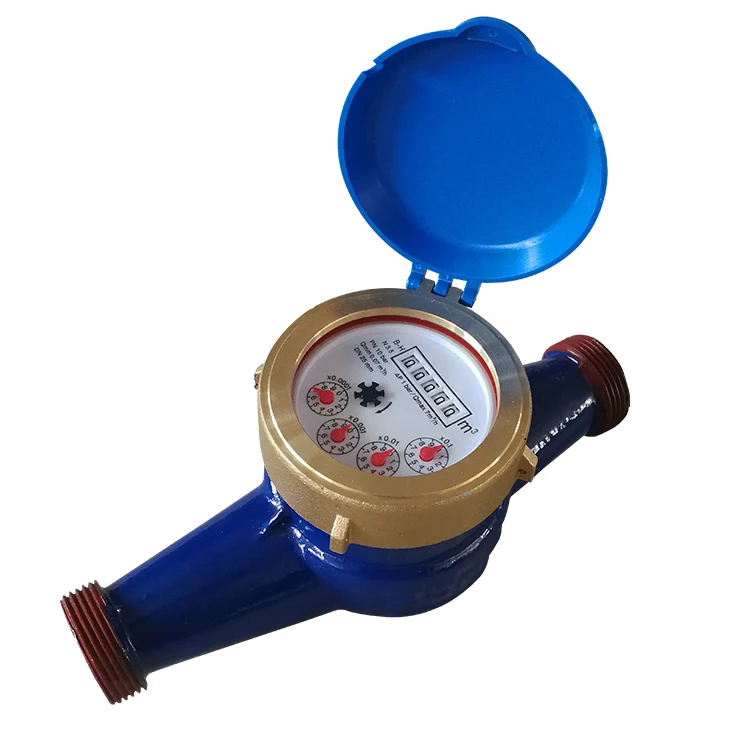

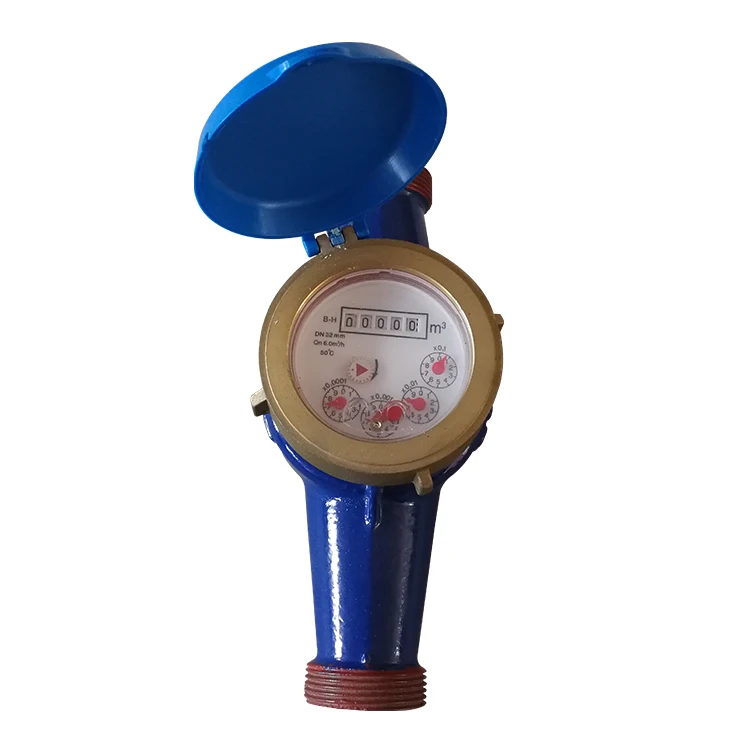

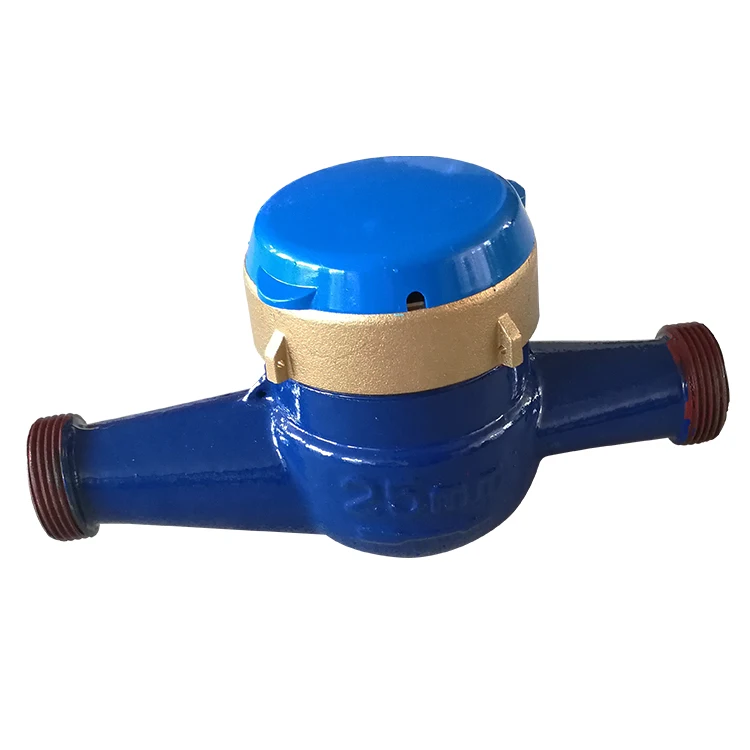

Lxsg 15E-50E Multi Jet Железный корпус счетчика

Описание и отзывы

Трекер стоимости

Характеристики

Application
Measuring the total volume of cold potable water passing through the pipeline



Feature
Dry type, magnetic drive, easy and long term clear reading, frost resistance, long working life ect;
Technical data conform to international standard ISO4064 Class B Class C R80,R100,R125,R160.
Data Output Options: 10 L/Pulse, 100 L/Pulse, or 1000 L/Pulse



Working condition
Water temperature: 0.1°C~50°C for cold water meter
Water pressure   : ≤1.0Mpa
Compliance with standard: ISO4064(GB/T778.1-1996) ISO4064(GB/T778.1-2007)

Maximum permissible error
(1) in the lower zone from Qmin(Q1) inclusive up to but excluding Qt(Q2) is ±5%.
(2) in the upper zone from Qt(Q2) inclusive up to and including Qs(Q4) is ±2%;(Hot water meter ±3%)



MAIN TECHNICAL SPECIFICATIONS
According ISO4064(GB/T778.1-1996) standard

Type	Size   (mm)	Class	Qs Overload Flow	Qp Permanent    Flow	Qt Transitional Flow	Qmin Minimum Flow	Minimum Reading	Maximum Reading
			m3/h		L/h		m3
LXSG-15E	15	B	3	1.5	120	30	0.0001	99,999
		C			22.5	15
LXSG-20E	20	B	5	2.5	200	50	0.0001	99,999
		C			37.5	25
LXSG-25E	25	B	7	3.5	280	70	0.0001	99,999
LXSG-32E	32	B	12	6.0	480	120	0.0001	99,999
LXSG-40E	40	B	20	10	800	200	0.001	99,999
LXSG-50E	50	B	30	15	3000	450	0.001	99,999



According ISO4064(GB/T778.1-2007) standard

Dimensions and Weight

Type	Meter Size	Length	Width	Height	Connecting		Weight
					Thread
	mm	mm			D	d	kg
LXSG-15E	15	165	99	108	G3/4B	R1/2	1.4
LXSG-20E	20	195	99	108	G1B	R3/4	1.7
LXSG-25E	25	225	104	114	G11/4B	R1	2.4
LXSG-32E	32	230	104	120	G11/2B		2.7
LXSG-40E	40	245	128	158	G2B	R 11/2	4.5
					Flange connecting conform
LXSG-50E	50	280	128	183	D1=160 D2=125 4-M16		12
