Pyrolysis is the thermal decomposition of materials in the absence of oxygen. In the case of the pyrolysis of rubber tyres, the rubber degrades under high temperatures and long-chain hydrocarbons in rubber are broken down into compounds with shorter carbon chains in the reactor, yielding oil, gas and carbon black.











Output product and usage
1	Tyre oil	50%	• can be sell directly. • make diesel and gasoline by used oil distillation machine. •can be as fuel.
2	Carbon black	30%	• can be sell directly. • make fine carbon by the carbon black grinding equipment. • make carbon brick by briquetting equipment.
3	Steel wire	12%	• can be sell directly. • make steel bloom by hydraulic press-packing
4	Combustible  gas	8%	• can be as fuel heating the reactor • extra gas also be storage as fuel for other heating.

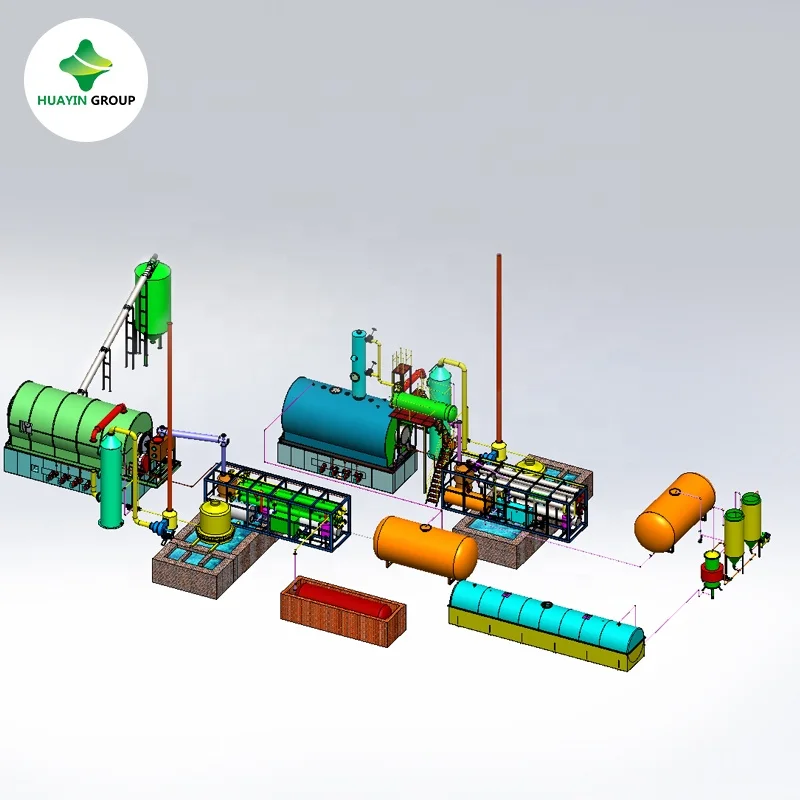

Flow chart design

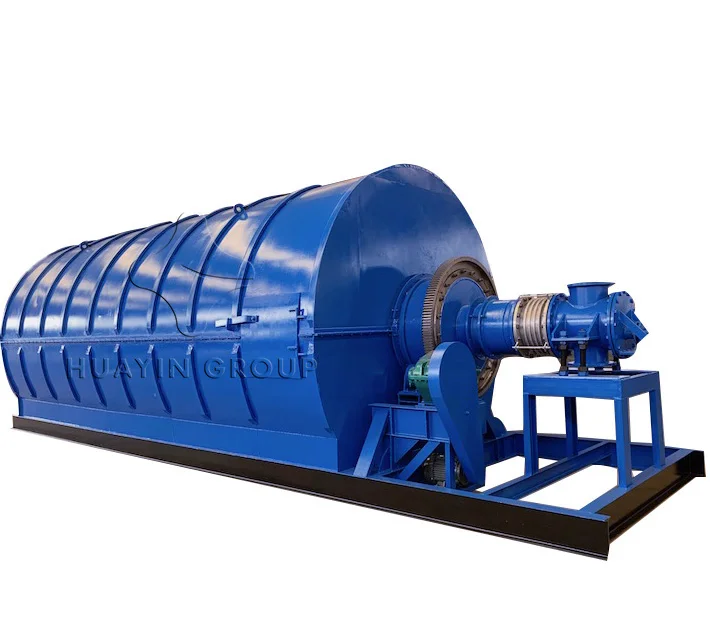

Machine Display



A. Safety. We treat safety as the first important thing in production.

1) Two devices to avoid backfire in production: oil-water separator and anti-back fire device.

2) Vacuum device makes reactor working under ordinary pressure or negative pressure.

3) Temperature monitoring device to avoid excessive working temperature.

4) Pressure gage to monitor the pressure. If it goes above a certain level, the bell will alarm and the safety valve will release the pressure automatically.

5) Carbon black is discharged in a closed situation to avoid catching fire.



B. Environmental protection

1) The flue gas (caused by burning fuel to heat the reactor) will be purified and cooled by dust removal device, then can be released into air through chimney.

2) The procedure to remove carbon black is working under closed situation to avoid pollution.



C. High oil yield

1. We have 3 steps for cooling system: one condenser pipe, two large horizontal condensers and two vertical condensers. The oil gas pass through 3 steps cooling system in sequence. The total cooling area is 65 square meter.

2. When the oil gas pass through the condensers, it’s divided into several portions by small pipes inside condenser and be cooled separately.

3. In this way we maximize the cooling effect and improve the oil yield.



D. High oil quality

The oil gas is purified by molecular sieve inside catalyst chamber so that the quality of oil is higher.



E. Energy saving

1) The flame path is designed as spiral so that the quantity of heat can be fully used.

2) The residual gas from pyrolysis is recycled to furnace burning to heating the reactor.

3) The insulation cover is formed by 3 levels: steel plate, rock wool and refractory cement. Excellent thermal insulation effect helps saving fuel.





(Take 10ton capacity for example) (per day)
Cost
Item	Quantity	Unit Price(USD)	Total(USD)
Used tyre	10Ton	42	420
Coal	0.4	70	28
Electric	225kw	0.2	45
Salary for worker	4 workers	30/ day/ person	120
Total cost			613
Return
Item	Quantity	Unit price (USD)	Total (USD)
Crude oil	4.5Ton	900	4050
Carbon black	3Ton	20	60
Steel wire	1.5Ton	300	450
Total return			4560
Gross profit			3947
Gross profit for one month (working 25 days)			98,675USD
Gross profit annual			1,184,100USD









For more details , welcome send us inquiry !



Xinxiang Huayin Renewable Energy Equipment Co., Ltd is located in Xinxiang City, Henan Province, Our company is specialized in manufacturing waste tires/plastics to fuel oil pyrolysis machine and waste oil to diesel distillation machine since 1993.



We have obtained 11 patents and CE & ISO certificates related to our machine.

Our machine have been exported to more than 65 countries all over the world including Romania , Itaian , Chile , Poland , Hungary , USA, England , Thailand, Greece, Mexico , Benin , Indonesia ,Dubai , India etc.

30 experienced engineers for domestic and overseas after-sales service.

More than 2000 square meters running demo plant for customers’ visitation and learning.
