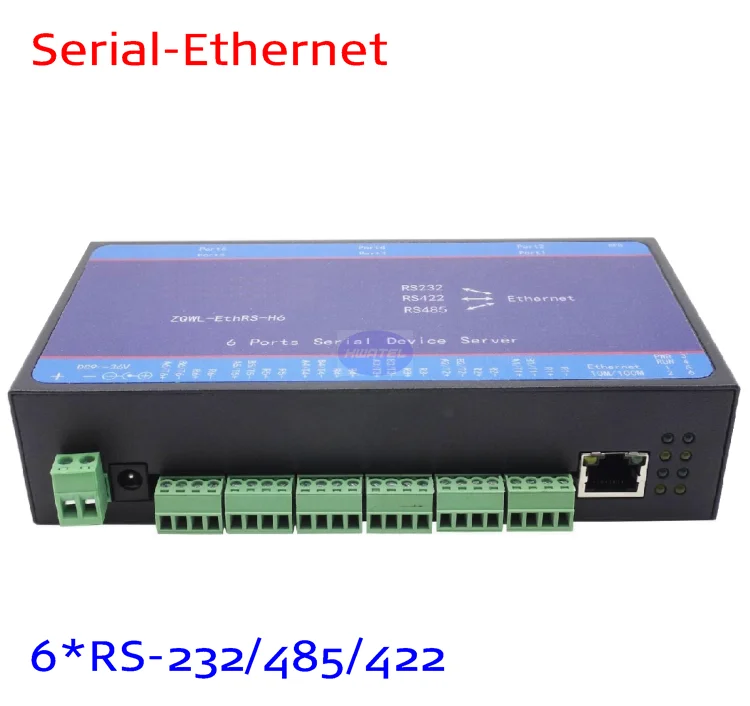

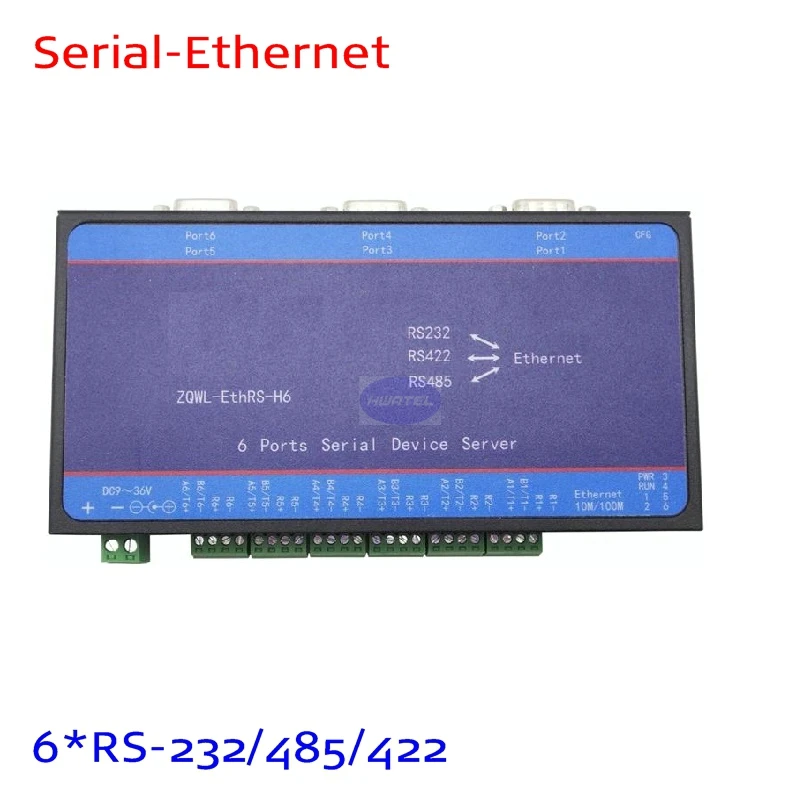

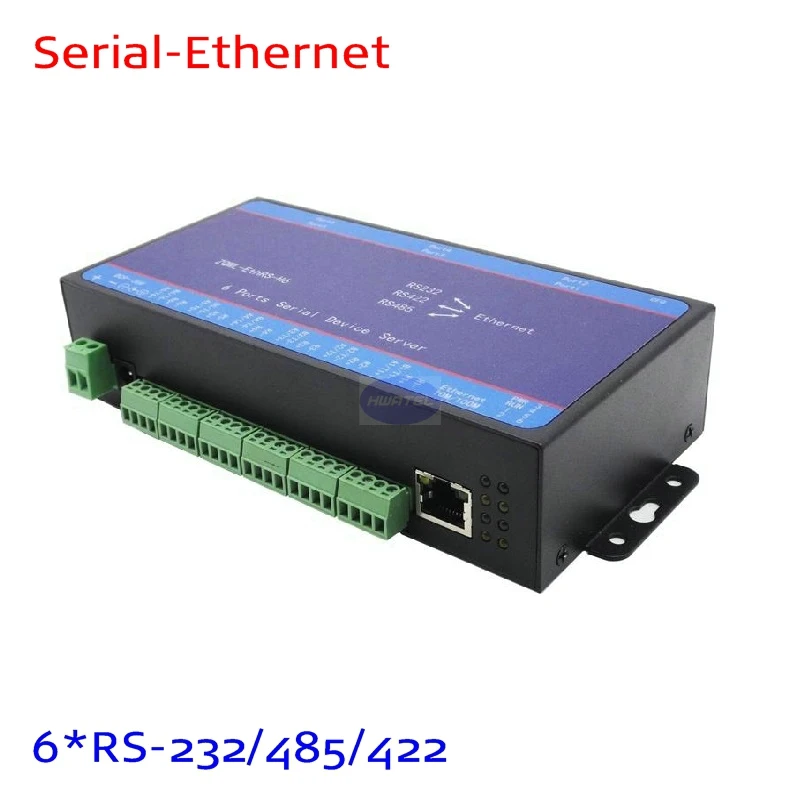

6 портов с последовательным сервер dtu rtu rs485 последовательный

System

CPU 32 bit ARM processor

Support RS-232/RS-485/RS-422 serial interface

10/100M fast ethernet

Support TCP, UDP, ARP, ICMP, HTTP and DHCP protocol

Support across gateway, router communication

Support standard TCP/IP SOCKET

Support Windows serial interface driver mode

Support Virtual serial driver access and auto connect once the network disconnect

Support network and serial interface configuration mode

LAN

Standard: 10Base-T,100Base-TX

Protocol: Support TCP, UDP, APR, ICMP and DHCP protocol

Signal: Rx+,Rx-,Tx+,Tx-

Speed: 10/100Mbps

Working: Full-duplex and half-duplex

Working mode: Support Server and Client

Transmission; 100m

Protection: 1.5KV ESD

Connector: RJ45

Serial Interface

Serial interface number: 1 port RS-232,1 port RS-422/485

RS-232 signal: TXD,RXD,RTS,CTS,DTR,DSR,GND

RS-422 signal: T+(A),T-(B),R+(A),R-(B),GND

RS-485 signal: D+(A),D-(B),GND

Parity bit: None,Even,Odd,Space,Mark

Data bit: 5bit,6bit,7bit,8bit

Baud rate: 300bps~115200bps

Flow control: RTS/CTS or XON/XOFF

Direction control: RS485 side adopt ADDC technology, auto text and control data transfer direction

Loading: RS-485/422 side support 32 nodes (customize 128 nodes) loopback

Transmission: RS-485/422 side 1200M, RS-232 port 15M

Interface protection: 1500W surge protection, 15KV static protection

Interface type: RS-232 side DB9 male,RS-485/422 side 5 bit terminal block

Power

Power input: 9~48VDC

Consumption: Approx 1.4W

Environment

Operating Temperature: -40 to 75°C

Storage Temperature: -40 to 85 °C

Relative Humidity: 5% to 95% (non-condensing)

Other

Working temperature: -40~75°C

Color: Black and Blue

L×W×H: 100mm×69mm×22mm

Material: Iron (Shell)

Weight: about 200g
