Высокая точность Зажим ток утечки метр с помощью магнитного экранирования

Model

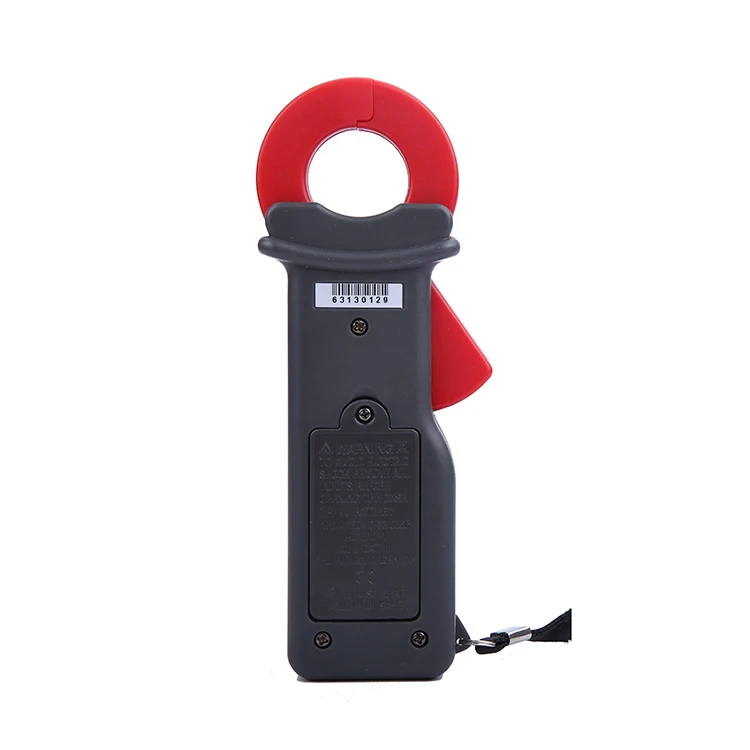

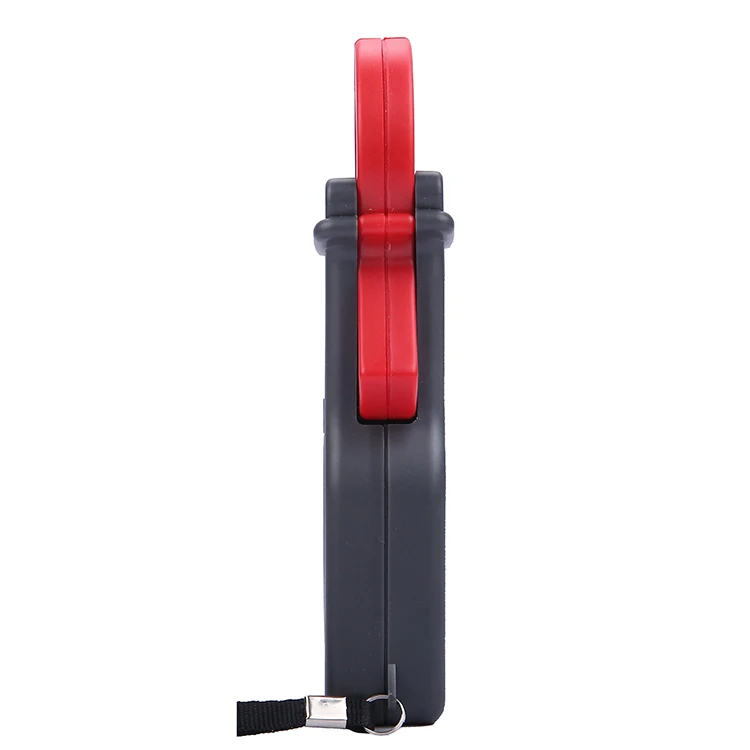

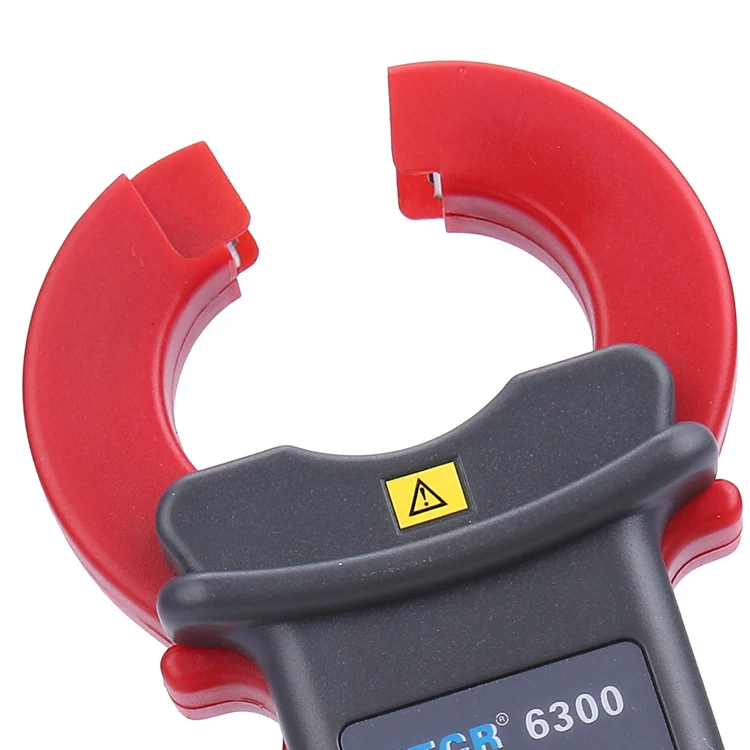

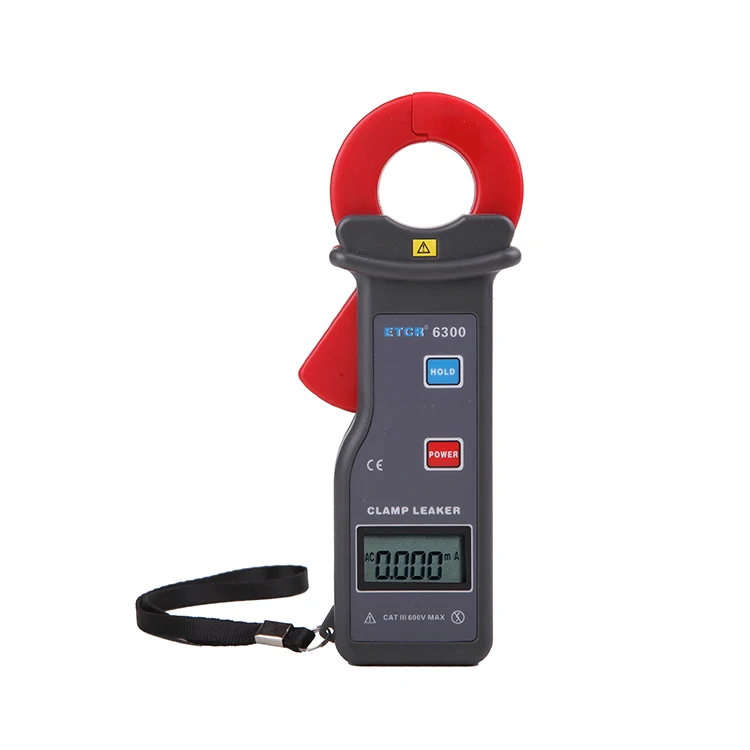

ETCR6300 High Accuracy Clamp leakage Current Meter

Range

0.001mA~60.0A

Resolution

1uA

Accuracy

±1.5%±5dgt (23℃±3℃, below 70%RH)

Power Supply

Alkaline battery 6LR61 9V, continuous working for 80 hours

Weight

210g

Meter Dimension

175mm×70mm×38mm

CT Size

25mm×30mm

LCD Size

35mm×21.5mm; display area: 32mm×15mm

Sampling Rate

2 times/second

Frequency

50Hz-60Hz Automatic identification

Communication Interface

With RS232 interface, storage data can be uploaded to computer, software monitoring

Data Storage

99 groups , flash display “FULL” symbol indicate storage full

Peak Hold

Peak capture and hold function, long press HOLD key display peak value

Data Hold

Data hold function: “DH” symbol display

Overflow Display

Exceed measure range overflow function: “OL A” symbol display

Auto Shut Down

5 Minutes after power on, it will shut down automatically without any operation to reduce the power consumption.

Battery Voltage

Battery voltage lower than 7.2V will display low battery voltage symbol, and remind to replace battery

Working Current

5mA

Line Voltage

Below AC 600V circuit measurement

Shift

Automatically

Accessories

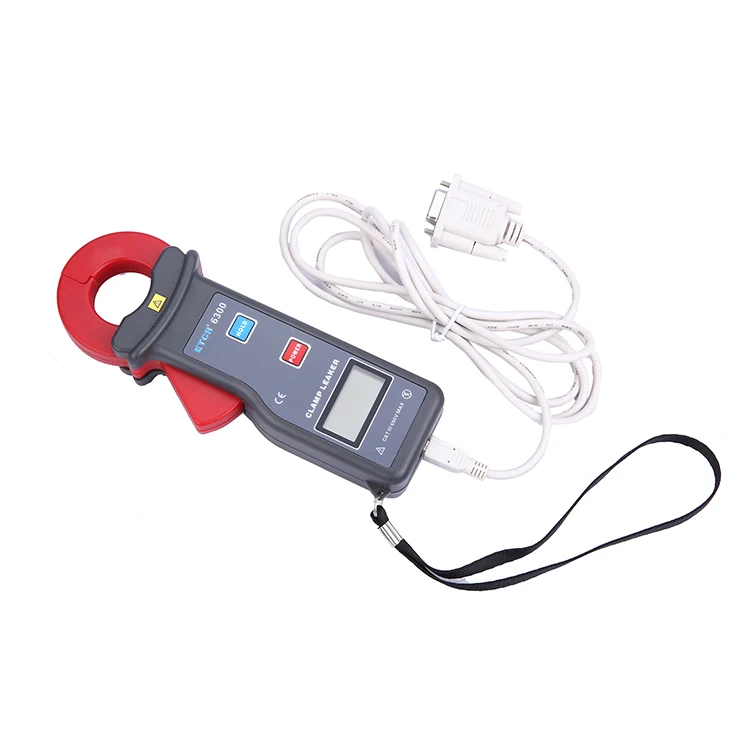

Meter: 1PCS; RS232 special communication cable: 1PCS; Software CD: 1COPY; Cloth bag:1PCS
