Product Description

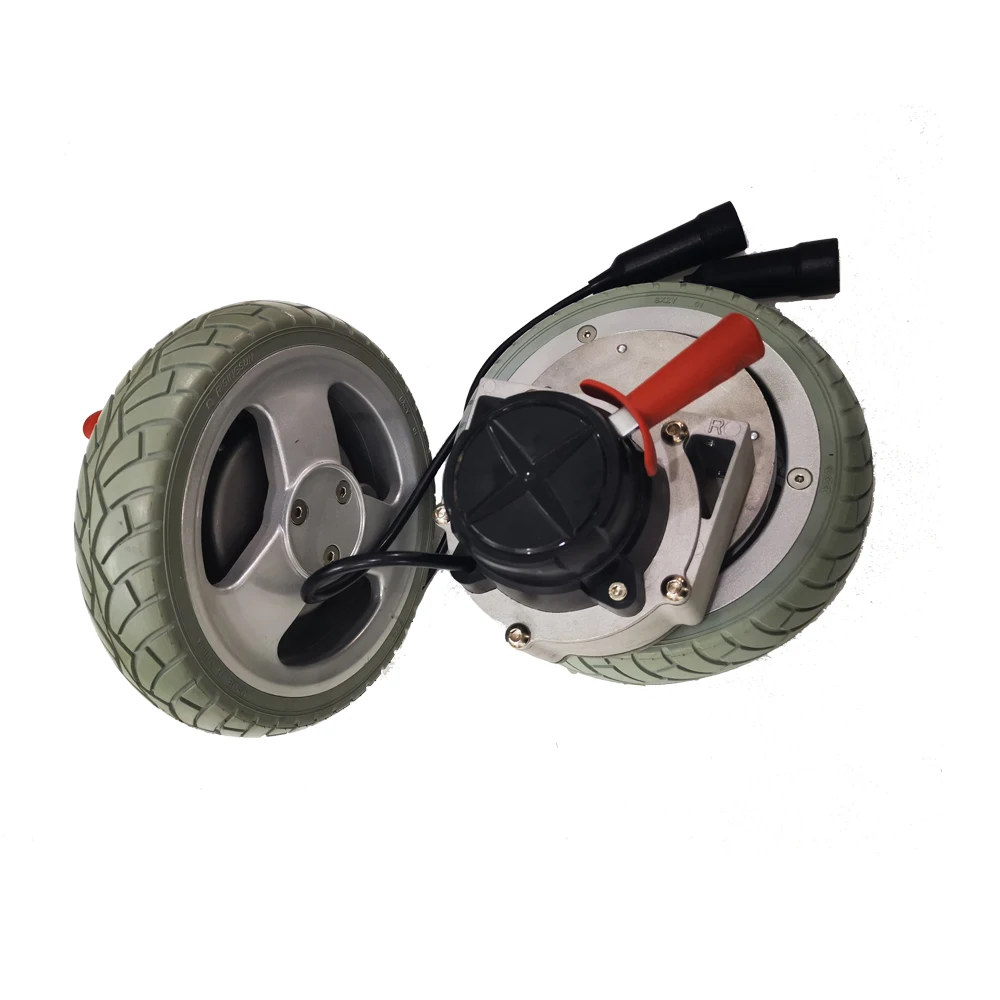

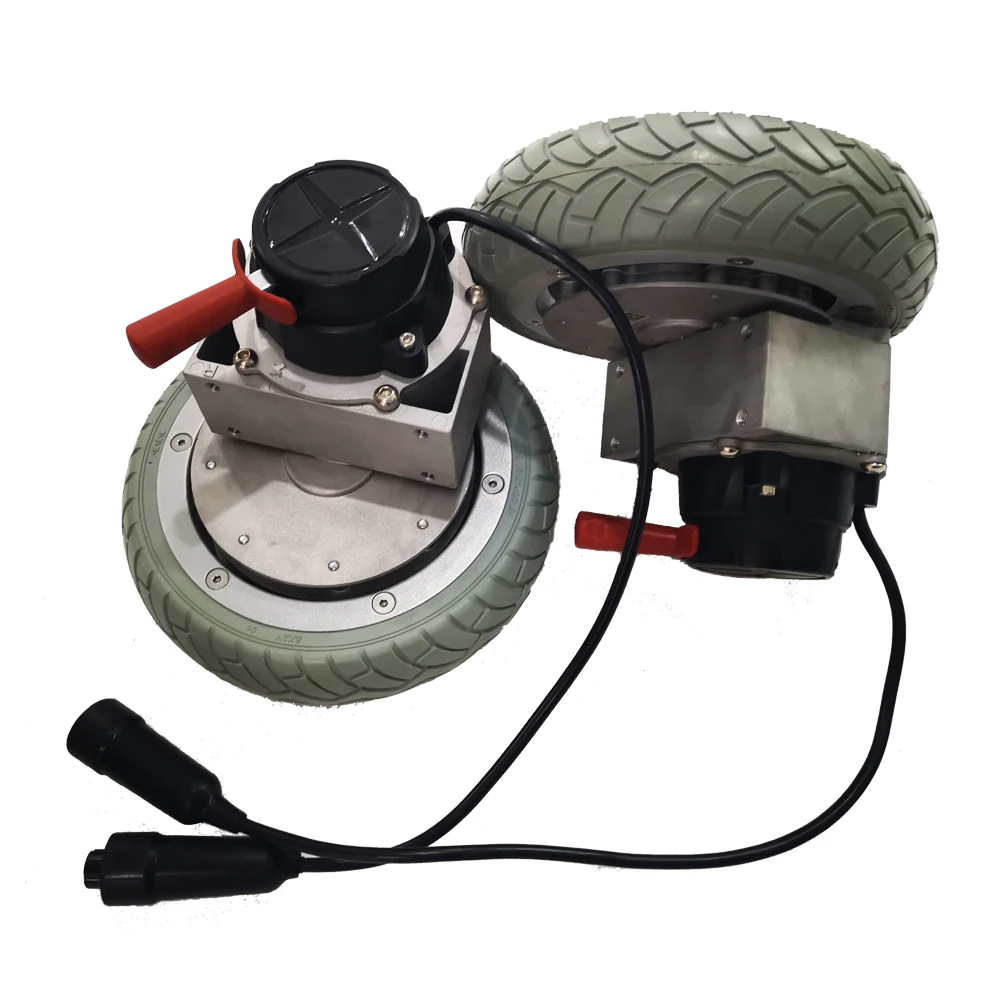

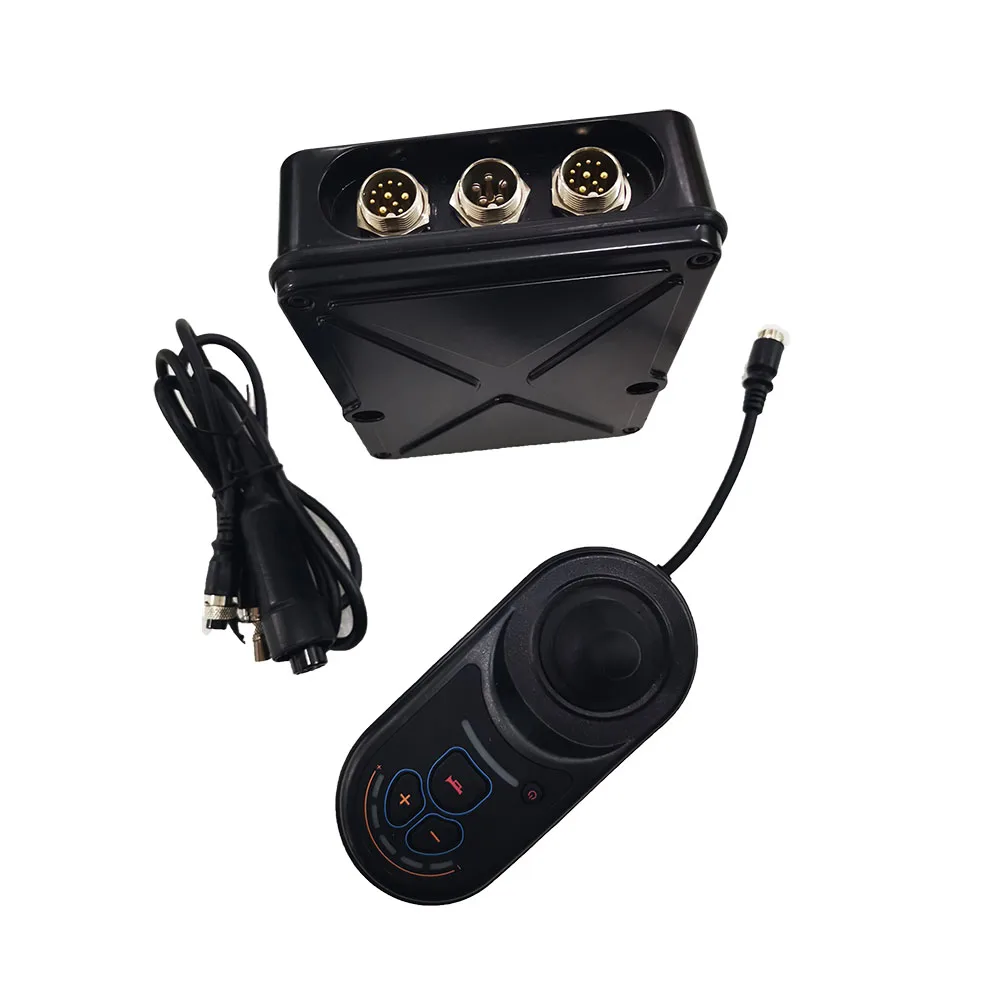

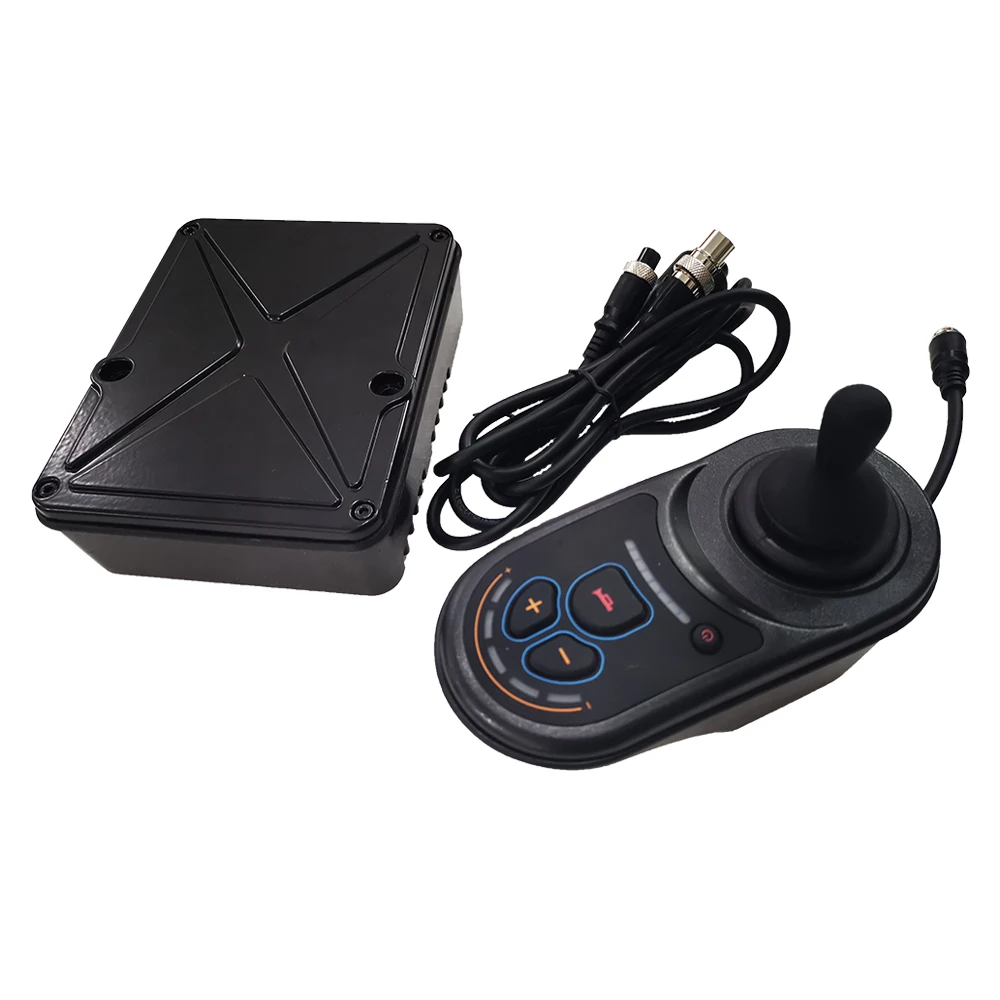

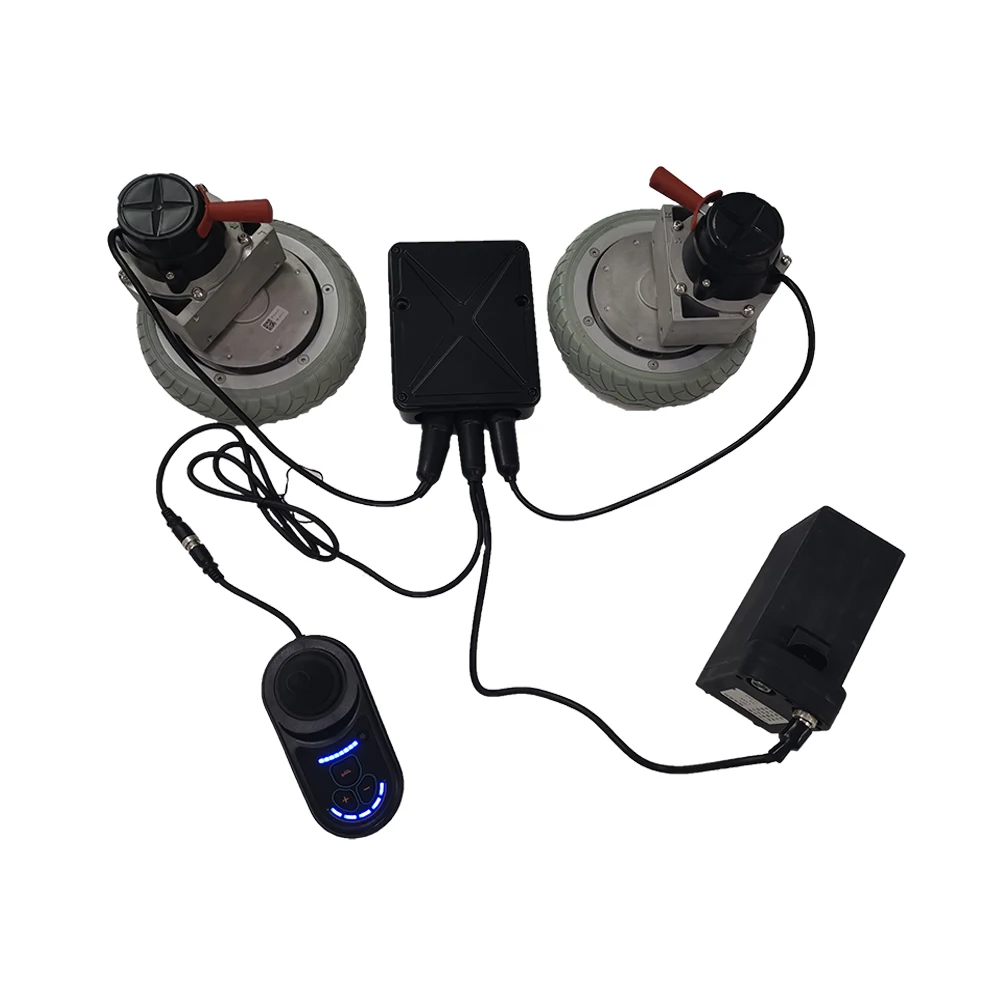

Electric wheelchair parts 24v bldc brushless hub motor and joystick controller
Voltage | 24V |
Under-voltage | 21V±0.5 |
Power | 250W |
No-load current | 1.5A |
Current limited | (17A±1)*2 |
Brake type | Electromagnetic brake |
Control voltage | 0.5-4.5V |
Speed limited | ﹤6km/h |
Operating temperature | -30-80℃ |
Weight | 1041g(control box) |
Size(joystick handle) | 167mm*81mm*175mm |
Size(control box) | 176mm*135mm*47mm |
Main Features:
1.Advanced PID algorithm
2. Electromagnetic brake
3. Emergency power protection
4. Automatic load compensation
5. Closed loop speed controller design
6. High-definition LED screen displays
7. Programmed parameters
8. Flexible cable for easy alignment
9. Common to the industry-standard interface mode
10. Size for controller: 173*135*47mm. Size for handle: 165*81*109mm
Voltage | 24V dc | Weight(KG/piece) | 4.26 |
Power | 250W | Operating temperature | -30-80℃ |
Structure | Gear drive | Brake type | Electromagnetic brake |
No-load speed | 3400rpm | Brake level | 3N.m 24Vdc |
Output speed | 15 0rpm | Reduction ratio | 23:1 |
Start current | ≤1.8A max | Noise Grade | ≤60db |
No-load current | ≤1.1A | Torque | 0-30N.m |
Efficiency | ≥85% | Insulation class | F |
Tyre type | 8 inch solid tire | Insulation voltage | 0-550Vac/1mA/1sec |
1. Brushless motor, high efficiency, long working lift span, free of maintenance
2. Single-stage gear power transmission, low loss and long driving range
3. Adaptive 8 /10 /12 inch tyre
4. Rectangle plate installation, compatible with a variety of models
5. Speed and power of the motor at users option
2. Single-stage gear power transmission, low loss and long driving range
3. Adaptive 8 /10 /12 inch tyre
4. Rectangle plate installation, compatible with a variety of models
5. Speed and power of the motor at users option
