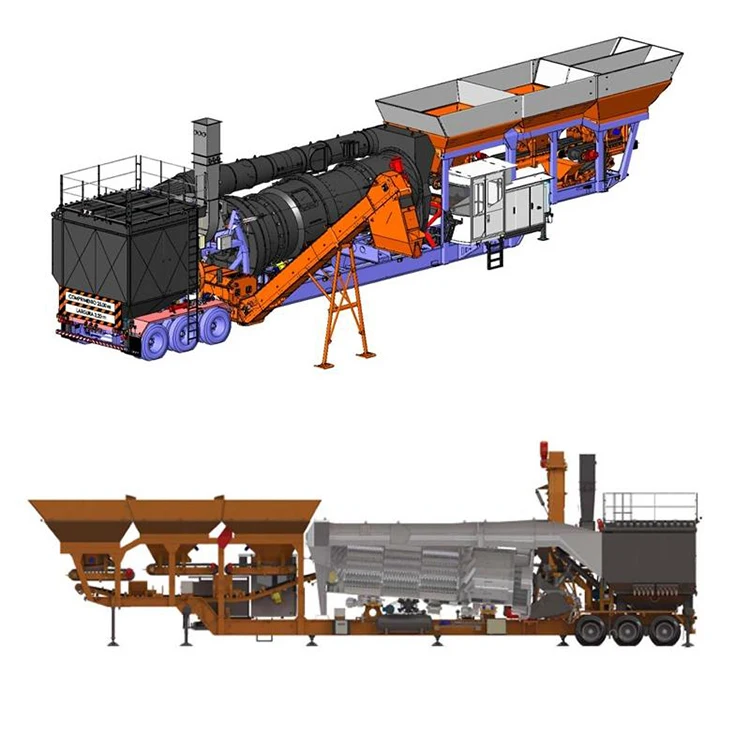

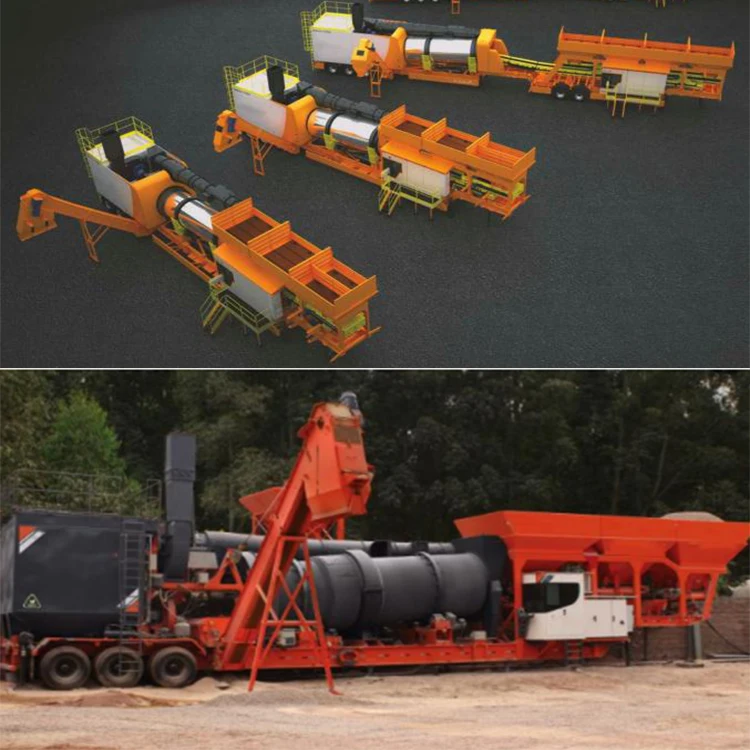

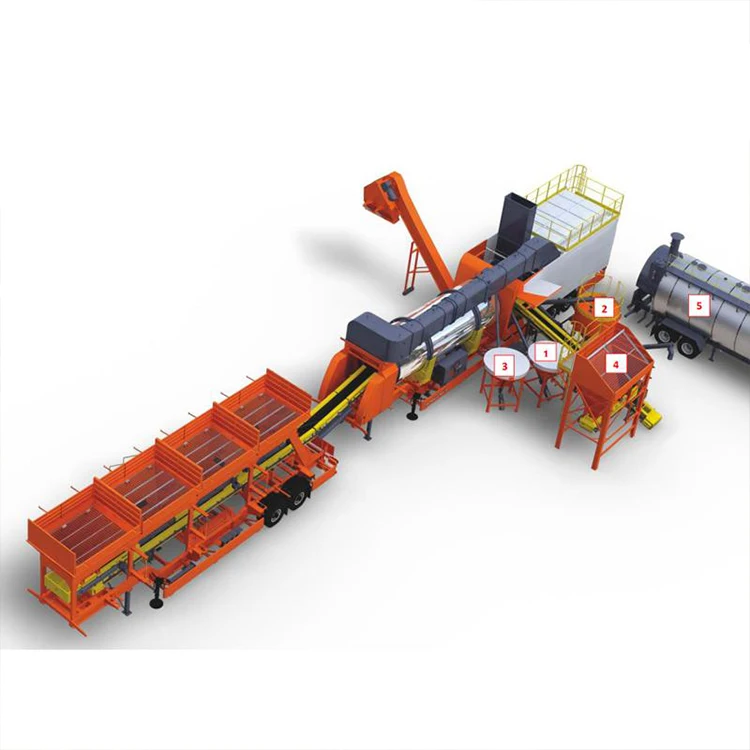

MR Hot Mix Asphalt Plant is continuous asphalt mixing plant. It's designed for portability, durability and reliability. MR hot mix asphalt plant is a cost-effective product which has characteristics of modular design, compact structure, fast set up, easy relocation, less power consumption and high fuel energy efficiency.





High Precision in Aggregate Dosing
When collecting ingredients, the aggregates of different particle sizes that need to be mixed are respectively loaded into different batching hoppers by using a loader, and belt conveyors are arranged under each batching hopper, and the belt conveyor is driven by a frequency conversion speed regulating motor. The ingredients are mixed according to the mixing ratio of the construction technology; the matched materials are dropped on the horizontal aggregate belt conveyor, which is transported through the filter screen to the inclined belt conveyor.

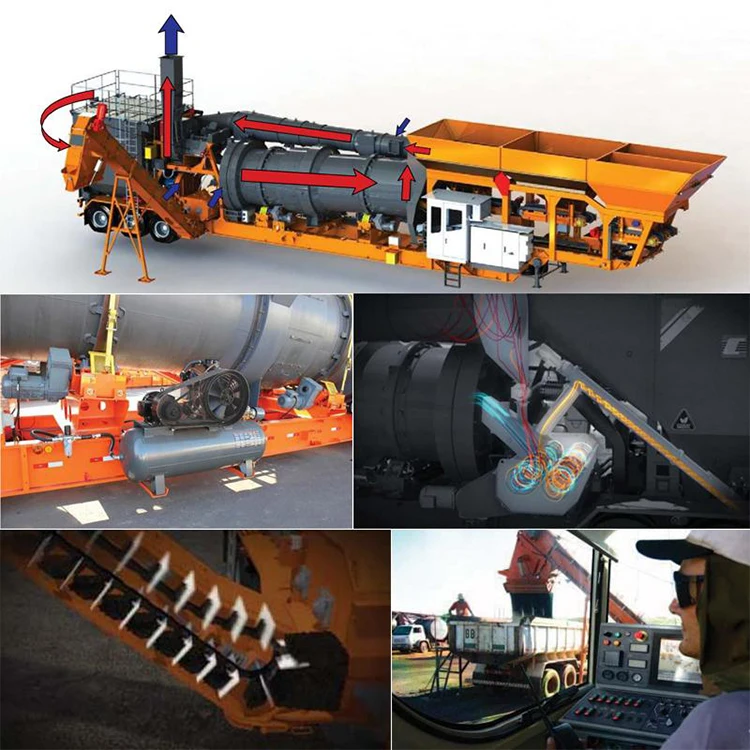

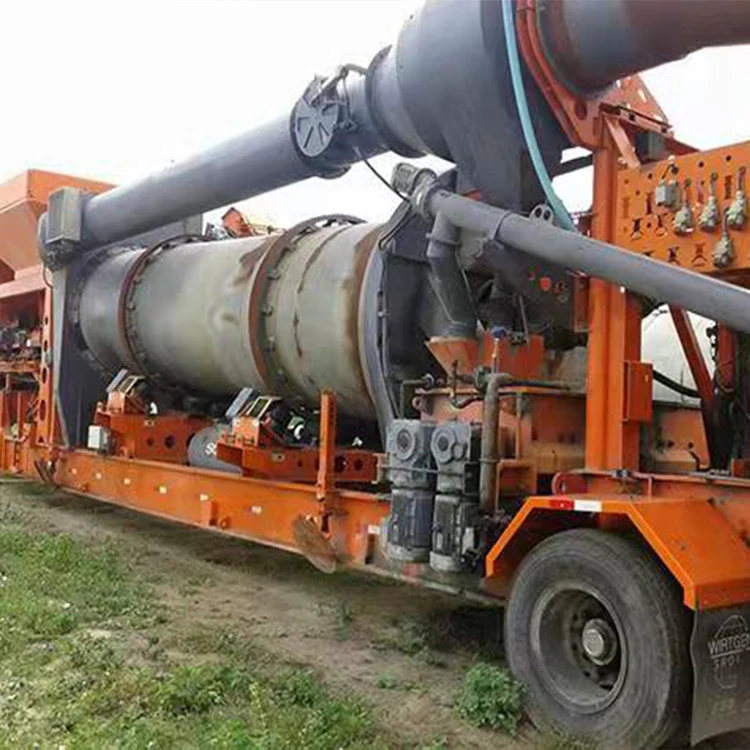

Counter flow Dryer
The drum counter flow rotary drying heating method is provided with a spiral rewinding blade and a feeding blade in the cylinder body, and different shapes of reversing blades are installed in different regions, and the drum cylinder body has an inclination angle of about 3.5-4 degrees, and the outer layer has 40cm of thermal insulation rock wool prevents heat loss.

Air Burner
The fuel burner is controlled by a single-chip microcomputer program. Simply press the “Start” button to start the oil pump, auto-ignition, flameout alarm, automatic temperature control and display. The fuel can be automatically adjusted according to the required furnace temperature. . It is also equipped with a manual function to ensure the normal operation of the burner through a manual system when the system fails.
Twin-shaft Reverse Pugmill Mixer
The mixing machine adopts the horizontal double-shaft paddle type spiral stirring method, the stirring blade, the stirring arm and the lining plate are all made of chrome-molybdenum alloy wear-resistant cast iron, and the stirring arm is made of cast steel material. It has strong corrosion resistance and wear resistance, which greatly prolongs its service life.

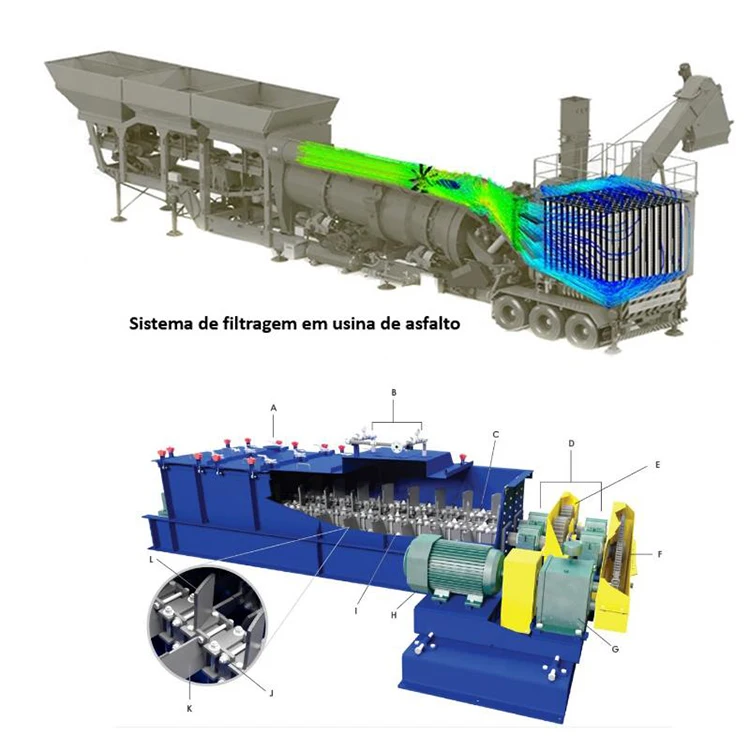

Baghouse
High dust removal efficiency, dust removal up to 99%; flexible use, processing air volume from hundreds of cubic meters per hour to hundreds of thousands of cubic meters per hour, can be used as a small unit directly in the room, near the machine tool, can also be made into a large dust removal The room, that is, the bag room; the mechanism is simple, the operation is stable, and the maintenance is convenient.
Control Room
All plant controls are mounted on a centralized panel inside the control house. All of the plant's motors and switches are pre-wired and factory tested. Quick-plug connectors aid in rapid plant setip. The air conditioned control house is trailer-mounted for easy portability. It also includes heating, lights, internal power outlets and a sliding ticket window.



Configuration	HMA R100	HMA R160	HMA R200
Production capacity	100 t/h	150 t/h	200 t/h
DRYING SYSTEM	Counterflow dedicated exclusively to the drying and heating of aggregates
FILTERING SYSTEM	Twin-shaft reverse  pug mill with arms and straws
Mixing steps	Dry mixing and mixing with asphalt cement
TRANSPORT AND STORAGE SYSTEM	Redler type drag lift
CONTROL SYSTEM	Automatic (supervisory) or emergency mode (by supervisor + manual operation buttons)
