100 тонн 200 250 300 400 предварительно подчеркнутые полые гидравлические
- Категория: Hydraulic Jacks >>>
- Поставщик: Kaifeng,Dafang,Prestressed,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.89 $* | 0.24 $* |
| Aug-15-2025 | 0.49 $* | 0.95 $* |
| Jul-15-2025 | 0.97 $* | 0.21 $* |
| Jun-15-2025 | 0.75 $* | 0.27 $* |
| May-15-2025 | 0.38 $* | 0.8 $* |
| Apr-15-2025 | 0.66 $* | 0.87 $* |
| Mar-15-2025 | 0.87 $* | 0.97 $* |
| Feb-15-2025 | 0.95 $* | 0.4 $* |
| Jan-15-2025 | 0.24 $* | 0.69 $* |
Характеристики

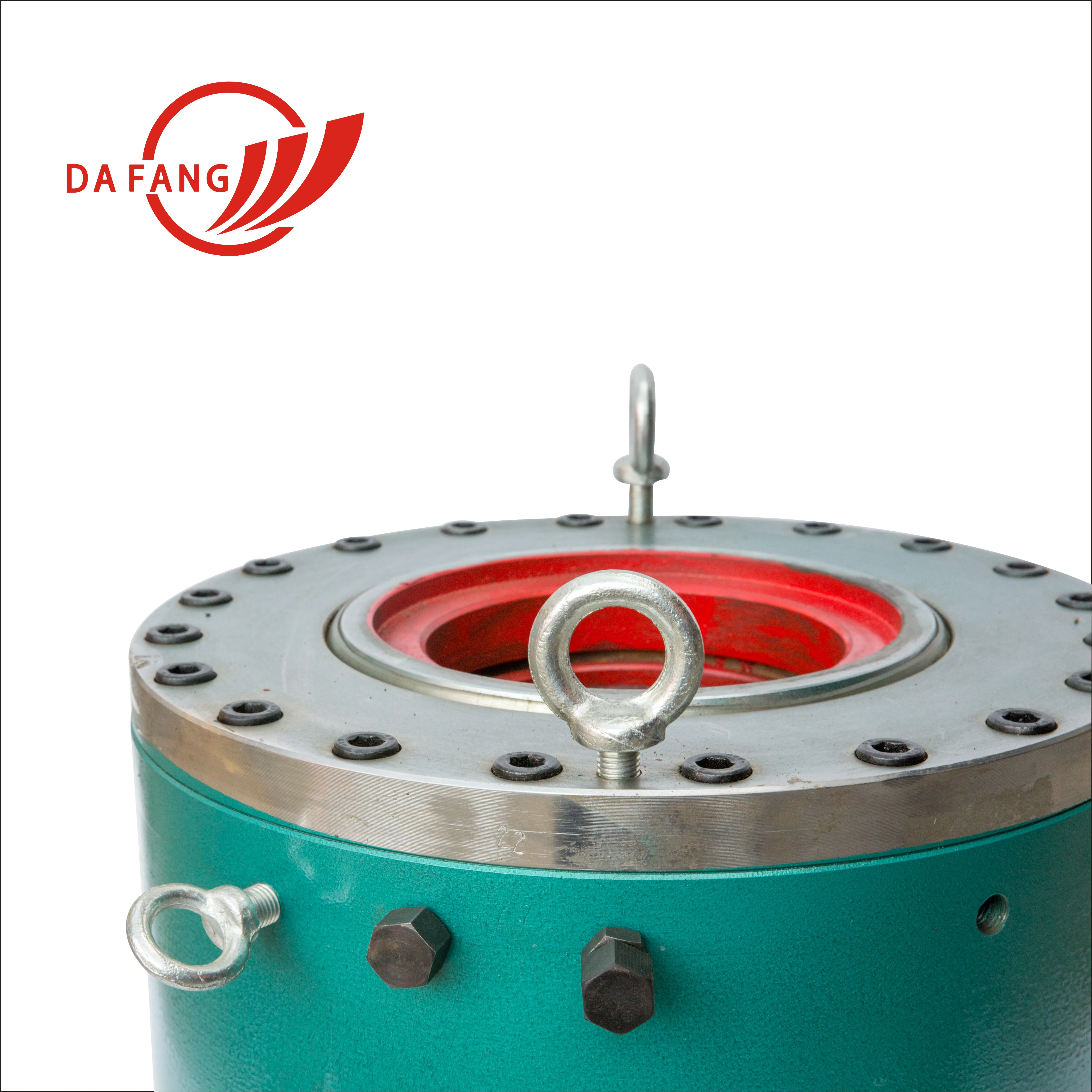

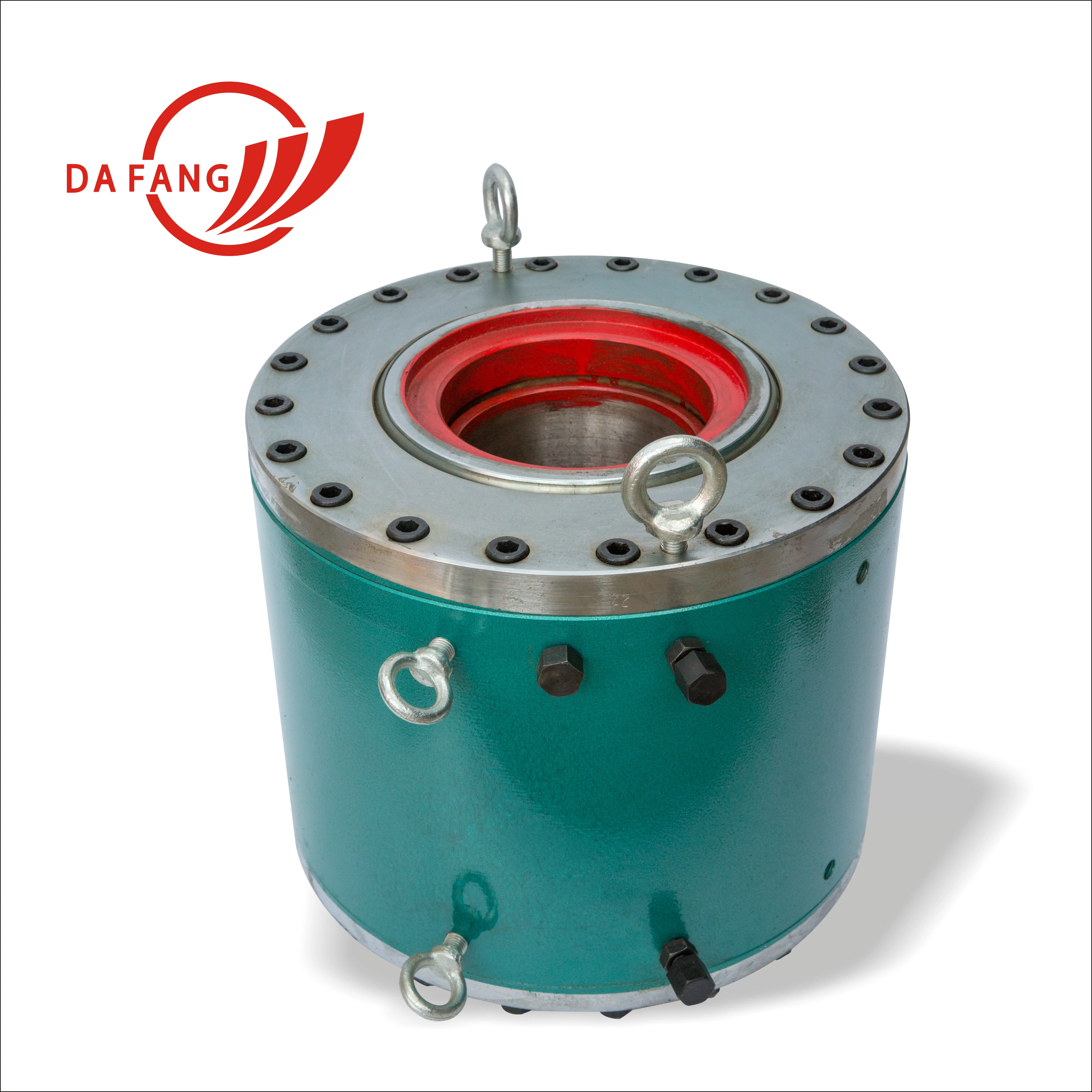

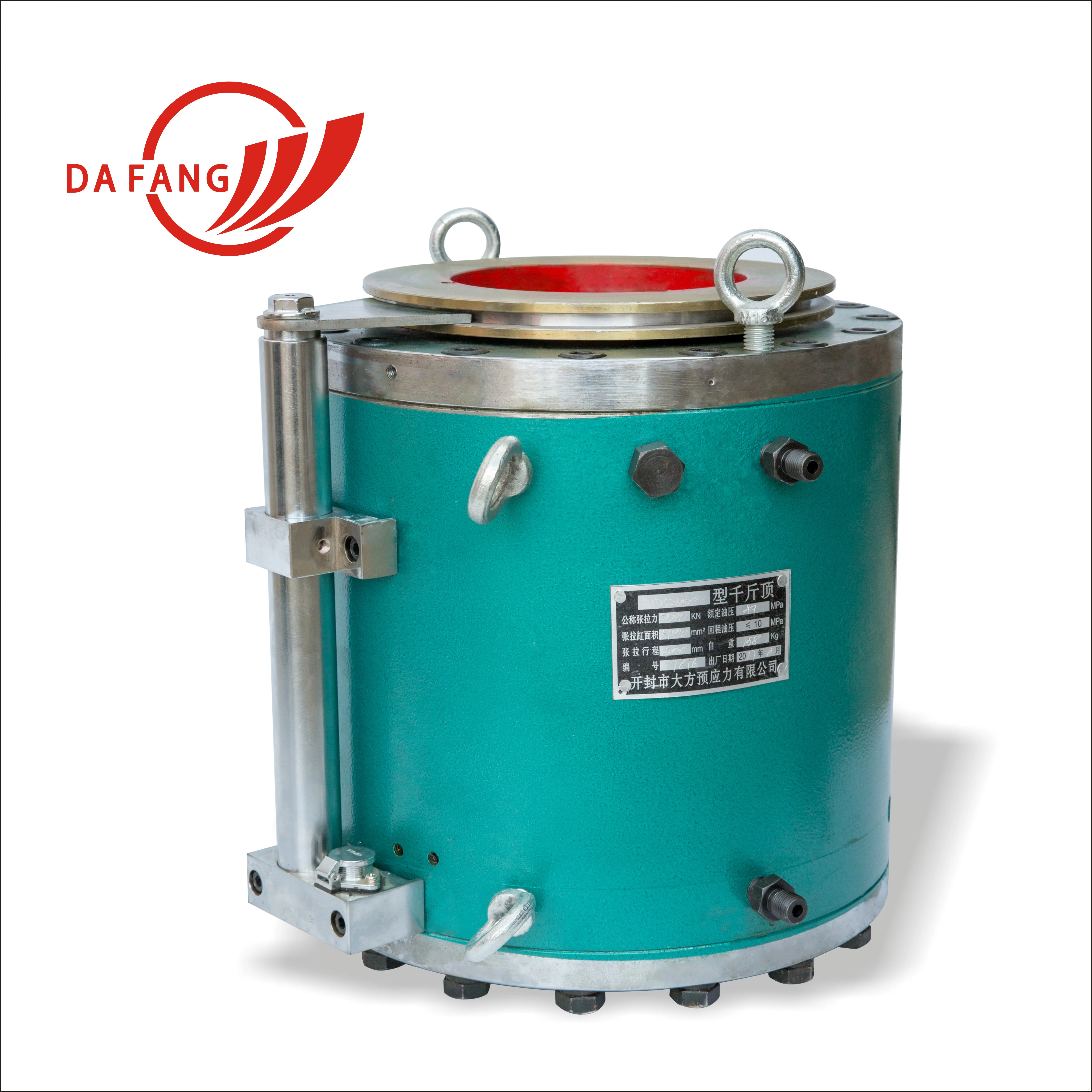

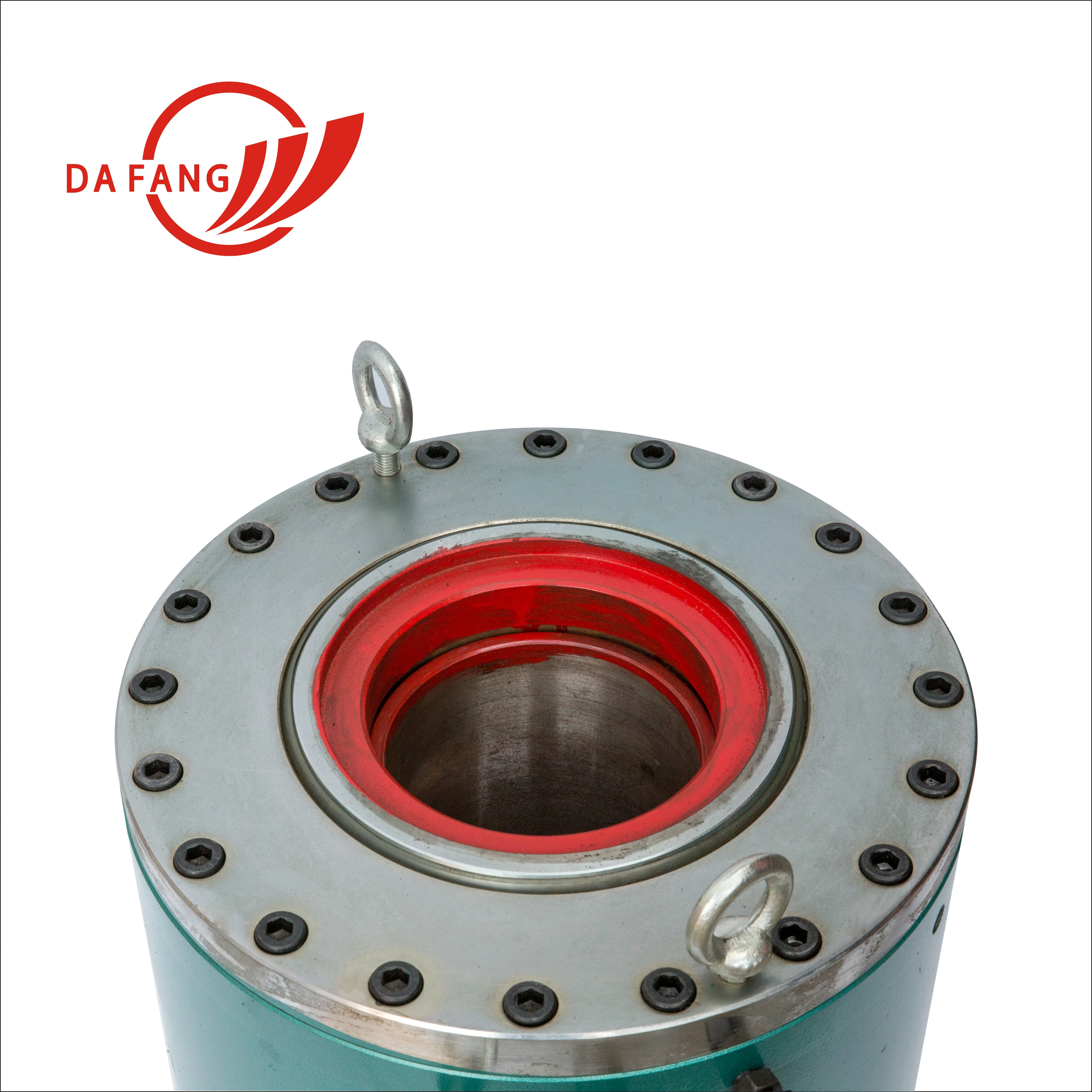

YDC post tension Hollow jack are advanced devices based on their former structures of YDC, redesigned with high-strength steel, advanced structures, sealing function, optimization technology. This new type features tight structure, lightened weight, short axial length, stands saving by shoort reserved lengt h in prestressing strand anchorage. The results of test shows its perfect performance, durability, flexibility of lifting, convenience of using and preparing. It can be used in pre-tensioning and post-tensioning. With different attachments, respectively tensioning XYLM, QYM clip group anchor, DM, LZM anchorage, etc.
| Telchnical Data of Prestressing Hydraulic jack | |||||||||
| φ Item Specification | Nom. Force (KN) | Nom. Pressure (MPa) | Piston Area (mm2) | Stroke (mm) | Dia. of Center Hole (mm) | Working Space (mm) | Space board (mm) | Weight (kg) | Over size (D*L) |
|---|---|---|---|---|---|---|---|---|---|
| YDC750 | 750 | 50 | 15072 | 200 | 63 | 100 | 100 | 60 | φ200*300 |
| YDC1000 | 1000 | 55 | 18344 | 80 | 120 | 120 | 65 | φ217*342 | |
| YDC1100 | 1100 | 52 | 21254 | 80 | 120 | 120 | 72 | φ230*342 | |
| YDC1200 | 1200 | 51 | 23550 | 85 | 120 | 120 | 75 | φ240*342 | |
| YDC1500 | 1500 | 53 | 28495 | 90 | 135 | 146 | 100 | φ270*342 | |
| YDC2000 | 2000 | 46 | 43979 | 122 | 170 | 188 | 148 | φ320*348 | |
| YDC2500 | 2500 | 49 | 51810 | 127 | 170 | 188 | 158 | φ348*356 | |
| YDC3000 | 3000 | 52 | 57795 | 136 | 190 | 200 | 178 | φ370*356 | |
| YDC3500 | 3500 | 52 | 67824 | 168 | 220 | 240 | 255 | φ420*385 | |
| YDC4000 | 4000 | 53 | 76066 | 170 | 230 | 240 | 285 | φ440*385 | |
| YDC4500 | 4500 | 55 | 81954 | 170 | 250 | 260 | 310 | φ450*385 | |
| YDC4600 | 4600 | 53 | 87606 | 185 | 260 | 270 | 330 | φ470*386 | |
| YDC5000 | 5000 | 52 | 97202 | 193 | 280 | 290 | 390 | φ496*404 | |
| YDC5500 | 5500 | 53 | 103620 | 200 | 180 | 190 | 440 | φ503*405 | |
| YDC6000 | 6000 | 53 | 113747 | 205 | 300 | 320 | 480 | φ530*408 | |
