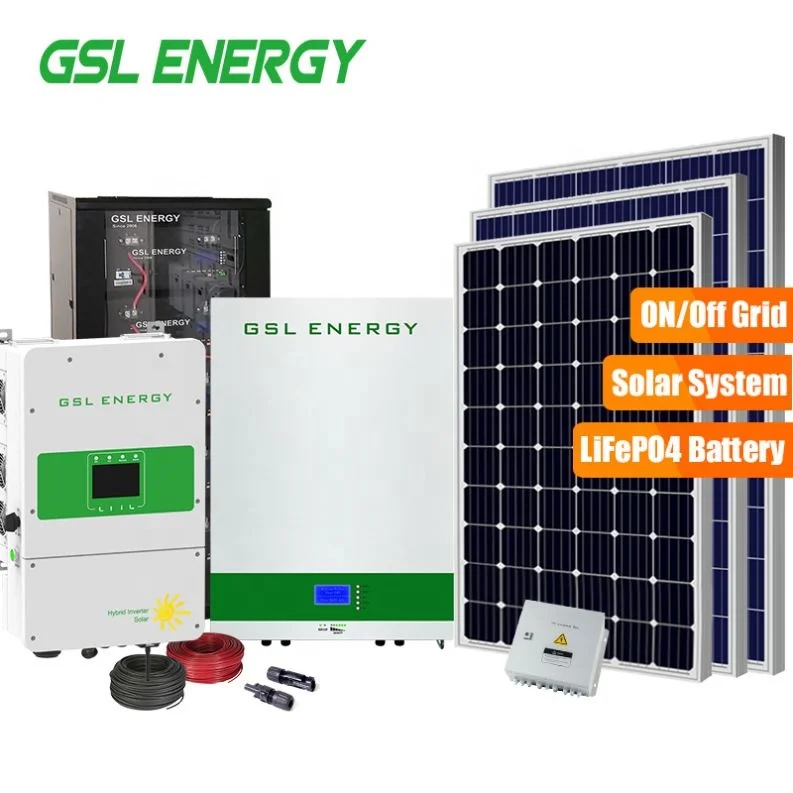

LiFePO4 Lithium Battery Solar Energy System 5Kwh 7Kwh 10Kwh Solar Panel System Grid Tied Solar Power System Home Storage
Power Storage Wall ESS Lithium Battery Solar Energy Storage is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios. The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery. And the leader chemical technology, BMS technology and system design capabilities will bring excellent performance and reliability, and also provide the best solutions for industrial applications.
Security Backup Protection
Power storage wall is a battery that stores energy, detects outages and automatically becomes your home's energy source when the grid goes down. Unlike gasoline generators, Power storage wall keeps your lights on and phones charged without upkeep, fuel or noise. Pair with solar and recharge with sunlight to keep your appliances running for days.

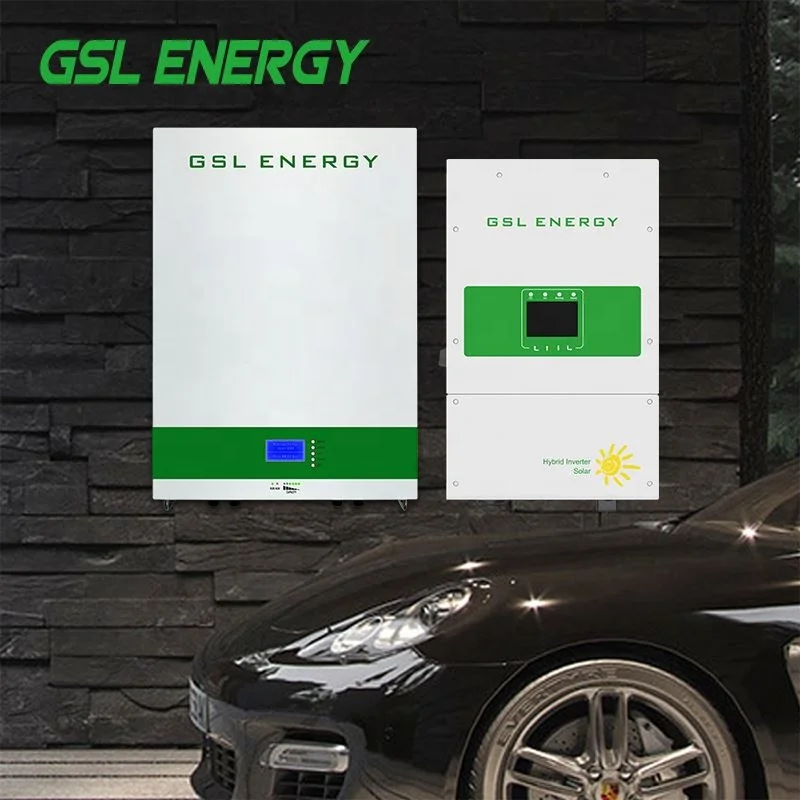

Design Modern and Compact
With easy installation and a minimalist design, Power storage wall complements a variety of home styles. The compact, all-in-one construction features versatile mounting options for indoor or outdoor spaces.

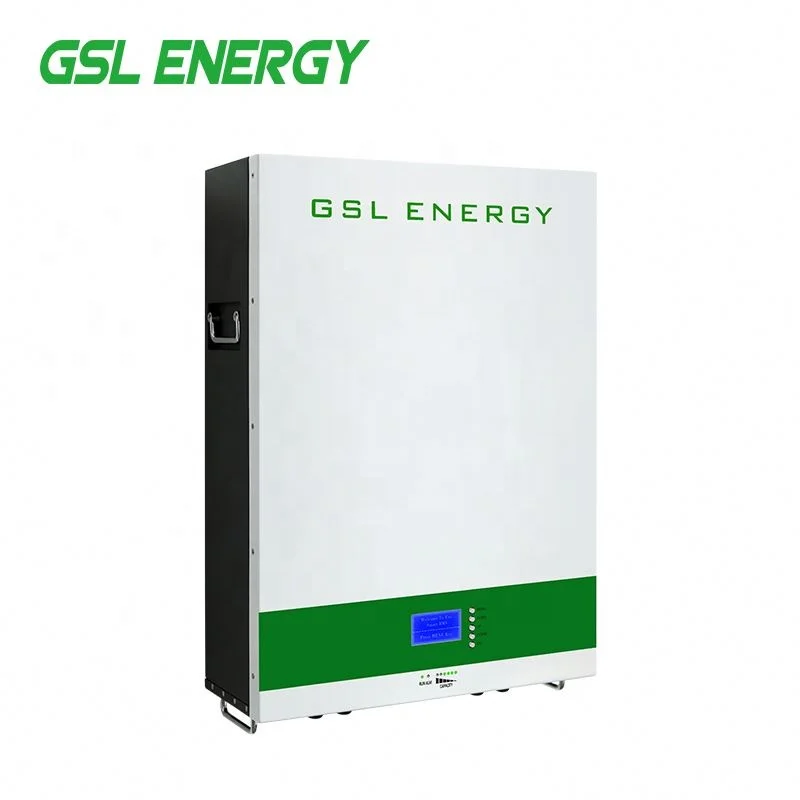

LiFePO4 Lithium Battery Pack Spec
Energy
Battery
Charging Voltage
Standard Charge Current
Max charge
Standard Discharge Current
Maximum Continuous Discharge Current
Dimension
(L×W×H)
Weight
5 KWH
48V / 51.2V 100Ah
54V / 58V
20V/50A
120A
50A
300A(1S)
650*480*190mm
53KG/58.5g
7 KWH
48V / 51.2V 150Ah
65KG/73.3g
10 KWH
48V / 51.2V 200Ah
85KG/96g
1. Max support 14 units parallel connection.
2. 10 years warranty on full set battery,20 years warranty on life span under 80% DOD.
3. Super Light Weight.
4. Best safety on lifepo4 battery.
5.Match all hybrid and off grid inverter brands in the world.
Functions:
--Overcharge detection function --Over discharge detection function
--Over current detection function --Short detection function
--Temperature detection function --Balance function
--Communicate function RS485,CANBUS --Alarm function
6.Considerate safe package for sea shipping and air shipping.

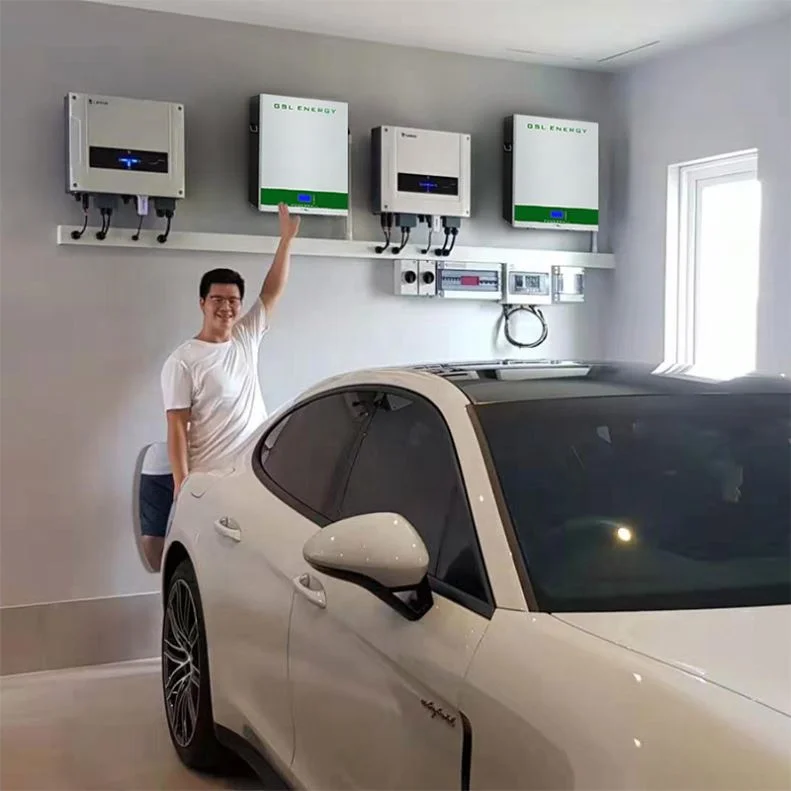

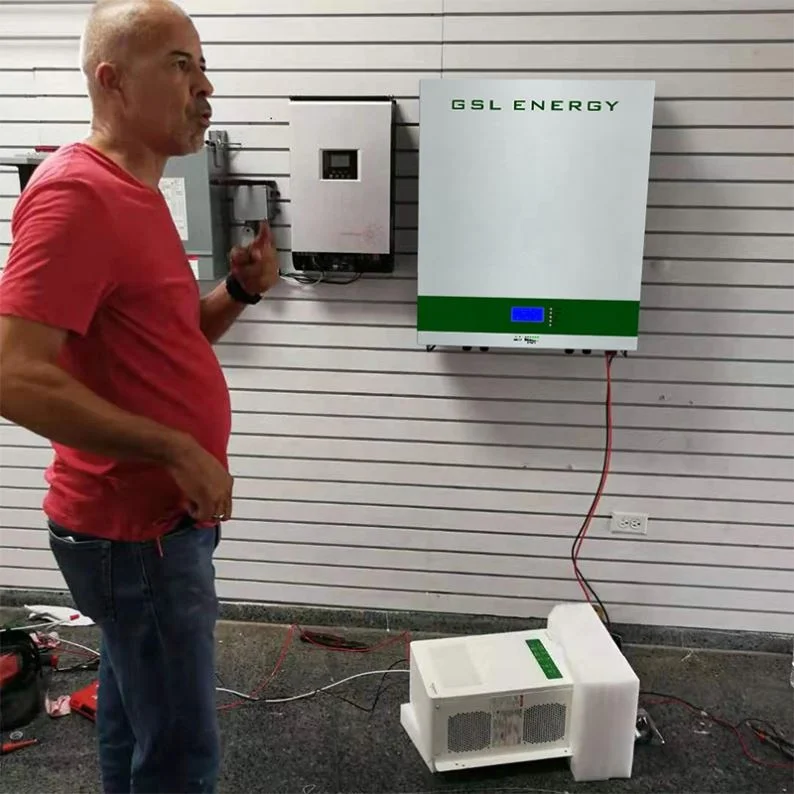

Project
Factory Introduction
GSL ENERGY is focused on manufacturing, R&D and sales for safe Lithium battery and solutions. With the registration and certification of CE, SGS, ROHS. Striving to grow into a global leading lithium battery supplier, GSL ENERGY has been working hard on researching and developing new process technology to make our lithium battery more affordable and able to meet the rapidly growing market demands.
•Over 500 workers in 12000 sqm2 battery cell production and pack manufacturing base.
•Passing all certificates IEC62133, IEC62219, CE, UN38.3, MSDS, etc.
Exhibition
Through years development and experienced international sales team in Shenzhen, GSL ENERGY green solar and lithium battery products have been sold to clients all over the world.
LiFePO4 Lithium Battery Solar Energy System 5Kwh 7Kwh 10Kwh Solar Panel System Grid Tied Solar Power System Home Storage
For more details and price, please send us an enquiry below ⇓⇓⇓
