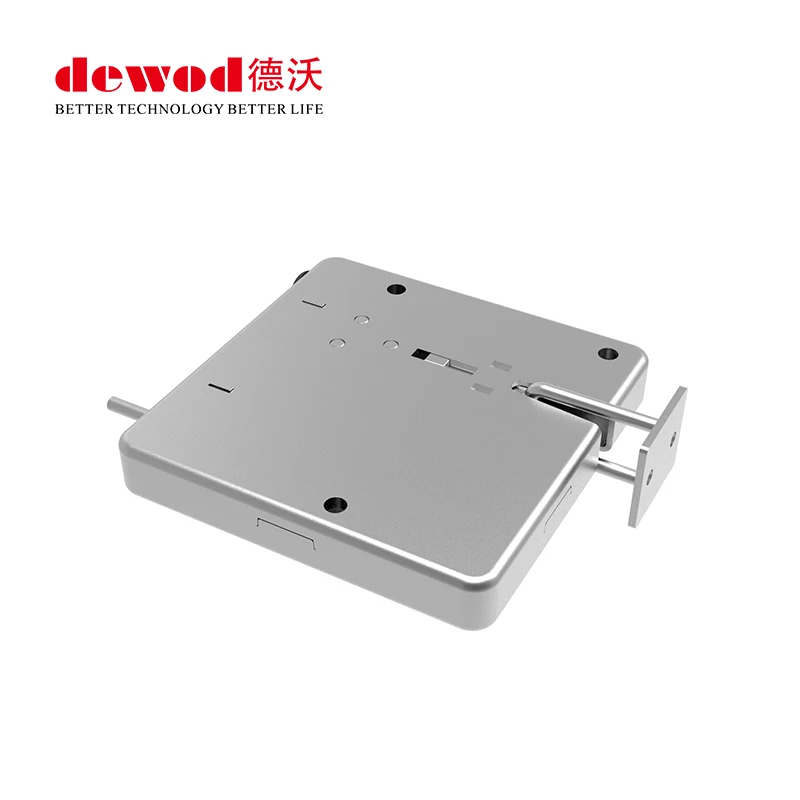

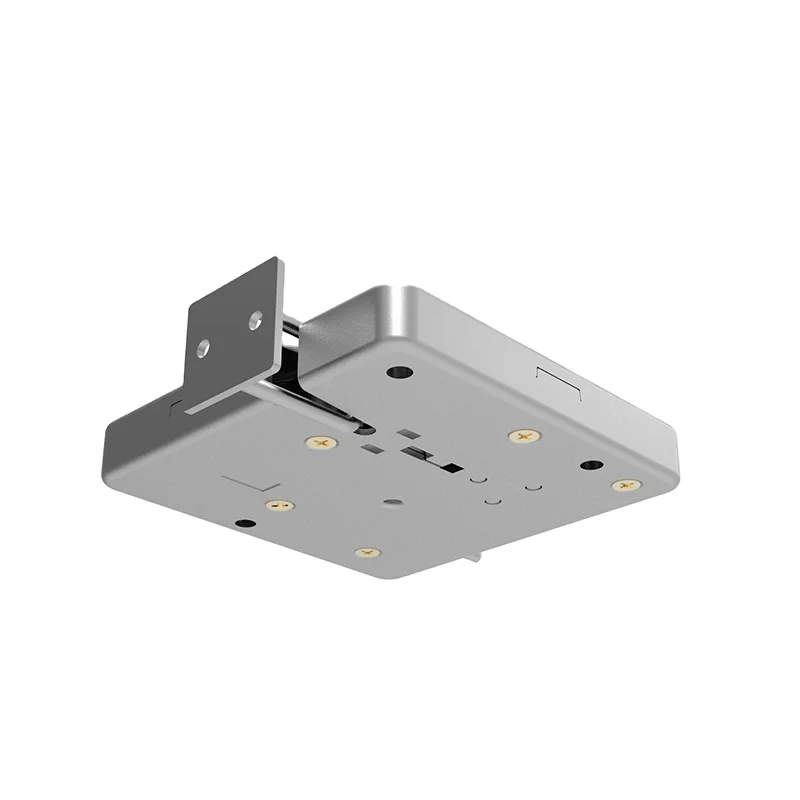

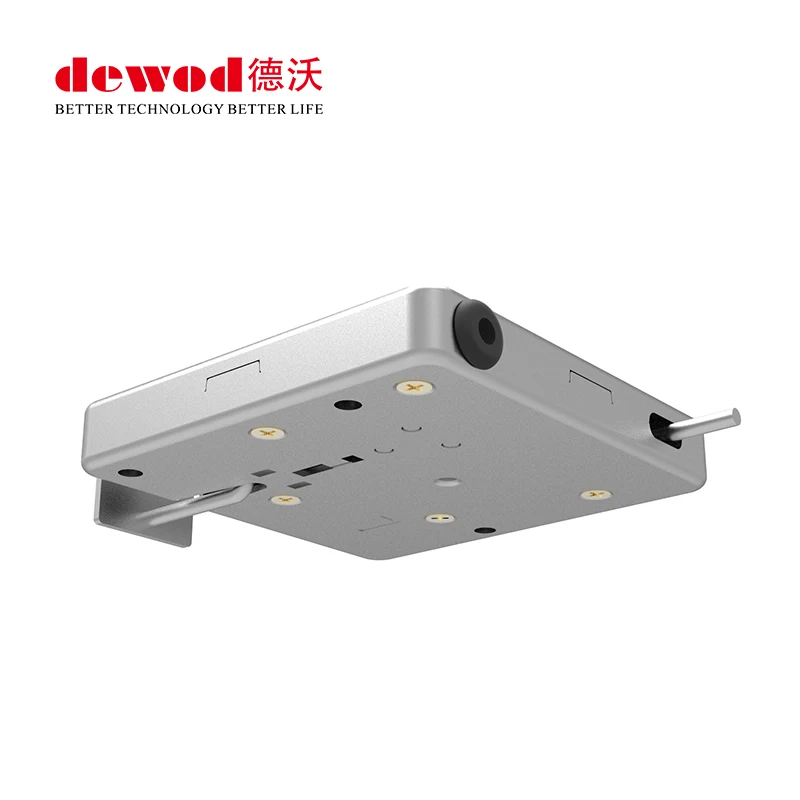

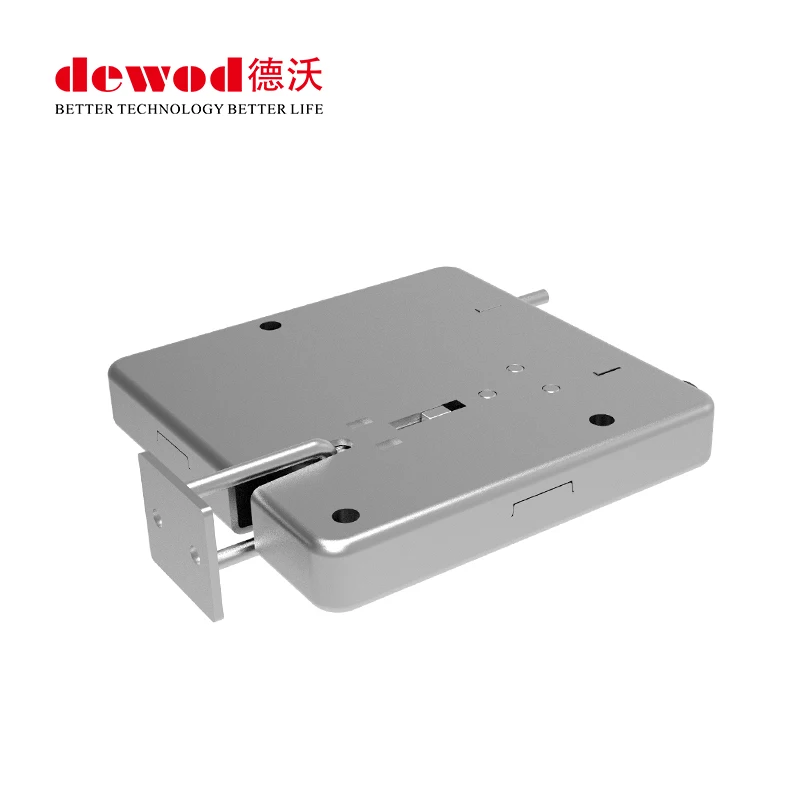

Высококачественный замок для шкафа электромагнитный 60 кг S150 смарт-пульт дистанционного управления аренда

Dimension:

12.5mm*67mm*73mm

Way of working:

The door is closed (power off) to lock, and the power on (12V) instantly triggers the unlocking mode.

Emergency unlocking:

The lock body is equipped with an emergency unlocking method, and the cabinet can be locked without damaging the cabinet in an
emergency. If according to the mechanical key, it can also be unlocked externally with the key, the operation is simple and
convenient;

Energy saving:

The power-on time at the moment of unlocking is 200ms-300ms, usually when the door is closed and locked, it does not consume power
and the voltage is 12V;

Life test:

Under a load of 5kg, the unlocking voltage is 10.5V, and the aging switch is more than 100,000 times

Applicability:

No front and back design, all sizes of cabinets for left, right, upper and lower door opening directions can be used.

Safety:

Sensitive, shockproof, anti-mite, anti-rust.

Line order:

The double red wires are the electromagnet power wires, and the white and green wires are the micro switch signal wires.
