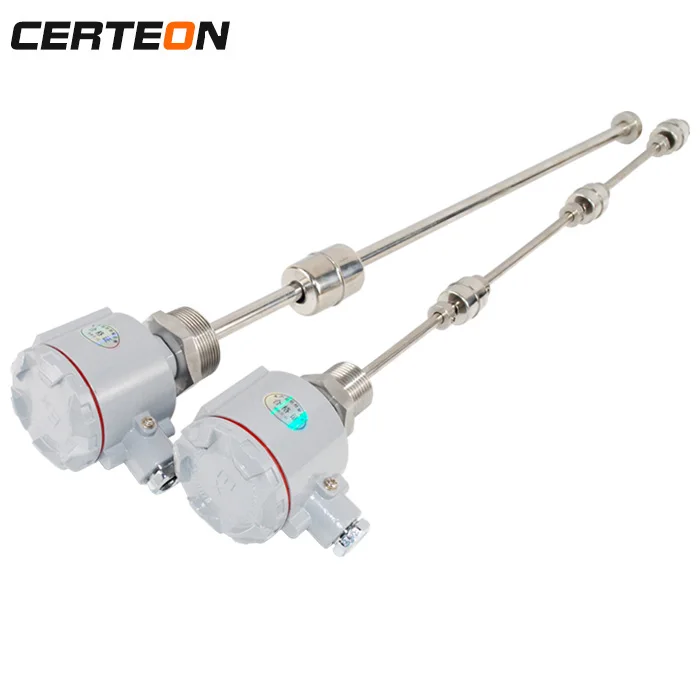

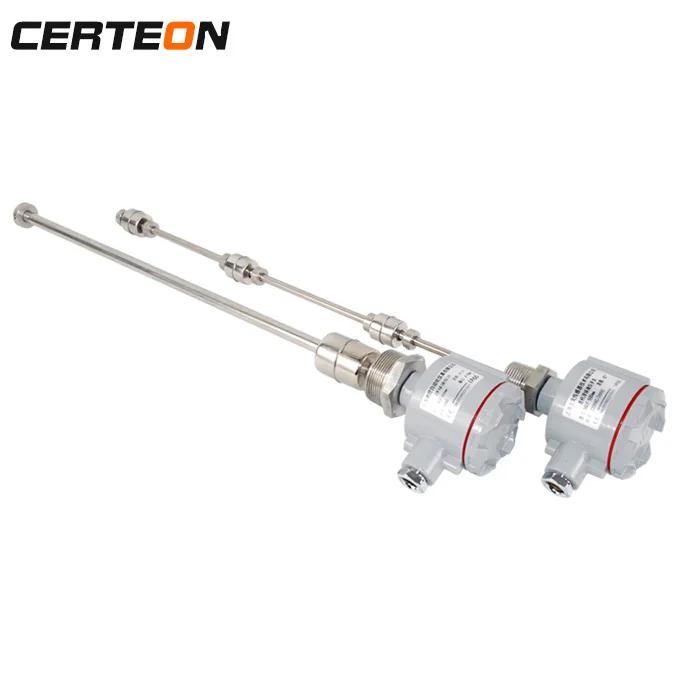

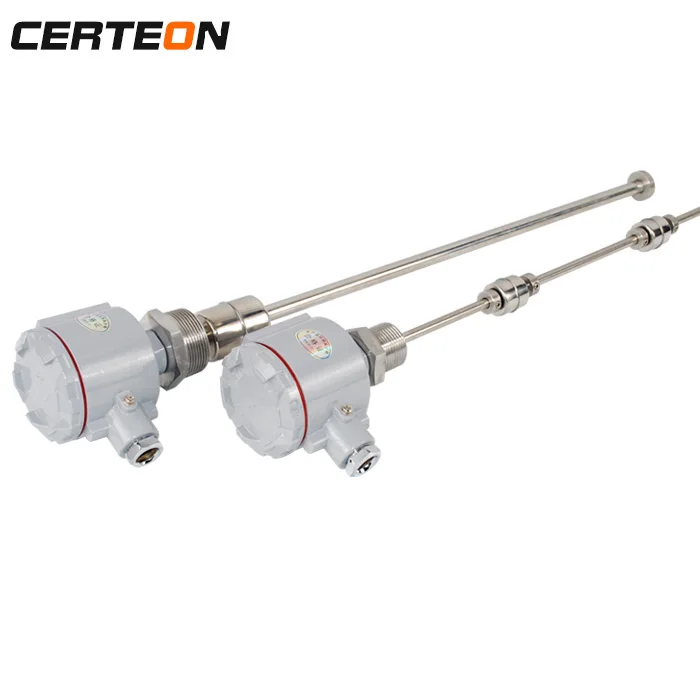

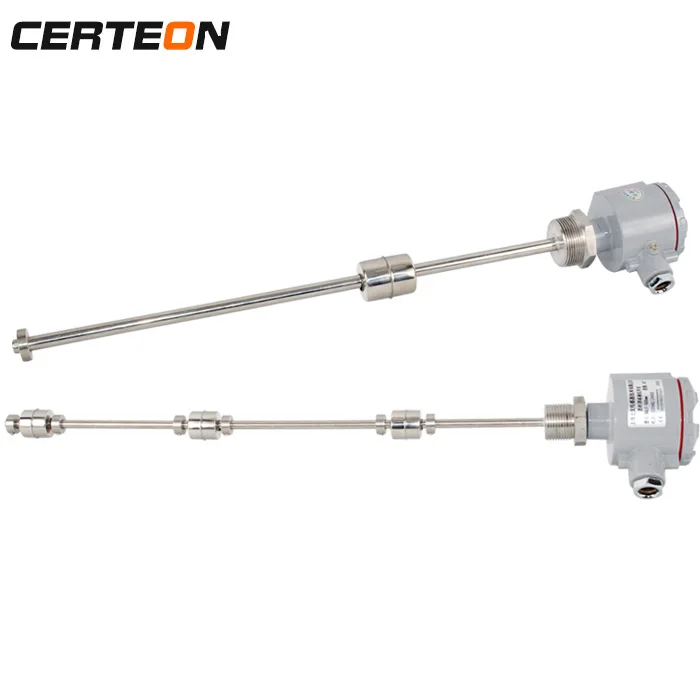

Магнитострокционный передатчик контроллер манометр магнитный поплавковый шаровой переключатель уровня для воды топливного бака управление сигнализацией несколько
- Категория: Уровни >>>
- Поставщик: Shanghai,Chikong,Automation,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 52.20 $* | 53.81 $* |
| Jul-16-2025 | 42.64 $* | 43.59 $* |
| Jun-16-2025 | 51.87 $* | 52.15 $* |
| May-16-2025 | 51.12 $* | 52.83 $* |
| Apr-16-2025 | 41.50 $* | 42.79 $* |
| Mar-16-2025 | 50.93 $* | 51.73 $* |
| Feb-16-2025 | 50.38 $* | 51.20 $* |
| Jan-16-2025 | 49.25 $* | 50.58 $* |
Характеристики
Product Description
All-round customization are provided
Introduction:
Float level switch is a simple structure, easy to use level control device, it does not need to provide power, no complicated circuit, it has a smaller than the general mechanical switch, long life and other advantages. As long as the material selection is correct, and any nature of the liquid or pressure, the temperature can be used in the shipbuilding industry, generator equipment, petrochemical, food industry, water treatment equipment, dyeing and finishing industry, hydraulic machinery, etc. are widely application.
working principle:
The level sensor is mainly composed of a reed switch and a float, which contains magnetic material, one or more reed switches in a closed non-permeable metal pipe or plastic tube, and then passes the conduit through one or more With a magnetic material of the float, and the use of fixed double-ring control float and reed switch in the relevant position, the float with the liquid rise or fall, the use of the ball near the beginning of the magnetic spring contacts, For level control or indication (when the float is close to the reed switch is turned on; off when the switch is off).
Parameter | |
Temperature | minus 20℃~120℃(200℃Max.) |
Pressure | (-1.0~3.5)MPa ------- metal type; (0~0.5)MPa ------- plastic type |
Contact rating | 50W/250VAC,200VDC 40W/250VAC 10W/110VAC |
Rated current | 0.2A(50W) ,0.16A(40W) ,0.1A(10W) |
Max working current | 1A(50W,40W),0.5A(10W) |
Measuring range | 0~8000mm |
Accuracy | ± 10mm |
Contact power | ≤ 70W |
Head | P.C(option:ADC12) |
Enclosure | weather proof(IP65) option EX-proof(Exd II c 76 IP65) |
Temperature in the vessel | minus 15---80℃ |
Contact type | SPST/option SPDF |
Connection | threaded or flanged |
Company Information
FAQ
Q: How long will you give me the reply?
A: we will contact you in 1 hours as soon as we can.
Q:What is the delivery time ?
A:Our delivery time is within 3-7days after we get your payment ; for large qty mass order , the time should be confrimed again for you
Q:How about your package ?
A:Do not worry about the package ,we have rich experience at packing , all our package is standard exporting package .
Q: How about the Warranty time ?
A:Our warranty time is 12 months after you get our goods . All lifelong technology service and support .
Q:How about the payment terms ?
A:You can choose T/T, Western union , or you can choose by alibaba -credit insurance .
Q:Could I visit your factory?
A: Sincerely invite you to visit our factory
Q: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:What is the MOQ?
A:1PC.
Q:Can I get a lower price if I order large quantities?
A:Yes,cheaper prices with more bigger size orders.
Q:Can I have my own logo of the products?
A:Of course.We provide OEM services.The products’ material,dimansions,color,etc. will according to your requirement.
