Medium Intensity Warning Lights Red Flash Skyscraper ICAO Solar Aviation Lamp Telecom Tower Chimney Obstruction

 Medium Intensity Red flash beacon LED Solar Obstruction Light For Tower navigation mark Aircraft Warning Light

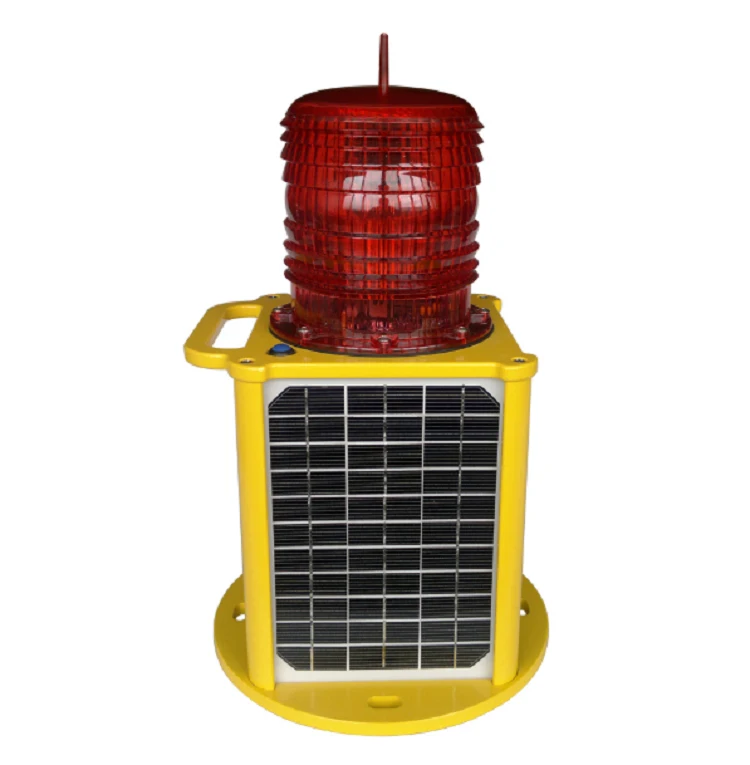

Model AO-SMI-B1 Medium intensity Type B Aviation Obstruction Light flashing red color, designed for marking top of obstacle which height is between 45 to 105 meters. Ultra high intensity LED is used as light source which make performance better. Four (4) solar panels are integrated into the assembly and mounted to collect sunlight at all angles.
GPS device is optional for AO-SMI-B1, it make different lights flash synchronously.


Compliance:
1. Annex 14 Volume 1,'Aerodrome Design and Operations' Sixth edition July 2013, table 6.3 Medium-intensity Type B Obstacle Light.
2. FAA L-864.

Features:
1. Ultra high intensity LED light source saving power, consumption and maintenance.

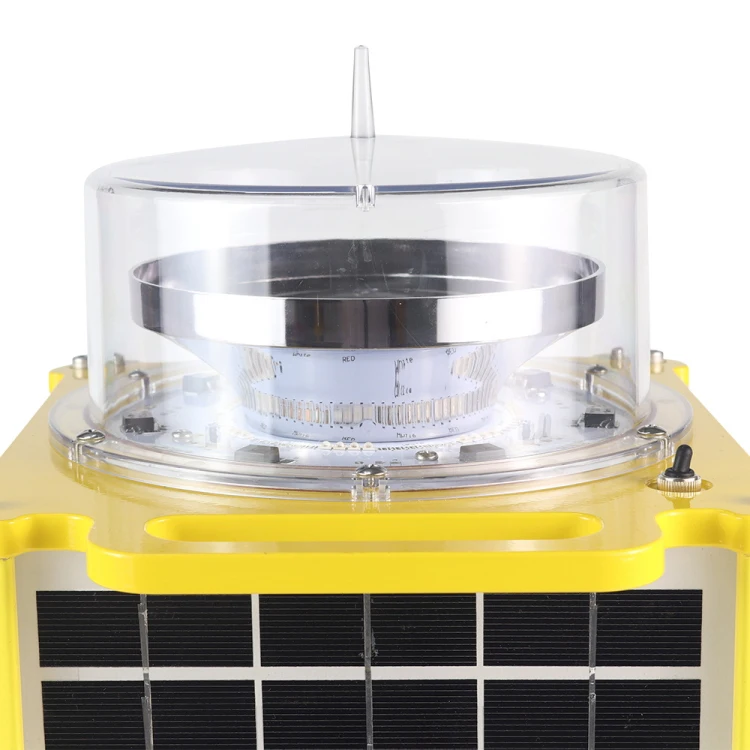

2. UV & vibrations protected polycarbonate lens for converging light.
3. Self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation.
4. 4-side mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon.
5. Battery: VRLA (Valve-Regulated Lead Acid Battery).
6. Solar panel as photocell for day & night working mode (dusk to dawn mode).
7. Interface ON/OFF button is more reliable and easy for local control.

Specification:


Model NO.:	AO-SMI-B1
Light Source	Ultra high intensity LED
Available Colors	Red
Light Intensity(cd)	2000 cd±25%
Horizontal Output(degrees)	360
Vertical Divergence(degrees)	≥3
Flash Characteristics	Flashing 20-60 FPM
Operation Mode	Dusk-to-Dawn operation
LED Life Experience(hours)	>100,000
Solar panel voltage	16.5V DC
Solar panel Power(W)	24W
Circuit Protection	Integrated
Solar Module Type	Mono crystalline Silicon
Charging Regulation	Microprocessor controlled
Battery type	Lead-acid battery 12V 12AH
Battery (V)	12V
Battery Service Life	>5 years
Working mode:	Flashing 20~60times/min
Lamb Body Material	UV protected Polycarbonate
Base Material	Powder-coated Die-casting aluminum
Installation Size	220 *220* M10
Overall Size (mm)	260*260 *310
Product Life Expectancy	>5 years
Weight(kg)	8.5KG
Ambient Temperature(ºC)	-40~60
Humidity	0~90%
Wind Speed	80m/s
Waterproof	IP66
