Размер под заказ пневматическая резиновая бетонная
- Категория: Formwork >>>
- Поставщик: Hebei,Sinta,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 238.89 $* | 250.53 $* |
| Aug-19-2025 | 236.41 $* | 248.8 $* |
| Jul-19-2025 | 198.82 $* | 208.19 $* |
| Jun-19-2025 | 232.95 $* | 244.25 $* |
| May-19-2025 | 202.94 $* | 212.19 $* |
| Apr-19-2025 | 228.47 $* | 239.15 $* |
| Mar-19-2025 | 226.84 $* | 237.95 $* |
| Feb-19-2025 | 224.4 $* | 235.87 $* |
| Jan-19-2025 | 222.14 $* | 233.29 $* |
Характеристики
Products Description

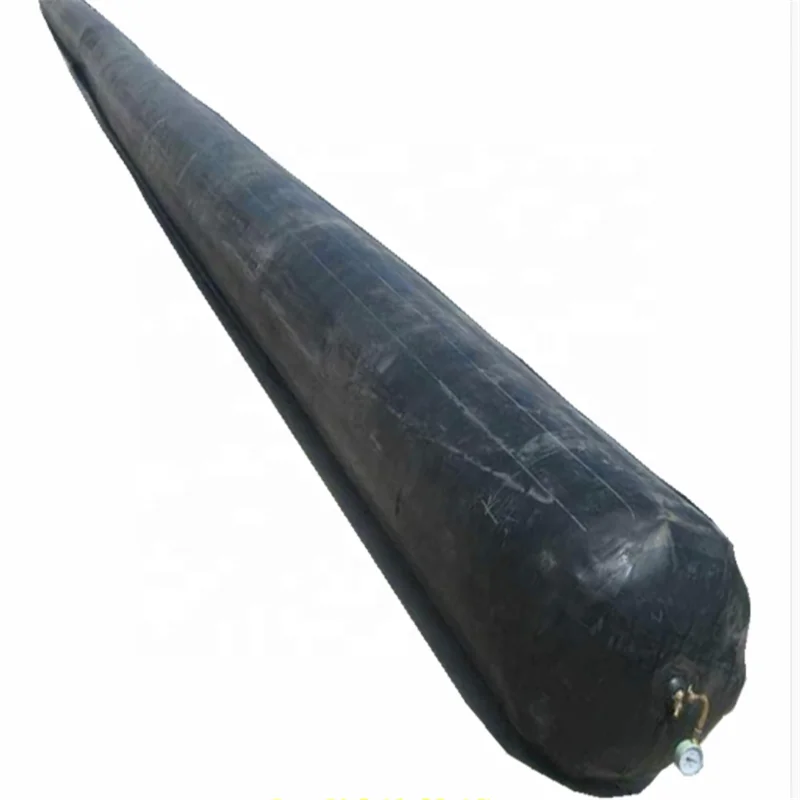

Customized Size Pneumatic Rubber Concrete Formwork/Rubber core mold
Inflatable rubber mandrel is made of rubber and vulcanized fiber reinforced layer made products, with high impact, tensile
strength, elasticity and tightness after into the air, can replace the original wooden mold, steel, can be used repeatedly, is a
low-cost and accelerate the construction progress of Quan products matching products.
strength, elasticity and tightness after into the air, can replace the original wooden mold, steel, can be used repeatedly, is a
low-cost and accelerate the construction progress of Quan products matching products.
Construction Practice has proved that the capsule hole pumping equipment is simple, not only to save material,
and has the shape changing characteristics that can be round, oval, rectangular, arched, octagonal, trapezoidal
pipe. You can also become a straight hole, variable cut faces and so on. Building structures can be lighter, thin-walled hollow steel template to change the status of the concrete has been in use.
and has the shape changing characteristics that can be round, oval, rectangular, arched, octagonal, trapezoidal
pipe. You can also become a straight hole, variable cut faces and so on. Building structures can be lighter, thin-walled hollow steel template to change the status of the concrete has been in use.
Diameter(mm) | 80 | 120 | 150 | 200 | 250 | 400 |
inflation pressure (MPa) | 0.12 | 0.10 | 0.08 | 0.07 | 0.05 | 0.04 |
Diameter(mm) | 500 | 600 | 700 | 800 | 900 | 2200 |
inflation pressure (MPa) | 0.035 | 0.03 | 0.027 | 0.026 | 0.025 | 0.005 |
Technical parameters of rubber inflatable airbag
Items | Index |
Terence of Thickness, mm | 3.2±0.2 |
Hardness(Shore A) | 65±5 |
Adhesive tension of rubber and fabric,N/25mm | ≥20 |
Tensile strength, M pa | ≥12 |
Elongation at break, % | ≥350 |
300% Stretch set length, M Pa | 6 |
Stretch for deformation ratio | ≤20 %(Prevent distortion) |
Suitable temperature,°C | -15—95 |
Appearance | No cracks, no bubbles on the surface; the length of impurities trace is not more than 3mm; the depth is not more than 1.5mm; the quantity of the trace is not more than one; the deformation is not more than 2mm. |
Common Specifications | Special sizes, twin-tube plus coat | ||
φ180mm X 6-20m | φ400mm X 10-40m | 350 X 530(540)mm X 10-40m | |
φ200(φ220)mm X 10-20m | φ500mm X 10-40m | 320 X 520(540) X 10-40m | |
φ240(φ250)mm X 15-40m | φ600mm X 10-40m | 350(360) X 560mm X 10-40m | |
φ300(φ330)mm X 15-40m | φ620mm X 10-40m | 360 X 640(650)mm X 10-40m | |
φ350(φ360)mm X 10-40m | φ700mm X 10-40m | 320 X 520(550)mm X 10-40m | |
components, can meet the design requirements, and simple operation, saving labor, time, is material.
2, good aging resistance, long life: This product is made with whole into the rubber, natural rubber and vulcanized reinforced layer. Both horizontal good tensile strength, and elasticity and flexibility, they are able to meet in a variety of operating conditions.
3, for a wide range of temperatures: in the range of -15 ℃ to 95 ℃, the material does not change.
4, for the construction site construction provides a strong light conditions: prestressed hollow concrete structures, the use of rubber mandrel, which is 20% lighter weight than non-prestressed solid components, thus reducing the weight of the upper part of the building, the pile can be shortened span increases, the construction site is safe and easy.
5, the construction process is simple, safe, and sanitary: Use rubber mandrel, with only a few simple tools, no special technology. As long as the mandrel into the steel cage, inflatable pressure to the working pressure, the pouring of concrete, to be initial setting of concrete, the mandrel bleed out, to complete the finished molded components, do not pollute the environment.
