Автоматическая машина для снятия фаски с двойной головкой заусенцев на концевой
- Категория: Chamfering Machines >>>
- Поставщик: Henan,Wadley,CNC,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 6664.47 $* | 6997.79 $* |
| Aug-18-2025 | 6608.38 $* | 6938.80 $* |
| Jul-18-2025 | 5544.83 $* | 5821.83 $* |
| Jun-18-2025 | 6496.90 $* | 6821.43 $* |
| May-18-2025 | 5656.98 $* | 5939.36 $* |
| Apr-18-2025 | 6384.76 $* | 6703.13 $* |
| Mar-18-2025 | 6328.0 $* | 6644.29 $* |
| Feb-18-2025 | 6272.75 $* | 6586.30 $* |
| Jan-18-2025 | 6216.12 $* | 6527.92 $* |
Характеристики

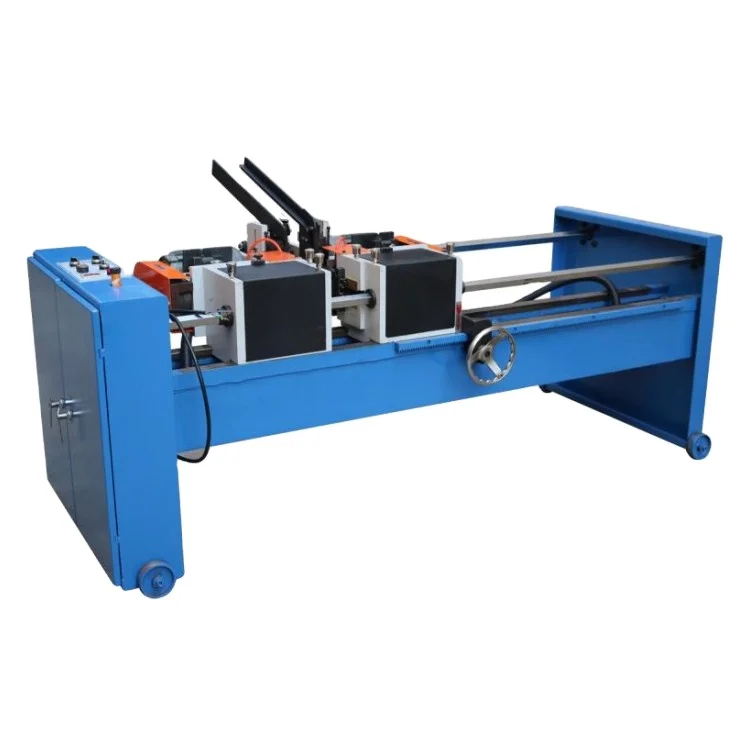

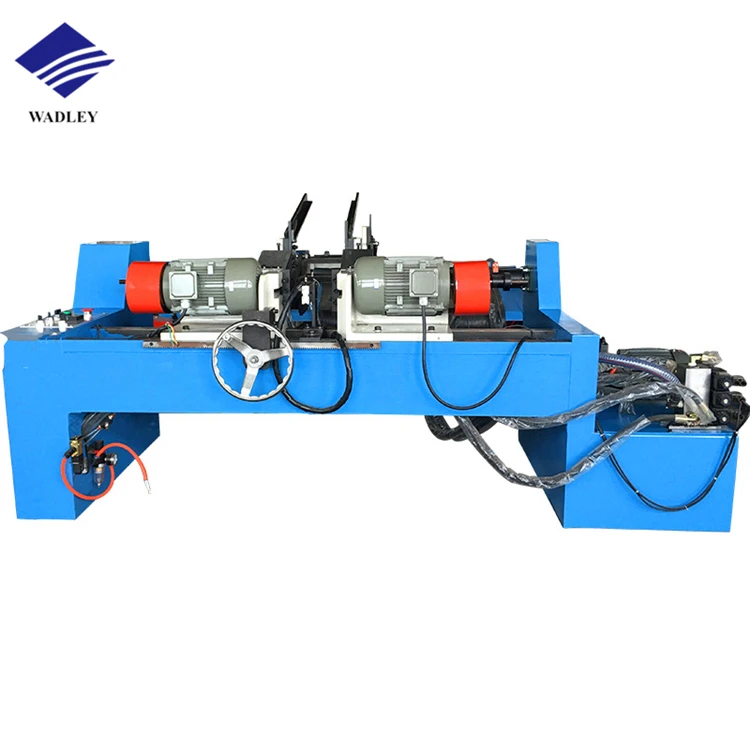

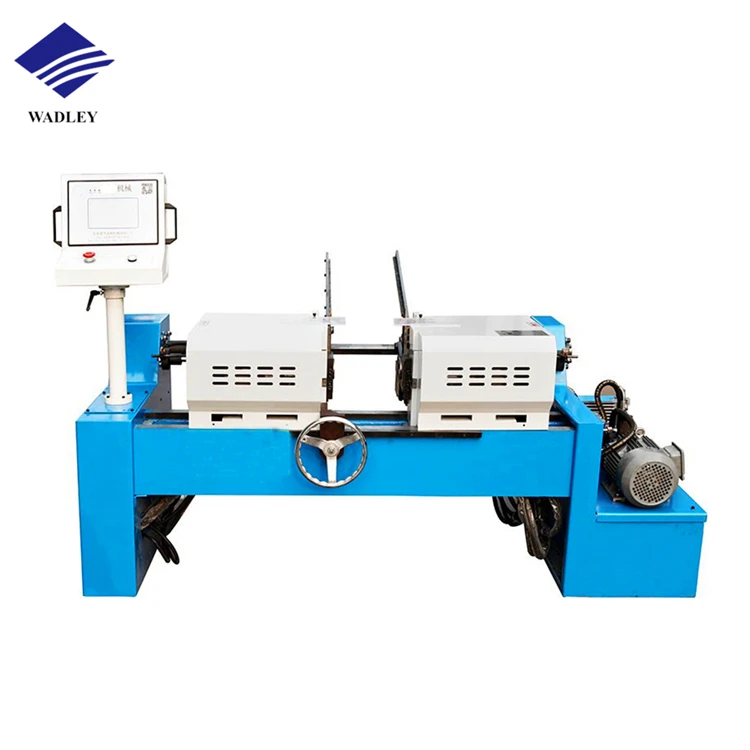

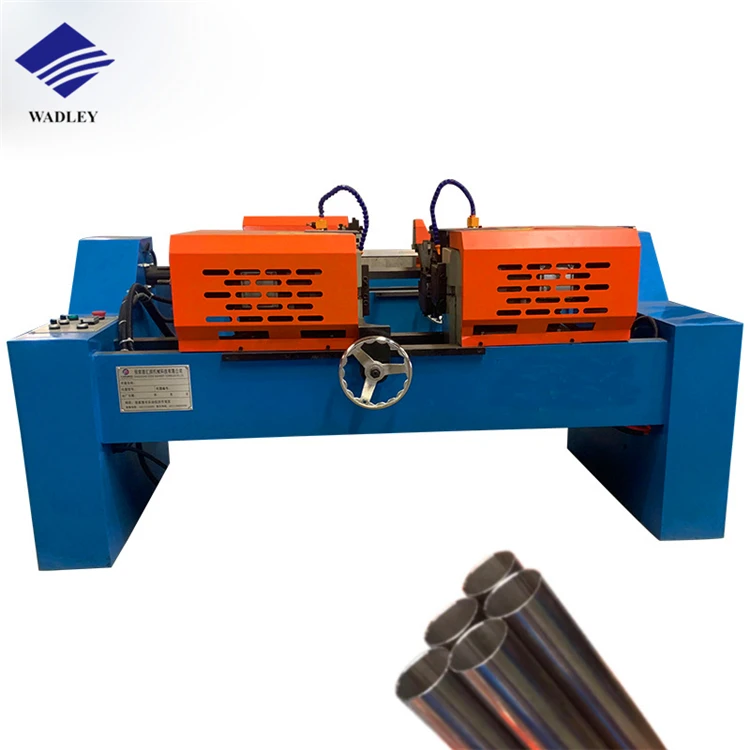

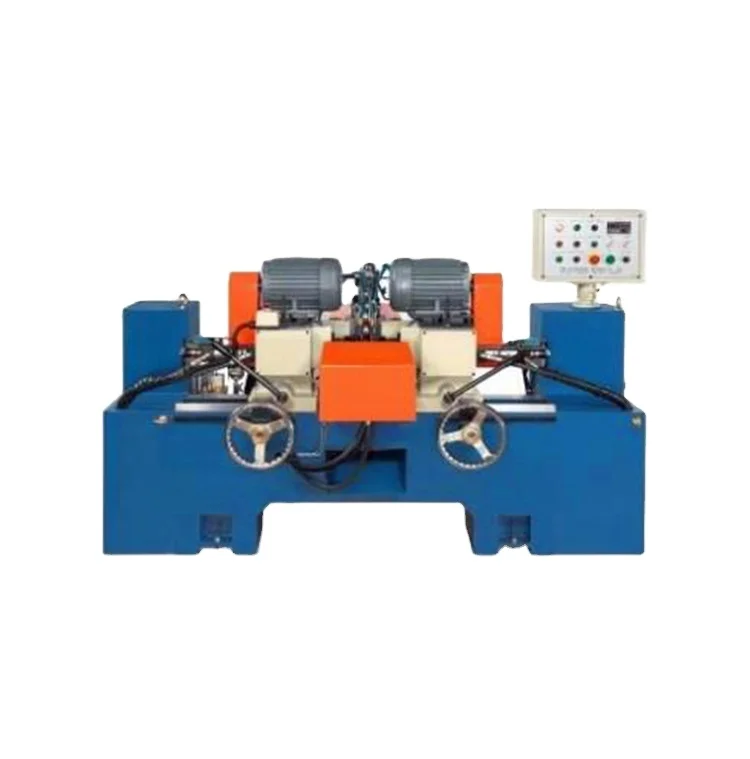

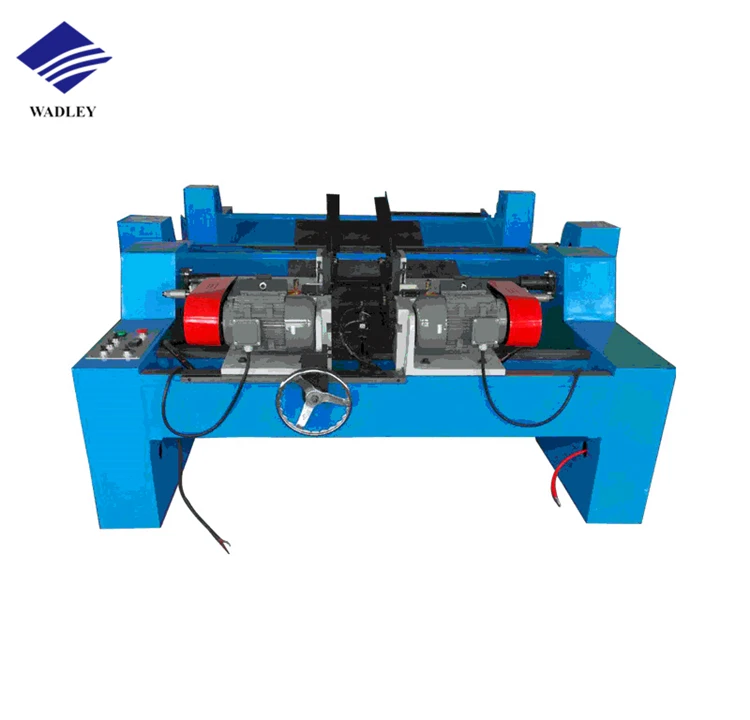

Automatic Feeding Double Head Round Bar Chamfering Machine Pipe End Deburring Machine
Product Description
Product main technical Specifications:
Model | WD-80AC | WD-120AC | WD-150AC |
Type | Hydraulic | Hydraulic | Hydraulic |
Pipe Diameter | 8-80mm | 15-120mm | 20-150mm |
Bar Diameter | 5-25mm | 5-35mm | 5-45mm |
Length | ≥50mm | ≥50mm | ≥50mm |
Accuracy | ±0.1mm | ±0.1mm | ±0.1mm |
Work Speed | 3-5s/pcs | 3-5s/pcs | 3-5s/pcs |
Motor | 1.5kw | 3kw | 3kw |
Pressure | MPA 6-8KG | MPA 6-8KG | MPA 6-8KG |
Weight | 300kg | 400kg | 450kg |
Size(mm) | 1180*1180*1300 | 1200*1400*1500 | 1200*1400*1550 |
Model | WD-180AC | WD-200AC | WD-230AC | WD-300AC |
Type | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
Pipe Diameter | 20-180mm | 30-200mm | 30-230mm | 50-300mm |
Bar Diameter | 10-50mm | 15-55mm | 15-55mm | 15-55mm |
Length | ≥50mm | ≥50mm | ≥50mm | ≥50mm |
Accuracy | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm |
Work Speed | 3-5s/pcs | 3-5s/pcs | 3-5s/pcs | 3-5s/pcs |
Motor | 4kw | 5kw | 5.5kw | 5.5kw |
Pressure | MPA 6-8KG | MPA 6-8KG | MPA 6-8KG | MPA 6-8KG |
Weight | 550kg | 600kg | 650kg | 700kg |
Product Features:
double head chamfering machine is controlled by pneumatic, it can finish two ends of pipe / bar one time. Feeding / retracting and clamping by pneumatic, auto unloading. It has 2-step feed speed. The first step feed is high speed, then the second step feed speed is adjustable to produce clean and smooth cutting results. Changing sizes of cut are conveniently made by simply adjusting and changing cutterhead and clamp.
Application
Company Information
Henan Wadley Import & Export Trading Co., Ltd. Located in Zhengzhou.the central place of China. With long time exporting machines experience, we can not only supplying our customers stable quality products ,but also more excellent service.we supply all kinds of Machine tool to international market, like Lathe machine, CNC Lathe Machine, Milling Machine, CNC Milling Machine, CNC Machining Center, Grinding Machine, Hydraulic Press, Bending Machine, Drilling Machine, Press brake, Shearing Machine, and Machine tool accessories. We have our own engineer who has more than years of working experience and is professionally trained. Our trained engineers can help customers on behalf of company not only inspect goods before shipping but also track all links of production process.
Packaging & Shipping
Our Services
Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q7.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
