Характеристики
Original Colorlight 5A-75B Receiving Card LED Display
Contact me , I will give you better price.
Wechat:18626250059
Whatsapp: +86 18626250059
Why Choose US
A: Support 24 Hours Online Guide & Help if you have any problems!
B: High quality original LED Chip with CE,ROHS,FCC certified.!
C: We gaurantee to test every part before the delivery and gaurantee the quality!
Product Description

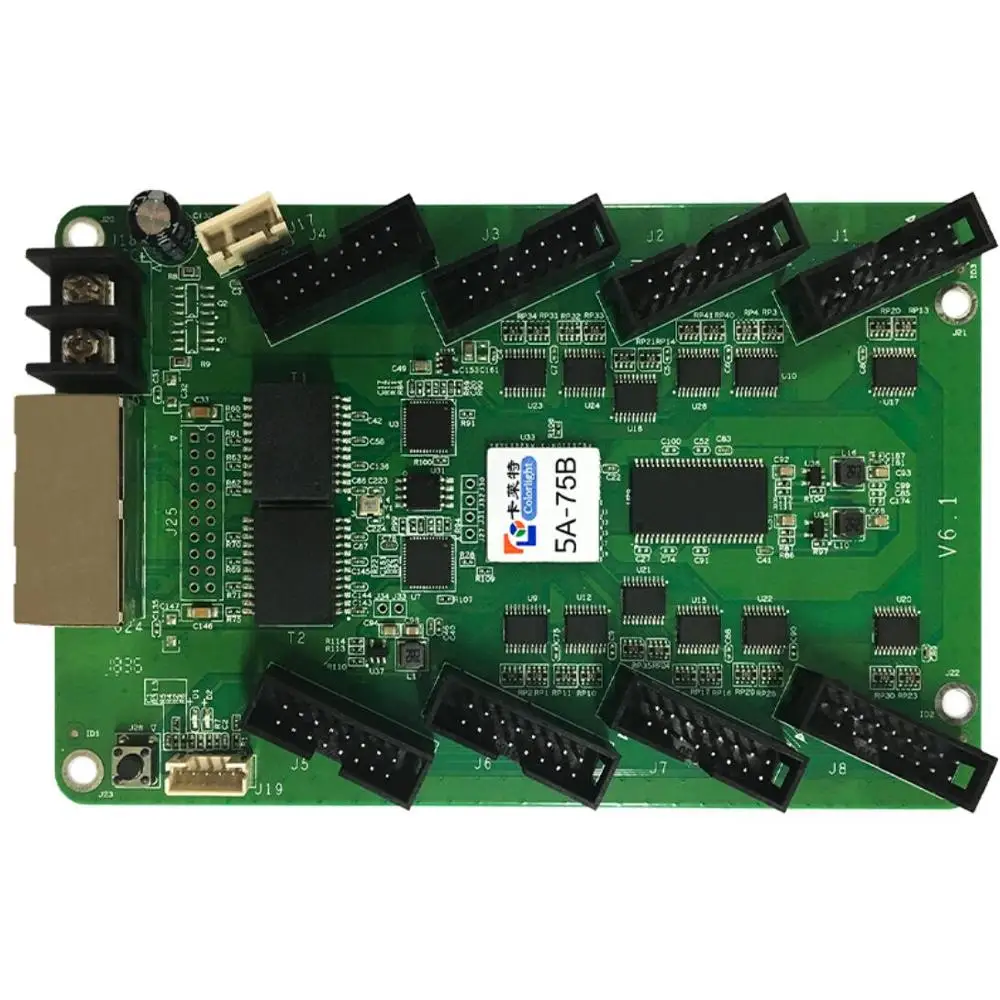

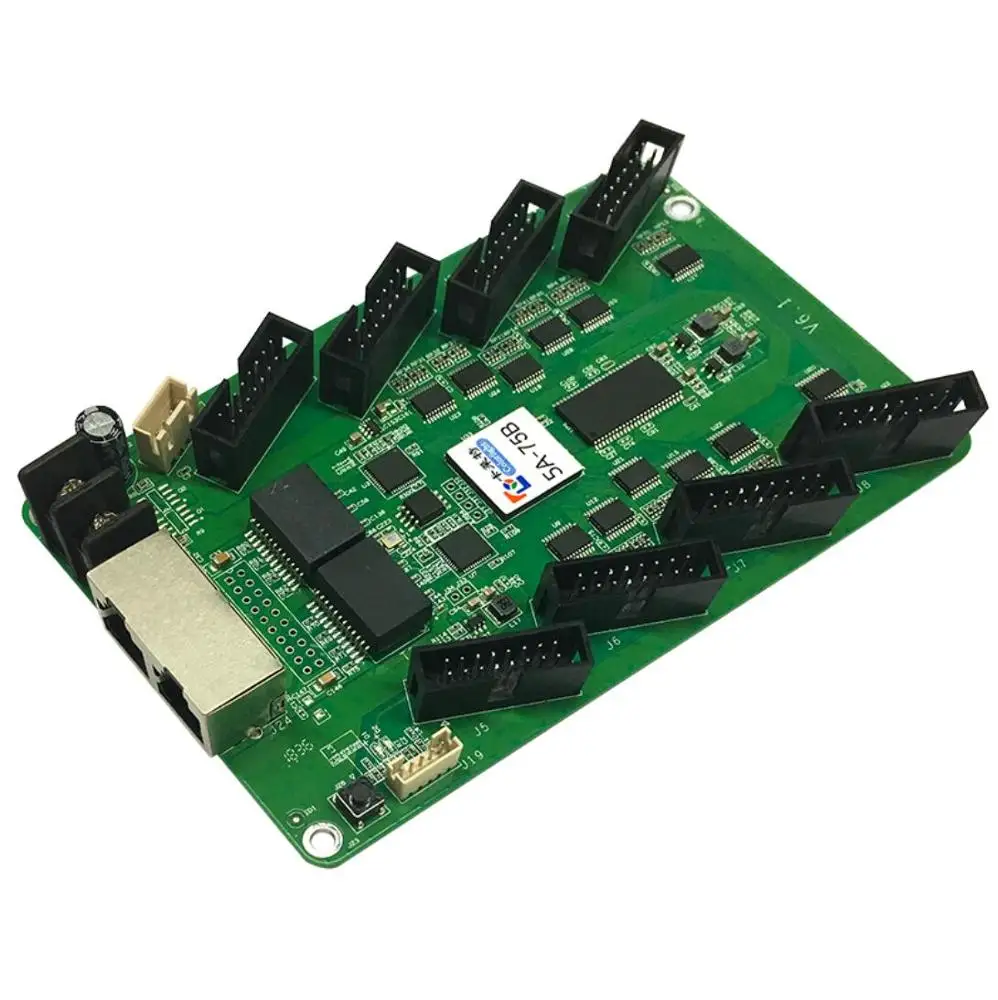

Original Colorlight 5A-75B Receiving Card LED Display
5A-75B receiving card was Colorlight special introduced high cost-effective product that designed for customers to save cost, reduce points of fault and failure rate.
Based on 5A receiving card, 5A-75B integrates the most common HUB75 interfaces, which is more reliable and more economical on the premise that ensure high-quality display.
Features
·Integrated HUB75 interface, more convenient with less cost.
·Reduces the plug connectors and malfunction, lower failure rate.
·Superior display quality: high refresh rate, high grayscale, and high brightness with the conventional chips.
·Perfect performance under lower grayscale status.
·Better detail processing: partial dark at row, reddish at low gray, shadow problems can be solved.
·Supports high-precision point-by-point calibration in the Brightness and the chromaticity.
·Supports conventional chips, PWM chips and lighting chips.
·Supports any scan mode from static to 64 scans.
·Supports any pumping point and data arbitrary offset to realize various freeform display, spherical display, creative display, etc.
·Supports 16 groups of RGB signal output.
·Large loading capacity.
·Advanced design, high quality components, rigorous aging test, zero malfunction of final products.
·Wide working voltage range with DC3.3~6V.
·First adopt all components face up configuration to reduce damage.
·Compatible with all series of Colorlight’s sending devices.
| Control system parameters | |
|---|---|
| Sending device | All series of Colorlight’s sending devices |
| Control area of every card | Full-color: 256×256 pixels |
| Correction area of every card | 256×256 pixels |
| Network port exchange | Supported, arbitrary use |
| Synchronization | Nanosecond synchronization between cards |
| Display module compatibility | |
|---|---|
| Chip support | Supports conventional chips, PWM chips, lighting chips and other mainstream chips |
| Scan type | Supports 64 scans |
| Module specifications support | Supports 4096 pixels within any row, any column |
| The direction of the cable | Supports route from left to right, from right to left, from top to bottom, from bottom to top |
| Data groups | 16 RGB data groups |
| Data folded | Supports to fold on the same or opposite direction |
| Module snapshot | Supports any pumping point |
| Data serial transmission | Supports RGB, R8G8B8, R16G16B16, etc in the form of serial |
| Compatible device and interface type | |
|---|---|
| Communication distance | UTP cable≤140m CAT6 cable≤170m Optic fiber: Single Mode Fiber Converter≤20km Multi-Mode Fiber Converter ≤550m (Use RP Repeater to extend unlimited) |
| Compatible with transmission equipment | Gigabit switch, fiber converter, optical switches |
| DC power interface | Wire terminal |
| HUB Interface Type | HUB75 |
| Physical parameters | |
|---|---|
| Size | 143×93mm |
| Input voltage | DC 3.3V~6V |
| Rated current | 0.6A |
| Rated power | 3W |
| Storage and transport temperature | -50℃~125℃ |
| Operating Temperature | -20℃~75℃ |
| Body static resistance | 2KV |
| Weight | 100g |
| Monitoring function (in conjunction with mutil-function card) | |
|---|---|
| Monitoring functions | Real time monitoring environment information like temperature, humidity, smog |
| Remote control | Supports for relay switch to turn on/off the power supply of equipments remotely |
| Other features | |
|---|---|
| Pixel level calibration | Supported |
| Loop backup | Supported |
| Shaped screen | Supports various freeform display, spherical display, creative display, etc. through the data arbitrary offset |
