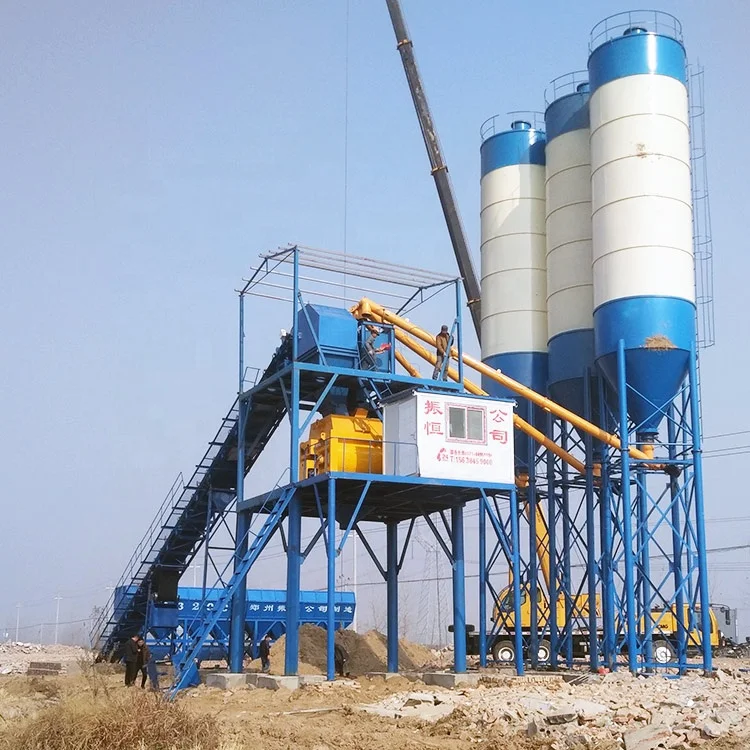

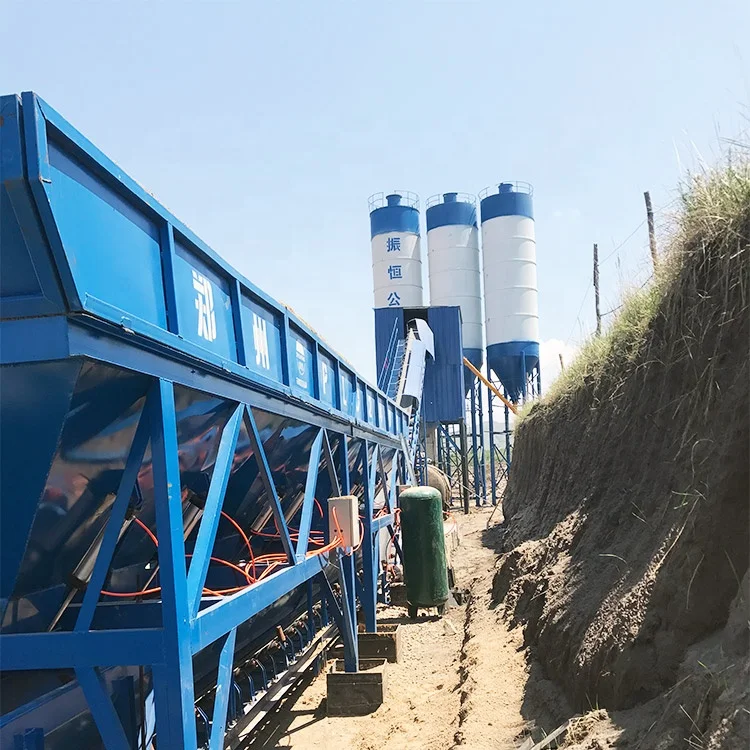

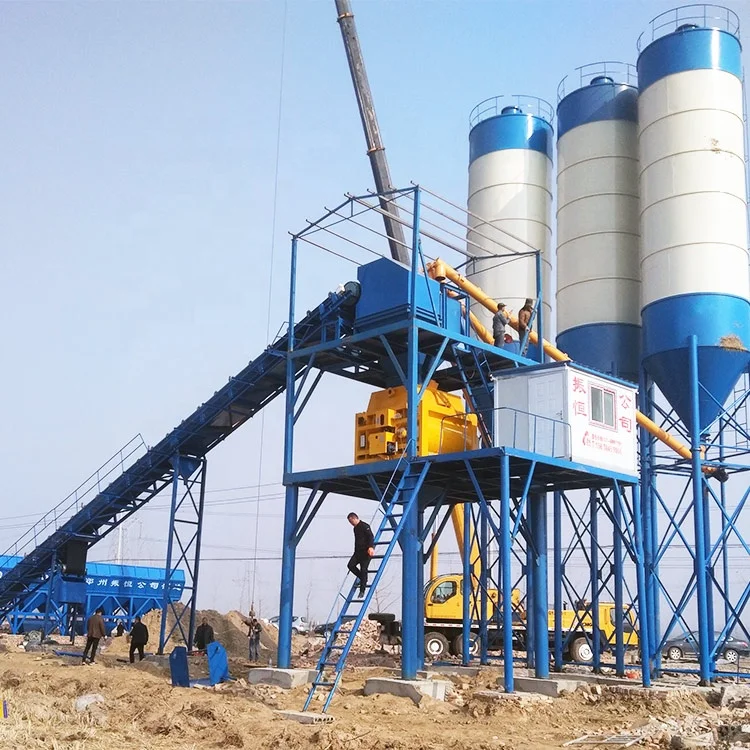

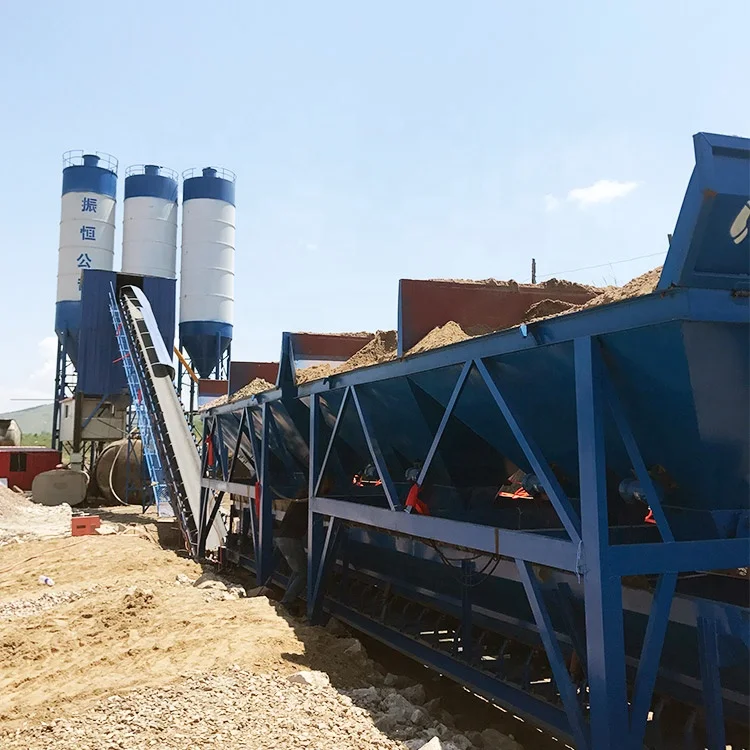

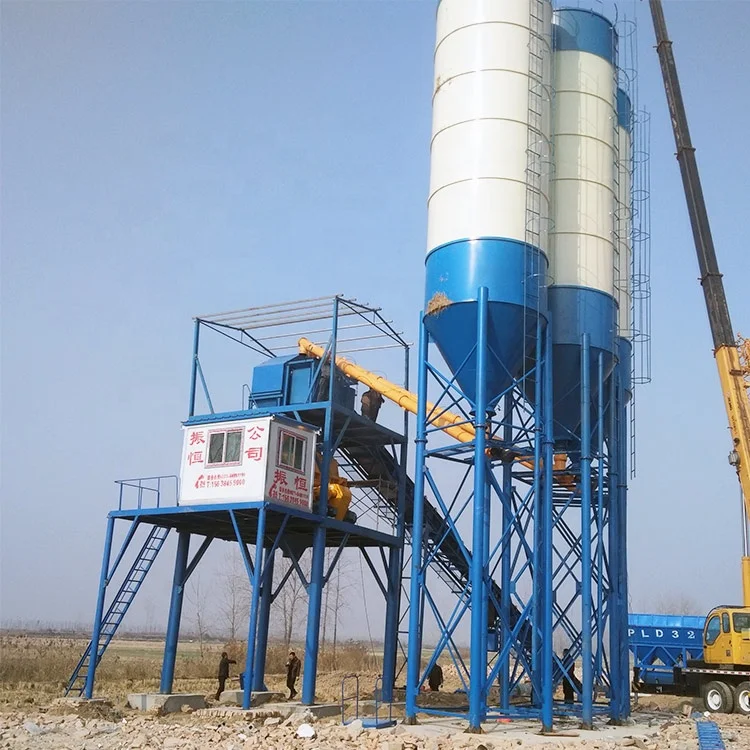

Belt Type Concrete Batching Plant can feed aggregate continuously, which improves the production efficiency greatly. 18°to 90° feeding angle according to work site landscape to meet the customers’ requirements on both budget and project. It featured as below:
1.Bucket &flat belt adapt to different needs;
2.Automatic operation production line;
3.Precise computation, meet the requirement of high performance concrete;
4.Human-based intelligent control system facilitates the operation greatly;
5.Higher efficiency with patent design.
60CBM Concrete Mixing Batch Plant Parameters
Productivity(m³/h)
180
120
90
60
Type of Mixer
JS3000
JS2000
JS1500
JS1000
Mixing Volume(L)
3000
2000
1500
1000
Feeding Way
Belt Type
Belt Type
Belt Type
Belt Type
Discharge Height(m)
4
4
3.8
3.8
Aggregate Bins
4
4
4
3/4
Aggregate
Weighing Range(Kg)
2000
2000
1000
1000-2000
Cement
Weighing Range(Kg)
1500
1000
900
600
Max. Aggregate Size(mm)
80/60
80/60
80/60
80/60
Total Power(Kw)
137.25
107.75
73.25
74.3/63.55/56.55
Total Weight(T)
80
70
64
45
Note: Any change of technical data shall not be advised additionally.
Product Recommend
Company Information
Our Advantage
Factory
FAQ
Q1. Why Choose Us? A:1.For end users, we are the manufacturer; the product quality has strict control, and for the same reason, the price is also competitive. 2.For the dealer, except first one, our company also has more than 30 years of sales & service experience, which can solve a variety of complex technical problems, and provide a full range of pre and after-sales service 3.For different area customers, we have an unique product, installed design accordingly to make sure you have a better using experience; for rainy, sandy areas, we will use a fully enclosed system to protect your equipment normal operation to reduce the impact of the environment; for wet climate areas, we have special processing techniques to reduce the probability of rusting the equipment and so on. 4.Delivery ability We have rich experience engineers and professional team to solve different kinds of questions and promise the goods will be shipped as soon as possible when you confirm the order within 15 days
Q2. Which kind of concrete it can mix? A:Heavy concrete, common concrete, light concrete. Light concrete we recommend our JSS series, it adds spiral blade and can mix more evenly.
Q3. What is the discharging mode of your concrete mixer? A:Both hydraulic and pneumatic discharging modes are available. Hydraulic is more advanced and popular than pneumatic type. However we supply as per customer's requirement.
Q4. What is the material do you use for milling blades and lining board? A:High chromium alloy wear resistant plate and high manganese alloy lining board.
