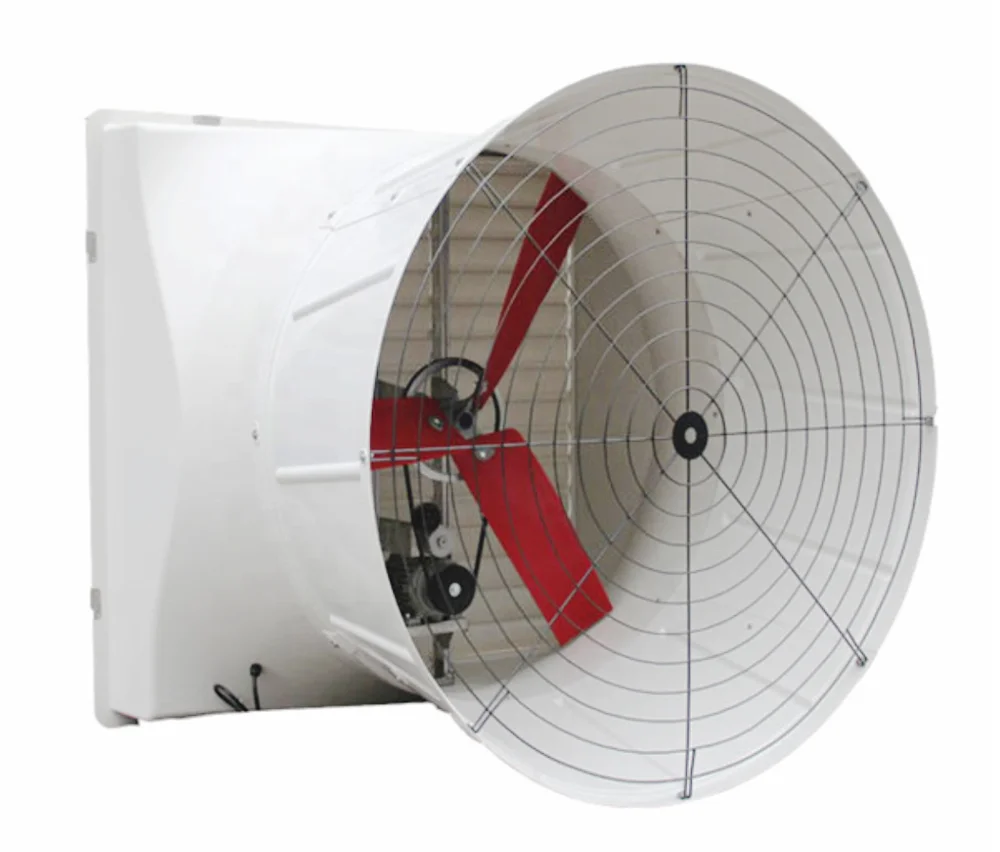

EC/DC вентилятор/FRP настенный вытяжной вентилятор/конусный
- Категория: >>>
- Поставщик: Xiamen,Oupusi,Electrical,Energy,Saving,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.74 $* | 0.8 $* |
| Aug-17-2025 | 0.81 $* | 0.70 $* |
| Jul-17-2025 | 0.78 $* | 0.36 $* |
| Jun-17-2025 | 0.83 $* | 0.55 $* |
| May-17-2025 | 0.50 $* | 0.73 $* |
| Apr-17-2025 | 0.85 $* | 0.67 $* |
| Mar-17-2025 | 0.62 $* | 0.24 $* |
| Feb-17-2025 | 0.84 $* | 0.86 $* |
| Jan-17-2025 | 0.58 $* | 0.51 $* |
Характеристики
Product Description
Product Application
Greenhouse
Industrial
Space Cooling
• Agriculture
Hog, Poultry, Egg Houses, Dairy
• Commercial / Industrial
Evaporative Cooling Systems, Pre coolers, Humidification,
Gas Turbine Intakes, Cooling Towers

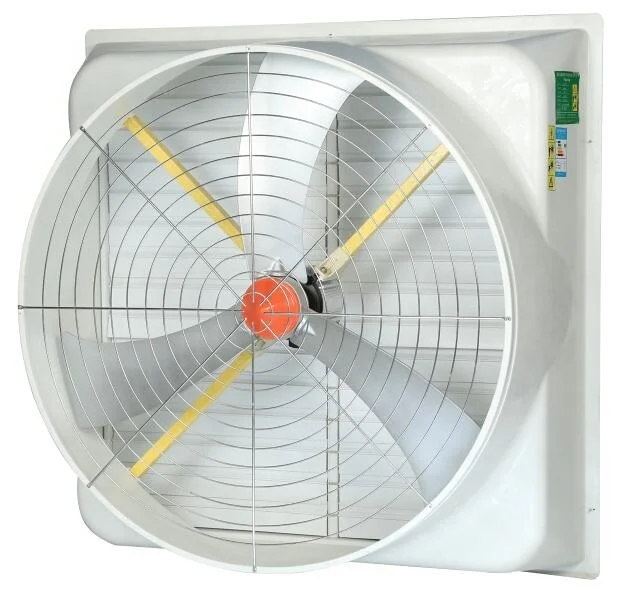

Fiberglass Ventilation Fan Specification | ||||||
50" Ventilation Fan | Model | OFS-146AF | Housing: Fiberglass | |||
Motor | 3 phase AC | 1 Phase DC | ||||
Motor Brand | Japan Fuji | ABB/OFS | ||||
Performance | Airflow | 52000 | CMH | |||
Power | AC 1.1kw | DC 0.86kw | ||||
Blades | Aluminum | 3 or 5 blades optional | ||||
Product Size | L | 146 | cm | |||
W | 146 | cm | ||||
D | 58 | cm | ||||
Main Features
The patented design provides excellent performance without a cone. Optional cone can be added if desired.
Every feature of the cone fan line is designed to maximize performance and durability 3 aluminum cast impeller
Rust-free,corrosion-free, smc housing with interior glossy for hight output performance and low maintenance
Aluminum motor mounts on aluminum props
Unique motor mount design allows you to quickly and easily remove all interior fan components from inside of the building
Plastic inlet shutter is standard
Direct drive fan standard with variable speed motor
Plastic inlet shutter is standard
Self draining, sloped housing is quick and easy to clean reducing maintenance costs.
Pvc coated outlet guard- Stainless Steel Wired Guard are optional
Pvc corrosion proof shutter,
Available in any color housing finishes.
Certifications

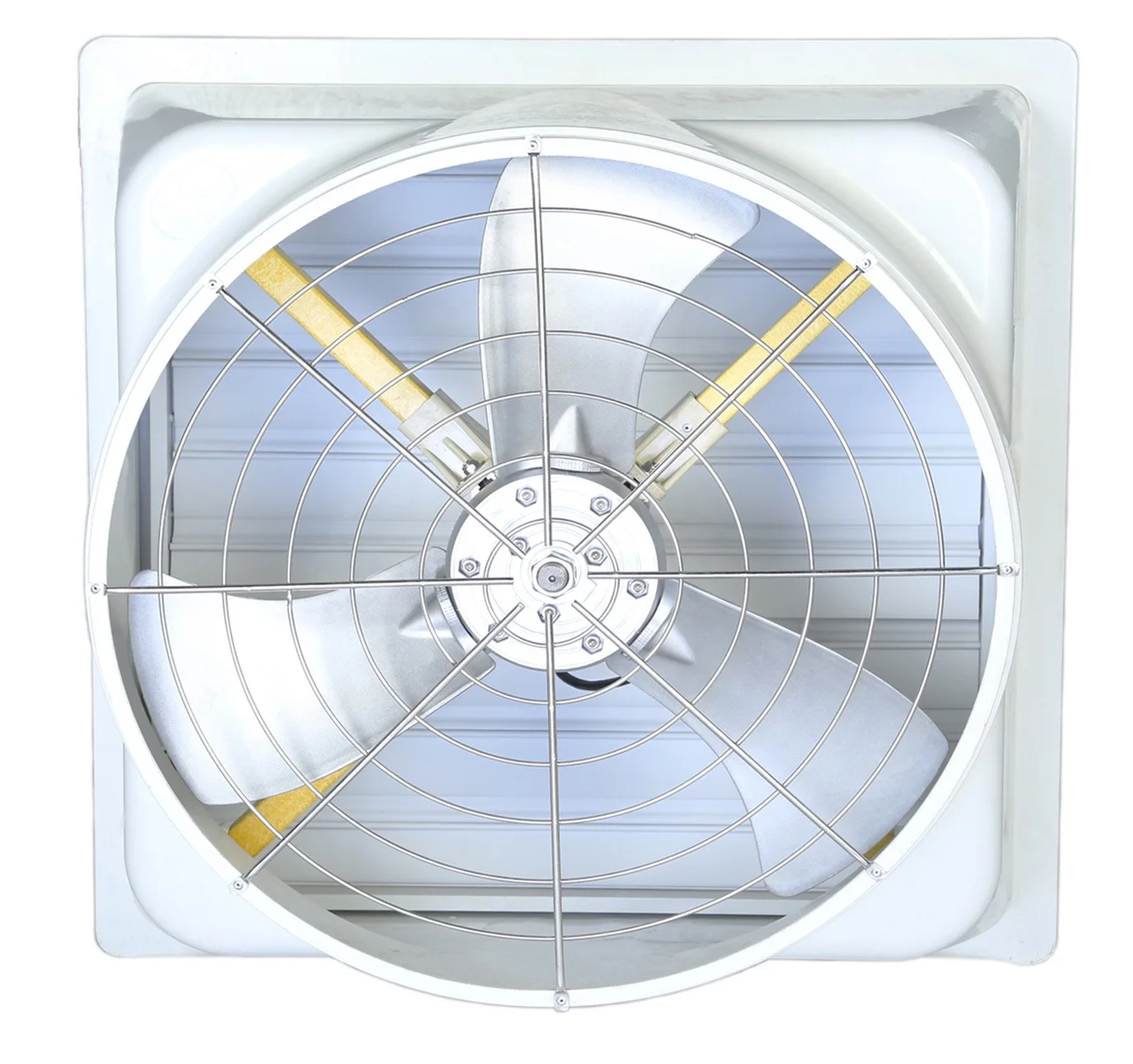

Fan Detail

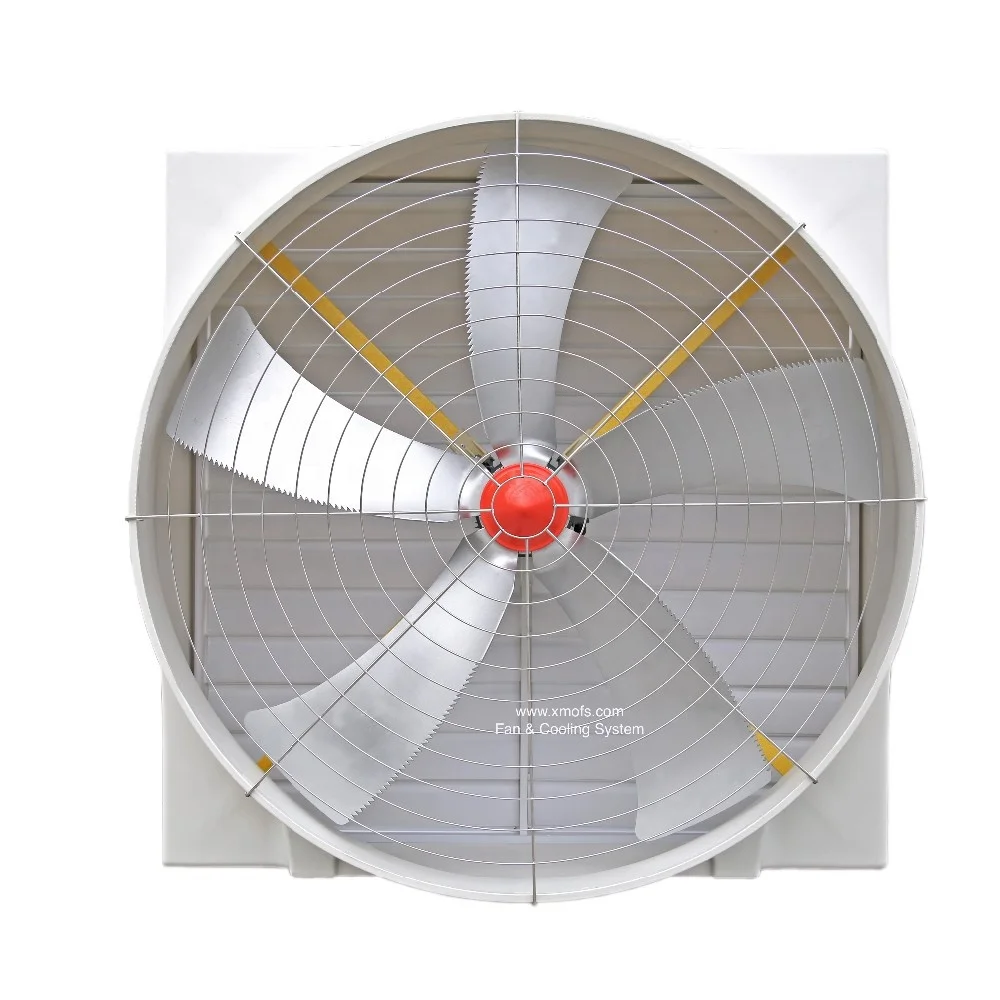

Bionic Aluminum Cast Baldes
Bionic low-noise Blade optimized for lower
pressures. The blade is equipped with a gently
Serrated Trailling edge and a special
winglet for noise reduction.
Material: Aluminum Blades: 3 wings or 5 wings optional

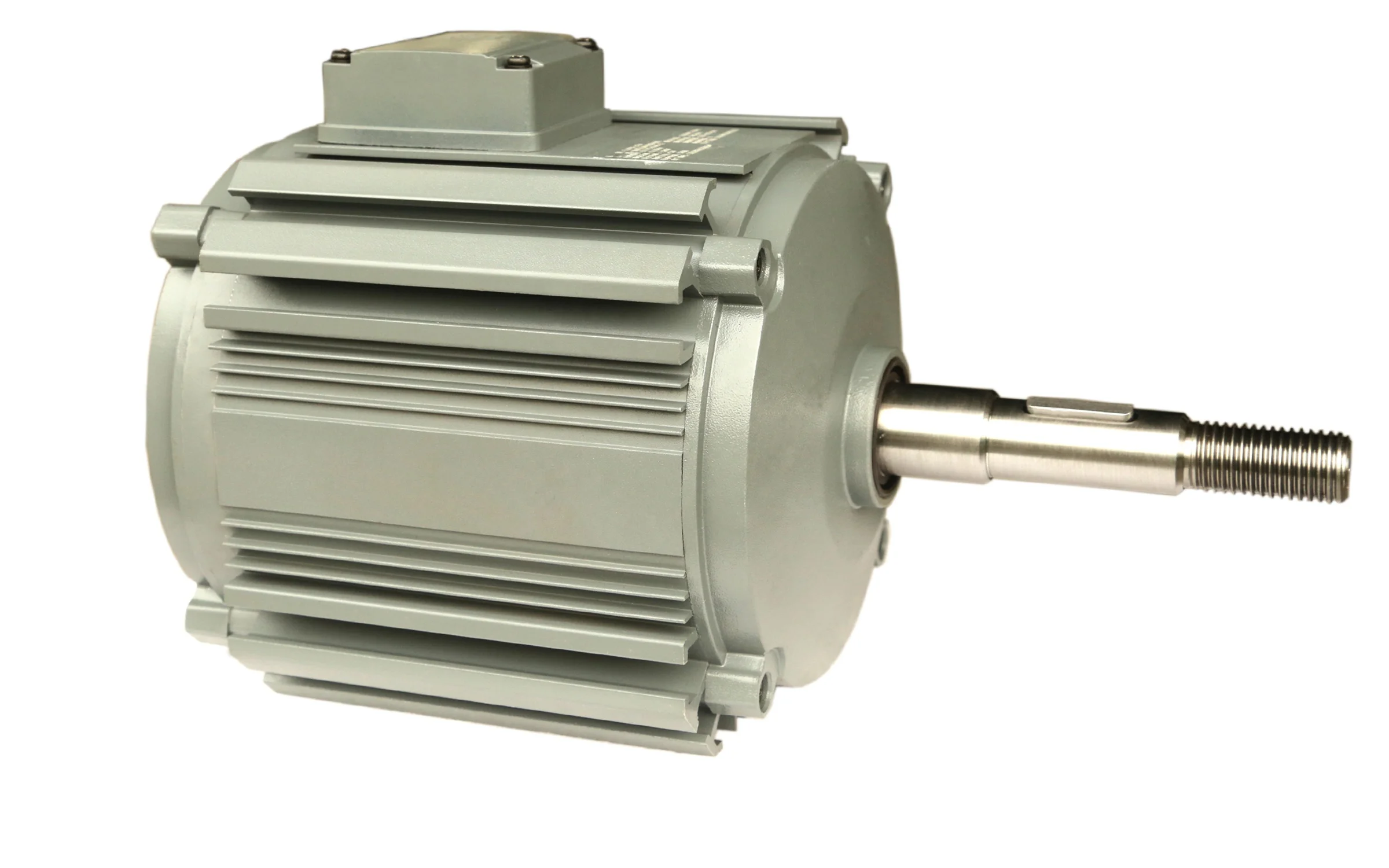

Motor
Name: BLDC Motor
Brand: Fuji
Original: Japan
Single phase with Variable Speeds
IP 6.5 with water proof
Remote Controlled with Phone
Efficient Motor and reliable
Speeds from 220~1600RPM
Wind Shutter
PVC Shutter with auto open and closed as the
fan is running and off.
Main Features
Long life time
Rust Free
Efficient Fan
Intelligent Control
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 147cm (L) * 147cm(W) * 250cm(D) | |
Weight | 1600kg | |
Packaging Details | The normal package is wooden box(Size:147cm L*147cm W*250cm H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
