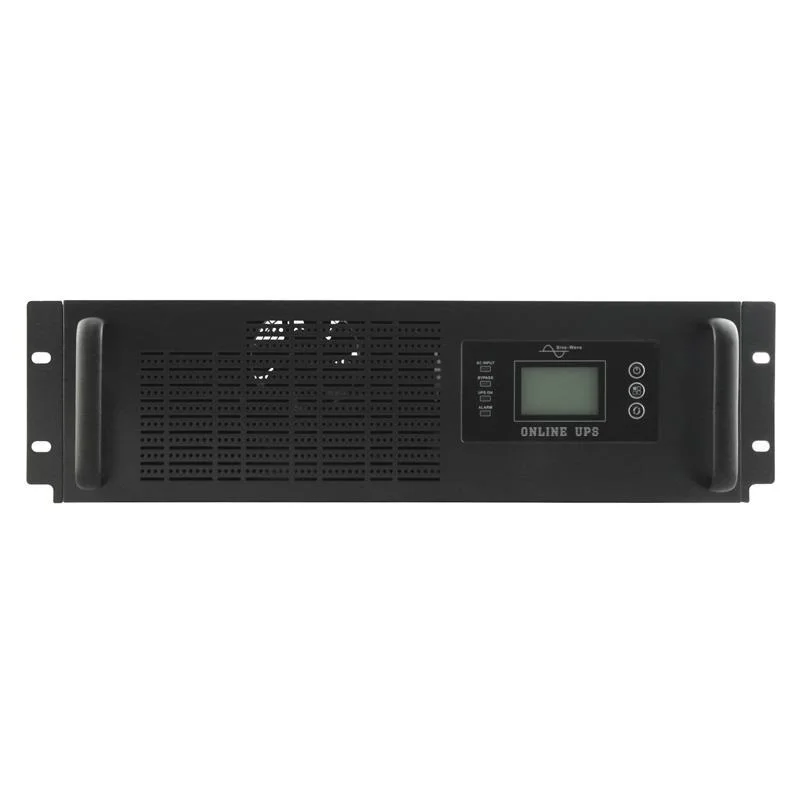

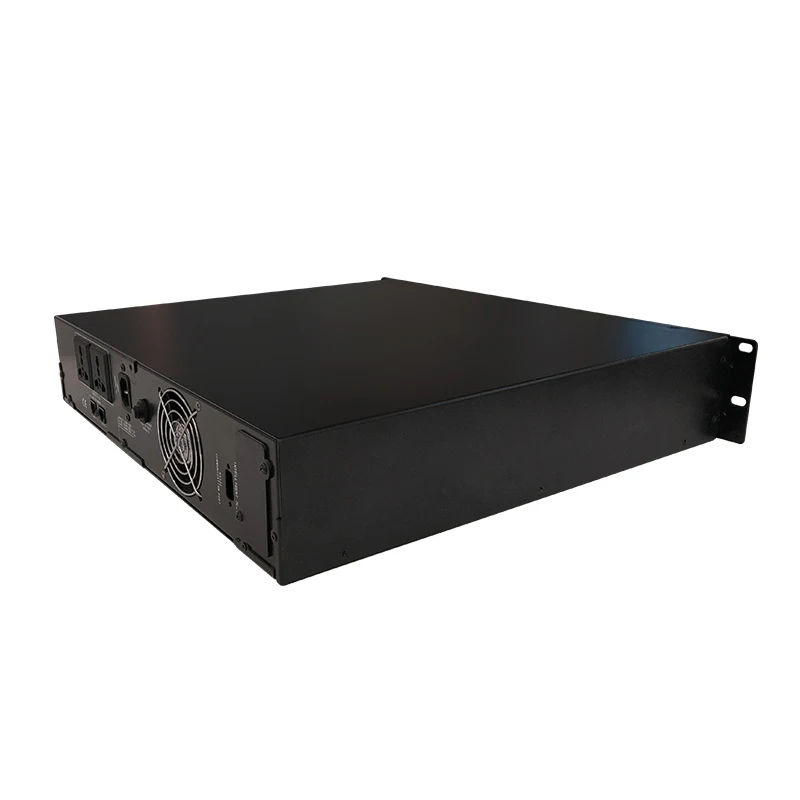

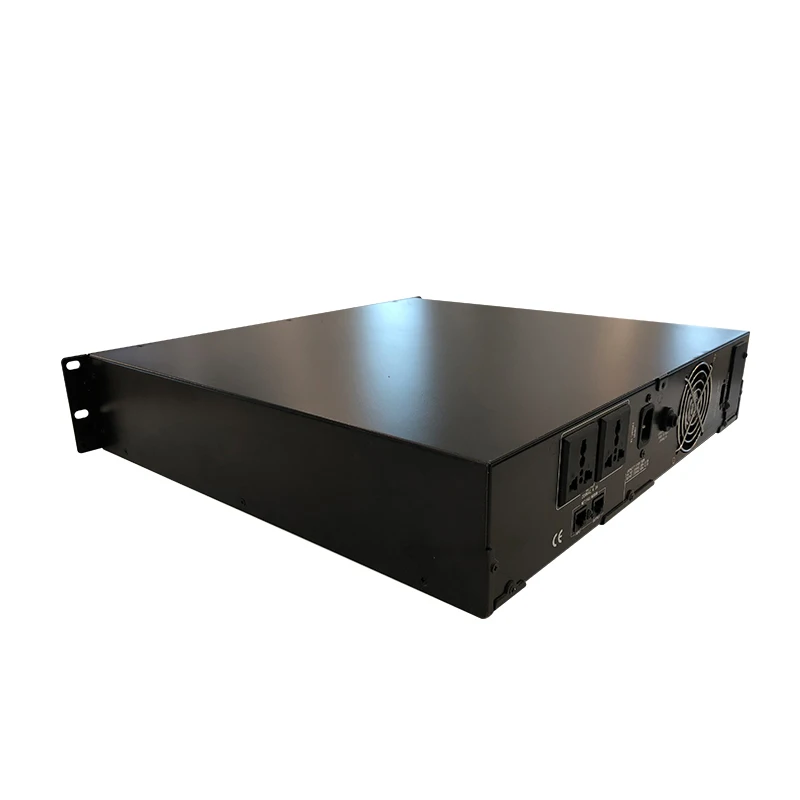

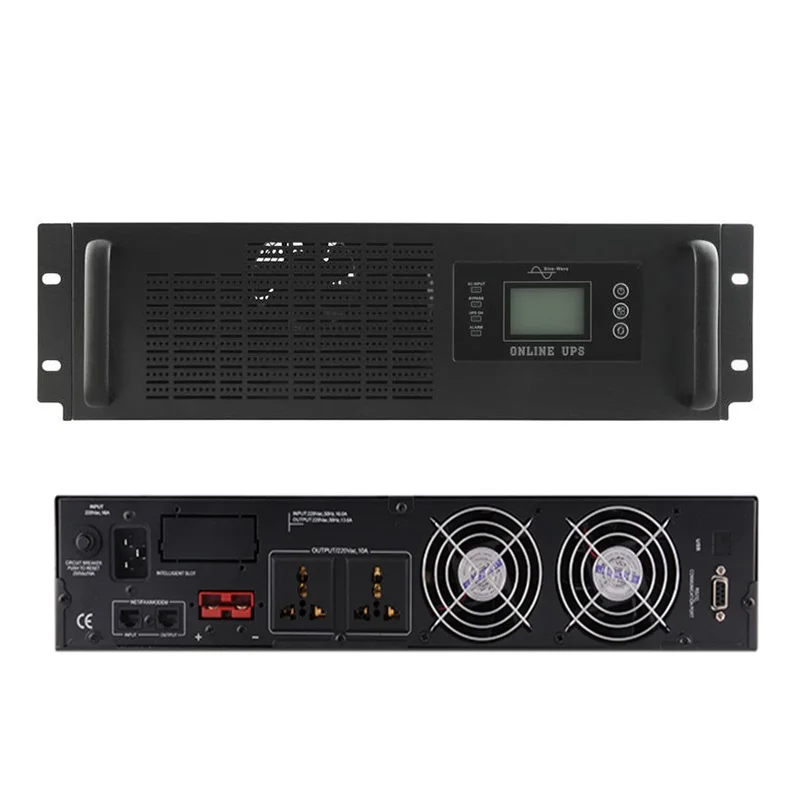

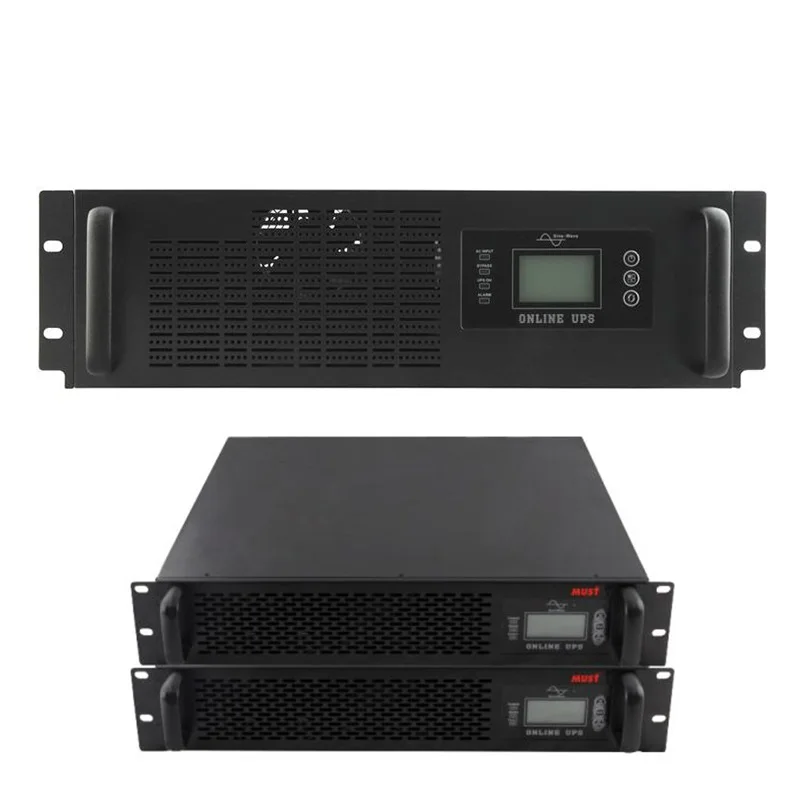

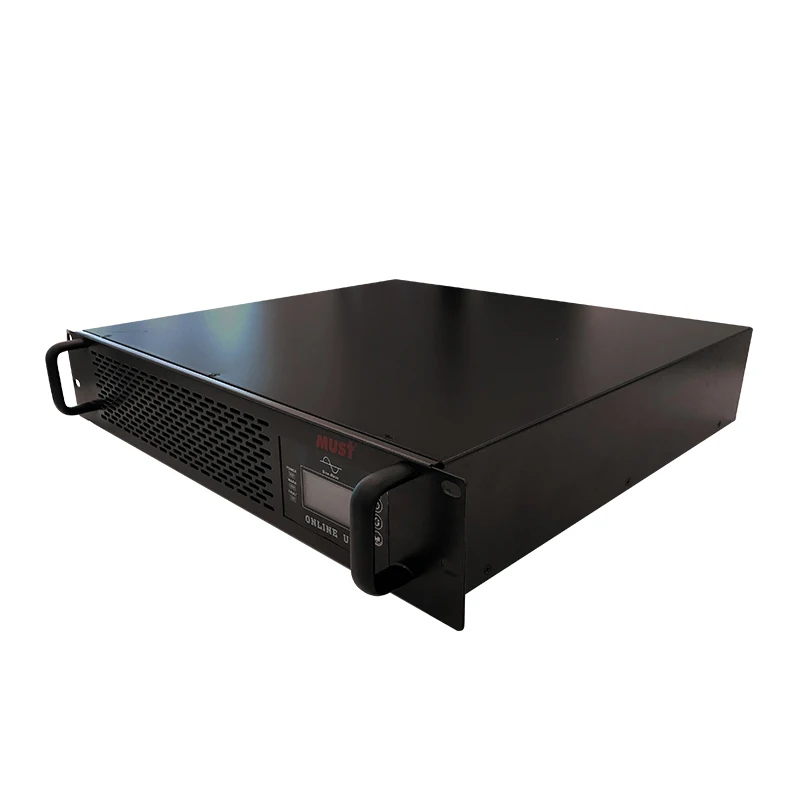

R220Vac 2u ups rackmount 1 phase 19Inch 1Kva2Kva 3Kva 6Kva 10Kva Rack Mount UPS For Server Room
Product Description
Rack Series 1 ~ 10KVA UPS double conversion pure online architecture, the structure can block abnormal power supply impact on the load, at the same time, it can ensure the stable and reliable output, and make the load run safely. It is the best architecture design that can effectively solve all power problems, the use of digital control technology to provide users with more secure power protection.
Rated power 1KVA to 10KVA;
Pure Sine wave output;
TRANSIENT VOLTAGE SURGE SUPPRESS protect function for FAX,TELEPHONE,MODEM;
Machine efficiency greater than 93%, input power factor greater than 0.99, input current harmonics less than 5%;
Compatible to generator;
Optional SNMP for monitoring.
Model
H1KR
H1KRS
H2KRS
H3KRS
H6KRS
H10KRS
Rated Power
1KVA/0.9KW
Input
Voltage
(110 ~ 300)VAC
(176 ~ 276)VAC
Frequency
(40 ~ 70)Hz
(46 ~ 54/56 ~ 64)Hz
Power Factor
>0.99
External battery Standard Voltage
—
36VDC
72
96
192
Battery Type
Maintenance-free lead-acid battery
Battery
Battery Number
3PCS
—
Output
Voltage
220(1±1% )VAC
Synchronize with Input (Utility Mode)
Frequency
50(1±0.2%) Hz ( Battery Mode )
Overload Capacity
100%-110%:Only warning sound;
105%-125%:Automatically turns off after 1 minute, or switches to bypass mode when the input is normal;
110%-130%:Automatically turns off after 1 minute, or switches to bypass mode when the input is normal;
125%-135%,30 seconds or switch to bypass mode when the input is normal;
>130%:Turn off immediately, or switch to bypass mode when the input is normal.
>135%,Turn off after 0.5 seconds or switch to bypass mode when the input is normal
Output waveform
Pure Sine Wave
Socket
Universal Socket
Terminal Block
Others
Transfer Time
0ms
Display
LCD Display
LED/LCD Display (Optional)
Automatic restart
After the battery turns off, the UPS can be automatically restarted when the utility power returns to normal.
Warning Alarm
Battery discharge
One beep every 4 seconds when the input voltage is off; one beep per second when the battery is exhausted
UPS Error
Keep Beeping
Connection
RS-232
Intelligent monitoring functions such as Utility abnormal, power outage, battery capacity, and UPS status indication.
Option
SNMP card, AS400 card, USB connection
Surroundings
Temperature
0℃~ 40℃
Humidity
20%~ 90%
Audible Noise
<55dB
Shape parameter
Host size
482.6*450*88
482.6*600*130
(W*D*H)mm
Battery size
482.6*450*88
482.6*600*130
(W*D*H)mm
Host weight
16.3
9.1
11.5
12.3
18.5
19.5
(Net weight)kg
