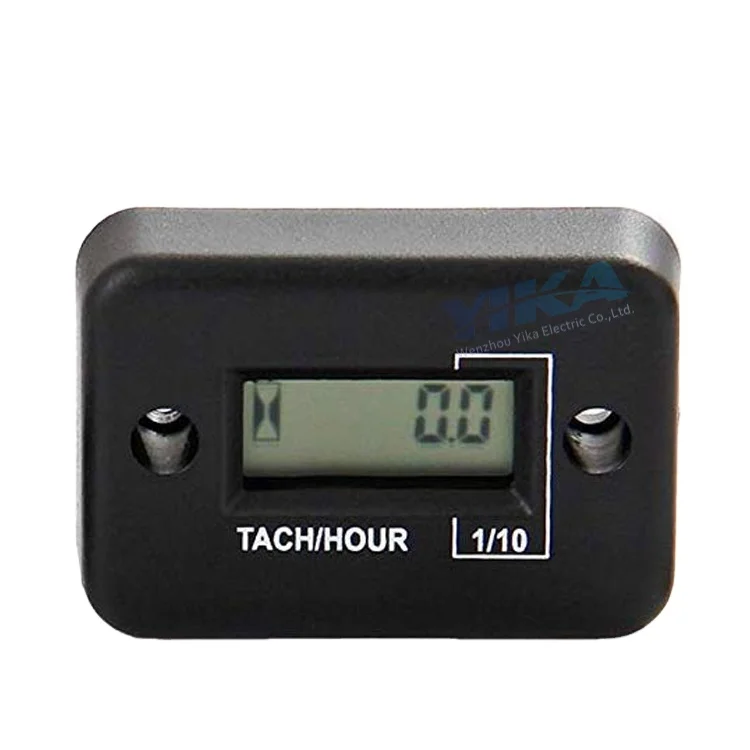

HM012 Waterproof LCD Digital RPM Hour Meter Tachometer For Marine Motorcycle ATV Snowmobile Mower Dirt

 Product Description

Specifications

Application Note:

This meter works for 4 stroke 4 cylinder and 2 stroke 2 cylinder (2P1R)    engine.

If you engine is 4 stroke 2 cylinder and 2 stroke 1 cylinder (1P1R),you can leave message when buy.

Function:

This tach hour meter record gasoline engine’s total running hours and RPM by getting the induction from spark plug cable when engine starts.

When engine starts , LCD displays current RPM; when engine stops, LCD displays total running hours.

Features

1.Has the same features as hour meter plus tachometer feature

2.Indicates operation in RPMs and hours

3.Timing System Including: accumulating total running hours TOTAL HOURS.

4. RPM Measuring System Including: measuring current engine RPM.

5. Easy installation no power or ground required

6.No Battery Required-connects to spark plug wire

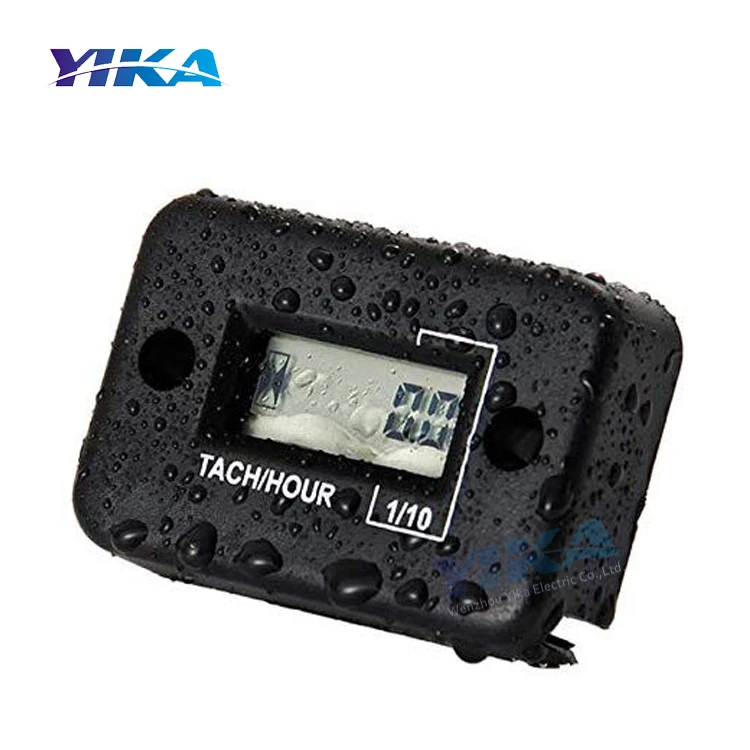

7.Unique Design Including: easy installed by wrapping around the spark plug wire of the engine,         waterproof Rate IP68,etc.

8.Works on any gasoline engine

9.Maximum RPMs 30000,Maximum Hours 99999H

10.Factory  set 1,2,4,cycle engine

Securing Method & Installing Method

1.Drilling into your frame with Φ2.5mm socket,then secure it to the frame coming with two pick-up screws.

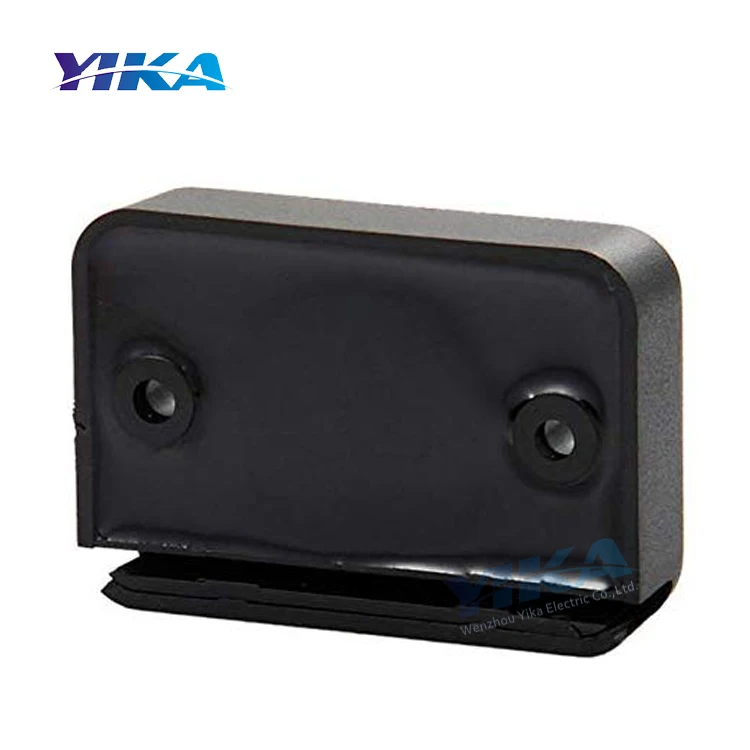

2.Using padded double-sided tape on the backside of the meter and secured it to the frame spar with zip ties.

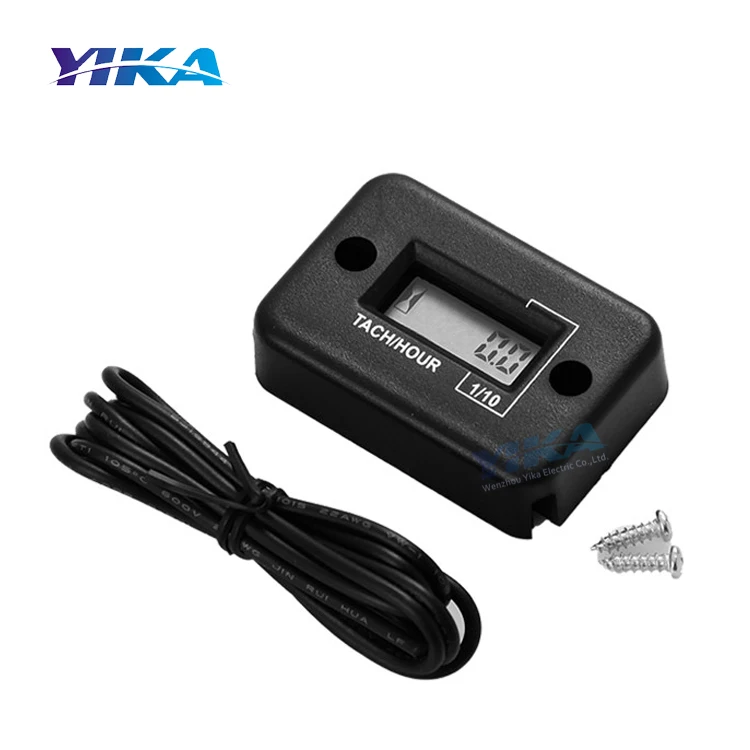

3.One side of pick-up wire insert into the groove of meter,the other side wrap around on spark plug wire.
