Fhd 5 9 дюймовый экран ips 1080P ЖК-дисплей панель 1920x1080 30 pin mipi type-c модуль
- Категория: Displays, Signage and Optoelectronics >>>
- Поставщик: Shenzhen,Huai,Zhi,Technology,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.77 $* | 0.39 $* |
| Aug-20-2025 | 0.80 $* | 0.45 $* |
| Jul-20-2025 | 0.70 $* | 0.7 $* |
| Jun-20-2025 | 0.82 $* | 0.7 $* |
| May-20-2025 | 0.11 $* | 0.71 $* |
| Apr-20-2025 | 0.67 $* | 0.39 $* |
| Mar-20-2025 | 0.28 $* | 0.46 $* |
| Feb-20-2025 | 0.4 $* | 0.69 $* |
| Jan-20-2025 | 0.40 $* | 0.2 $* |
Характеристики
Product Description

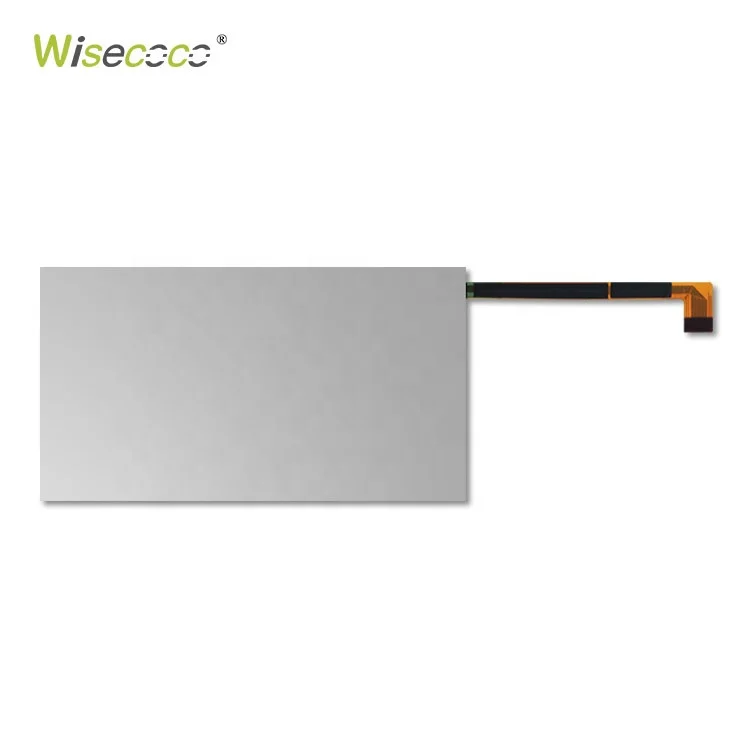

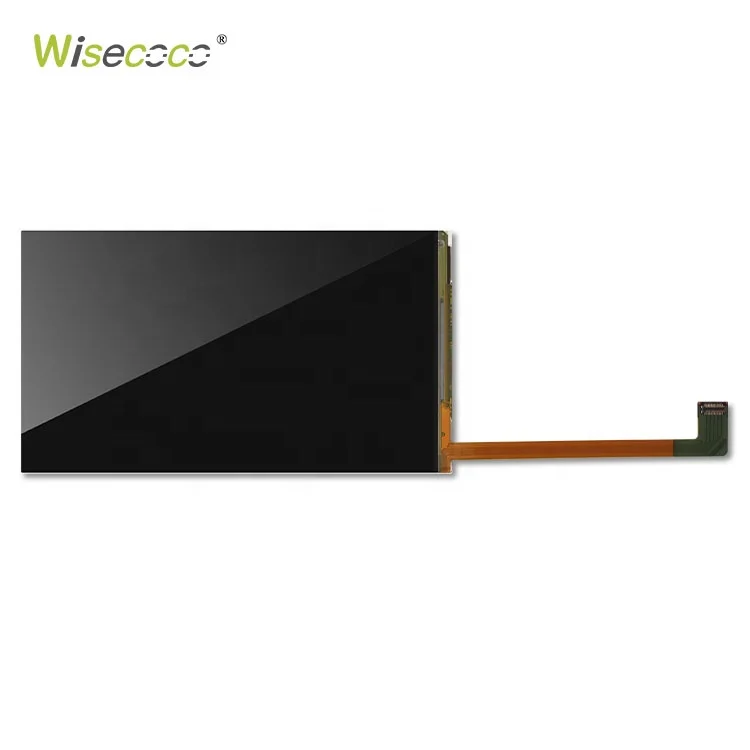

fhd 1080p 5.9 inch ips lcd display screen panel module 1920x1080 30 pin mipi 4 lane interface type-c connector
General Features | |||
Diagonal Size | 5.9 inch | Response Time | TBD |
Resolution | 1920(RGB)×1080 , FHD | Panel Type | CG-Silicon , LCM |
Display Area | 129.6 × 72.9 (H×V) | Pixel Format | RGB Vertical Stripe |
Outline Size | 139.1(W)×76.2(H) mm | Bezel Opening | 130.6(W)×73.9(H) mm |
Brightness | 400 cd/m² (Typ.) | Surface | Clear |
Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Contrast Ratio | 1000:1 (Typ.) (TM) |
Best View on | Symmetry | Weight | 33.0g |
Display Colors | 16.7M 70% (CIE1931) | Touch Screen | Without |
Frame Rate | 60 Hz | Lamp Type | 7S2P WLED |
Display Mode | New Mode2, Normally Black, Transmissive | ||
Signal Interface | MIPI (4 data lanes) , 30 pins , Connector | ||
Input Voltage | 1.8/5.6/-5.4V (Typ.)(VDDIO/VSP/VSN) | ||
Environment | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C | ||
