Steel Plate Permanent 2000kg Magnetic Lifter
US $200.00-$273.00
Подъемный электромагнит для экскаватора 24 В постоянного тока подъемный
- Категория: Магнитный подъемник >>>
- Поставщик: Xiamen,Kings,Magnet,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 3570.3 $* | 3749.71 $* |
| Aug-19-2025 | 3540.69 $* | 3717.60 $* |
| Jul-19-2025 | 2970.66 $* | 3119.90 $* |
| Jun-19-2025 | 3480.95 $* | 3654.95 $* |
| May-19-2025 | 3030.37 $* | 3182.72 $* |
| Apr-19-2025 | 3420.12 $* | 3591.79 $* |
| Mar-19-2025 | 3390.60 $* | 3560.40 $* |
| Feb-19-2025 | 3360.41 $* | 3528.23 $* |
| Jan-19-2025 | 3330.91 $* | 3497.44 $* |
Характеристики
Product Description

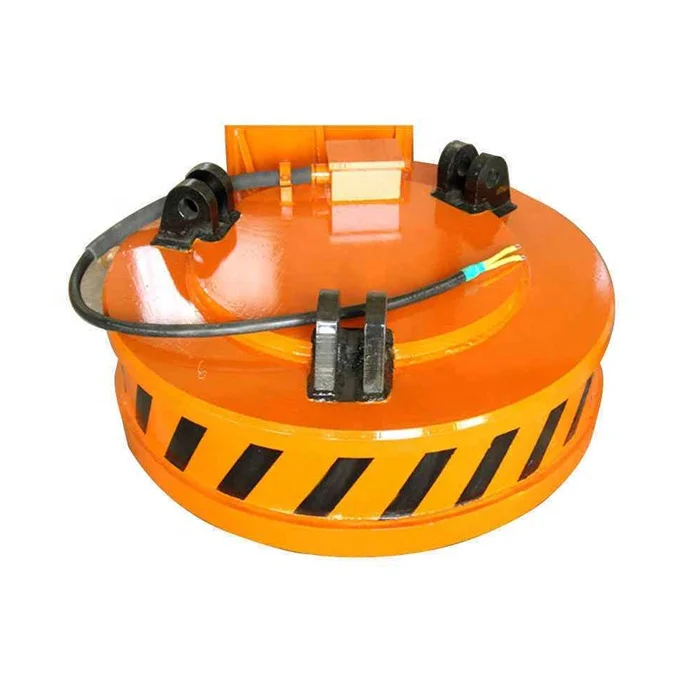

| Product Name: | DC24v excavator lifting electromagnet for lifting scrap |
| Specification: | MW5/L1-600 |
| Input voltage: | DC24V |
| Current: | 35A |
| Power: | 800W |
| Diameter: | 600mm |
| Height: | 250mm |
| Duty cycle: | 75% |
| Lift capacity: | 3500+ lbs(solid) |
| Self-weight: | 350kgs |
| Others: | 5M Cable |
| 3 Hangers with 26mm hole thru | |
| With Chains | |

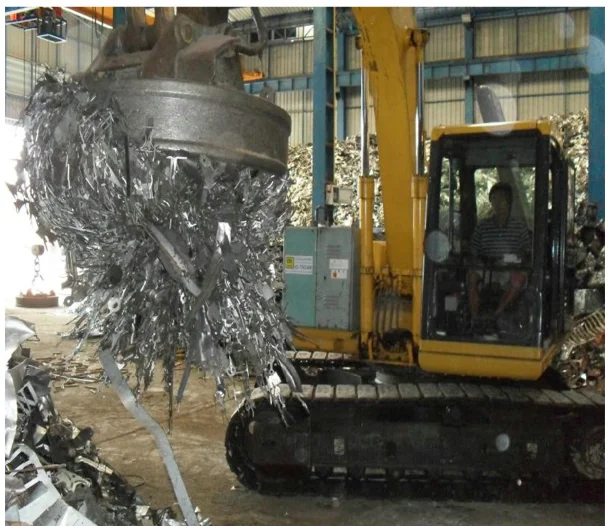

| Used in excavator or crane |
Applications
Electromagnets are used in conjunction with various hoisting machinery and are widely used for handling and carrying pig iron, scrap,
square billet, sheet, pipe and other ferromagnetic materials in steelmaking plants, rolling mills, scrap steel processing plants, large foundry workshops, shipyards,
heavy machinery factories, steel warehouses, port terminals and stations.
Features
The protection plate for coil adopts abrasion-resisting and shockproof rolling high-manganese steel.
Excavator magnet is dealt with special technology, thus insulation grade can be up to Grade F.
Coils of magnets are made of Aluminum (flat aluminum wire covered by double spun glass) or cooper.
High lifting capacity, light self-weight.
Low power consumption, long service life
.
