Ручной или ЧПУ мини-резьбонарезной станок для труб на
- Категория: Электрический трубонарезной станок >>>
- Поставщик: Tianjin,Hoyite,Rubber,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 952.36 $* | 1000.99 $* |
| Aug-17-2025 | 944.30 $* | 991.95 $* |
| Jul-17-2025 | 792.33 $* | 832.25 $* |
| Jun-17-2025 | 928.74 $* | 974.25 $* |
| May-17-2025 | 808.46 $* | 848.16 $* |
| Apr-17-2025 | 912.48 $* | 958.79 $* |
| Mar-17-2025 | 904.74 $* | 949.53 $* |
| Feb-17-2025 | 896.89 $* | 941.41 $* |
| Jan-17-2025 | 888.61 $* | 932.95 $* |
Характеристики

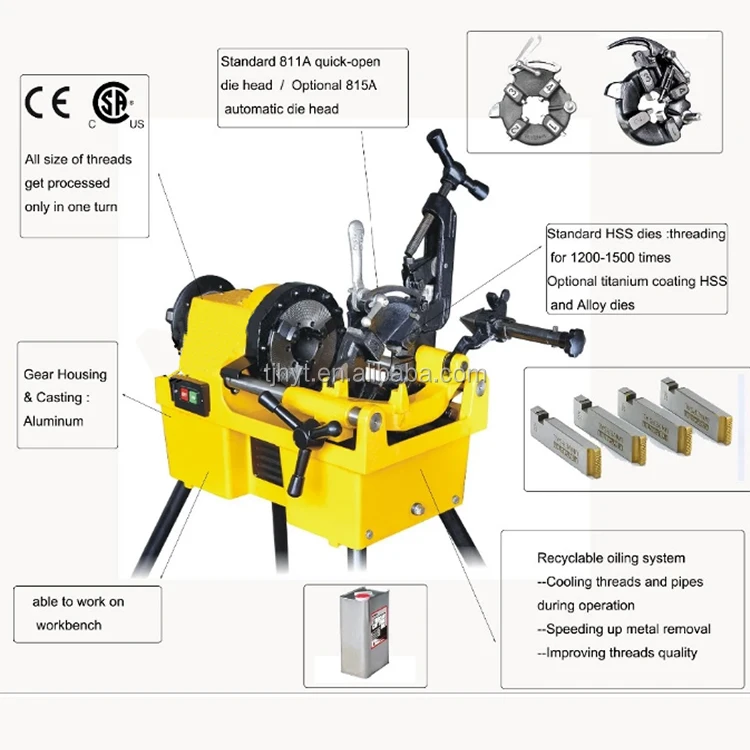

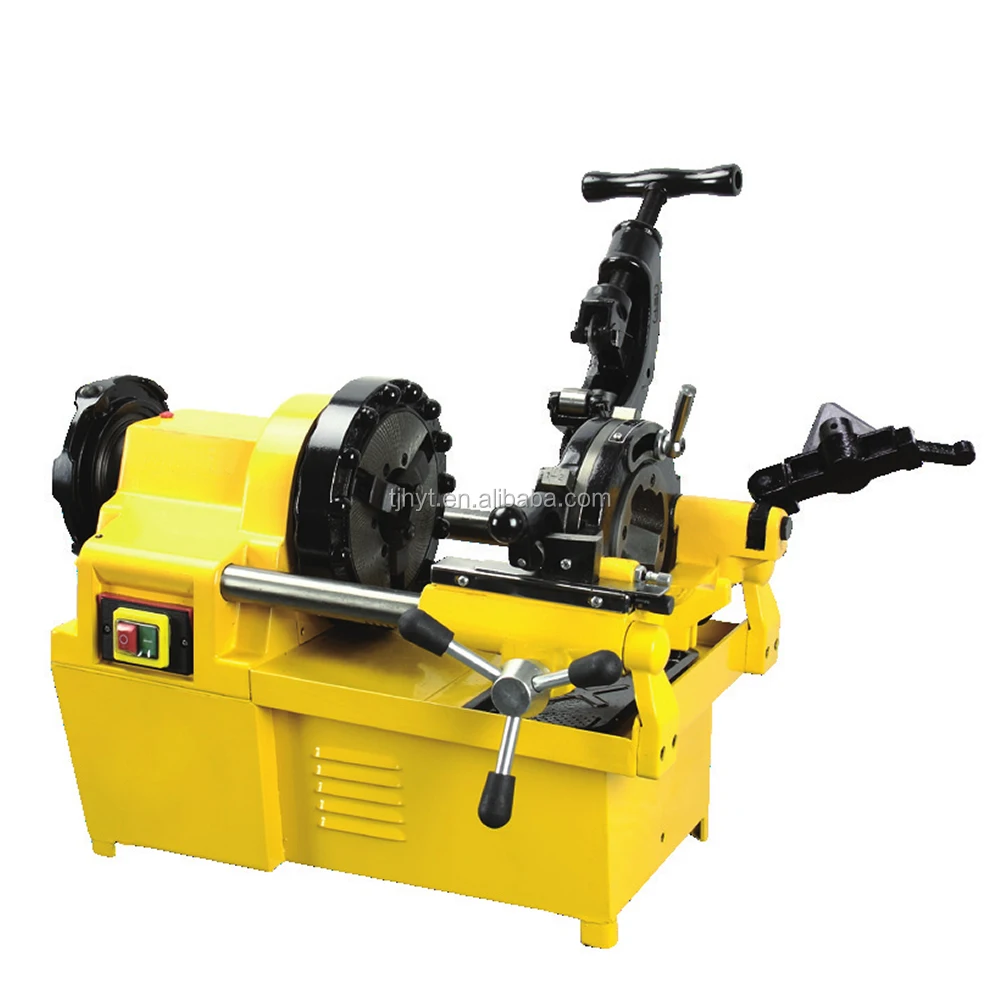

Product Description
manual or CNC mini pipe threading machine for sale\t
Pipe: ½”-2”(12mm-50mm)
Technical Specifications •
Motor: 750W induction, 50/60Hz
Switch: ON/OFF heavy duty switch, foot
switch and FOR/OFF/REV switch is optional
switch and FOR/OFF/REV switch is optional
Spindle Speed: 24 RPM
Front Chuck: Hammer type with replaceable
rocker action jaw inserts.
Front Chuck: Hammer type with replaceable
rocker action jaw inserts.
Rear Centering Device: Cam action.
Oiling System: Through die head, with intergral oil reservoir.
Pump: Self-priming constant flow.

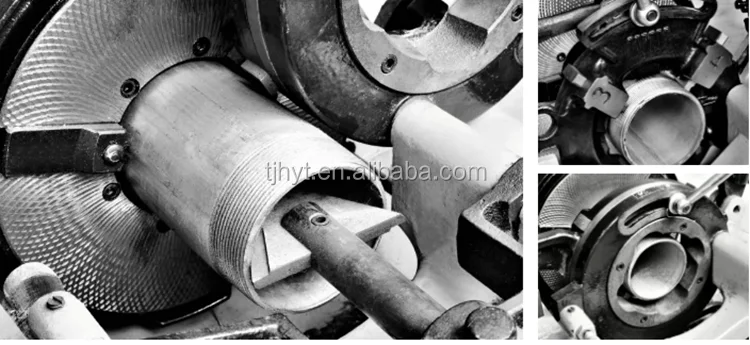

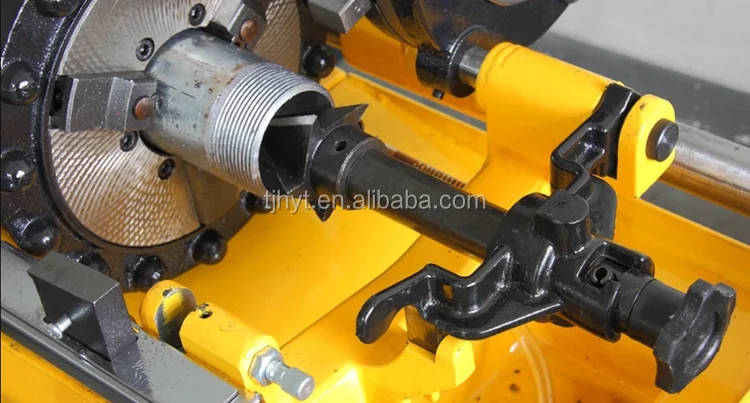

Details Images
Cast Aluminum
1> light material , Convenient for transporation
2>higher intensity compared with cast iron
3> corrosion resistance
2>higher intensity compared with cast iron
3> corrosion resistance

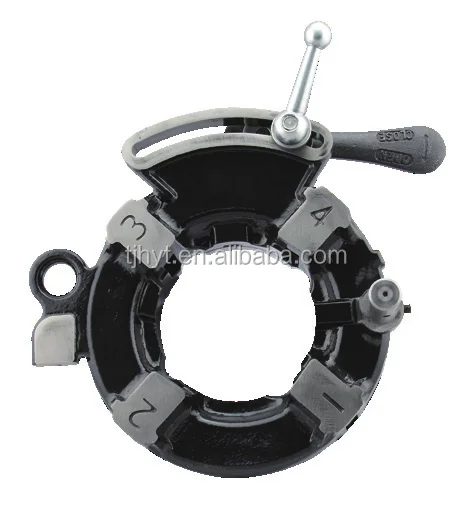

Standard dies
• ½”-¾” universal HS dies set.
• 1”-2” universal HS dies set.
Standard dies
• 1”-2” universal HS dies set.
Standard dies

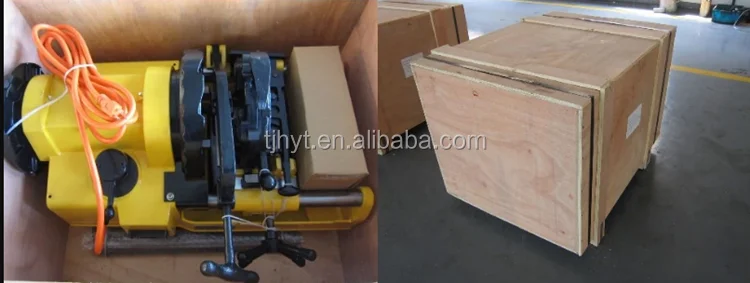

Product packaging
Model No： | Weight | Package size | Package |
SQ50B1/SQ50C1 | 74KG | 76*47*55cm | Plywood case |
SQ80D1/SQ80D | 121KG | 94*60*62cm | |
SQ100D1/SQ100D | 160KG | 100*70*63cm |
Related Economical type
SQ50B1 2 Inch Pipe Threading Machine
Capacity: 1/2"-2" /12 mm-50 mm steel pipes
Motor: 750 W induction, 50/60 Hz
Switch: ON/OFF heavy duty switch
Spindle Speed: 24 RPM
Front Chuck: Hammer type with replaceable rocker action jaw inserts.
Rear Centering Device: Cam action.
Oiling System: Through die head, with integral oil reservoir.
Pump: Self-priming constant flow.
Motor: 750 W induction, 50/60 Hz
Switch: ON/OFF heavy duty switch
Spindle Speed: 24 RPM
Front Chuck: Hammer type with replaceable rocker action jaw inserts.
Rear Centering Device: Cam action.
Oiling System: Through die head, with integral oil reservoir.
Pump: Self-priming constant flow.
SQ80D1 3 Inch Pipe Threading Machine
Capacity: 1/2"-3" /12 mm-80 mm steel pipes
Motor: 750 W induction, 50/60 Hz
Switch: ON/OFF heavy duty switch
Spindle Speed: 26 /11 RPM
Front Chuck: Hammer type with replaceable rocker action jaw inserts.
Rear Centering Device: Cam action.
Oiling System: Through die head, with integral oil reservoir.
Pump: Self-priming constant flow.
Motor: 750 W induction, 50/60 Hz
Switch: ON/OFF heavy duty switch
Spindle Speed: 26 /11 RPM
Front Chuck: Hammer type with replaceable rocker action jaw inserts.
Rear Centering Device: Cam action.
Oiling System: Through die head, with integral oil reservoir.
Pump: Self-priming constant flow.
SQ100D1 4 Inch Pipe Threading Machine
Capacity: 1/2"-4" /12 mm-100 mm steel pipes
Motor: 750 W induction, 50/60 Hz
Switch: ON/OFF heavy duty switch, foot switch and FOR/OFF/REV switch is optional
Spindle Speed: 24 /10 RPM
Front Chuck: Hammer type with replaceable rocker action jaw inserts.
Rear Centering Device: Cam action.
Oiling System: Through die head, with integral oil reservoir.
Pump: Self-priming constant flow.
Motor: 750 W induction, 50/60 Hz
Switch: ON/OFF heavy duty switch, foot switch and FOR/OFF/REV switch is optional
Spindle Speed: 24 /10 RPM
Front Chuck: Hammer type with replaceable rocker action jaw inserts.
Rear Centering Device: Cam action.
Oiling System: Through die head, with integral oil reservoir.
Pump: Self-priming constant flow.
FAQ
FAQ
1> How long is the warranty?
1 year warranty for the main parts of our product. Like, gearbox, motor, cast body etc.
The quick worn parts are not included. Like the dies, carbon brushes, cutting wheels, sealing rings etc.
The quick worn parts are not included. Like the dies, carbon brushes, cutting wheels, sealing rings etc.
2> What should I do if my tool is broken?
Inthe warranty period, we will make compensation free for all non-human factors damage. Once your tool damaged in working, please take photos at the sight, and we will deliver the spare parts to you immediately. If your tool was broken by human factors, or outside the warranty period, we can also send you the spare parts for your replacement, but need to charge.
3> What should I do when I received a damaged goods?
If you found there is any part damaged in the delivery, please take photos once your open the package, we will send you a new one for Half-Price.
4>Do your company accept OEM?
OEM is availible, but we need a certain demand quantity. We can make the LOGO sticker/lables or make the casting as your request
5>How about Lead Time?
1) If you order samples, we will finish the goods within 5~7 working days, and prepare to deliver to you.
2) If your quantity is large, don't worry, we will try our best to finish the production ASAP. It will be within 30 days.
Anyquestions, please add my whatsapp/Wechat: 008618202619835 for better chat.
2019-10-22. new, vitty
Payment Terms
Payment terms
Paypal, TT, Western Union , Bank transfer , Online pay etc.
