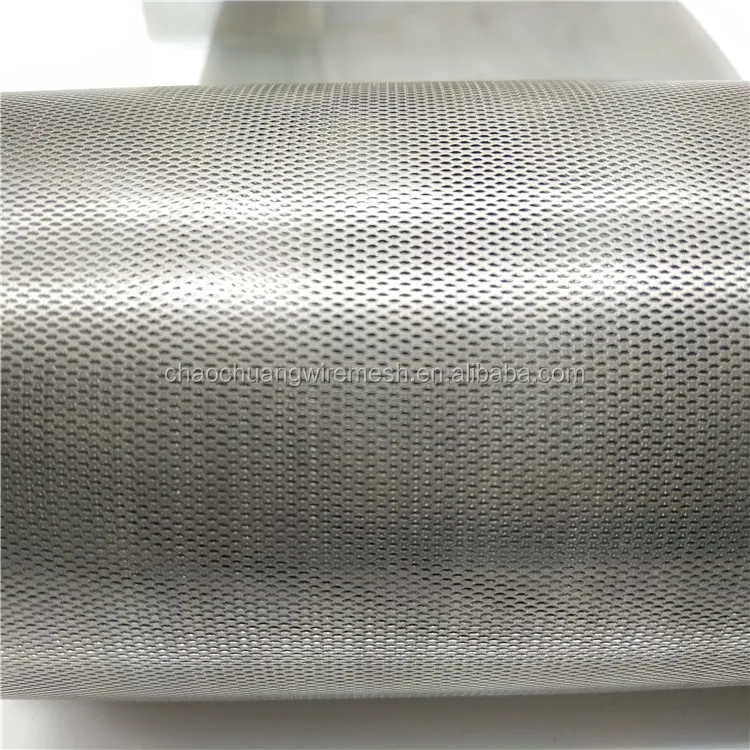

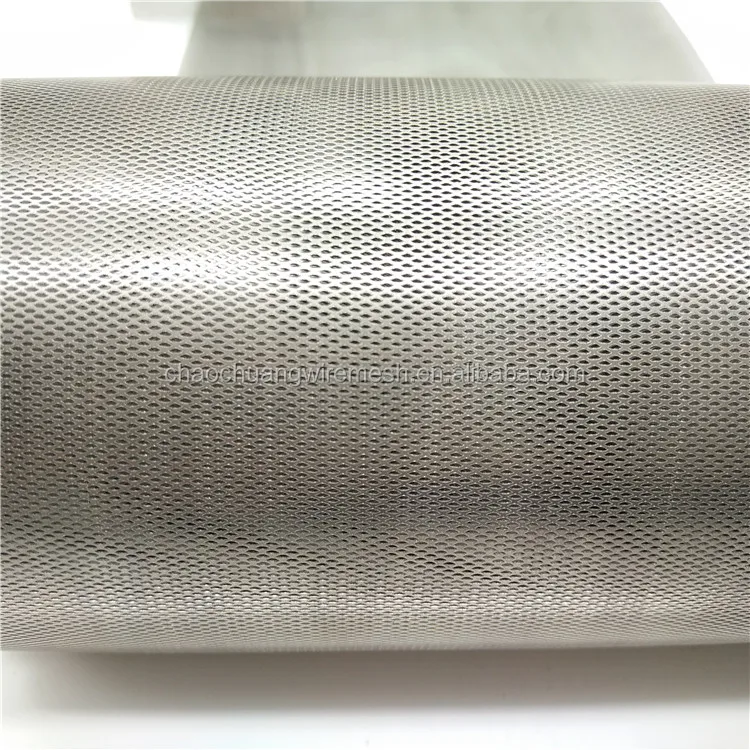

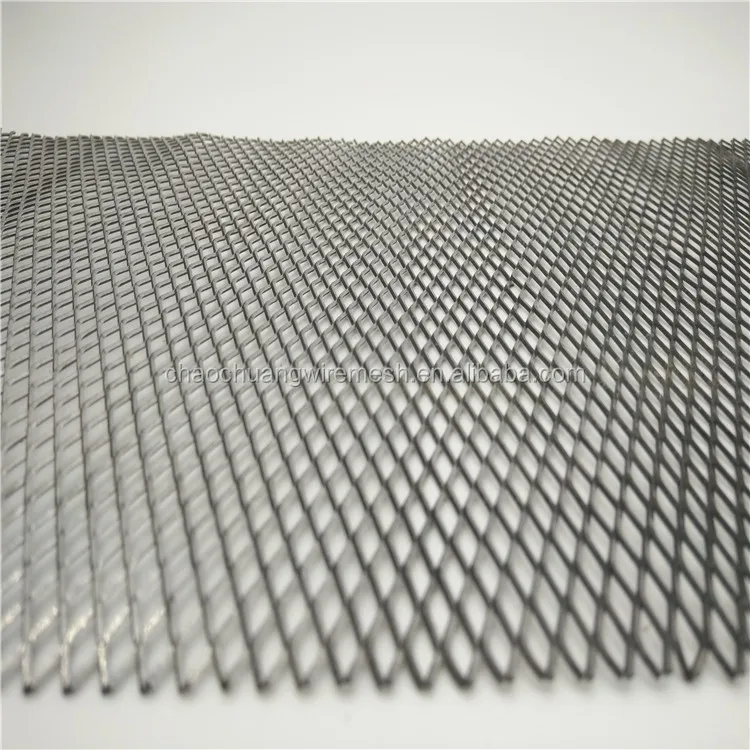

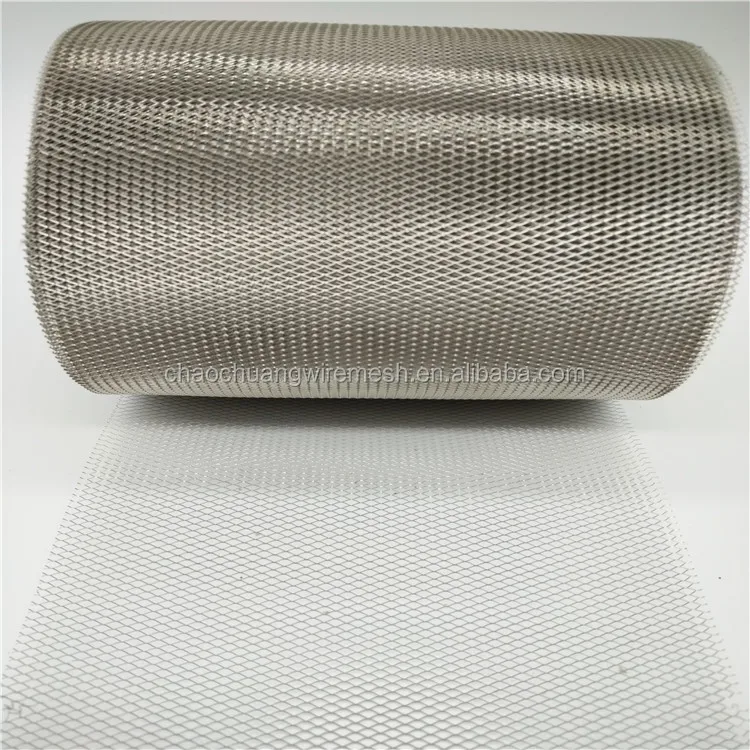

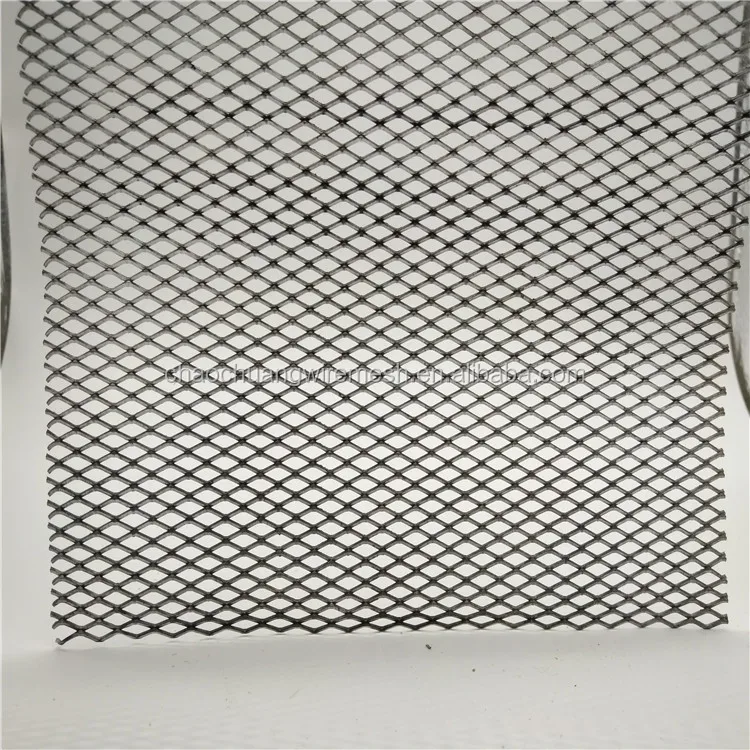

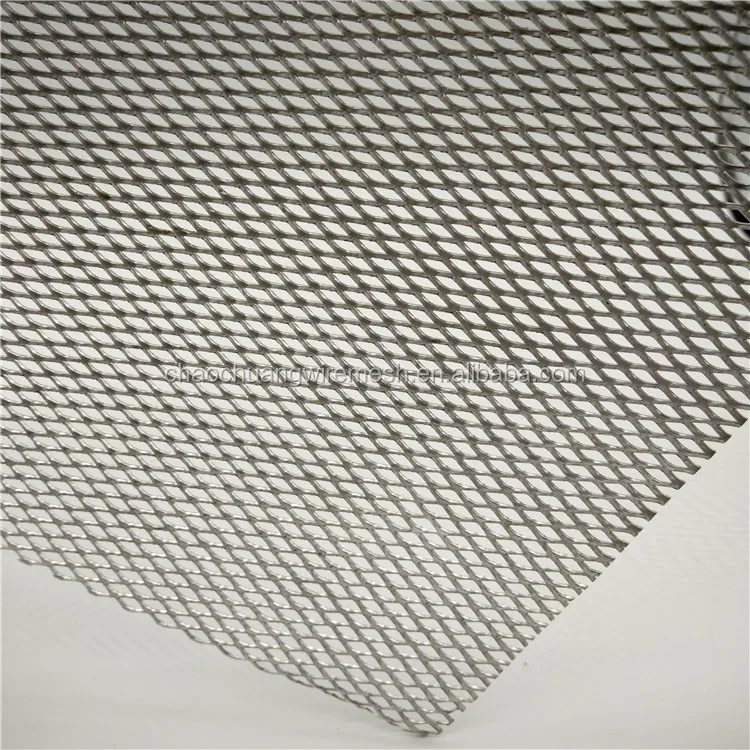

Aluminum Mesh for Battery

Technical Standard of Aluminum Mesh for Battery:

1: Material: pure aluminum foil, purity≥ 99.6% (Conform to the requirements of the ROSH)

2: Mesh thickness: 0.05mm~0.50mm (±0.01mm)

3: Mesh width: 20mm~350mm (±0.2mm)

4: Surface density: 100g—400 g/m² (±10g/m²)

5: Flexibility: 180 degree twist available, 8-10 times no crake

6: The total length: up to 300m/roll, ≤1 connector with same width

1.On pallet with waterproof cloth,the biggest width is 1500mm

2.In wooden case with waterproof paper

3.In carton box

4.In roll with woven bag,the biggest width is 3000mm

5.In bulk or In bundle

chaochuang Super Metals supply Aluminum Mesh, Aluminum Expanded Metal Foil for Battery Electrode, Cathode applications. It is widely used as substrate for coating cathode materials in Li-Ion rechargeable battery and Lithium manganese battery anode current collector. Our product is mainly supplied to industries for automatic continuous production.

Applications:

• Battery Current Collector
• Battery Support Structure

Our Advantages:

• We provide wide range of alloys available in the industry, such as nickel, copper, aluminum, nickel coated stainless steel plate, Titanium and silver, etc.
• We provide custom slitting, blanking, heat treatment and edge treatment options.
• We control the quality precisely: we control the mesh’s area density, thickness, opening, strength; our product does not have black spot, oil stains, wrinkle, connected hole and breaking stick. It is flat and clear diamond.

  when we must use the metal the sense of reality expresses spatial the style , the aluminum alloy rich ideal condition is a first choice .. It has strong metal texure , color soft bright ,reflecting an elegant simple , modern style .

1.How much about your annual production capacity?

More than 2000tons

2.What makes your products different from other company's?

YILIDA provide free design service, warranty service, with strictly quality control and very competitive price.

3.Can you make custom panels if I have a design in mind?

Yes, most of our products for exporting were manufacture to specs.

4.Can I get a pcs of your products sample?

Yes, free samples will be provided anytime.

5.Do you offer a warranty on your products?

Yes, for PVDF coating product we can provide more than 10years warranty time

6.What type of materials do you use for your products?

Carbon steel plate,Stainless steel plate,Aluminum and Aluminum Alloy plate,Cooper plate,Galvanized plate etc.

Special material also available
