Разбрызгиватель RS5022 для системы поливинилхлоридного орошения на открытом воздухе 1/2

Описание и отзывы

Трекер стоимости

Характеристики

Des.: Irristand Systems

         Plastic impact sprinkler RS5022 mounted on PVC Riser

Code: ASK003







IrriStand Systems - The ultimate sprinkler irrigation system for high-quality vegetable crops in open fields and nurseries.

Applications:

Irrigation or germination of vegetables, flowers and row crops. For extra-range spacing up to 11m.

Benefits:

1.High water distribution

2. Closed irrigation system - all components are protected from external dirt.

3. Saving in labor cost - light, easy and convenient to transport, install, collect and store.



Detailed components:

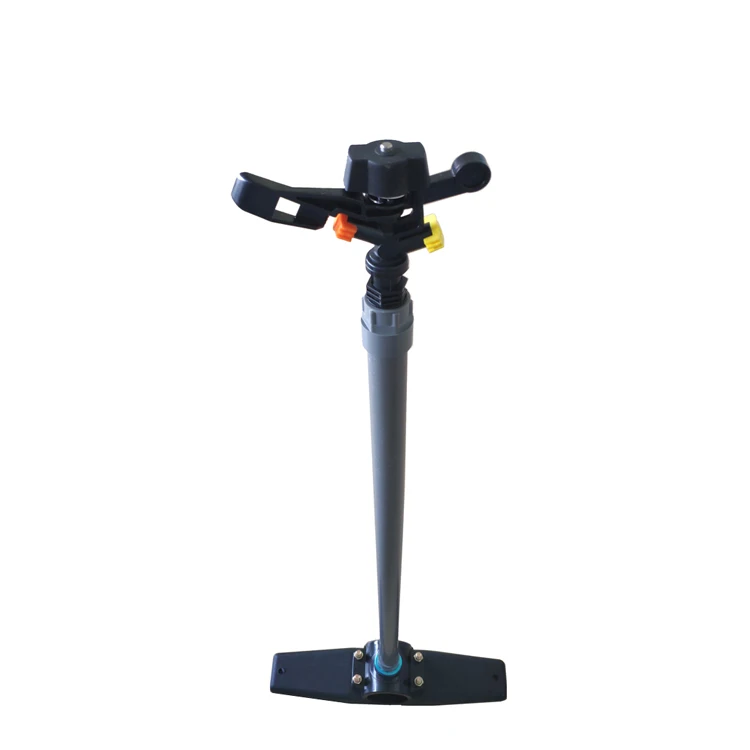

1	Plastic impact sprinkler RS5022
2	PVC Riser (Dia 25mm) 100cm, 1/2"F x 3/4"M
3	Long stand saddle clamp 50 x 3/4" F

    Remarks: (1)Long stand saddle clamp 63*3/4" also available. (2) PVC Pipe riser length 1 meter also available, or customized.







RS5022Performance table

(S–Single, D-Dual), Back Nozzle – Brown color 1.6mm,

Back Plug – Yellow color

Code/Nozzle dia & Color	Pressure	S. Nozzle	D. Nozzle	Radius
	(Bar)	(M3/h)	(M3/h)	(m)
RS5022-2         2.5+1.6           Purple	2	0.31	0.45	9
	3	0.39	0.56	9
	4	0.46	0.65	9.5
RS5022-3         2.8+1.6           Orange	2	0.41	0.53	9
	3	0.48	0.64	9
	4	0.56	0.75	9.5
RS5022-4         3.0+1.6           Red	2	0.47	0.56	9.5
	3	0.54	0.69	10
	4	0.63	0.82	10
RS5022-5         3.2+1.6      Green	2	0.53	0.66	10
	3	0.65	0.83	10.5
	4	0.77	0.97	10.5
RS5022-6         3.5+1.6       Blue	2	0.58	0.71	10
	3	0.71	0.88	10.5
	4	0.84	1.02	10.5
RS5022-7         4.0+1.6          Black	2	0.81	0.93	10.5
	3	1.02	1.18	11
	4	1.21	1.38	11







Packing details:

1. Packing    : 30 sets / Carton

1. Cartons size: 105*35*25cm

2. Gross weight: 1695kgs per carton

3. Container Loading: 9750sets/20’



Replacement for Super Sprayer, below sprinkler with inlet 1/2” Male Thread:

1. Maganet Sprinkler MS3503 – MS3505

2. Wobbler Sprinkler XW3601 – XW3606

3. Part Circle Angle Controllable Plastic Impact Sprinkler RS9702-1 ~ RS9702-6

4. Super Sprayer SP3301 – SP3303

5. Rotor Spinkler MS1005
