Быстрое зарядное устройство переменного тока 22 кВт для домашнего


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-17-2025 0.64 $* 0.68 $*
Aug-17-2025 0.40 $* 0.48 $*
Jul-17-2025 0.18 $* 0.36 $*
Jun-17-2025 0.64 $* 0.93 $*
May-17-2025 0.91 $* 0.14 $*
Apr-17-2025 0.90 $* 0.40 $*
Mar-17-2025 0.78 $* 0.88 $*
Feb-17-2025 0.87 $* 0.59 $*
Jan-17-2025 0.42 $* 0.65 $*

Характеристики


Product Description

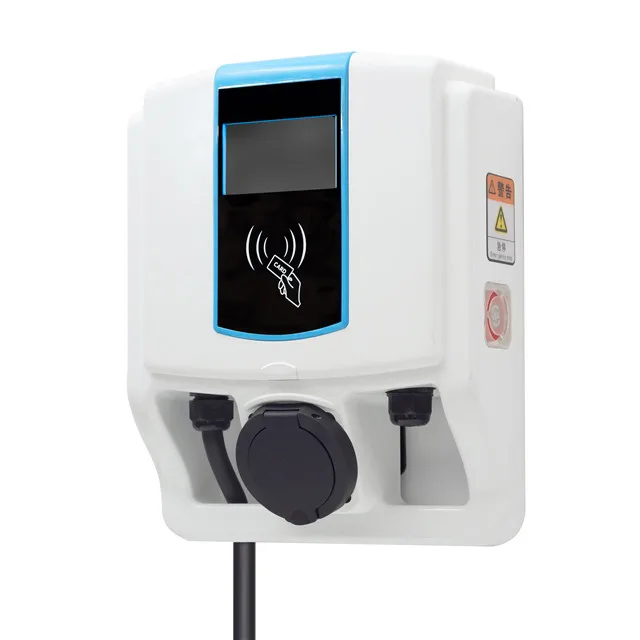

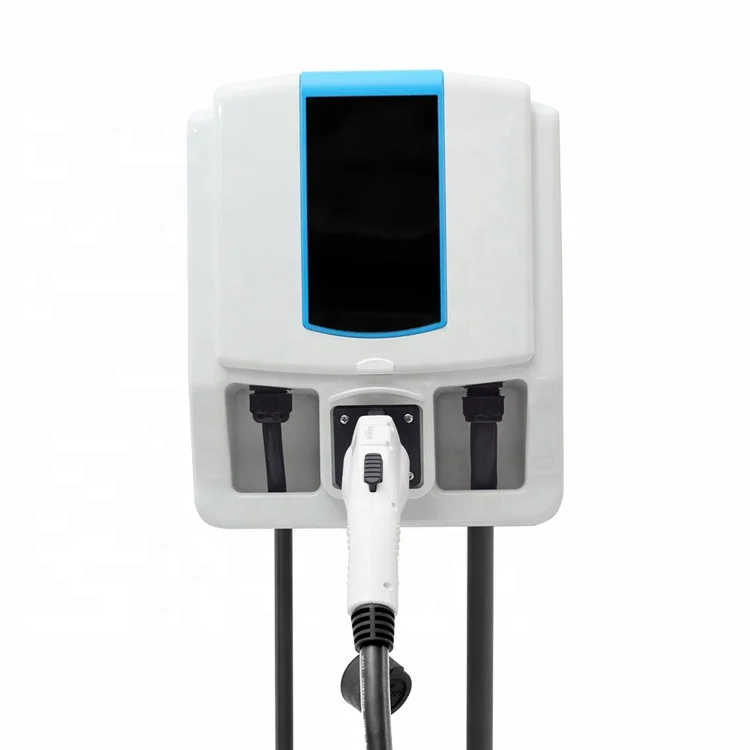

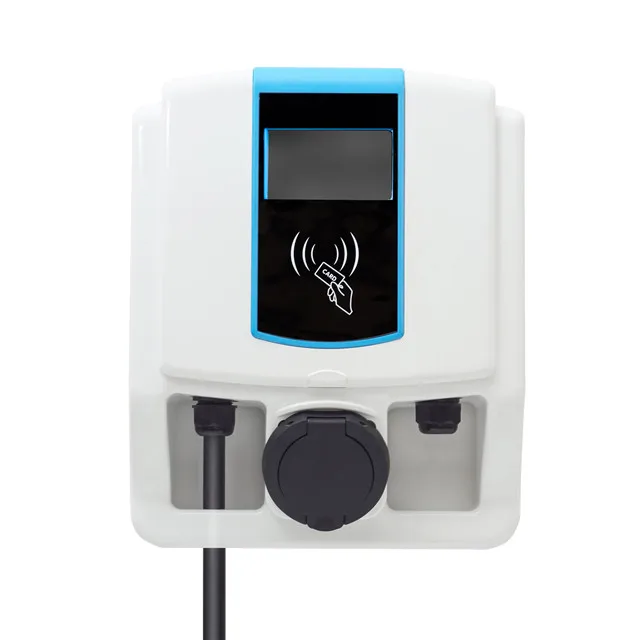

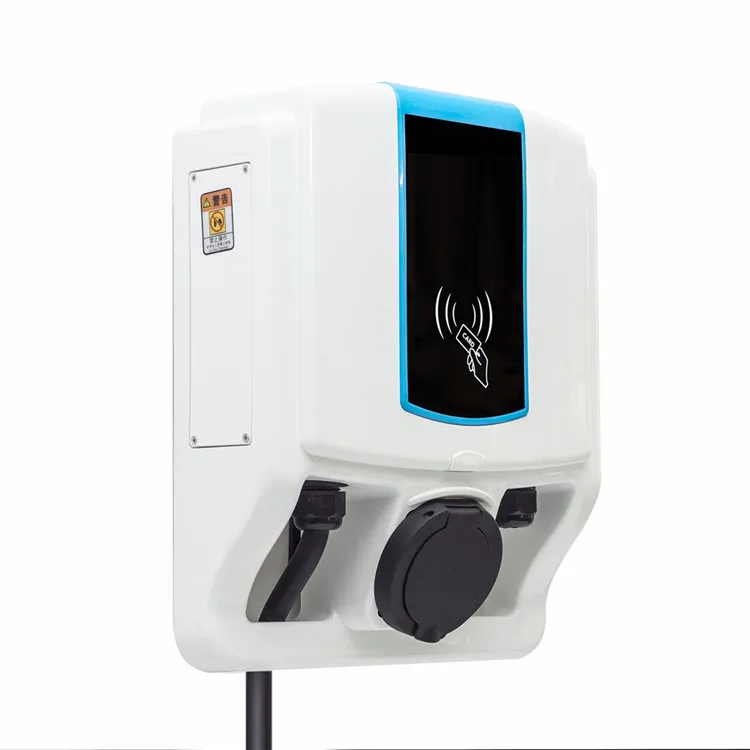

 This item should the first 7kW/22kW dual AC high power commercial pubilic EVSE charger  in the world. It could be load 1 car in one time by selecting option via the 4.3 inch touchable  display screen. There some advantage features as follows:
1. It can load single/three phase self-adaption. If for single phase on board charger it will be  3~7kW output. If for 3-phase on board charger, it will be output 22KW.
2. For any type2 or SAE J1772 port, it is 100% working. For example: Tesla, Nissan leaf,Renault Zoe,Hyundai Ioniq,Hyundai Kona, BMW i3, VW E-golf...
3. It could be wall mounted or pile stationary mounted. With Emergency stop button.
4. We provide RFID payment system for car owner to paying after charging finished.

22KW AC charger for home use

Detail Specification



                AC input

Phase/lines: 3phase+Neutral +PE

Voltage&frequency:220/380Vac ± 15%  50Hz

Norminal input current&power : 32A,30KVA

Efficiency : >99.9%



               AC output

Voltage range : 220/380Vac± 15% 50Hz

Current range : Up to 32A

Nominal power : 7kw/22kw

















         General Specifications

Communication with Server protocol : OCPP 1.6

Communication with EV : ± 12V  PWM

AC plugs : IEC62196-2 Type 2,SAE J1772 Type 1

Human machine interface

             - Display : 4.3 inch

             - Button : Emergency button

Place of installation : Wall mount or stationary

Protection temperature : -60 ~+45 °C

Operating temperature : 25℃

Protection degree : IP67

Payment system : RFID

Measures ( W x D x H) : 500 x300 x130mm

Weight : 18kg





Detailed Images

  DSC01609DSC01610.JPGDSC01603DSC01604

Packaging & Shipping

1pcs per carton ,
Sending by Express TNT , Fedex ,  DHL or By air , By sea by Customized

Express Freight cost Prepaid or Collect are both ok !



Company Information

Guangzhou Electway Technology Co., Ltd was founded on March 20th,2012.It is located in Huangpu District, Guangzhou.Since its establishment, our company has been focusing on R&D, production, sales and other services of hardware&software products of power electronics in the field of new energy.
At present, Our company's main products are: a variety of domestic and international standard electric vehicle AC and DC charging station (stationary&wall-mounted), mobile off-board DC chrger,all Series of AC charging EVSE,charging connectors,off - grid electric vehicle discharge device V2H, changing power module and its peripheral products.

Our company invest great efforts on the development of technology and the accumulation of high-quality talents. We have a professional R&D team of more than 10 people.We pay highly attention to the accumulation and protection of independent intellectual property rights.Our company has applied for a number of utility model patents and appearance patents, andregistered the trademark "ELECTWAY". Our company is a general VAT payer and has the qualification of import and export rights.Our products have been exported to a wide range of domestic and oversea, and have gained a high reputation in the industry.

DSC01693   DSC01701





Certifications
Our certificate



FAQ

Q1:Are you a manufacturer or trading company?

A: We are a manufacturer



Q2: Where is your factory located? Can I visit it?

A:Our factory is located in Guangzhou city, Guangdong Province,China.

All our clients,from home or abroad,are warmly welcome to visit us.



Q3:What’s the payment terms?

A:We accept T/T,L/C,Western Union,MoneyGram and so on.



Q4: What’s the transportation way?

A: By sea,by air or by express. According to clients requirements.



Q5: How about your delivery time?

A: Generally, it will takes 7-14 days. The specific delivery time depends on the items and the quantity of your order.



Q6: What about your after sale service.

A: We will according to the international quality standards to inspect every products before delivery.



Q7: Can you provide samples?

A: Yes,we can provide samples.The sample fee and the shipping cost will be charged by the buyers.



Q8: Can you make customized products and customized packing?

A: Yes, all products can customized according to customer requirements.

About custom packing, we can put logo or other info on the packing box.



Q9: Can I be an Agent/Dealer of your products?

A: Welcome! But please let me know your Country/Area first, We will have a check and then talk about this. If you want any other kind of cooperation. Please don’t hesitate to contact us.
