JDT Fuse JFC1206-2100FS 1206 SMD 10A 24V быстродействующий предохранитель с тонкой
- Категория: Fuses >>>
- Поставщик: Shenzhen,Jdt,Fuse,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.82 $* | 0.37 $* |
| Aug-15-2025 | 0.4 $* | 0.24 $* |
| Jul-15-2025 | 0.2 $* | 0.59 $* |
| Jun-15-2025 | 0.64 $* | 0.71 $* |
| May-15-2025 | 0.26 $* | 0.42 $* |
| Apr-15-2025 | 0.17 $* | 0.79 $* |
| Mar-15-2025 | 0.76 $* | 0.67 $* |
| Feb-15-2025 | 0.45 $* | 0.70 $* |
| Jan-15-2025 | 0.48 $* | 0.83 $* |
Характеристики
Description
JDT Fuse JFC1206-2100FS 1206 SMD Fuse 10A 24V Fast-acting Thin-film Fuse
JFC1206FS Series are the fuses set the industry standard for performance, reliability and quality. The solder-free design provides excellent on-off and temperature cycling characteristics during use and also makes our SMD fuses more heat and shock tolerant than typical subminiature fuses.

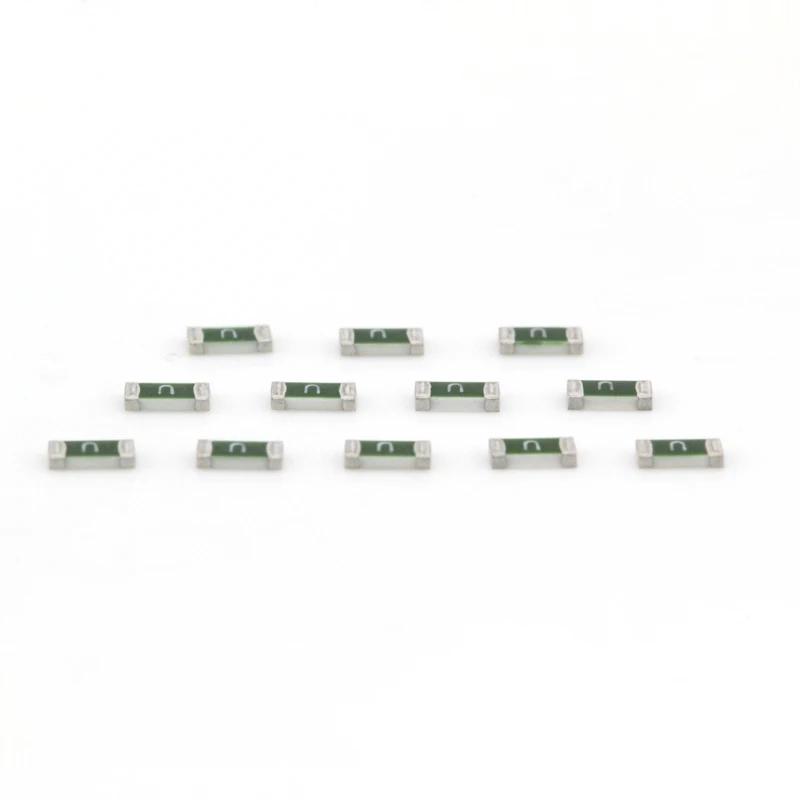

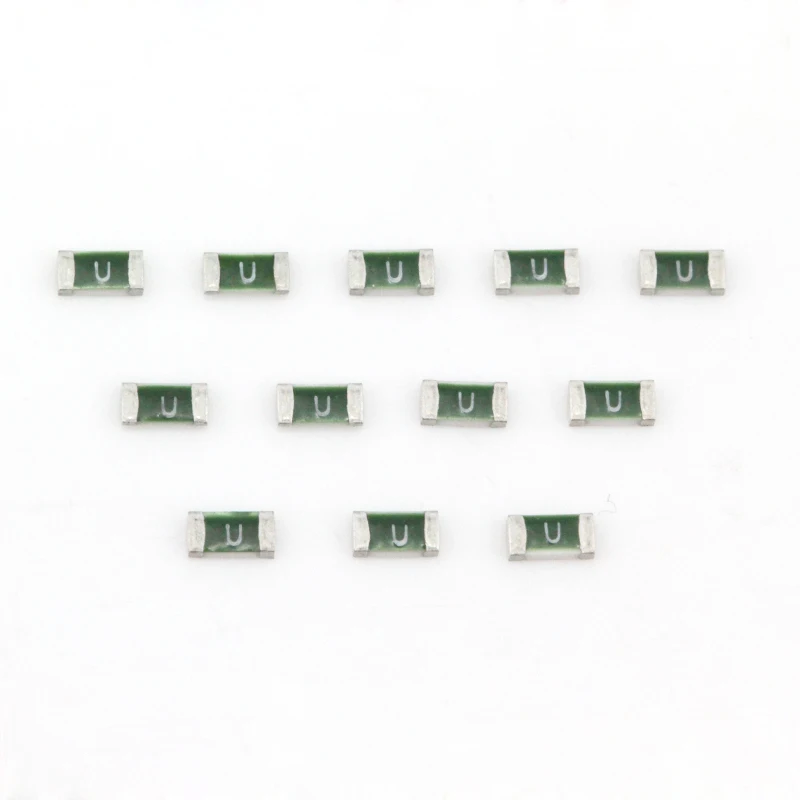

Images
Demension
Space
Electrical properties
Part No. | Rated Voltage DC | Rated Current (A) | Breaking Capacity | Typical Cold. Resistance (mOhms)2 | Typical Voltage Drop (mV) | Typical Pre-Arcing I2t(A2Sec) | Aplha Marking |
JFC1206-0250FS | 72V | 0.250 | 50A | 3608 | 1407 | 0.0004 | .25 |
JFC1206-0375FS | 0.375 | 1882 | 718 | 0.0008 | E | ||
JFC1206-0500FS | 0.500 | 1028 | 650 | 0.0022 | 0.5 | ||
JFC1206-0750FS | 0.750 | 601 | 616 | 0.0057 | .75 | ||
JFC1206-1100FS | 1.000 | 490 | 510 | 0.1 | H | ||
JFC1206-1125FS | 1.250 | 165 | 184 | 0.021 | |||
JFC1206-1150FS | 1.500 | 240 | 367 | 0.15 | K | ||
JFC1206-1200FS | 2.000 | 144 | 316 | 0.41 | N | ||
JFC1206-1250FS | 2.500 | 86 | 240 | 0.65 | O | ||
JFC1206-1300FS | 3.000 | 53 | 187 | 1.39 | P | ||
JFC1206-1350FS | 3.500 | 40 | 180 | 1.68 | R | ||
JFC1206-1400FS | 4.000 | 35 | 173 | 1.73 | S | ||
JFC1206-1450FS | 4.500 | 27 | 164 | 2.62 | X | ||
JFC1206-1500FS | 32V | 5.00 | 22 | 141 | 2.89 | T | |
JFC1206-1650FS | 6.500 | 16 | 140 | 3.4 | 6.5 | ||
JFC1206-1700FS | 24V | 7.000 | 12 | 140 | 5.68 | 7 | |
JFC1206-1800FS | 8.000 | 150A | 10 | 123 | 6.8 | M | |
JFC1206-2100FS | 10.00 | 4.4 | 59 | 2.16 | U | ||
JFC1206-2120FS | 12.00 | 3.8 | 67 | 7.11 | 12 | ||
JFC1206-2150FS | 15.00 | 150A | 2.9 | 66 | 23.89 | 15 | |
JFC1206-2200FS | 20.00 | 200A | 1.6 | 60 | 47.17 | 20 | |
JFC1206-2250FS | 25.00 | 250A | 1.4 | 57 | 32 | 25 | |
JFC1206-2300FS | 30.00 | 300A | 1 | 68 | 43 | 30 |

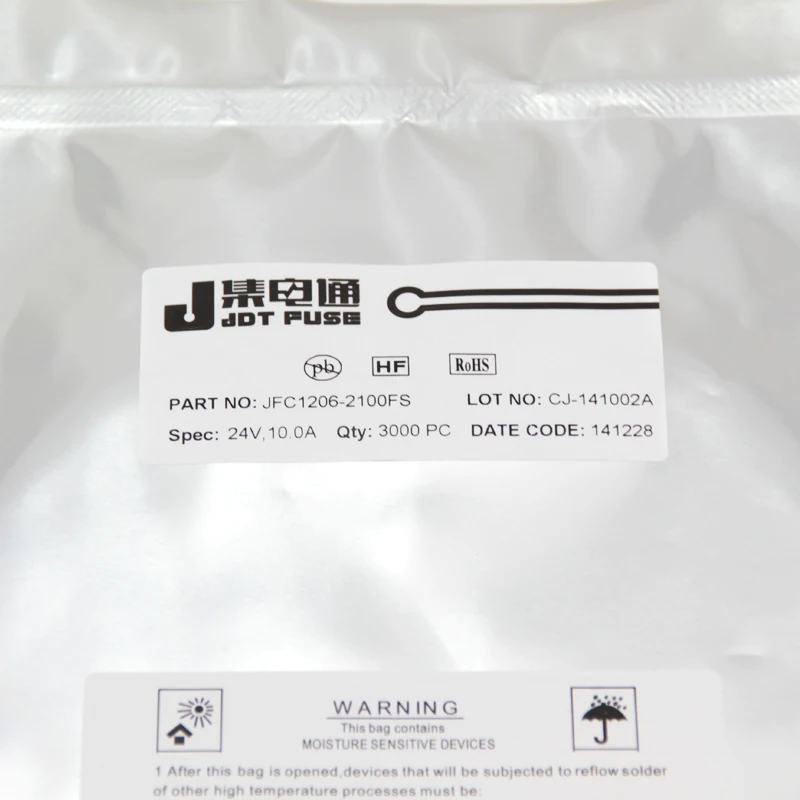

Packaging & Shipping

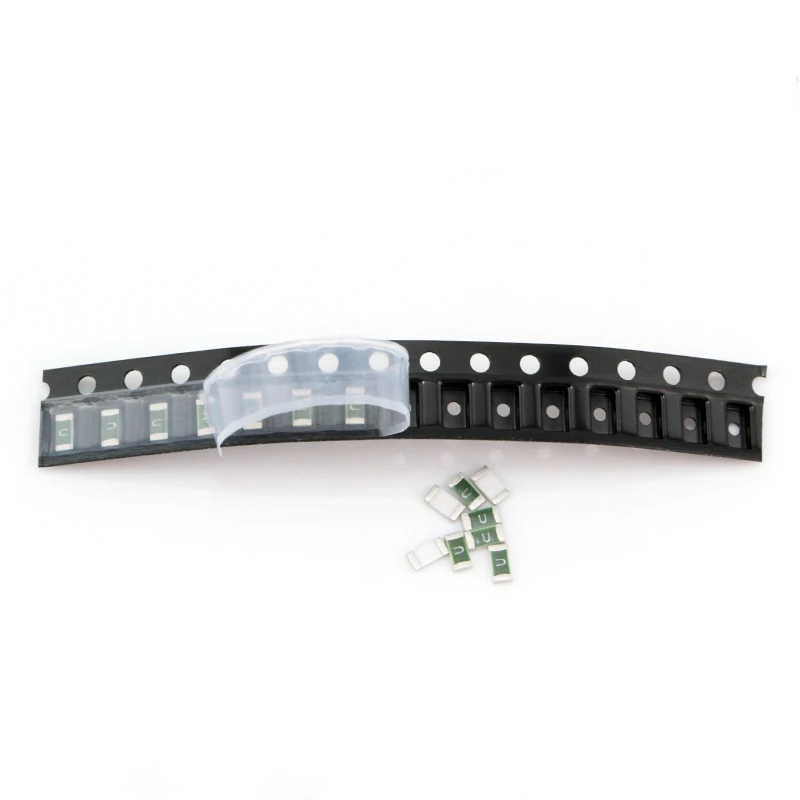

Most products are packed in Tape and Reel according to EIA-481-1 standard. Carton and foam are used for outer packing to support long distance transportation.
Our Services
JDT Fuse provides
1. pre sales part selection guide
2. fast acting logistics service through our Hongkong and Shenzhen logistic centers
3. after sales problem shooting service
4. testing and measuring service for all products sold
5. solution for relevant parts based on customers requirment
Company Information
JTD Fuse Industrial Co., Ltd is specialized in the circuit protection market for over 15 years. We offer a full range of overcurrent and overvoltage products, including fuses, PTC resettable fuses, TVS diodes, ESD suppressors, varistors, and GDTs. Applications include power supplies and data transmission, consumer electronics, energy industry, medical equipment, auto industry, aviation, and telecom industry.
JDT Fuse has its own production base in Huizhou City, where all JDT products are produced. At the meantime, JDT Fuse (and its former company “changing”) has been distributing World No. 1 Brand Littelfuse since 2009.
Annual revenue of JDT Fuse reached 25,000,000RMB.
Our strengths are
- Big stock, fast acting
- Products compliant with UL, VDE, TÜV, PSE, CCC, CSA, SGS, RoHS standards
- Free samples, tests and customized design are provided on request
History of JDT Fuse
1999 – Changing Electronics was established in Taiwan, focusing on the circuit protection devices
2000 – Changing Electronics became the distributor of World-Leading Brand Littelfuse
2002 – Changing Electronics registered its own brand “jdtfuse”
2003 – Changing Electronics has made important improvement in technology. Radial leaded resettable fuse was produced in Huizhou Factory, Guangdong
2004 – Changing Electronics Shenzhen office was established
2005 – Lead Free process was introduced in production
2007 – Changing Electronics HongKong office was established
2009 – Changing Electronics started to produce “jdtfuse” surface mount resettable PTCs
2011 – Halogen Free process was introduced in production
2012 – “Changing Electronics” was renamed as “JDT Fuse Industrial Co., Ltd”
