Блок питания для камеры видеонаблюдения 9 каналов 12 В 15 А 180

Описание и отзывы

Трекер стоимости

Характеристики

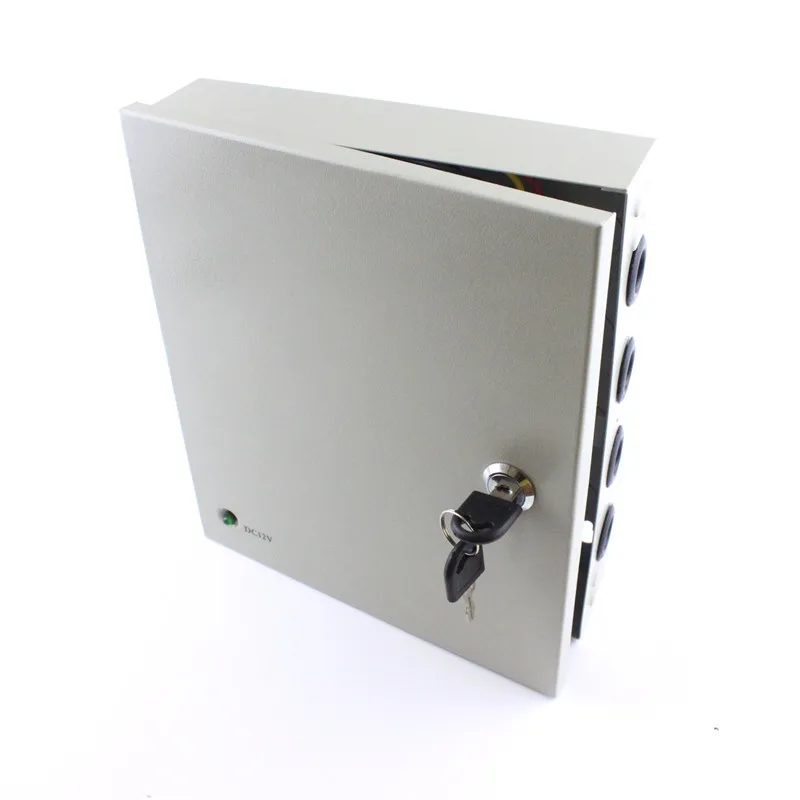

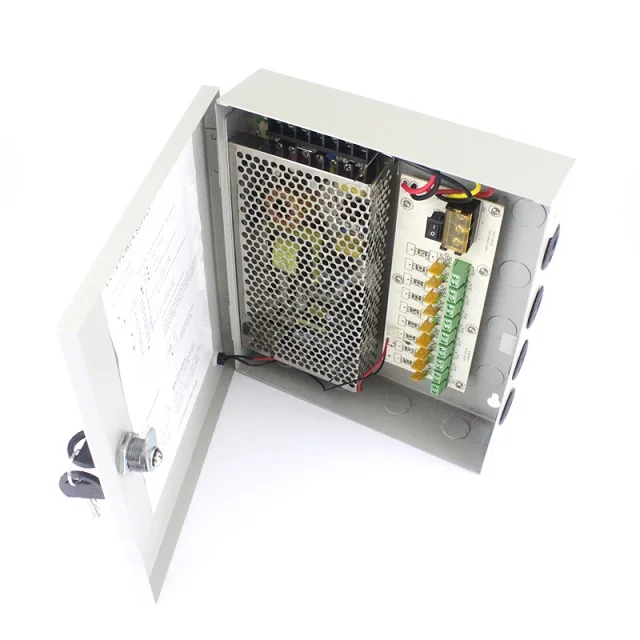

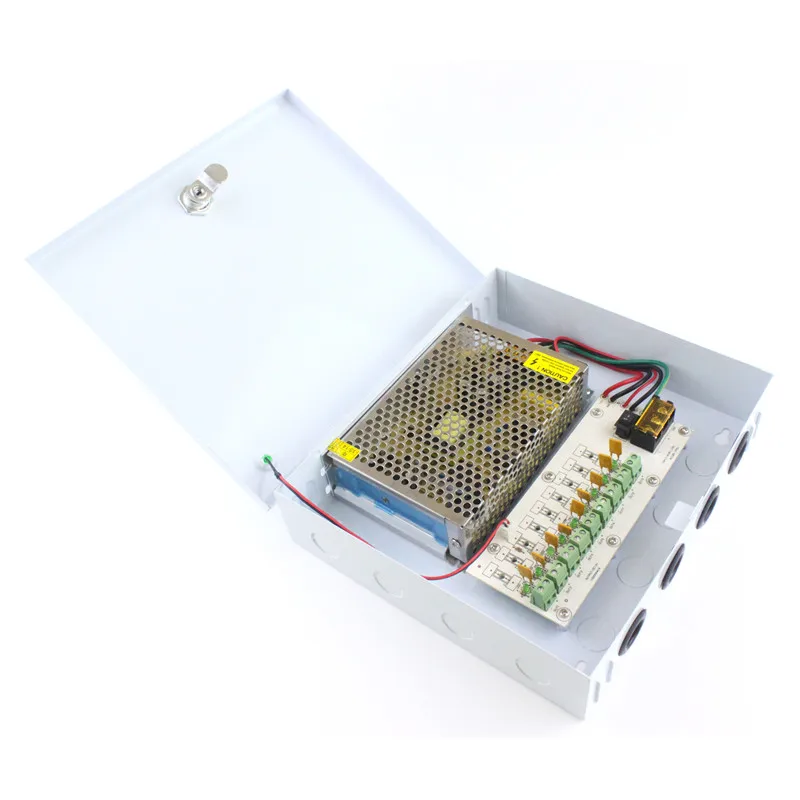

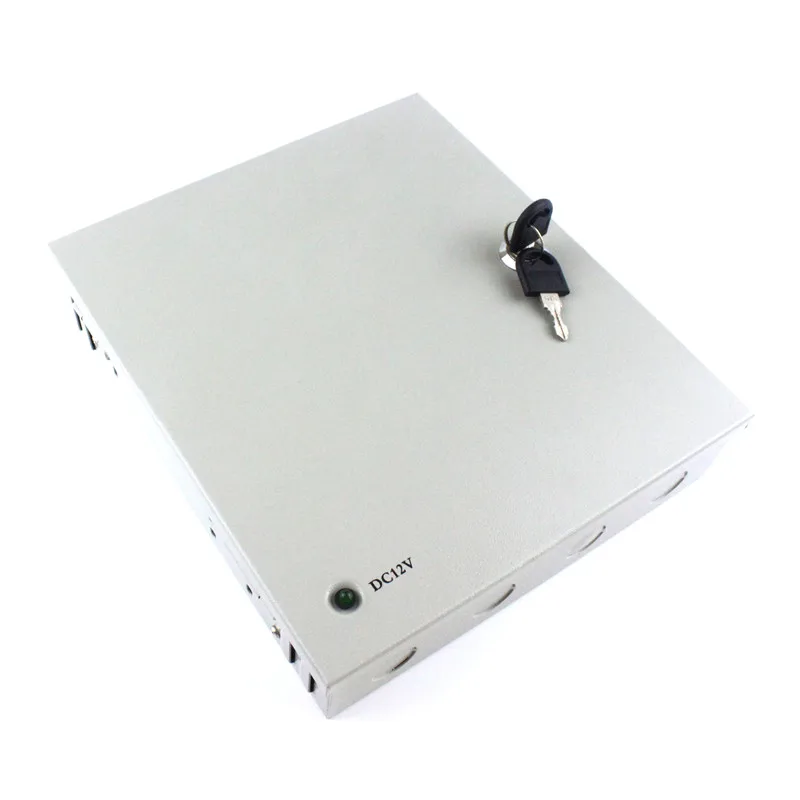

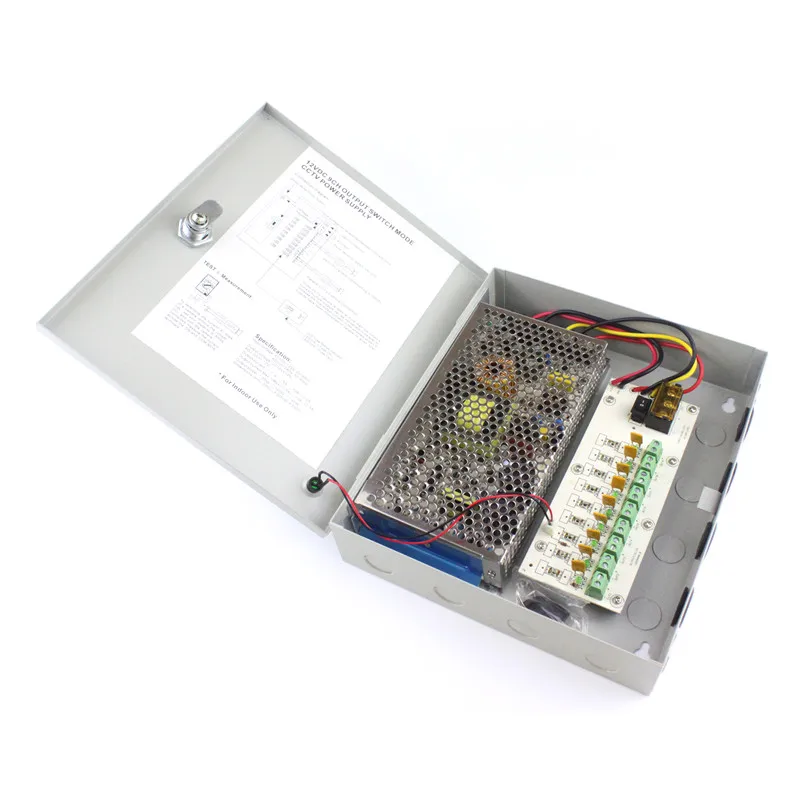

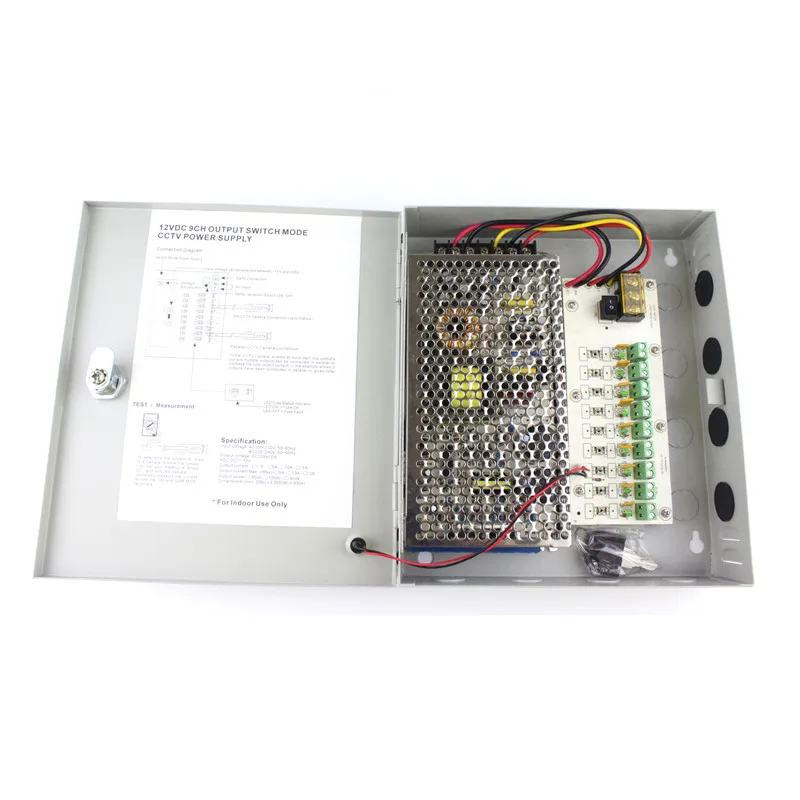

9CH cctv camera power supply distribution box 12V 15A 180W for cctv camera



OUTPUT	DC VOLTAGE	12V
	OUTPUT POWER	180W
	CURRENT RANGE	15amp
	RIPPLE & NOISE(max.)	150mVp-p
	CHANNELS	9 Ways
	VOLTAGE ADJ. RANGE	±10%
	LINE REGULATION	±1.0%
	LOAD REGULATION	±2.0%
	VOLTAGE TOLERANCE	±2.0%
	SETUP,RISE TIME	800ms, 50ms at full load
	HOLD UP TIME	60ms
INPUT	VOLTAGE RANGE	110/220V AC by switcher
	AC CURRENT(Typ.)	3.5A/ 226VAC    1.8A/ 240VAC
	FREQUENCY RANGE	47-63Hz
	EFFICIENCY(Typ.)	80%
	INRUSH CURRENT(Typ.)	COLD START 15A/115VAC   30A/230VAC
	LEAKAGE CURRENT	<3.0mA/240VAC
PROTECTION	OVER LOAD	115%~135% of rated power; Pulsing hicuup shut down
	OVER VOLTAGE	Rated output voltage of 105%~150% start overvoltage protecion
		Protection: burst mode,load of abnormal conditions removed the automatic recovery
	SHORT CIRCUIT	voltage off and reset input for recovers
ENVIRONMENT	WORKING TEMP.	-0℃ ~ +45℃ (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP.,HUMIDITY	-20℃ ~ +85℃ 10~95% RH
	TEMP. COEFFICIENT	±0.05%/℃
	COOLING METHOD	BY FREE AIR CONVECTION
SAFTY	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC
	SAFTY STANDARDS	Refer to CE EN60950-1
	EMC STANDARDS	Refer to EN55022,EN55024,EN61000
OTHERS	POWER SUPPLY DIMENSION	L160*W98*H42MM
	9CH BOX DIMENSION	L235*W205*H50MM
	WEIGHT	1.56Kg/PC, 10PCS/Carton size:45*32*30MM
	POWER SUPPLY MATERIAL	Aluminium
	9CH BOX MATERIAL	1.0mm tchickness iron (grey plating)





9CH cctv camera power supply distribution box 12V 15A 180W for cctv camera
