Экологически чистая очистка шин
US $40000
Дробилка металлолома для прямой продажи с
- Категория: Другие продукты переработки >>>
- Поставщик: Gongyi,Jinlonghengji,Heavy,Industry,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.90 $* | 0.96 $* |
| Aug-16-2025 | 0.65 $* | 0.55 $* |
| Jul-16-2025 | 0.82 $* | 0.83 $* |
| Jun-16-2025 | 0.46 $* | 0.45 $* |
| May-16-2025 | 0.36 $* | 0.66 $* |
| Apr-16-2025 | 0.88 $* | 0.30 $* |
| Mar-16-2025 | 0.61 $* | 0.74 $* |
| Feb-16-2025 | 0.45 $* | 0.93 $* |
| Jan-16-2025 | 0.31 $* | 0.38 $* |
Характеристики
Scrap Steel Hammer Shredder is a crushing equipment used to treat scrap steel. It is mainly used for crushing scrap car household appliances and light and thin scrap steel. The crushing material treated by scrap crusher has high density, high purity and little impurities. When the crushing material is re-melted into new products by steel mills and other manufacturing enterprises, the unit energy consumption is low, the output is high, and the comprehensive economy is obvious. Scrap crusher is recognized as an ideal equipment for scrap treatment.
Working Principle Of Crusher

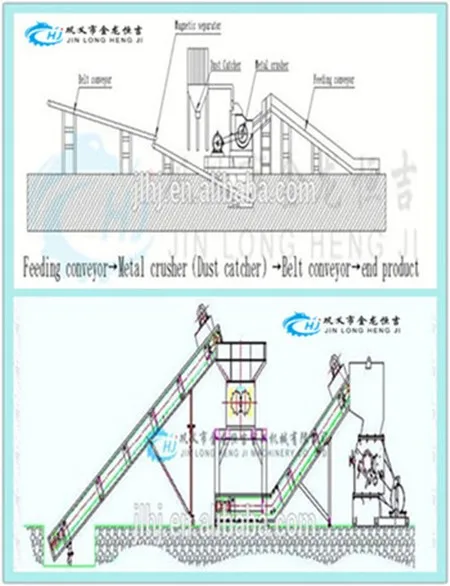

The whole production line of scrap crusher consists of feeding conveyor, main engine, vibration feeder, discharging conveyor,magnetic separator, iron conveyor, impurity conveyor, dust collector and PLC control cabinet. The crushed materials from scrap hammer shredder are separated from non-ferrous and non-ferrous metals by vibration feeder, belt conveyor and magnetic separation system, and sent out to stack by their respective conveyors. Non-ferrous metals and non-metallic materials in the conveyor will be searched by magnetic separation equipment again, and free iron metals will be sorted out, so as to improve the recovery rate of iron metals. At the same time, non-ferrous metals can be sorted by eddy current separator, which can improve the recovery efficiency. The whole broken line is controlled by PLC, which can realize computer control and manual operation.
The main equipment of scrap crushing line includes chain plate feeder, scrap crusher main machine, hydraulic feeder, vibration feeder, belt feeder, upper suction magnetic separator, discharging conveyor, iron remover, rotary conveyor, etc.
The main equipment of scrap crushing line includes chain plate feeder, scrap crusher main machine, hydraulic feeder, vibration feeder, belt feeder, upper suction magnetic separator, discharging conveyor, iron remover, rotary conveyor, etc.
Our Advantage
1. Super high crushing efficiency
Hydraulic feeding, hammer throwing and ring hammer combined crushing hammer head can improve the efficiency of other crusher equipment by 5% - 15%.
2. Perfect finished granules
The unique roller rubbing process can significantly remove the paint and other contaminants, form high-density pellets and
improvethe grade of crushing materials.
3. Stable operation capability
When the safety door is set, after the non-breakable material enters the crushing chamber, the operator can open the safety door and discharge it from the body to avoid damaging the crusher.
4. Intelligent Control System
PLC control system and hydraulic power system can save time and labor in intelligent production and realize stable, automatic and safe operation of the whole production line.
Hydraulic feeding, hammer throwing and ring hammer combined crushing hammer head can improve the efficiency of other crusher equipment by 5% - 15%.
2. Perfect finished granules
The unique roller rubbing process can significantly remove the paint and other contaminants, form high-density pellets and
improvethe grade of crushing materials.
3. Stable operation capability
When the safety door is set, after the non-breakable material enters the crushing chamber, the operator can open the safety door and discharge it from the body to avoid damaging the crusher.
4. Intelligent Control System
PLC control system and hydraulic power system can save time and labor in intelligent production and realize stable, automatic and safe operation of the whole production line.
Product Details
Screen
Liner plate
Hammer
Rotor assembly
Accessory Equipment
Feeding conveyor
Pulse dust collector
Magnetic separator
Discharging conveyor
Eddy current sorter
microcomputer control system
model | voltage | power(kw) | capacity(t/h) | accessory equipment |
PSJ-140 | 380v | 132 | 2-3 | Feeding conveyor one Discharging conveyor one Iron conveyor one Impurity conveyor one Magnetic separation system one Dust removal system one Control system one Intelligent Visual System (Optional) one Sprinkler system (optional) one |
PSJ-200 | 380v | 200 | 3-5 | |
PSJ-280 | 380v | 280 | 4-7 | |
PSJ-315 | 380v | 315 | 5-8 | |
PSJ-450 | 380v | 450 | 8-12 | |
PSJ-630 | 10kv | 630 | 10-15 | |
PSJ-750 | 10kv | 750 | 12-17 | |
PSJ-800 | 10kv | 800 | 15-20 | |
PSJ-900 | 10kv | 900 | 20-30 | |
1500HP | 10kv | 1200 | 25-40 | |
2000HP | 10kv | 1500 | 50-60 | |
3000HP | 10kv | 2250 | 60-80 | |
4000HP | 10kv | 3000 | 80-100 | |
6000HP | 10kv | 4420 | 100-160 | |
8000HP | 10kv | 6000 | 160-200 | |
10000HP | 10kv | 7500 | 200-260 |
1 )Selecting equipment type;
2 ) Designing and fabricating the products in accordance with the special requirements of the clients;
3 )Training technical personnel for our clients;
4 ) Providing construction and technology consultations or working out proper construction schemes for those new,
2 ) Designing and fabricating the products in accordance with the special requirements of the clients;
3 )Training technical personnel for our clients;
4 ) Providing construction and technology consultations or working out proper construction schemes for those new,
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
1)Checking products acceptance ahead of delivery;
2)Introducing the service system to our clients.
1)Checking products acceptance ahead of delivery;
2)Introducing the service system to our clients.
lmprove the added value of our products,and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipments;
3)Training the first-line operators on site;
4) Examining the equipment regularly;
5)Taking the initiatives to eliminate the failure(s) rapidly at site;
6)Distributing the guarantee fittings door-to-door;
7)Providing technical exchanging;
8)Providing maintenance for big items.
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipments;
3)Training the first-line operators on site;
4) Examining the equipment regularly;
5)Taking the initiatives to eliminate the failure(s) rapidly at site;
6)Distributing the guarantee fittings door-to-door;
7)Providing technical exchanging;
8)Providing maintenance for big items.
