Характеристики

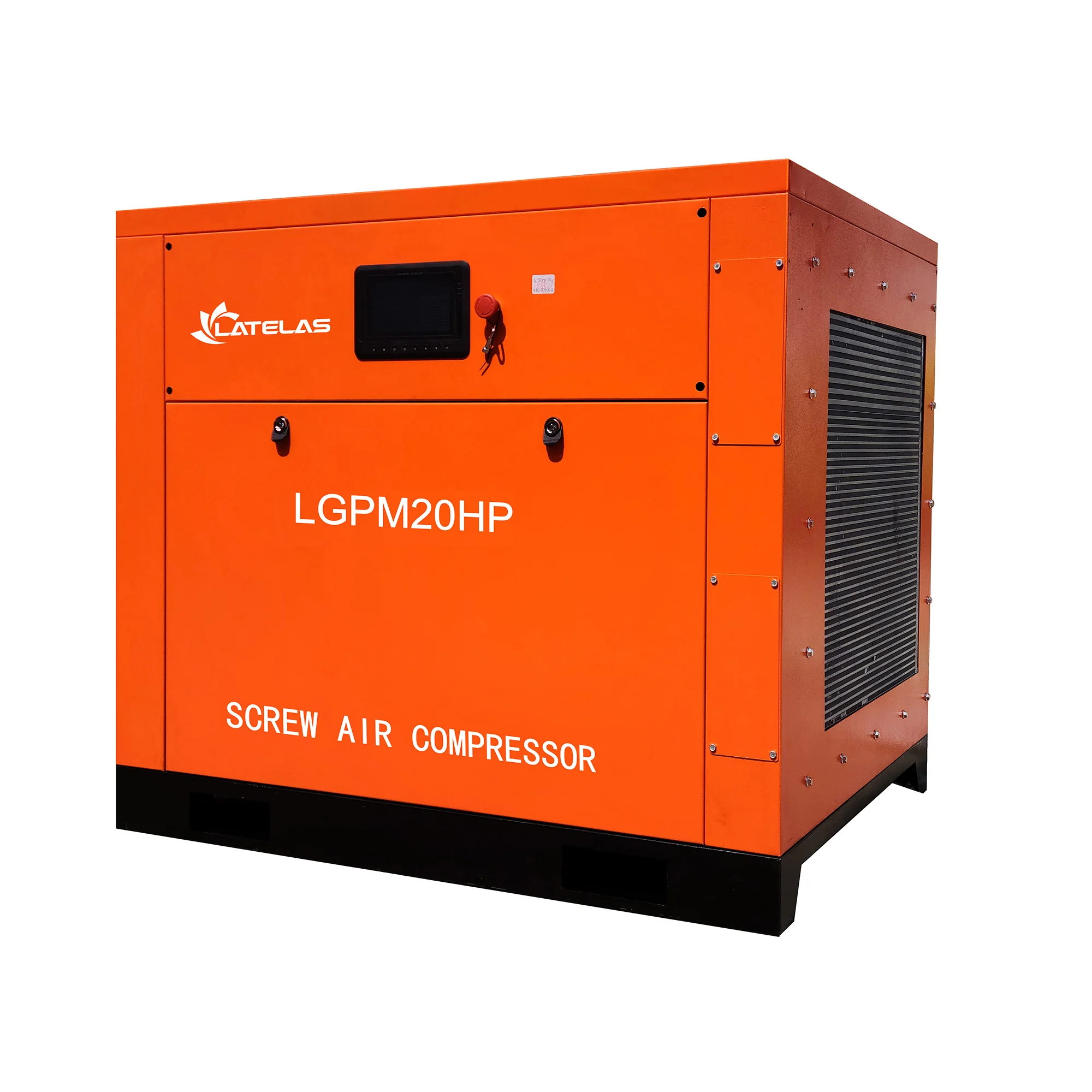

General industry applicable new industrial electric screw high pressure air compressor
Product Description
LATELAS
SCREW AIR COMPRESSOR
JIANGTIAN MOTOR
BAOSI AIR END
TECHNICAL DATA
Model | AT-10PH | AT-15PH | AT-20PH | AT-30PH |
Motor Power | 7.5 | 11 | 15 | 22 |
Capacity(m3/min) | 0.8-1.2 | 1.1-1.7 | 1.6-2.3 | 2.6-3.8 |
Pressure | 0.7-1.2 | 0.7-1.2 | 0.7-1.2 | 0.7-1.2 |
Lubrication oil(L) | 12 | 16 | 16 | 22 |
Noise db(A) | 60-70 | 60-70 | 60-70 | 60-70 |
Lenth(mm) | 780 | 1050 | 1050 | 1300 |
Width(mm) | 600 | 700 | 700 | 850 |
Height(mm) | 1020 | 1150 | 1150 | 1100 |
Sepecification of 7.5kw screw air compressor | ||||||||
Cooling Way | Air Cooling | |||||||
Discharge pressure | 8bar | |||||||
Volume Flow | 1.1m3/min | |||||||
Discharge Temp | Environment temp +15℃ | |||||||
Driving Way | Direct connect drivers | |||||||
Noise Leve | 60-70 dB | |||||||
Oil contents in air | ≤3-5 ppm | |||||||
Vent pipe diameter | G3/4 | |||||||
Size | 780*600*1020 mm | |||||||
Weight | 215 Kg | |||||||
Motor | JIANG TIAN | |||||||
Air End | BAO SI | |||||||
Oil Filter | Sanfam | |||||||
Controler | Plot | |||||||
ADVANTAGE:
1.High efficent.
2.A wide range of pressure and capacity design.
3.Intellgent conttrol system is easy operation and with monitoring function for oil pressure,water perssure,intercooler temperature,air end temperature,fule level...
4.Galvanized sheet with electrostatic spray plastics is good corrosion precentive.
5.High chasis can meet the applications of off road.
2.A wide range of pressure and capacity design.
3.Intellgent conttrol system is easy operation and with monitoring function for oil pressure,water perssure,intercooler temperature,air end temperature,fule level...
4.Galvanized sheet with electrostatic spray plastics is good corrosion precentive.
5.High chasis can meet the applications of off road.
Detailed Images
SPARE PART
1.Air-end
Air-end rotors are connect motor with one-shaft structure make it easy to start operates at low speed,so low in abrasion and maintenance expenses.
2. Control panel
Intelligent microcomputer-based control technology can monitor and control in all aspects the complete machine following you instrucitons,remote control realizes unattended operation,and the user-friendly human-machine interface displays instructions and
parameters in written form also,it can function to self diagnose faults,give warning and automatically regulate the capacity.
3. Oil filter
Oil filters are applied to completely remove the impurities in the lubricating oil,it was easy to replace.
2. Control panel
Intelligent microcomputer-based control technology can monitor and control in all aspects the complete machine following you instrucitons,remote control realizes unattended operation,and the user-friendly human-machine interface displays instructions and
parameters in written form also,it can function to self diagnose faults,give warning and automatically regulate the capacity.
3. Oil filter
Oil filters are applied to completely remove the impurities in the lubricating oil,it was easy to replace.
4. Excellent quality of motors
The servo motors is saving effect than normal motor,base on it excellent permanent magnet synchronizing variable frequency,it will exert incomparable energy saving effect than normal inductive motor when installed with the frequency convectors.
5.The host machine of compressor is of high efficiency and long life
The quality of host machine of permanent magnet synchronizing variable frequency screw air compressor is excellent.The advanceThe servo motors is saving effect than normal motor,base on it excellent permanent magnet synchronizing variable frequency,it will exert incomparable energy saving effect than normal inductive motor when installed with the frequency convectors.
5.The host machine of compressor is of high efficiency and long life
molded lines ensure the minimum specific power.It is designed in the FEM strength analysis to ensure the stablility and reliable
of each part,and also to realize longterm operation with no faults,low noise and long life.
ONE-STP SHOPPING,COMPLETE SYSTEM SERVICE
AIR TANK
AIR DRYER
AIR FILTER
Application
Company Introduction
Linyi Latelas Air Compressor Manufacturing Co.,Ltd. is located in Linyi,Shandong,China.With professinal manufacturing experience and first -class comprehensive scientific and technological strength,We had been providing overseas and domestic customers low cost solutions of reliable compressed air. Latelas Air compressor,Your best choice to get success.Welcome to inquiry.
Certifications
Packing&Shipping
FAQ
Q1: Are you factory or trade company?
A1: We are factory verified by ALIBABA. Pls click right link to check Our Company Profile.
Q2: Can you make air compressors as my need?
Q3: Warranty terms of your machine?
A3: 18 months warranty for the machine,technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes.We provide spare parts for daily maintenance.
Q5: How long will you take to arrange production?
A5: Deliver standard goods within 20days, Other customized goods need to be decided.
Q6:: What is the exactladdress of your factory?
A1: We are factory verified by ALIBABA. Pls click right link to check Our Company Profile.
Q2: Can you make air compressors as my need?
A2: Yes,we can make different air compressors,such as screw air compressor,rotary air compressor,piston air compressor,diaphragm air compressor,etc,which are widely adopted in all industries.
Q3: Warranty terms of your machine?
A3: 18 months warranty for the machine,technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes.We provide spare parts for daily maintenance.
Q5: How long will you take to arrange production?
A5: Deliver standard goods within 20days, Other customized goods need to be decided.
Q6:: What is the exactladdress of your factory?
A6: Mengshan Innovation Park, North Of Mengjia Village, Zaoyuan Town, Linyi, Shandong, China
