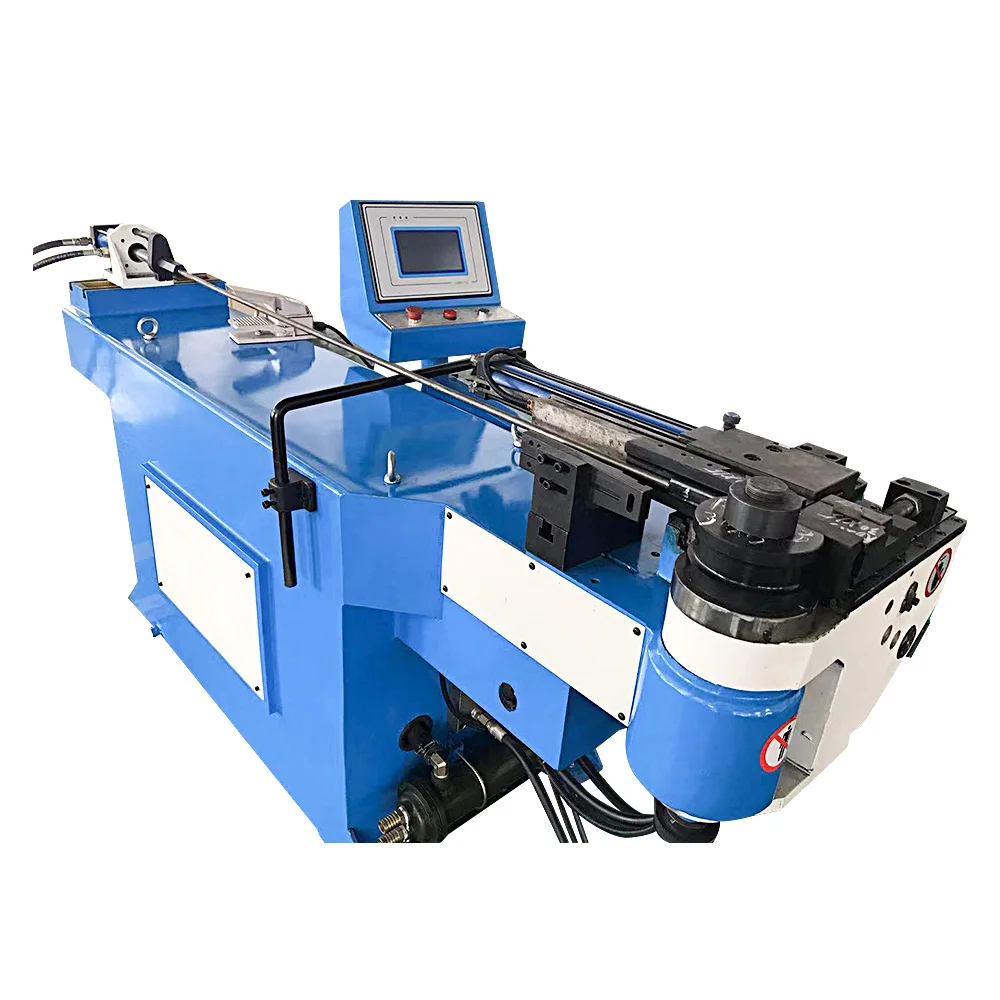

Трубогиб для труб EMT 20 25 32 мм
US $150.00-$220.00
DW-50NC трубогибочный станок nc mahine полуавтоматический
- Категория: Pipe and Tube Bending Machines >>>
- Поставщик: Zhangjiagang,Baorui,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5712.48 $* | 5998.13 $* |
| Aug-16-2025 | 5664.42 $* | 5947.65 $* |
| Jul-16-2025 | 4752.24 $* | 4990.85 $* |
| Jun-16-2025 | 5568.42 $* | 5846.77 $* |
| May-16-2025 | 4848.72 $* | 5090.49 $* |
| Apr-16-2025 | 5472.44 $* | 5746.60 $* |
| Mar-16-2025 | 5424.98 $* | 5695.65 $* |
| Feb-16-2025 | 5376.28 $* | 5645.78 $* |
| Jan-16-2025 | 5328.53 $* | 5594.83 $* |
Характеристики
new
Name | Unit | Data | Remark | |
1 | Max bending capacity | Φ | Φ50 X 3mm | For Carbon Steel |
square tube | 35 X 35 X 3mm | |||
2 | Max bending radius | mm | 350 | Can according to customer’s requirement |
3. | Min bending radius | mm | Depend on diameter |
|
4 | Standard Mandrel Length | mm | 2200 | Can according to customer’s requirement |
5 | Max bending degree | Degree | 190 |
|
6 | Bending unit | piece | 16 |
|
7 | Oil motor power | Kw | 5.5 |
|
8 | Max storage units | group | 16 x 16 |
|
9 | Max pressure | MPa | 12 | Adjustable |
10 | Hydraulic System Control | Electromagnetic Valve | Japan Yuken | |
11 | Machine weight | Kg | 1220 |
|
12 | Machine size | mm | 2600 x 750 x 1000 | |
,
