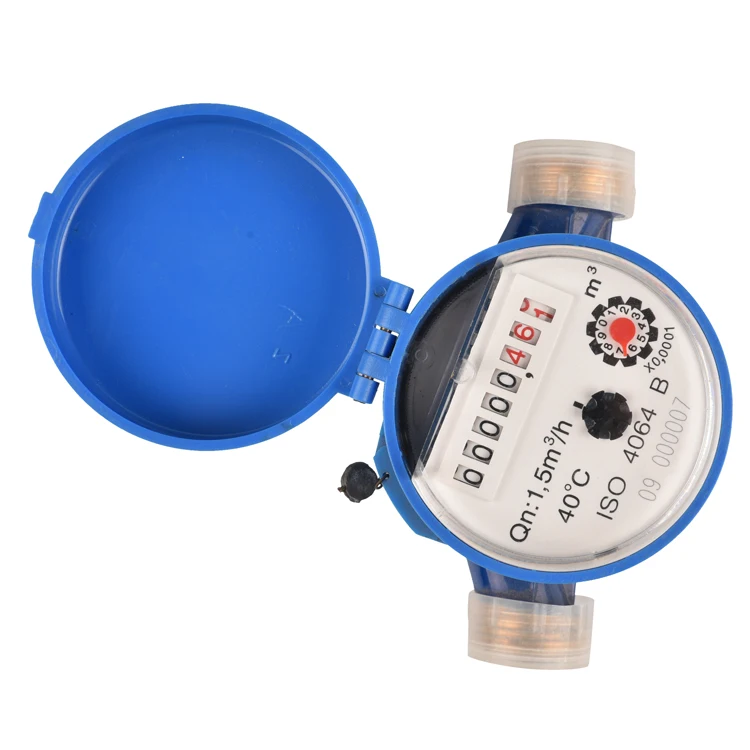

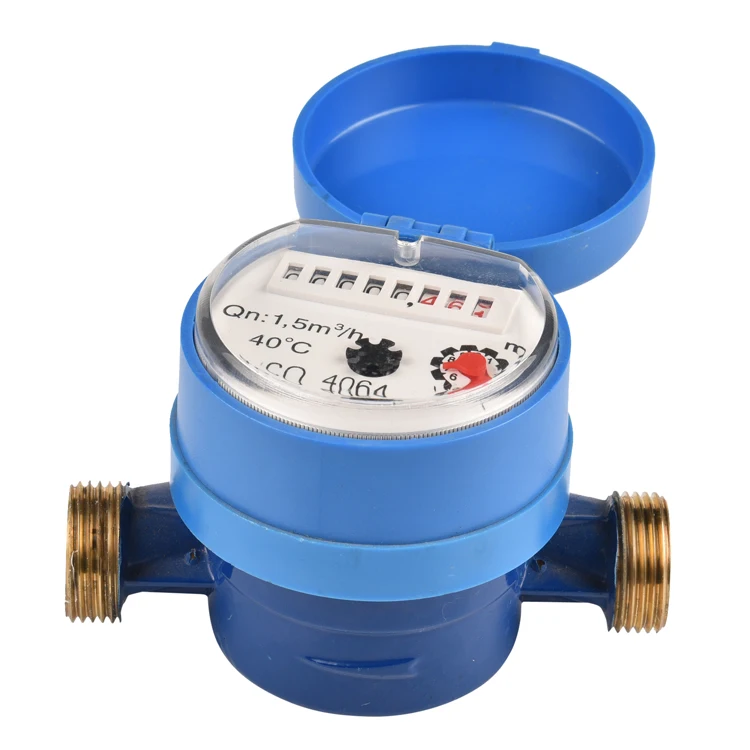

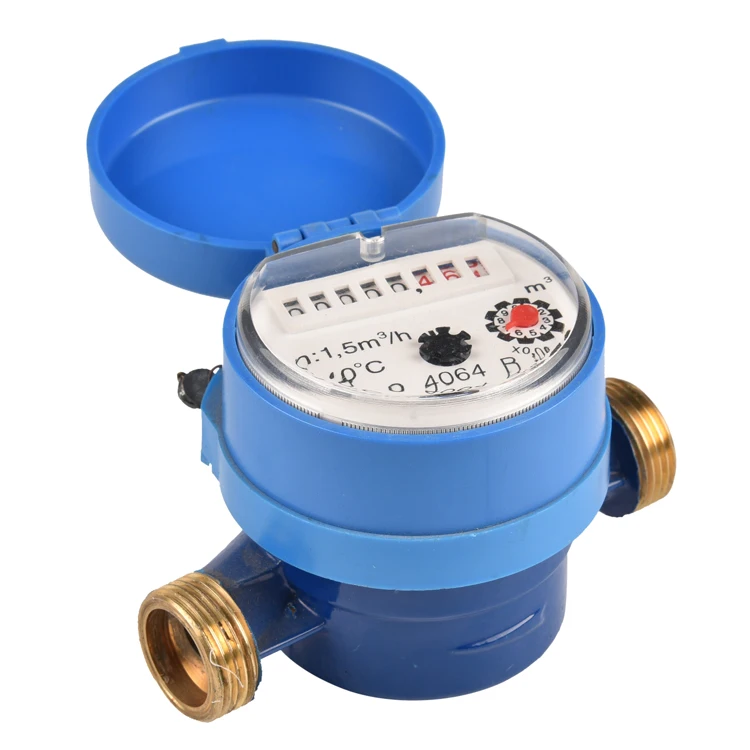

Одномерный струйны сухой счетчик воды измеритель

Описание и отзывы

Трекер стоимости

Характеристики

Application:
--Measuring the total volume of cold potable water passing through the pipeline.



Feature:

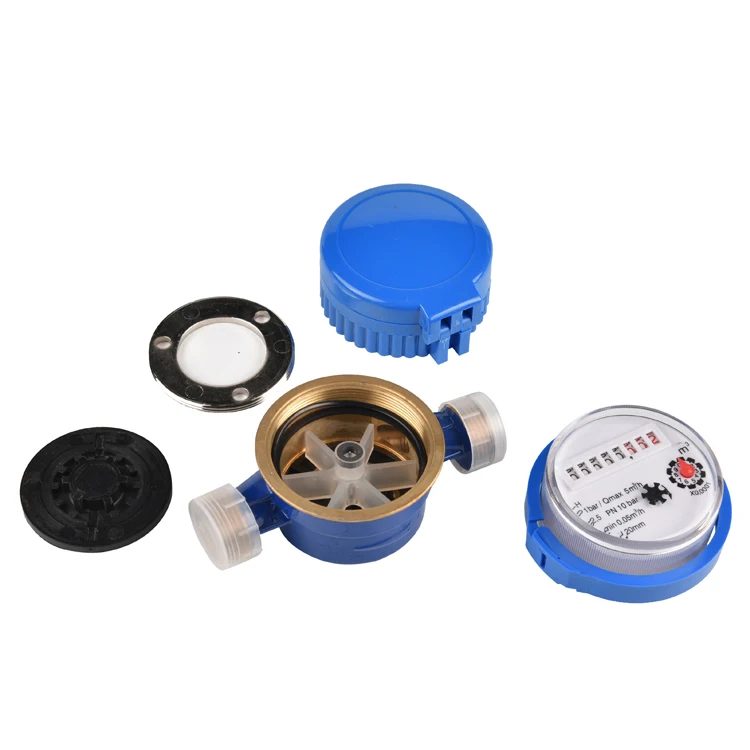

--Dry type, small, light, magnetic drive, free rotating register, easy and long term clear reading etc. Magnet resistance.
-- Technical data conform to international standard ISO4064 Class B ,R80.

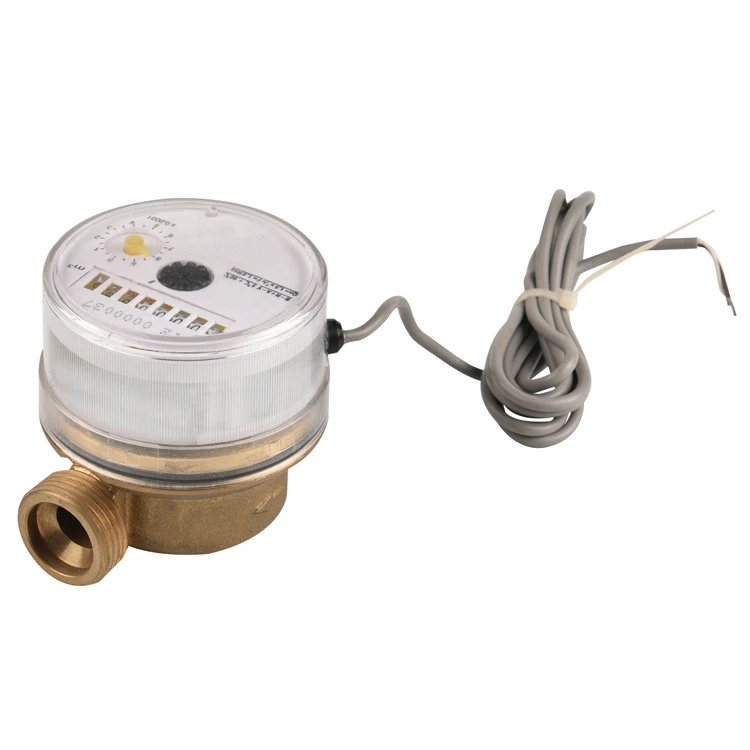

--Data Output Options: 10 L/Pulse, 100 L/Pulse, or 1000 L/Pulse.



Working condition:
Water temperature: 0.1°C~50°C for cold water meter .
                                   0.1°C~90°C for hot water meter.
Water pressure   : ≤1Mpa
Compliance with standard: ISO4064(GB/T778.1-1996) ISO4064(GB/T778.1-2007)

Maximum permissible error:
(1) in the lower zone from Qmin(Q1) inclusive up to but excluding Qt(Q2) is ±5%.
(2) in the upper zone from Qt(Q2) inclusive up to and including Qs(Q4) is ±2%;(Hot water meter ±3%)



Main Technical Data:
According ISO4064(GB/T778.1-1996) standard



Type	Size   (mm)	Class	Qs Overload  Flow	Qp Permanent Flow	Qt Transitional Flow	Qmin Minimum Flow	Minimum Reading	Maximum Reading
			m3/h		L/h		m3
LXSC-15E	15	B	3	1.5	120	30	0.0001	99,999
LXSC-20E	20	B	5	2.5	200	50	0.0001	99,999
LXSC-25E	25	B	7	3.5	280	70	0.0001	99,999



According ISO4064(GB/T778.1-2007) standard

Type	Size    (mm)	Q3/Q1	Q4 Overload                Flow	Q3 Permanent          Flow	Q2 Transitional Flow	Q1 Minimum Flow	Minimum Reading	Maximum Reading
			m3/h		L/h		m3
LXSC-15E	15	80	3.125	2.5	50	31.25	0.0001	99,999
LXSC-20E	20	80	5	4	80	50	0.0001	99,999
LXSC-25E	25	80	7.875	6.3	126	78.75	0.0001	99,999



Dimensions and Weight

Type	Meter Size	Length	Width	Height	Connecting		Weight
					Thread
	mm	mm			D	d	kg
LXSC-15E	15	110/80	77	85	G3/4B	R1/2	0.8
LXSC-20E	20	130	77	85	G1B	R3/4	0.9
LXSC-25E	25	160	77	92	G11/4B	R1	1.47

1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.



2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.



3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.



4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.



5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.



6. Which price terms could accepted?
A: FOB,CIF all acceptable.
