Заводская OEM/ODM горячая Распродажа Rj 45 PTZ usb Камера 12x 20x SDI с джойстиком контроллер для прямой
- Категория: Радио и ТВ аксессуары >>>
- Поставщик: Shenzhen,Jinjiutianshi,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 2056.39 $* | 2097.26 $* |
| Jul-17-2025 | 1668.74 $* | 1701.44 $* |
| Jun-17-2025 | 2024.95 $* | 2064.59 $* |
| May-17-2025 | 2008.49 $* | 2048.76 $* |
| Apr-17-2025 | 1603.59 $* | 1635.50 $* |
| Mar-17-2025 | 1975.47 $* | 2015.63 $* |
| Feb-17-2025 | 1959.20 $* | 1998.49 $* |
| Jan-17-2025 | 1943.8 $* | 1982.48 $* |
Характеристики
Camera & Controller

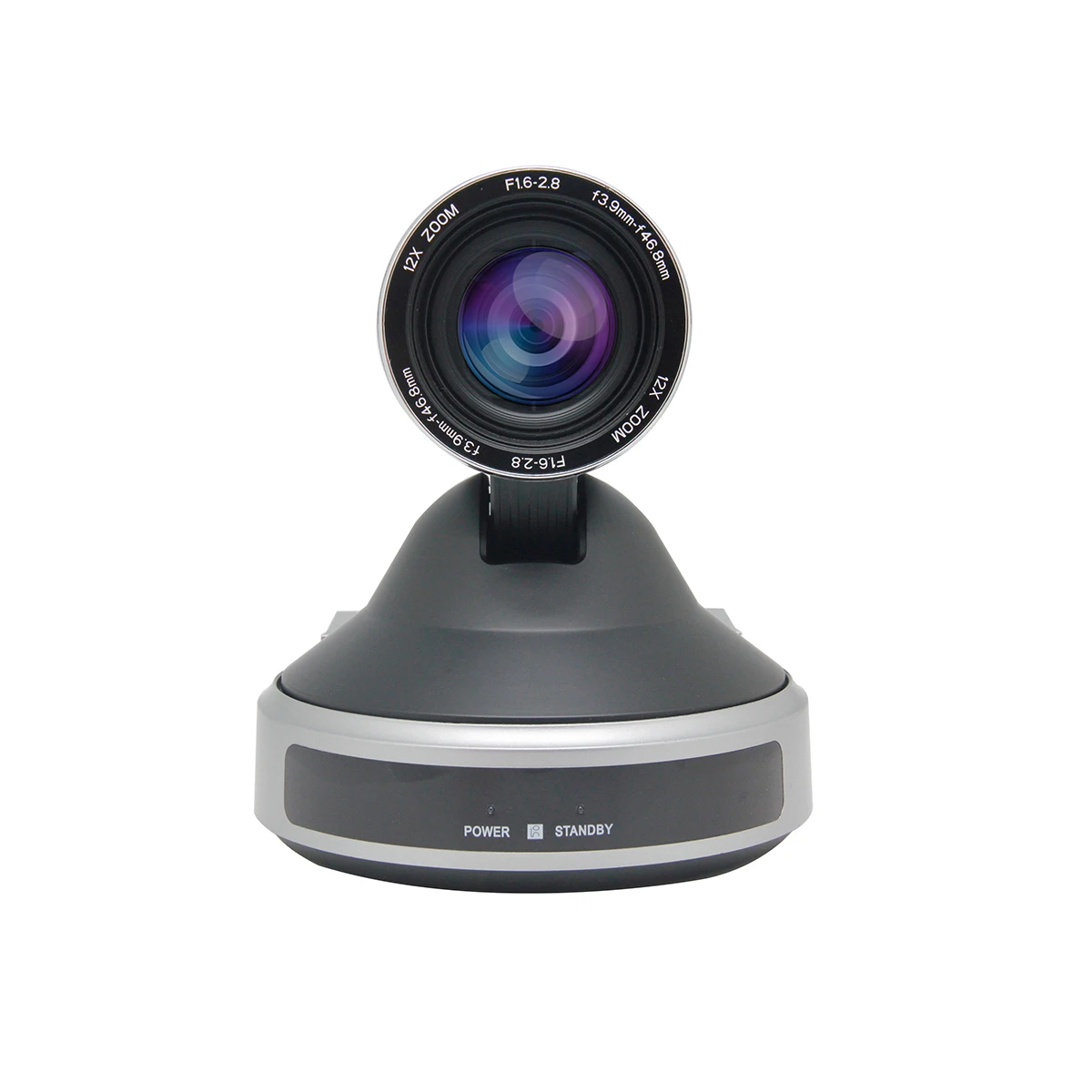

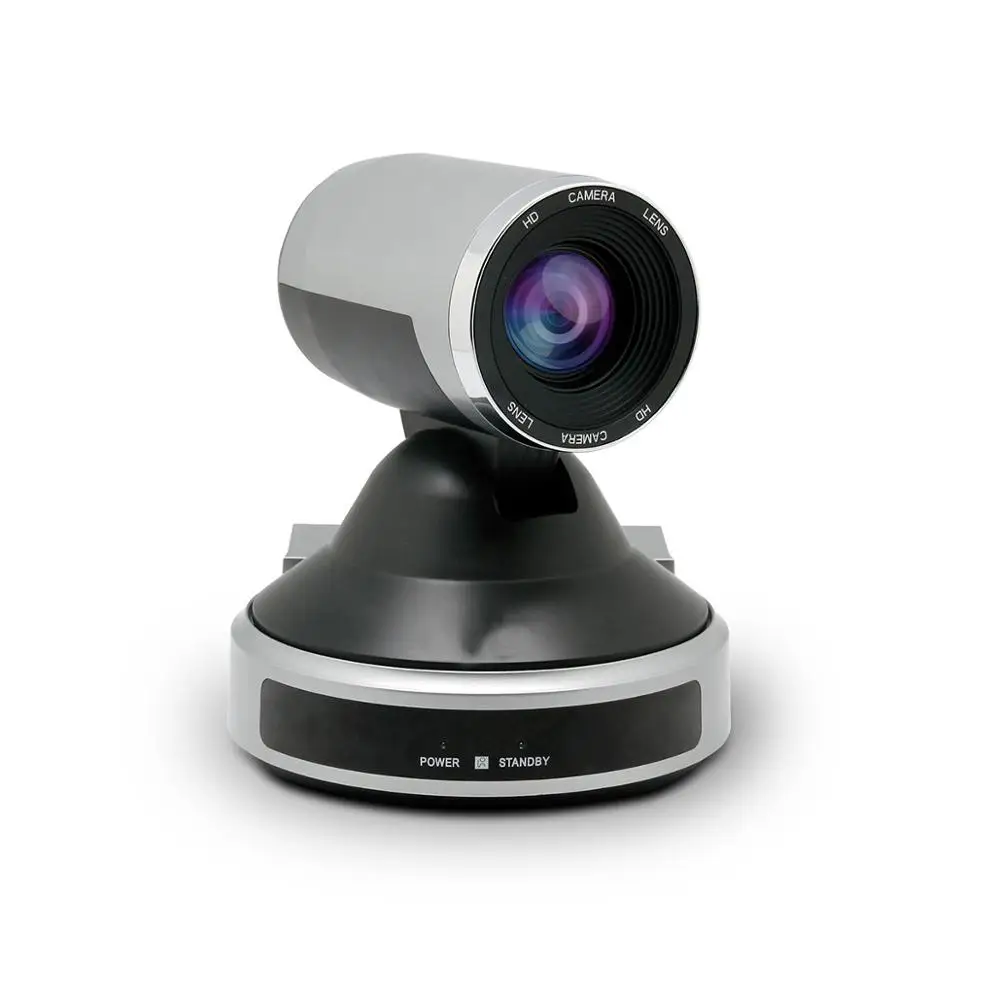

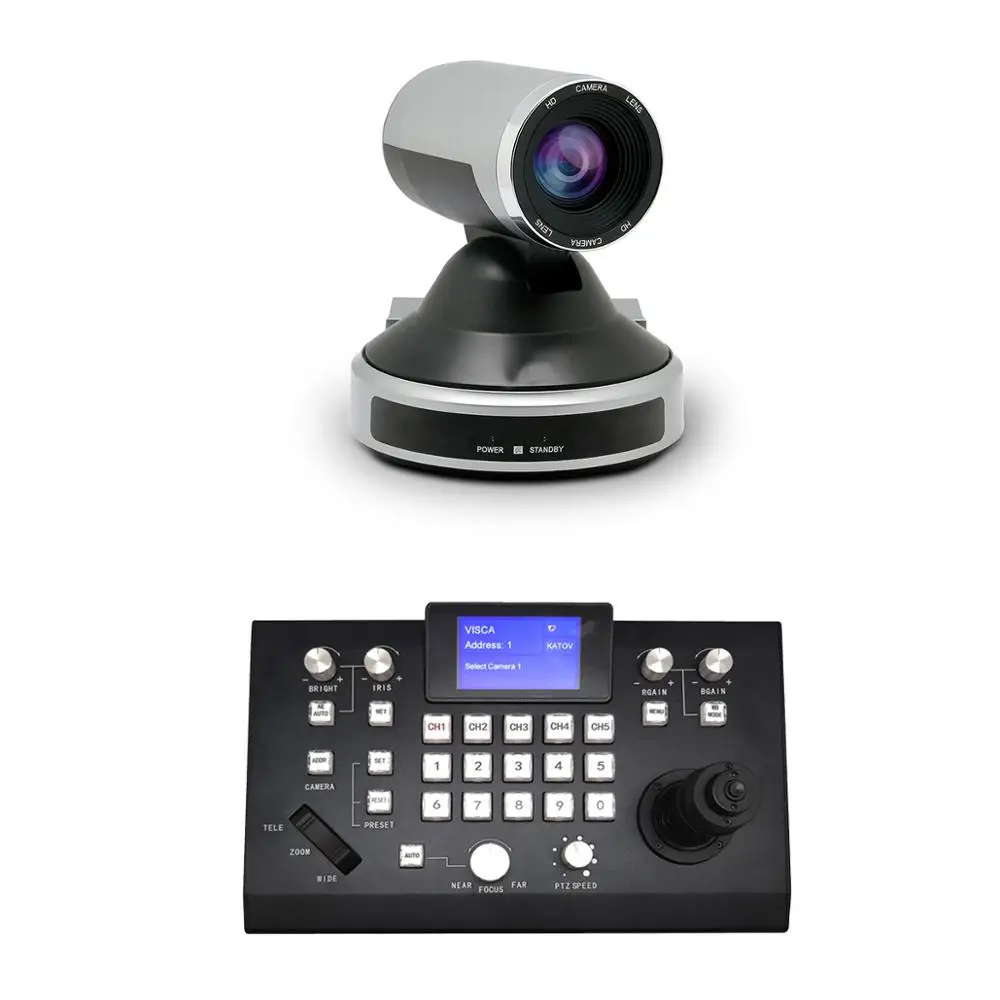

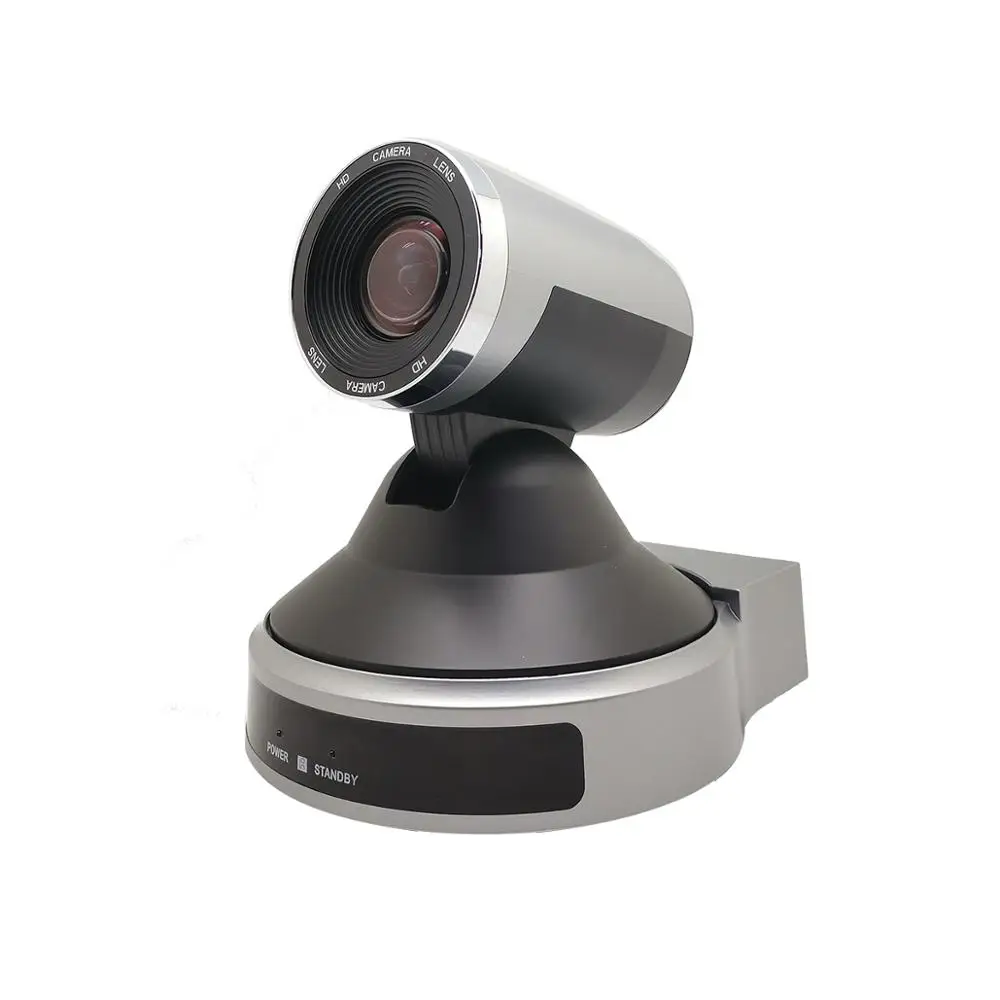

Factory OEM/ODM hot selling Rj 45 PTZ usb camera 12x ,20x SDI,HDM with joystick controller for live streaming broadcasting
Product Details
Parameters:
Item No. | KT-HD91RL | KT-HD91AL | |
Effective Pixels | 3.10 Megapixels | 3.50 Megapixels | |
Signal System | PAL/NTSC | ||
Lens | 12X optical zoom f=3.9mm(w)~46.8 mm(f) F1.8~F2.8 | 20X optical zoom f=4.7mm(w)~94.0 mm(f) F1.6~F2.8 | |
Horizontal View Angle | 72.5°(W)~7.4°(T) | 58.7°(W)~3.2°(T) | |
Pan | 355°(max. speed:80°/s) | ||
Tilt | -30° to +30° (max. speed: 60°/s) | ||
Focus System | Auto/Manual | ||
S/N Ratio | ≥50db | ||
Preset Position | 9 preset positions by IR remote controller, 255 preset positions by Keyboard | ||
Minimum Illumination | 0.1Lux | ||
Exposure Control | Auto/Manual/Priority AE/Exposure Compensation/ Bright | ||
Shutter Speed | 1/1~1/10,000s | ||
Gain | Auto/Manual | ||
White Balance | Auto/ Indoor/Outdoor/Manual | ||
Image Effect | Full color/black and white/Electronic flip | ||
Other Input | Line In | ||
Control Mode | RS-232C, RS-422/485 | ||
Power | 12V DC(10.8~13.0V DC) | ||
Power Consumption | Max. 30W(DC 12V) | ||
Operating Temperature | 0~40℃ | ||
Storage Temperature | -20-60℃ | ||
Dimensions | (L)170 ×(W)150 ×(H)190mm | ||
Weight | 1550g | ||
Color | Black | ||
Carton | Each camera in a small carton, then 4 pcs packaged in one large carton | ||
Certificate | ISO/CE/FCC/RoHS | ||
Warranty | 3 years | ||

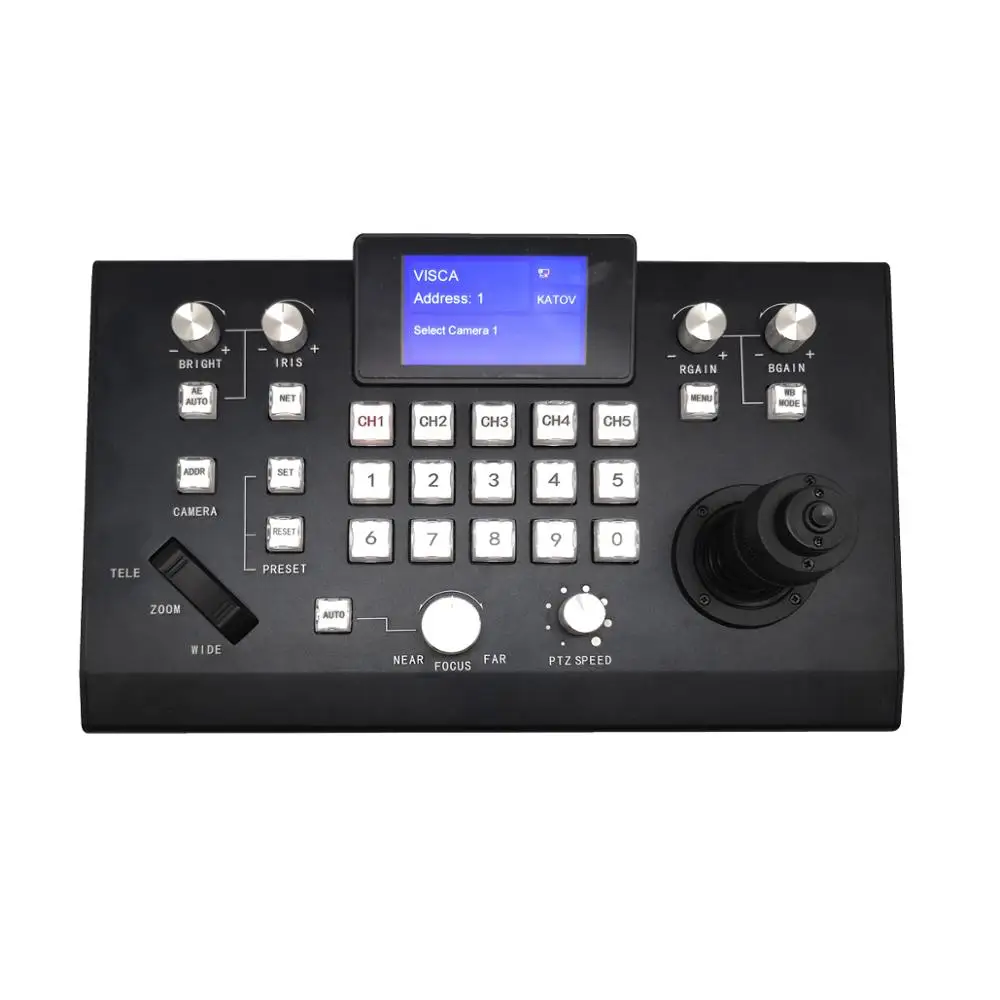

The front board:
1. AE MODE Select
"AE Auto" Auto exposure
"-BRIGHT+" Bright adjustment
"-IRIS+" Iris adjustment
2. "CHANNEL" 1-5 number buttons, selection for camera control channel
3. Keyboard Display
4. Indicator light
5. White Balance Adjustment
"WBC MODE" Auto WBC
"+R GAIN-" Red gain or less
"+B GAIN-" Blue gain or less
6. CAMERA OSD" camera manual setting
7."MENU" Call keyboard menu/Exit/Long press to call camera menu
8. "PRESET"+ "Number" Set presets
9. "ADDR" Select camera ID
10. "ZOOM" Focal length adjustment
"TELE" Zoom in
"WIDE" Zoom out
11. "RESET"+ "Number" Delete presets
12. Focus mode selection
"AUTO" Auto focus
"NEAR" manual focus mode close up
"FAR" Manual focus mode far focus
13. "PTZ SPEED" Camera pan/tilt/zoom speed adjustment
14. "POSITION" 1-0, numbers for setting, calling and deleting presets
15. Control joystick
Select the camera you want to control.
Left/Right: Pan
Pitch Up/Down: Tilt
Rotate clockwise/Counterclockwise: Zoom in/Zoom out
When you release the remote, the camera will stop moving

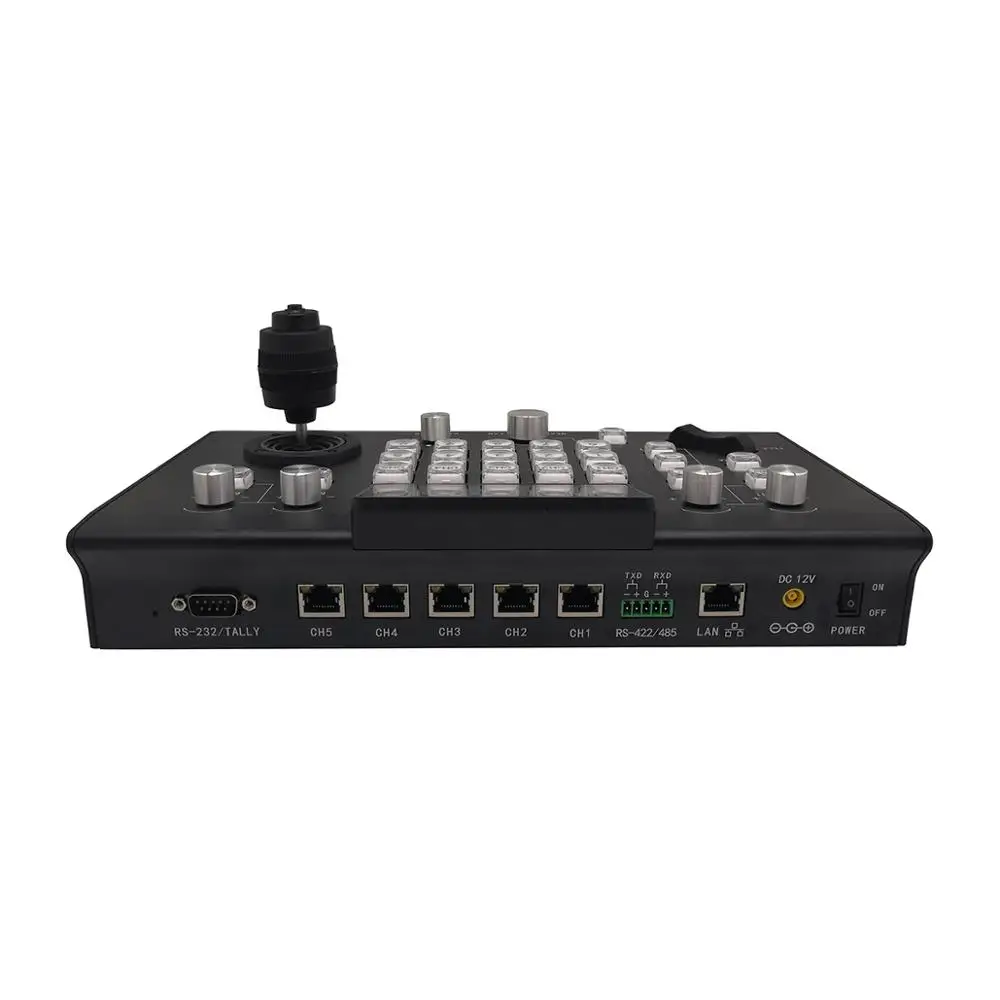

Backside:
1. TALLY port
2. Camera control channels (CH1-CH5)
3. RS422/485 control(use CH1 control)
4. Ethernet port
5. 12V DC power supply
6. Power switch
Main Application:
Connection:
IP Control:
FACTORY OEM/ODM HOT SELLING RJ 45 PTZ USB CAMERA 12X ,20X SDI,HDM WITH JOYSTICK CONTROLLER FOR LIVE STREAMING BROADCASTING
Our Company
Shenzhen JinJiuTianShi Industry CO., LIMITED established in 2004, which specialize in video conference research and development, OEM/ODM service, commit to supply Hi-tech, High-quality and Humanized products.
We regard "find and meet customers' different requirements" as our duty, continuously innovating, refining and changing. We try to stimulate our customers' infinite reverie, and meet their great eagerness. Relying on abundant strength and good reputations, our products are widely used in such fields as Finance, Postal service, Telecommunication, etc.
Our main products including 4K cameras, SD/HD/USB PTZ video conference cameras, HD IP cameras, keyboard controller, microphone, etc. They are widely used in Meeting, Medical, Telecommunication, Long distance education, School, Government, church, Skype, recording and broadcasting and so on, they are popular all over the world.
J.JTS high-definition(HD) video conference PTZ camera and ultra high definition(4K) video conference cameras provide in credible video, along with the sophisticated MPEG-4 AC audio that takes your visual communication experience to a new level.
Certifications
Exhibition:
Packing & Delivery
FAQ
1. What's your payment term?
Our payment term is TT in advance before shipment.
2. What`s your warranty period?
The warranty period is 3 years and start from the purchase date.
3. Do you offer remote assistance when facing a technical problem?
Yes, surely.We have very professional technical team,and it is our responsibility to help our clients when meet with any technical problem.
4. Could I put my own logo on products?
Sure, we have our R&D department, we can do ODM and OEM.
5. How do you guarantee the quality?
We have our own QC to inspect all our goods before packing. And also, we have do CE/FCC/ROSH,ISO.
6. I'm buying with your company at the first time, how can I trust you?
We totally understand if you have some doubt about us at our first cooperation. You are welcome to visit our company or our factory anytime you like. You can also choose trade assurance for your order.
