Jietong JT-9292 ISO18000-6C протокол возможностью погружения на глубину до 30 м длинные distancce метка диапазона UHF RFID
- Категория: Устройство чтения для контрольно-пропускной системы >>>
- Поставщик: Shenzhen,Jietong,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 337.37 $* | 344.37 $* |
| Jul-17-2025 | 273.78 $* | 278.24 $* |
| Jun-17-2025 | 331.41 $* | 338.86 $* |
| May-17-2025 | 329.18 $* | 336.59 $* |
| Apr-17-2025 | 262.42 $* | 267.9 $* |
| Mar-17-2025 | 323.67 $* | 329.71 $* |
| Feb-17-2025 | 321.66 $* | 327.48 $* |
| Jan-17-2025 | 318.1 $* | 324.57 $* |
Характеристики
Product Description
Physical Parameters | ||
Item No. | JT-9292 | |

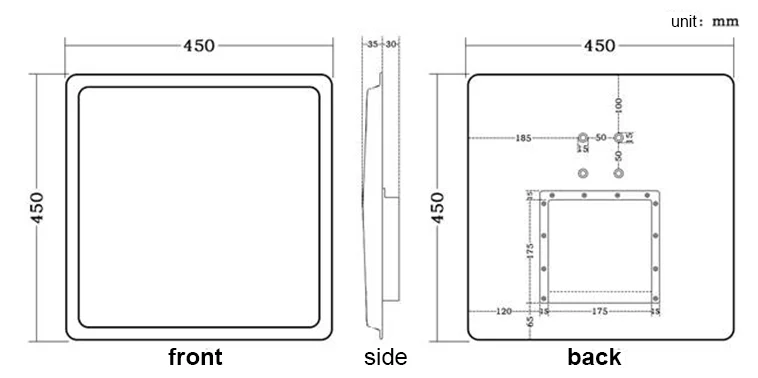

Item size | 450mm*450mm*50mm | |
Net weight | 5kg | |
Shell material | ABS | |
Performance Parameters | ||
Working frequency | 902~928MHz(US) or 865~868MHz(EU) | |
Read and write chip | Impinj R2000 | |
Communication port | RS232,RS485,Wiegand(standard),TCP/IP,WIFI,GPRS(slectable) | |
Protocol | (EPC C1 Gen2)ISO 18000-6C | |
Reading range | 0~30m | |
Antenna gain | 12dBi Linear Polarization | |
Input/output port | 2 channel relay output (selectable), 2-way I/O input | |
Power supply | 12V/3A | |
Development package | Provide DEMO software, SDK & C#, VC, Java development routines | |
Features | 6000V industrial high voltage lightning protection, extremely cold area warm treatment, anti copy | |
Interface | ||
JT-9292A | RS232 | |
JT-9292B | RS232,TCP/IP | |
JT-9292W | RS232,WiFi | |
JT-9292G | RS232,GPRS | |
Product features
1. Protocol support:ISO 18000-6C(EPC C1 Gen2);
2. Software with different programming language allows easy upgrade;
3.Support RS485,RS232,Wiegand26/34/32/26/66;
4.The output power is adjustable up to 30dbm, supporting various working modes such as timing mode, master-slave mode and trigger mode;
5. Waterproof and sunshine defending, idea for outdoor applications.
2. Software with different programming language allows easy upgrade;
3.Support RS485,RS232,Wiegand26/34/32/26/66;
4.The output power is adjustable up to 30dbm, supporting various working modes such as timing mode, master-slave mode and trigger mode;
5. Waterproof and sunshine defending, idea for outdoor applications.
Product application
1.Intelligent traffic such as ETC;
2. Customs border-crossing;
3. Warehousing and logistics management: commodity flow and warehousing management and flow management of
mail, parcels, air baggage, etc;
4. automatic weighting;
5. Container management,pallet management , asset management ;
6. Ticketing& access control;
7. Pharmaceuticals such as medical waste management.
2. Customs border-crossing;
3. Warehousing and logistics management: commodity flow and warehousing management and flow management of
mail, parcels, air baggage, etc;
4. automatic weighting;
5. Container management,pallet management , asset management ;
6. Ticketing& access control;
7. Pharmaceuticals such as medical waste management.
Application
Jietong UHF RFID Readers are widely used in vehicle management, staff management, weighting management, access control for warehouse and vehicle, garments management, steel management, intelligent library management, production line identification management, asset management etc.
Certifications
About Us
Shenzhen Jietong Technology Co. Ltd is a high-tech company focus on R&D, production and sales of UHF RFID hardware. Jietong has own R&D team which the engineers has more than 10 years of R&D experience.
In order to provide the best service and product to customer, Jietong is in continuously development to offer whole solution for the project, after-sale service and technology support.
In order to provide the best service and product to customer, Jietong is in continuously development to offer whole solution for the project, after-sale service and technology support.
Product
Jietong has main product lines which are including UHF RFID Impinj R2000 multi-tags reading reader,
UHF RFID single tag reading reader, UHF RFID long range Reader,
UHF RFID middle range reader, UHF RFID desktop reader/writer, UHF RFID reader module, UHF RFID
Handheld Reader, UHF RFID antenna, UHF RFID card and Tag, etc.
UHF RFID single tag reading reader, UHF RFID long range Reader,
UHF RFID middle range reader, UHF RFID desktop reader/writer, UHF RFID reader module, UHF RFID
Handheld Reader, UHF RFID antenna, UHF RFID card and Tag, etc.
Service
Shenzhen Jietong has the principle of the supremacy of users, and depends on market-oriented, new technology and high quality, we will provide the latest technology, the best products, the competitive, the sincerely service to our clients.
FAQ
1. Are you a manufacturer or trading company?
We are original equipment manufacturer in UHF RFID reader for over 10 years.
2. How is your QC?
We have strict QC process and all the products will be 100% testing before shipping.
3. What's your advantage compared with other company?
We have an own RFID industry R&D team which the engineers has more than 10 years of R&D experience.
4. Can I get technical support from you?
Sure. Our sales are of all good knowledge in the field. Besides,we have a technical team behind to support.
5. What can you offer?
We can provide free DEMO operation video and guaranteed after the warranty period,And provide product life-long maintenance(only maintenance costs of nuclear charges)
6. What is your payment term?
100% payment should be paid before shipping.
Our company supports these payment method: T/T,Paypal etc.
7. How long is your delivery time?
Our delivery time is within 3 working days, and we transport our RFID UHF Reader with UPS,DHL,EMS,FedEx and other shipment methods.
8. What is your warranty?
Within 2 years(For reader).
We are original equipment manufacturer in UHF RFID reader for over 10 years.
2. How is your QC?
We have strict QC process and all the products will be 100% testing before shipping.
3. What's your advantage compared with other company?
We have an own RFID industry R&D team which the engineers has more than 10 years of R&D experience.
4. Can I get technical support from you?
Sure. Our sales are of all good knowledge in the field. Besides,we have a technical team behind to support.
5. What can you offer?
We can provide free DEMO operation video and guaranteed after the warranty period,And provide product life-long maintenance(only maintenance costs of nuclear charges)
6. What is your payment term?
100% payment should be paid before shipping.
Our company supports these payment method: T/T,Paypal etc.
7. How long is your delivery time?
Our delivery time is within 3 working days, and we transport our RFID UHF Reader with UPS,DHL,EMS,FedEx and other shipment methods.
8. What is your warranty?
Within 2 years(For reader).
