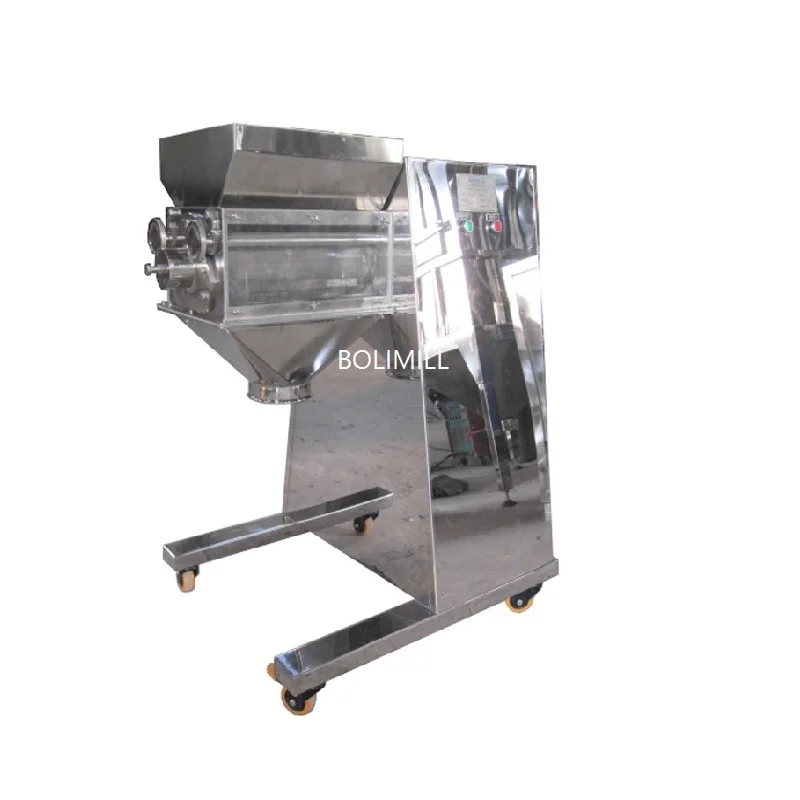

China Leading Organic Fertilizer Granulation Machine Granulating Machine

This equipment is widely used in the pharmaceutical, chemical and food industry, it is a popular granulating machine used for forming the granule sizes from moist powder material, or for crushing dried block stock into granules in required size.

Working Principle:

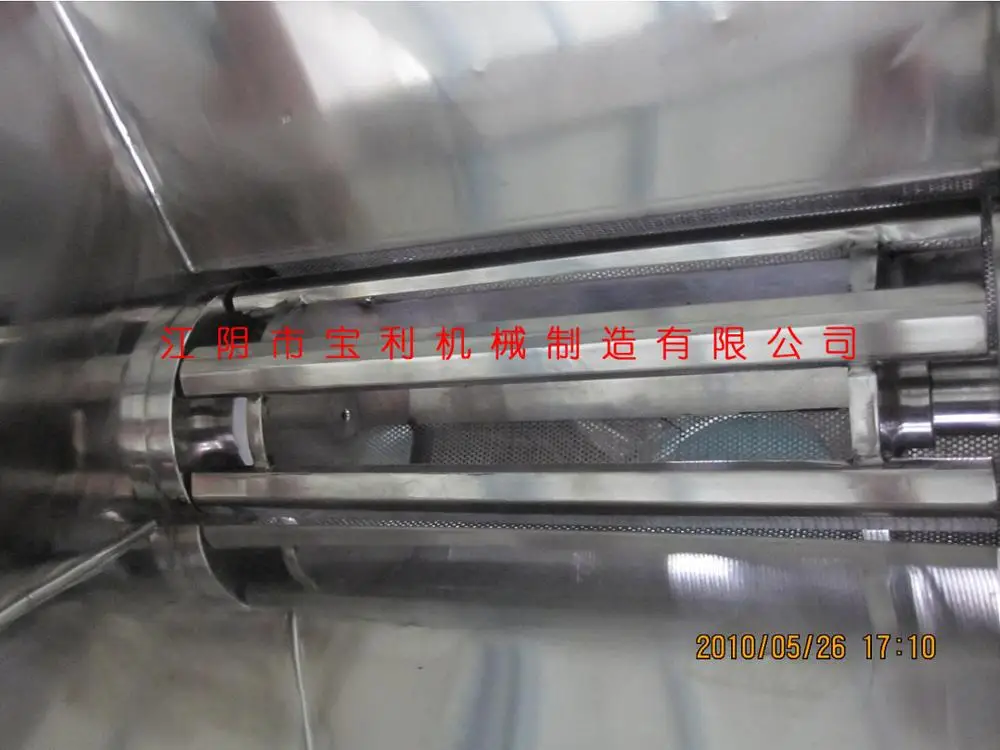

The principle of an oscillating granulator is to mechanically pass compacted material through a wire mesh screen or plate using an oscillating rotor. The rotor speed and rotation time are variable in the clockwise or counterclockwise directions. Particle size is controlled through mill-screen size, rotor speed, and the rotor's rotation angle.

Optional Model:
1.Sealed type:With gas-tight structure at both ends of granulation shaft, it effectively prevent the material into the sealing cover.

2.No rack type:A unique reducer owned byJunzhuo, made the whole machine enclosed .The gearbox has no rack bar and skateboard. There is no sliding friction and the transmission efficiency is much higher. Such a clean healthy environment can meet GMP standard.

3.Explosion-proof: all models can be customized to meet explosion-proof production environment.

4.Large power: Upgrade the transmission gear box and motor, it is suitable for powder products and high proportion materials.

Machine techical Data:

Model	Capacity	Rotor Size	Power	Rotor Speed	Overall size	Weight
YJB-100	30-200 kg/h	120 mm	1.1 kw	55 r/min	700*400*1050	150 kg
JB-160	100-300 kg/h	160 mm	3 kw	60r/min	850*820*1080	210 kg
JB-250	150-550 kg/h	250 mm	5.5 kw	40-50 r/min	1150*820*1270	600 kg

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.

Q: Do you provide material test ? is it free or extra ?
A: Yes, we could offer the testing for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.

Certifications

Our company locates at Wuxi city, very near Shanghai City and it only takes 30 minutes to get to our city by train from Shanghai.
1) We are golden supplier on alibaba with a history since 2008
And our factory's history is from 2004
2) We have CE certificate, ISO,BV...etc.
3) Each year,we takes part in a lot of Expos :for example, FIC, CPHI, API...etc

Our Company

Jiangyin Baoli Machinery Manufacturing Co.,Ltd is a manufacturing-oriented enterprise founded in 2004.

After more than ten years of unremitting efforts, our company mainly applicated in Crushing/Mixing/Coneying/Sifting/Drying equipments from all over the world.



Why choose us?
* 24 hours online email service.
* Our principle: high honest, quality,service
* We are a big factory with rich experience and technology, engaged in the machinery industry for over 13 years. Best quality controls best services.
