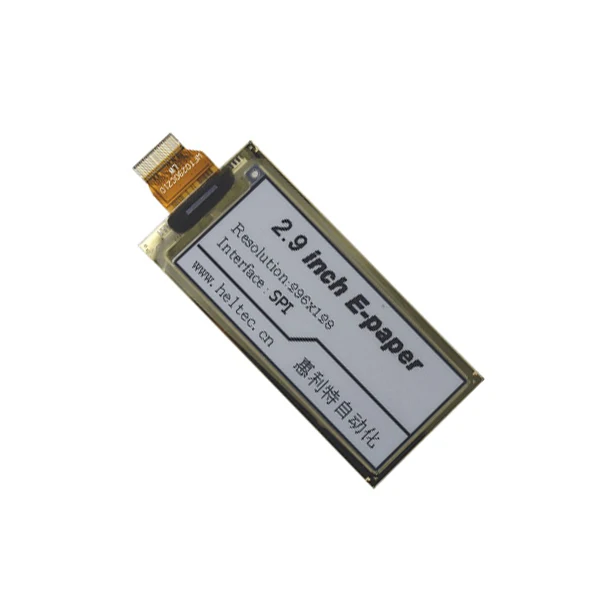

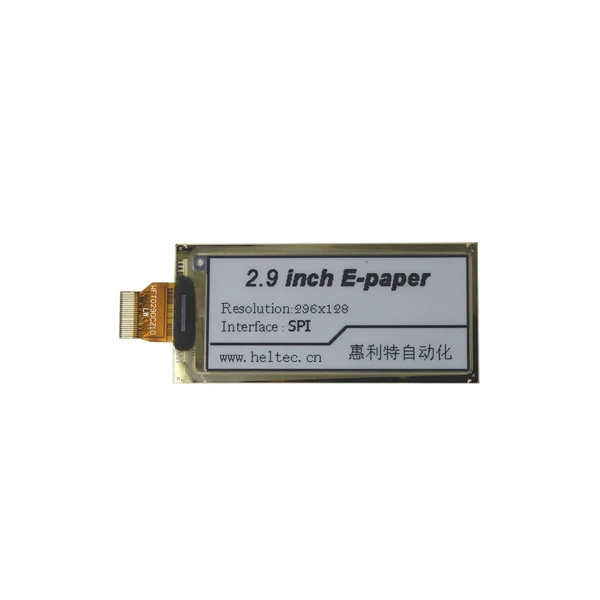

2 9 дюймовый 296*128 электронная бумага черно-белый SPI электронный экран дисплея eink
- Категория: Модуль OLED/E-Paper >>>
- Поставщик: Chengdu,Heltec,Automation,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 7.93 $* | 7.17 $* |
| Aug-17-2025 | 7.24 $* | 7.16 $* |
| Jul-17-2025 | 6.69 $* | 6.14 $* |
| Jun-17-2025 | 7.67 $* | 7.86 $* |
| May-17-2025 | 6.1 $* | 6.48 $* |
| Apr-17-2025 | 7.38 $* | 7.76 $* |
| Mar-17-2025 | 7.82 $* | 7.42 $* |
| Feb-17-2025 | 7.90 $* | 7.26 $* |
| Jan-17-2025 | 7.70 $* | 7.51 $* |
Характеристики
Product Description
Display some stuff on E-Ink display is a series of chemical changes. For E-Ink display, power only needed during refresh time, pictures can keep shown in the display without any power for more than 180 days. The content displayed is the same as written on paper. Very suitable for shelf labeling, ID tag.
parameters | ||

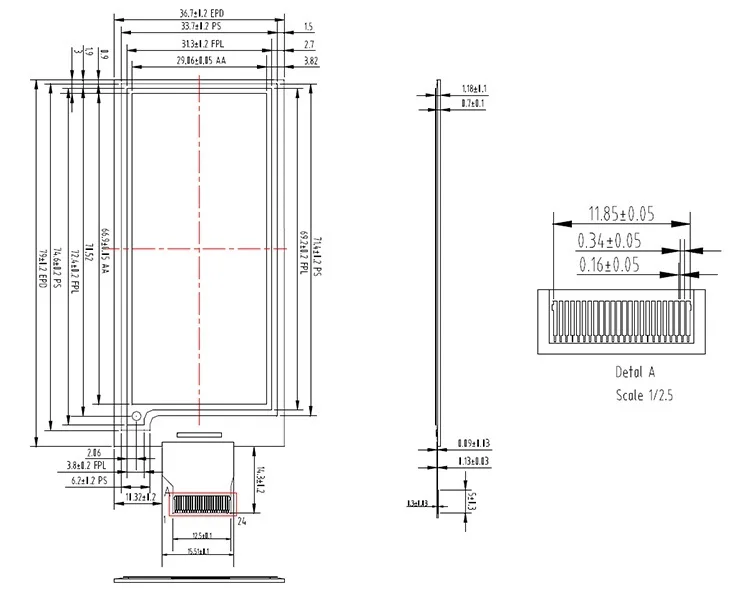

Overall dimension: 79.0x 36.7x 0.34mm Display size: 66.90 x 29.06mm Dpi:112 Resolution: 296 x 128 Point size: 0.227(H) X 0.226(V) Color: black,white Gray scale level: none Refresh method: Global/partial refresh Refresh time: 680ms Interface type: SPI Working voltage: 2.3-3.6v Refresh power consumption: 26.4mw Working temperature: 0 ~ 50 ℃ Storage temperature: -25 ~ 70 ℃ Controller IC: IL0373 | ||
● Be built in driver IC, without additional driver, only a few peripheral devices. That is to mean it can be displayed through MCU control which is saving resources.
● black and white and yellow pictures can be displayed.
● ultra wide viewing angle is nearly 180 °.
● ultra low power consumption (only when refreshing).
● pure reflection mode.
● bi directional stability.
● commercial level temperature range.
● anti glare hard coated front surface.
● low current deep sleep mode.
● adopt cog package, IC thickness is 300um.
● service life (no failure refresh times): more than 1 million times.
● black and white and yellow pictures can be displayed.
● ultra wide viewing angle is nearly 180 °.
● ultra low power consumption (only when refreshing).
● pure reflection mode.
● bi directional stability.
● commercial level temperature range.
● anti glare hard coated front surface.
● low current deep sleep mode.
● adopt cog package, IC thickness is 300um.
● service life (no failure refresh times): more than 1 million times.
