CQJB новый дизайн мотоциклетные инструменты цифровой спидометр 7
- Категория: Счетчики для мотоцикла >>>
- Поставщик: Chongqing,Jiuben,Commerce,And,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 37.48 $* | 38.46 $* |
| Jul-15-2025 | 30.97 $* | 31.73 $* |
| Jun-15-2025 | 36.51 $* | 37.2 $* |
| May-15-2025 | 36.98 $* | 37.3 $* |
| Apr-15-2025 | 29.21 $* | 30.62 $* |
| Mar-15-2025 | 35.29 $* | 36.41 $* |
| Feb-15-2025 | 35.71 $* | 36.22 $* |
| Jan-15-2025 | 35.55 $* | 36.2 $* |
Характеристики

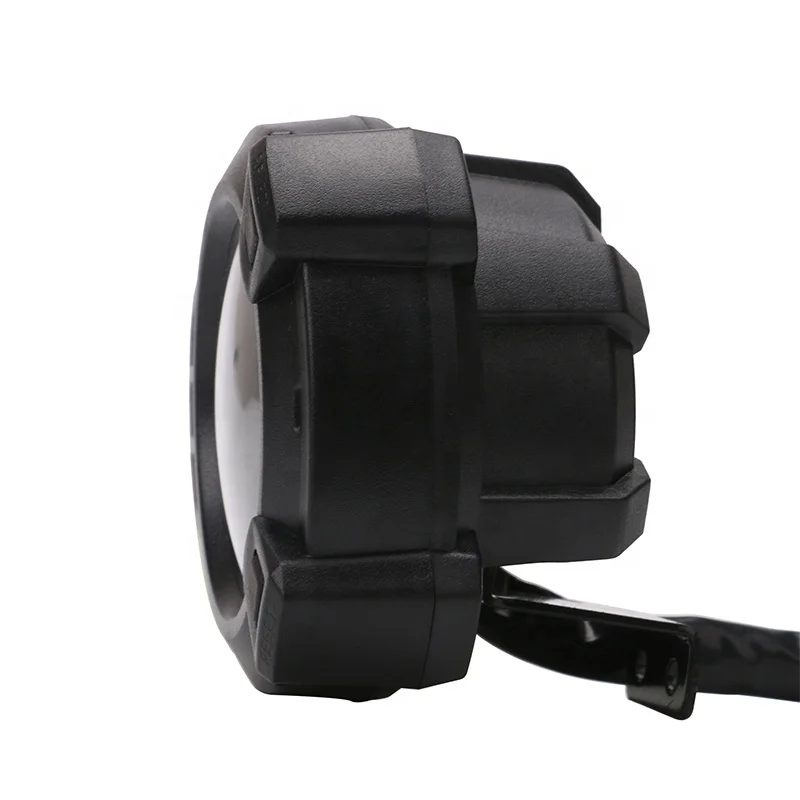

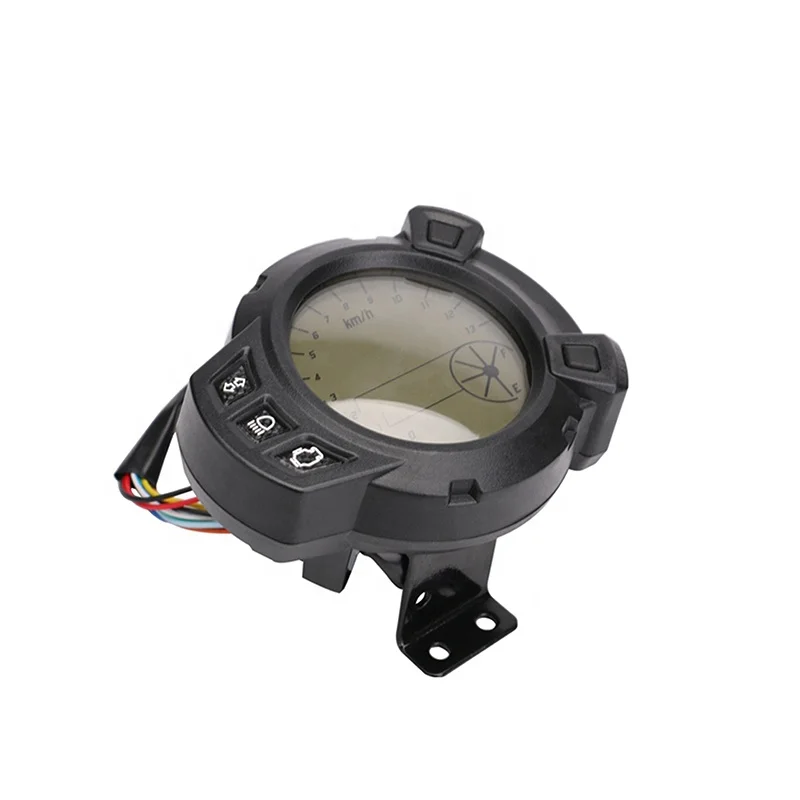

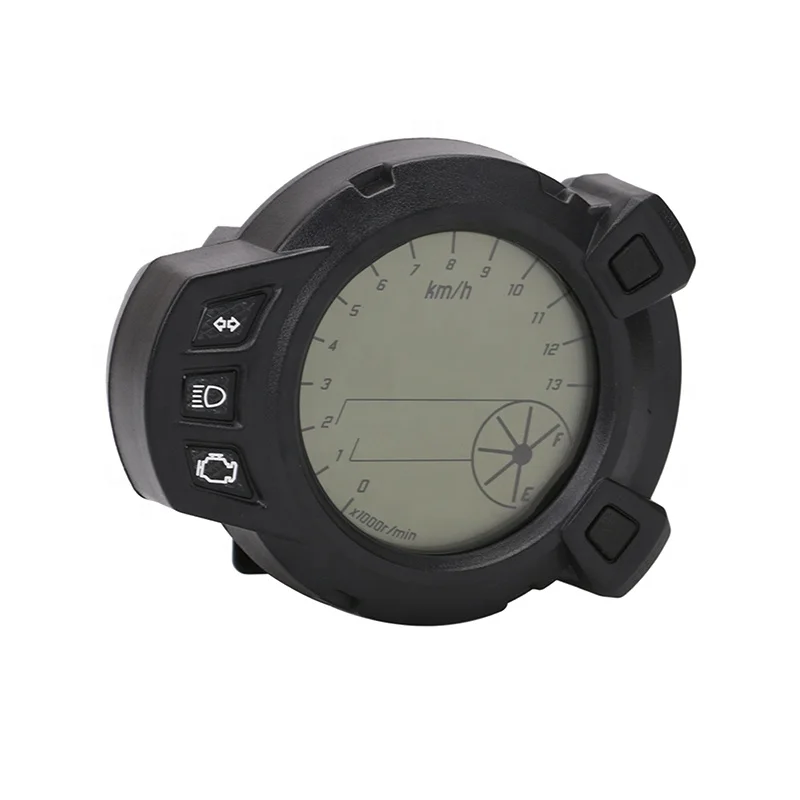

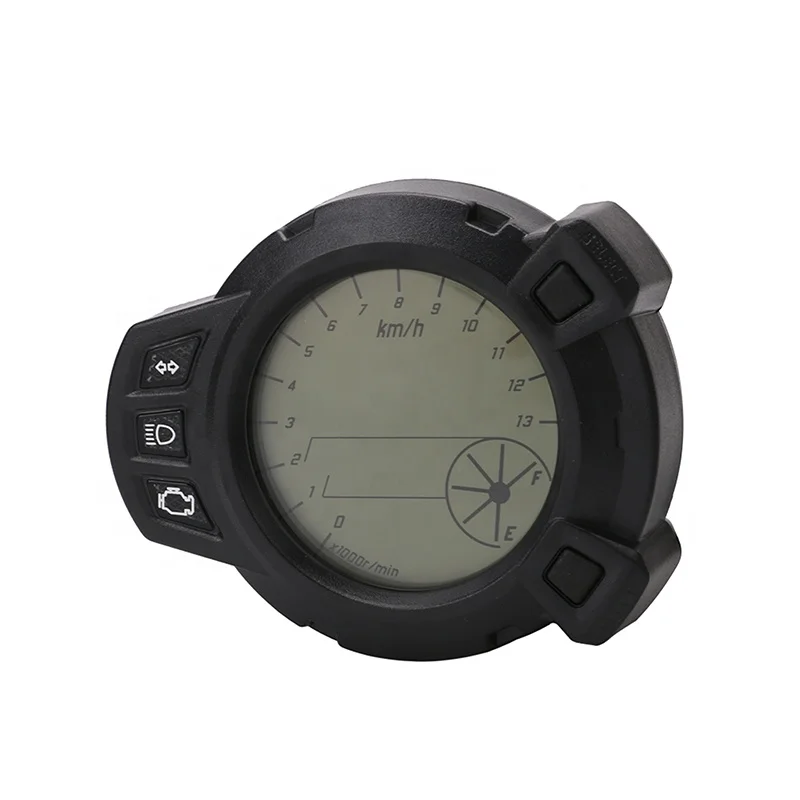

Products Description
Product Name | Motorcycle meter |
Model | BWS RXM |
Net Weight | 0.6KG |
Material | ABS |

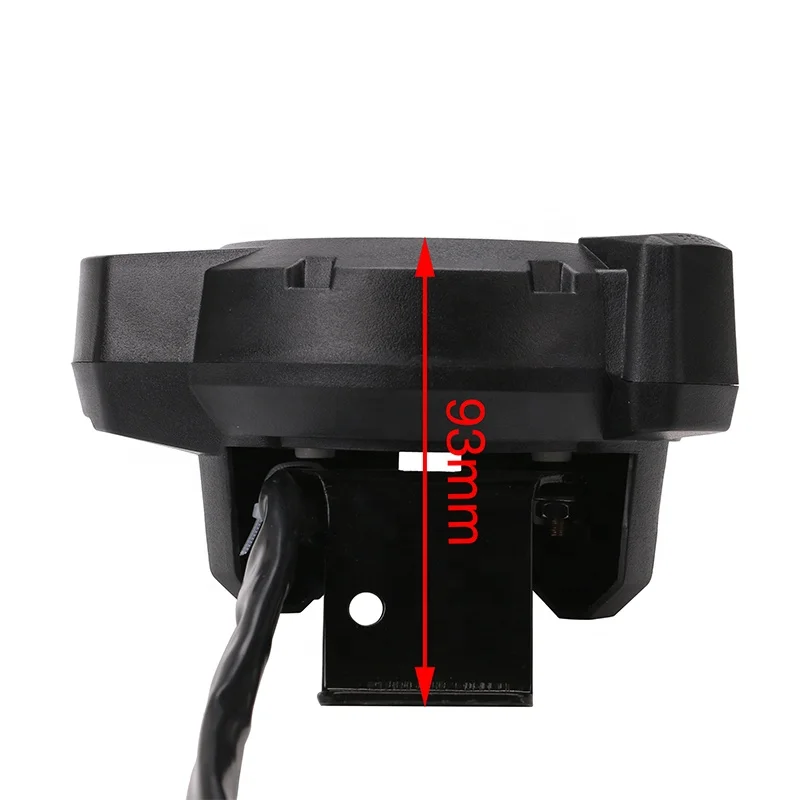

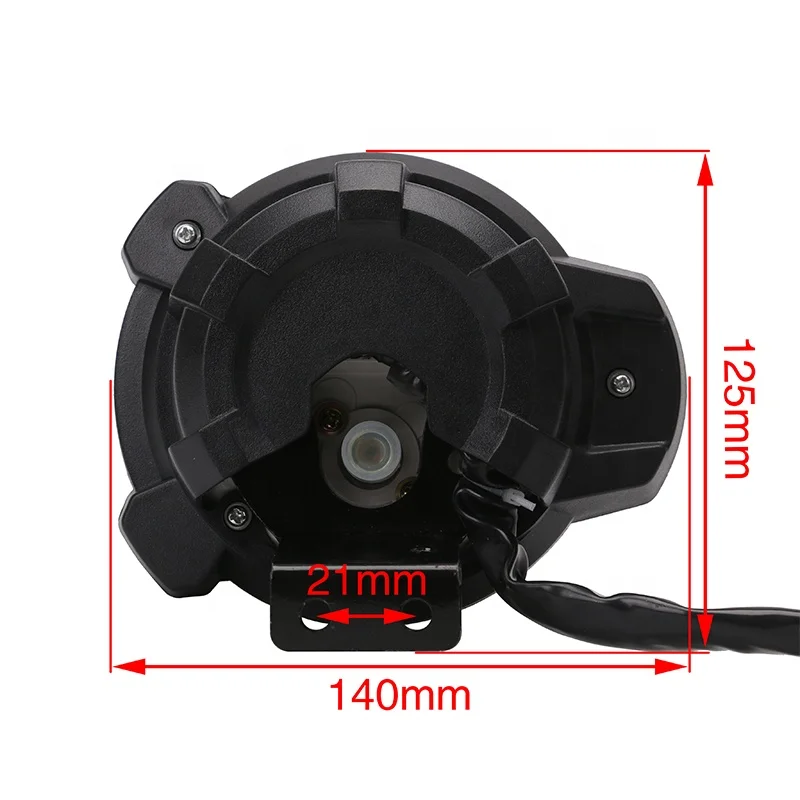

Size | 140*120*95mm |
OEM | Accept |
MOQ | 1 PCS |
Brand | CQJB |
Color | White/Yellow Red/Green/Purple/Blue |
Package | Plastic Bag+Carton |
wiring instructions
red wire--12V battary positive electrode
black wire--positive electrode
green wire--negative electrode
orange wire--left turn signal wire
light blue--right turn signal wire
blue wire--Beam indicator wire
yellow wire--Engine fault light wire
blue/white wire--oil level signal wire
red/black wire--RPM signal wire
【Function and wire cluster introduction】
red wire--12V battary positive electrode
black wire--positive electrode
green wire--negative electrode
orange wire--left turn signal wire
light blue--right turn signal wire
blue wire--Beam indicator wire
yellow wire--Engine fault light wire
blue/white wire--oil level signal wire
red/black wire--RPM signal wire
【Function and wire cluster introduction】
Maybe no more description for individual updated functions, please according to the actural function of the instrument
light:
high beam: blue---positive control
left/right turn light----green---positive control
engine Fault signal light: yellow---negative control
LCD instrument panel backlight: colorful-Long press the select key transformation background light color
oil Level
Fuel signal less than 54 Ω will shows as 5 grill oil level be full , exceed 538 Ω will show as oil empty,
RPM:
RPM corresponding : Meter 16OHZ to 10 * 1000 / min
speed:
speed ratio 1:1400
【Meter buttons only works in motorcycle shut down suitation 】
light:
high beam: blue---positive control
left/right turn light----green---positive control
engine Fault signal light: yellow---negative control
LCD instrument panel backlight: colorful-Long press the select key transformation background light color
oil Level
Fuel signal less than 54 Ω will shows as 5 grill oil level be full , exceed 538 Ω will show as oil empty,
RPM:
RPM corresponding : Meter 16OHZ to 10 * 1000 / min
speed:
speed ratio 1:1400
【Meter buttons only works in motorcycle shut down suitation 】
there are two buttons SELECT (upper key ), and RESET (lower key) on the instrument
Press the SELECT button, to switch over ODO , TRIP and oil miles.
IN TRIP display state , Long press the RESET button can clear the TRIP record .
In the oil miles display state , long press the RESET button to clear the oil mil record .
In ODO display screen , Long press the reset button to enter into clock adjustment screen .
in the clock adjustment screen, short press RESET button in order to adjust the model of hour & minute regulation state transfer, choosed figure will blink.
In the clock adjustment screen , short press SELECT button to hours & minute plus one. Long press to continually adding . ( clock is still counting but will not display during motorcycle switches off )
Press the SELECT button, to switch over ODO , TRIP and oil miles.
IN TRIP display state , Long press the RESET button can clear the TRIP record .
In the oil miles display state , long press the RESET button to clear the oil mil record .
In ODO display screen , Long press the reset button to enter into clock adjustment screen .
in the clock adjustment screen, short press RESET button in order to adjust the model of hour & minute regulation state transfer, choosed figure will blink.
In the clock adjustment screen , short press SELECT button to hours & minute plus one. Long press to continually adding . ( clock is still counting but will not display during motorcycle switches off )
Exhibition
at the factory.
Sign sample order contract with customer at Kenya exhibition.
Recommend Products
Manufacturing Technique
CQJB
We are a company with independent production capacity .The factory has more than 20years of production experience .We look forward to bringing you quality and satisfactory service.
Be friends with you is our philosophy.
Our service
1.Working time :Monday to Saturday Beijing time (GMT+8) 7:30-22:30.
2.Reply within 8 hours .
3.Convenient logistics traking query.
4.Can be made as your own logo,your own brand.
5.OEM is available ,according to customers' drawing or samples.
6.Factory direct sales with competitive price.
7.If the stock is avaailable ,we normallyarrange them in 48 hours after you pay.
Trading Process
Certifications
FAQ
Q1:Why choose JB in this big market?
A: We always take the interests of customers as the starting point, truly do for customer service, customer to solve problems.
Q2: When can get the price ?
A:The quotation will be answered after both parties confirm the specific questions such as product model.
Q3: How can get a sample to check quality?
A:Some samples could be free for you , for the freight we can discuss after. Usually, the sample will be sent within one week. It
depends on the stock.
Q4:When will the goods be delivered?
A:After the goods are confirmed through negotiation, we will send the sample list within 3-5 days. We will send the bulk order
with customized products within 30 days.
Q5:What is your terms of payment?
A: 1.Full payment before delivery .We'll show you the photos of before you pay the balance.
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
A: 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come
from.
A: We always take the interests of customers as the starting point, truly do for customer service, customer to solve problems.
Q2: When can get the price ?
A:The quotation will be answered after both parties confirm the specific questions such as product model.
Q3: How can get a sample to check quality?
A:Some samples could be free for you , for the freight we can discuss after. Usually, the sample will be sent within one week. It
depends on the stock.
Q4:When will the goods be delivered?
A:After the goods are confirmed through negotiation, we will send the sample list within 3-5 days. We will send the bulk order
with customized products within 30 days.
Q5:What is your terms of payment?
A: 1.Full payment before delivery .We'll show you the photos of before you pay the balance.
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
A: 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come
from.
