4 3-10 Штекерный мини-разъем DIN 7/16 гнездовой разъем RF коаксиальный
- Категория: Connectors and Accessories >>>
- Поставщик: Ningbo,Keenan,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 1.44 $* | 1.55 $* |
| Jul-17-2025 | 1.75 $* | 1.19 $* |
| Jun-17-2025 | 1.70 $* | 1.85 $* |
| May-17-2025 | 1.62 $* | 1.59 $* |
| Apr-17-2025 | 1.98 $* | 1.19 $* |
| Mar-17-2025 | 1.52 $* | 1.16 $* |
| Feb-17-2025 | 1.8 $* | 1.76 $* |
| Jan-17-2025 | 1.43 $* | 1.85 $* |
Характеристики

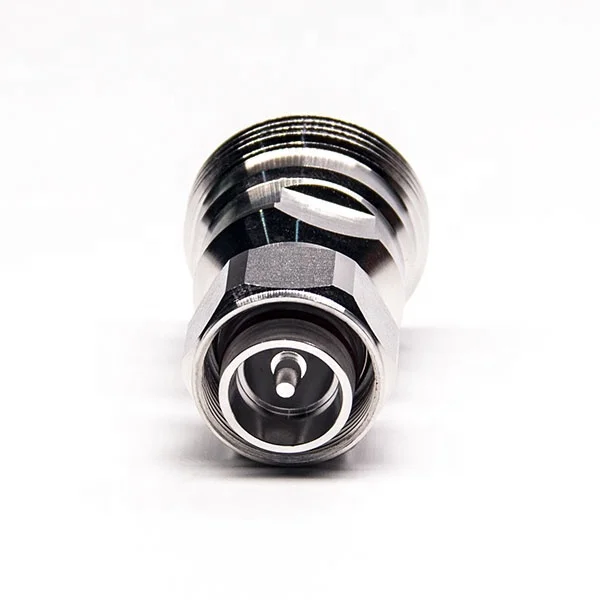

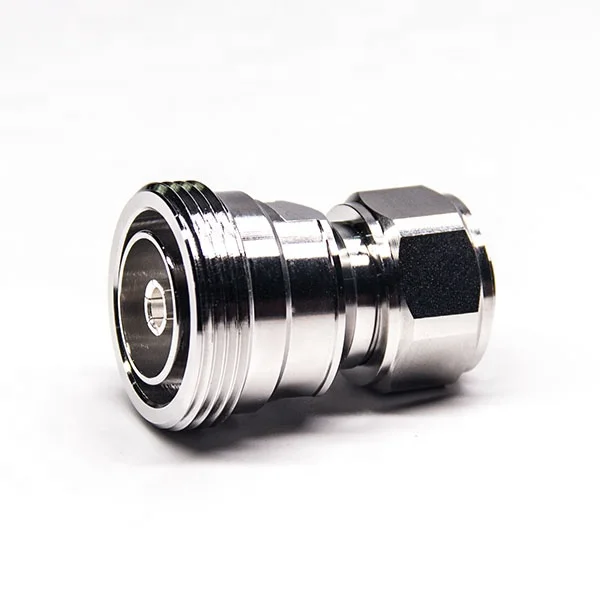

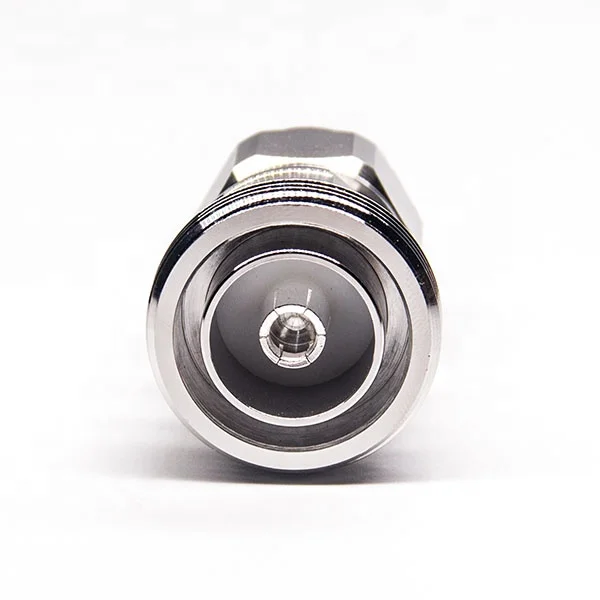

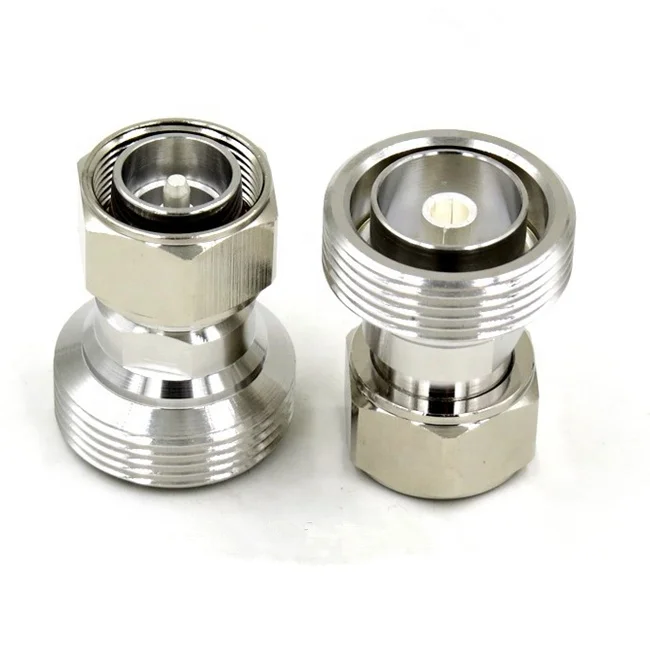

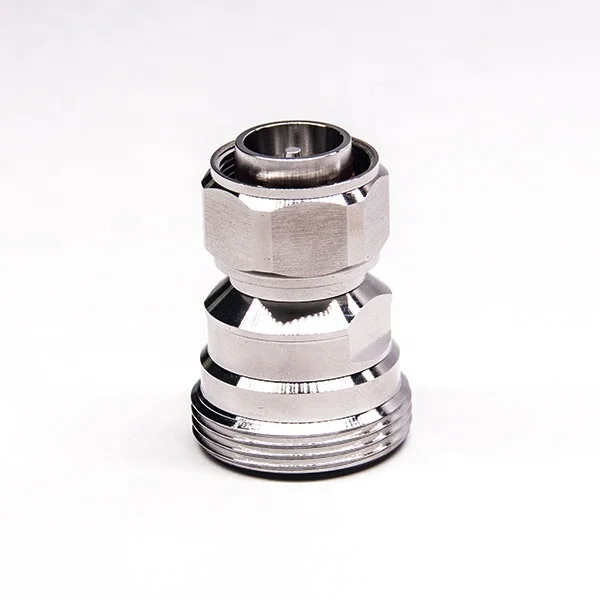

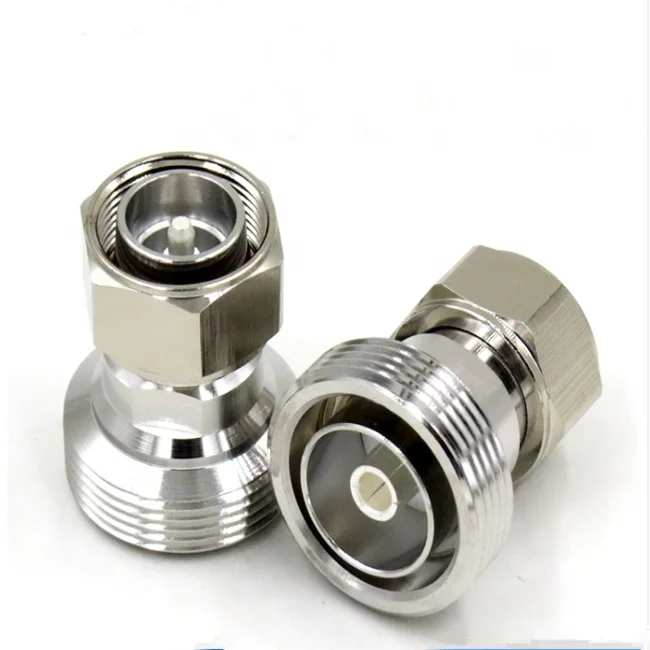

4.3-10 MINI DIN Male Connector to DIN 7/16 Female connector RF coaxial adapter
Packaging & Delivery
Packaging Details: 1 piece in one plastic bag.
2 100 pieces in one paper carton.
3 Clear Plastic Bag/ Standard Export Carton.
4 According to customers requirement.
Interface |
| ||
According to | IEC 60169-54 / IEC 60169-4 | ||
| |||
Electrical |
| ||
Characteristic Impedance | 50 ohm | ||
Frequency Range | DC-6GHz | ||
VSWR | VSWR≤1.10(3.0G) | ||
PIM3 | ≤-160dBc@2x20w | ||
Dielectric Withstanding Voltage | ≥2500V RMS,50hz,at sea level | ||
Contact Resistance | Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ | ||
Dielectric Resistance | ≥5000MΩ | ||
| |||
Mechanical |
| ||
Durability | Mating cycles ≥500cycles | ||
| |||
Material and plating |
|
| |
| Material | plating | |
Body | Brass | Tri-Alloy | |
Insulator | PTFE | - | |
Center conductor | Tin Phosphor bronze | Ag | |
Gasket | SIlicone rubber | - | |
Other | Brass | Ni | |
| |||
Environmental |
| ||
Temperature Range | -40℃~+85℃ | ||
Rosh-compliance | Full ROHS compliance | ||
